Vollrath 3646780 Steam Tables & Food Wells
Description

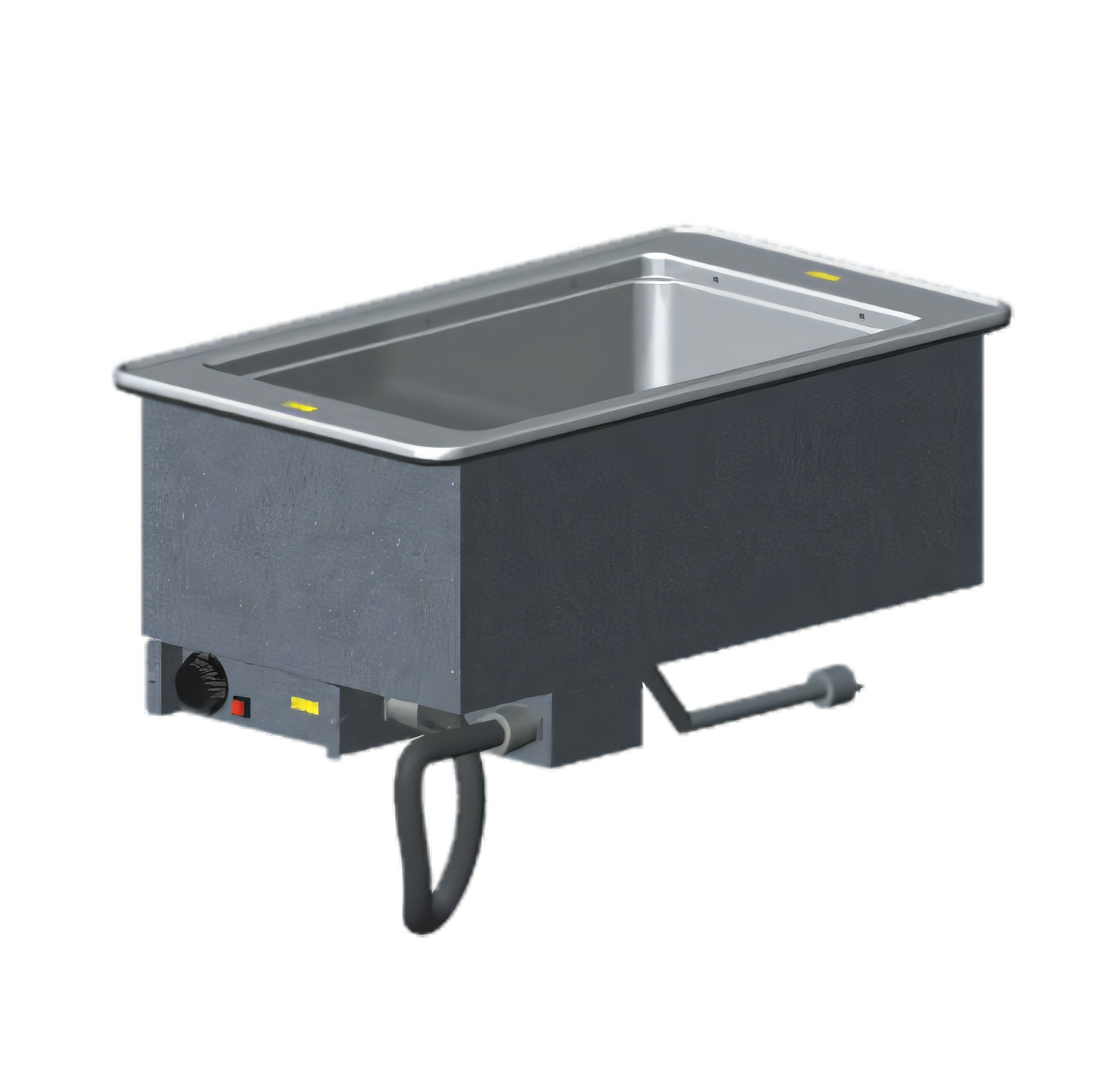

Vollrath 1-Well Hot Drop-In with Auto-Fill – 625 W, 208 V
Thermostatic | Manifold Drain | Model 3646780Keep signature entrées, sides and sauces at the perfect serving temperature with Vollrath’s USA-made 1-Well Hot Food Well. Designed for top-mount, zero-clearance installation, this self-contained electric unit combines a deep-drawn stainless well, automatic water fill, and precise thermostatic control—delivering consistent moist heat while simplifying daily operation and clean-up.
Why You’ll Love It

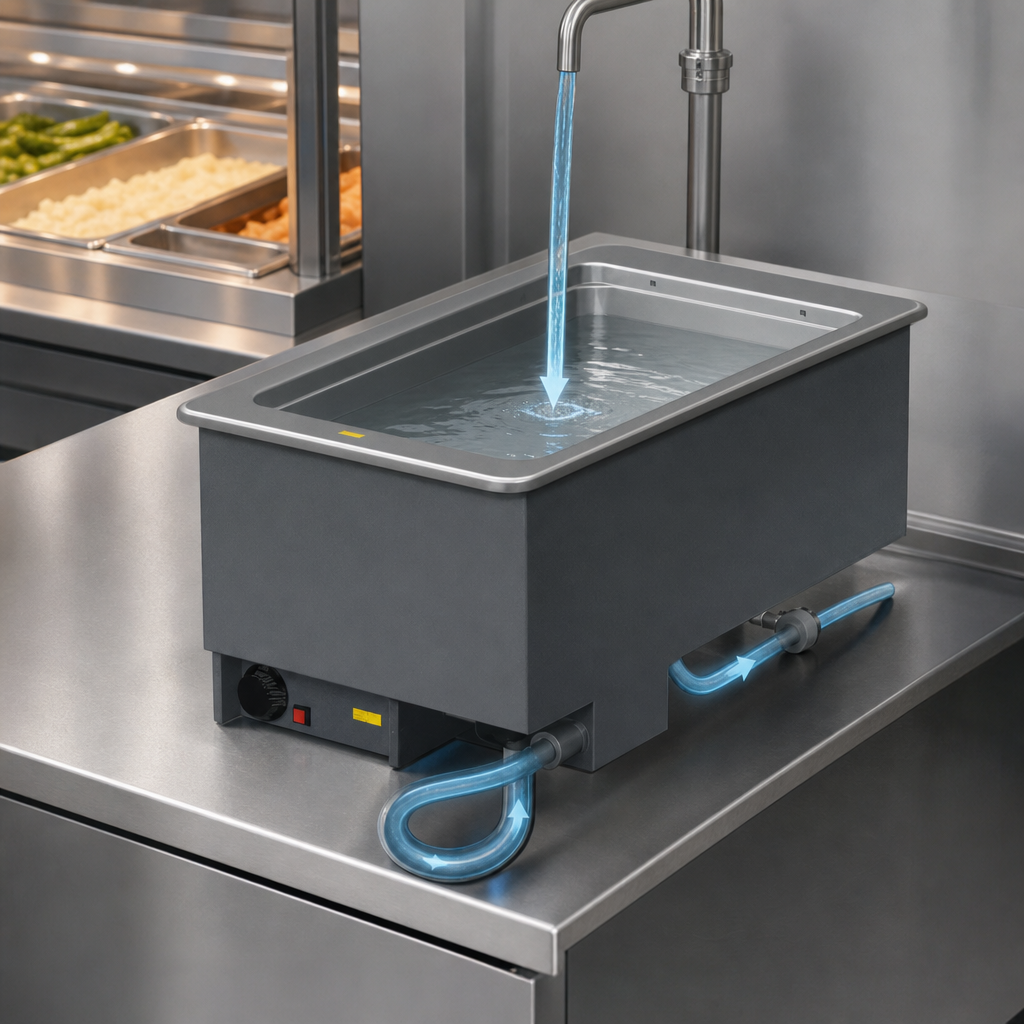

- Auto-fill system keeps water at the ideal level—no manual monitoring required.
- Thermostatic control dial (remote-mountable) with power indicator light for accurate, repeatable holding temperatures.
- 20-gauge stainless steel well fits 12" × 20" full-size or fractional pans up to 6" deep.
- Full-perimeter drip-edge flange contains spills and condensation, protecting your counter.
- 1" copper manifold drain with individual well shutoffs and manifold shutoff for mess-free emptying.
- High-density glass-fiber insulation on all sides allows tight “zero-clearance” installs.
- 6' (1.8 m) cord with factory-installed NEMA 6-15P—no hard-wiring needed.
- NSF 4 & cULus listed; built in Sheboygan, Wisconsin, USA.
Technical Specs
| Well count / style | 1 well, wet operation only |
|---|---|
| Heating control | Thermostatic (infinite adjustment) |
| Power | 625 W | 208 V | 1-ph | 3.0 A |
| Electrical connection | 6 ft cord with NEMA 6-15P plug |
| Overall size (W × D × H) | 15" × 26" × 21-1/2" (38 × 66 × 54.6 cm) |
| Cutout size (W × D) | 14-1/4" × 25-1/4" (36.2 × 64.1 cm) |
| Corner radius | 7/8" (2.2 cm) required |
| Well material | 20 ga stainless steel, insulated |
| Top flange | 18 ga stainless steel with breaker gasket |
| Exterior housing | 18 ga galvanized steel |
| Drain | 1" copper manifold, individual & master shutoffs |
| Certifications | NSF 4, cULus |
| Origin | Made in USA |
Includes positioning & adjustable mounting clips for counters up to 3" (7.6 cm) thick. Adapter bars recommended when using fractional pans (sold separately).
Optional Accessories
- Sheet-pan adapter (Item 19186)
- Marine-grade “HD” well version (contact us for availability)
Warranty: 1-year parts & labor. See complete terms at VollrathFoodservice.com.
Modular drop-ins are custom-configured and cannot be cancelled or returned once ordered. Steam table pans shown in images are not included.
