Vollrath

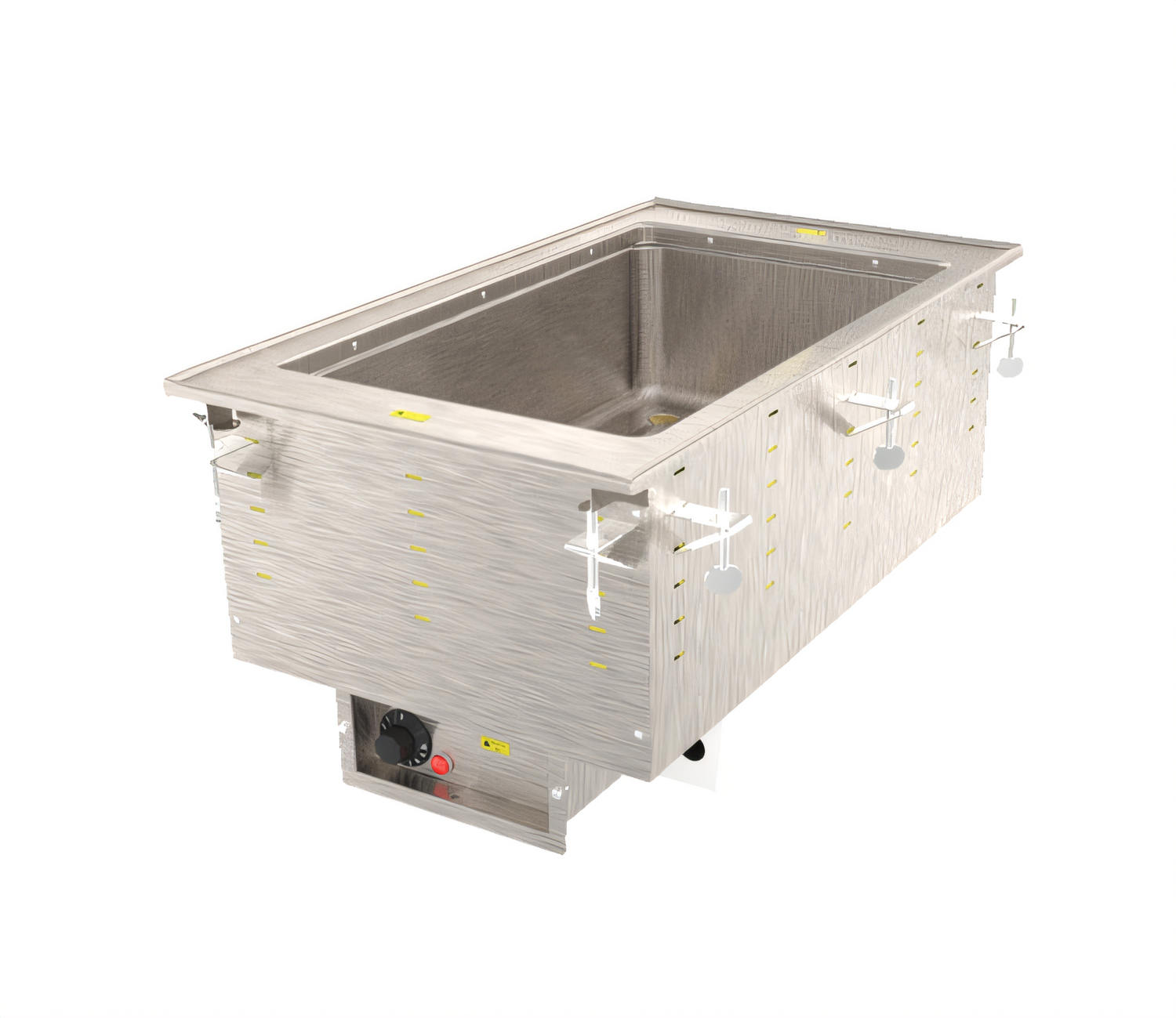

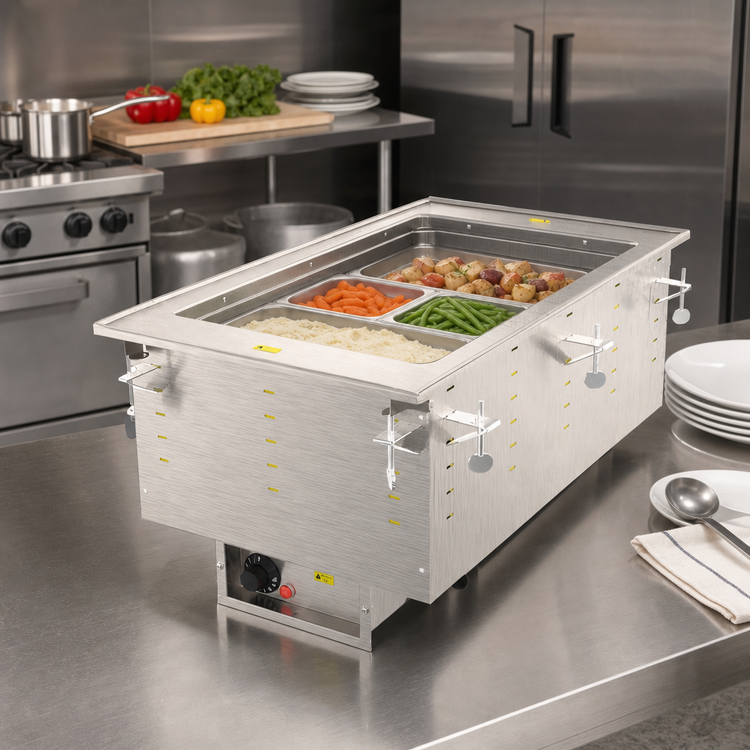

Vollrath Drop-In Electric Hot Food Well, 1 Full-Size Insulated Wet Well, Auto-Fill, 208-240V

SKU: 3646761HD
$2,784.60
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Food Bars & Buffets Food Holding & Warming Equipment Food Wells & Serving Lines Hot Well New Arrivals Restaurant Equipment Steam Tables & Food Wells Vollrath

Vollrath Drop-In Electric Hot Food Well, 1 Full-Size Insulated Wet Well, Auto-Fill, 208-240V

Individual pan design with wet operation, drain shutoffs, and NEMA 6-15P cord

Keep foods hot and ready to serve with a compact drop-in well that combines wet-operation holding, auto-fill convenience, and precise infinite control.

  • Holds one full-size 12 Inches x 20 Inches pan in a compact drop-in design.
  • Wet-operation, insulated 316 marine-grade stainless steel well helps retain heat efficiently.
  • Auto-fill and infinite control support consistent temperature management.
  • Stainless steel top and exterior housing with a drip-free flange help keep the serving line cleaner.
  • Includes a 1 Inch copper manifold drain with shutoffs, positioning clips, and a cord with NEMA 6-15P plug.

Overall Dimensions:

15.0"W x 26.0"D x 21.5"H

Product Weight:

51.0 lb

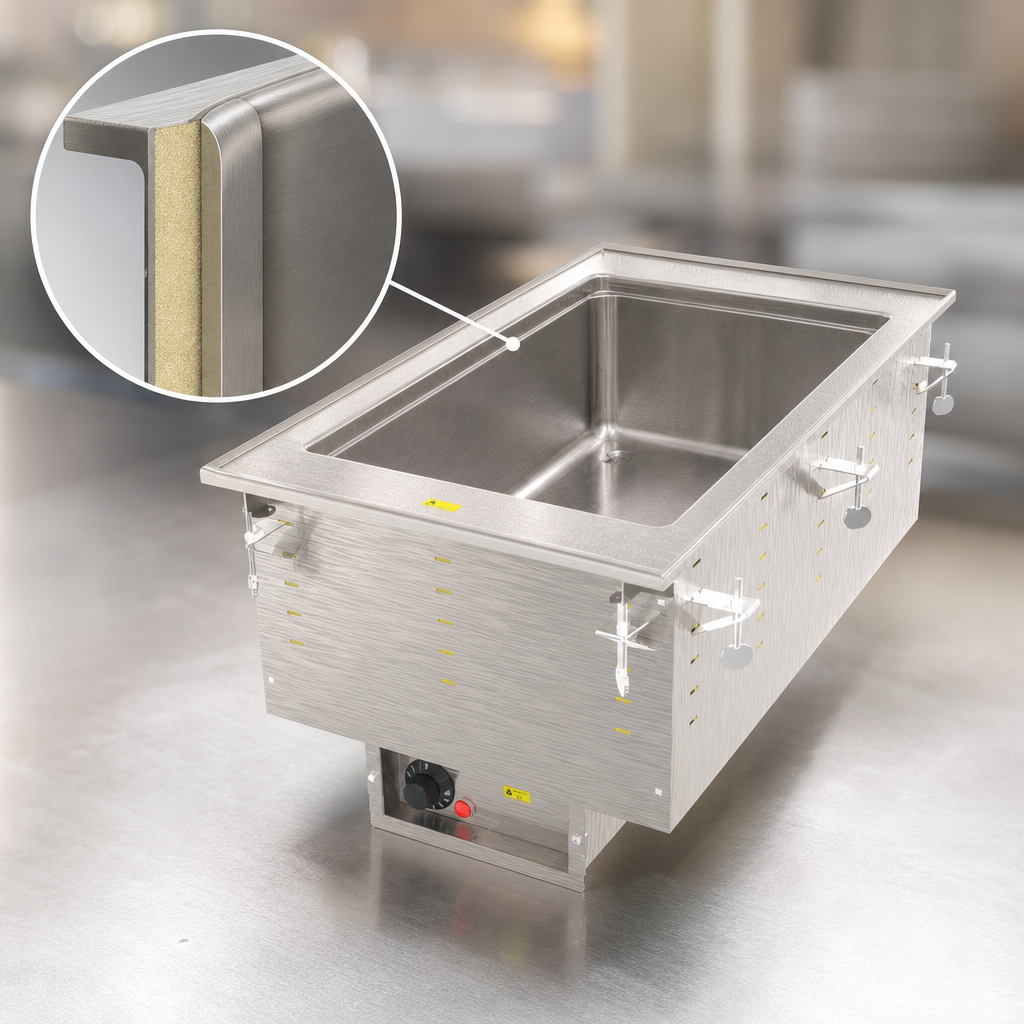

Insulated 316 Marine-Grade Stainless Steel Well

The insulated well is built for wet operation and improved heat retention.

Auto-Fill System

Automatically maintains the water level for wet holding applications.

Infinite Control

Provides precise manual temperature adjustment from the control panel.

Drip-Free Flange

Helps reduce spills around the opening for a cleaner serving area.

1 Inch Copper Manifold Drain With Shutoffs

Includes well shutoff and manifold shutoff for easier draining and service.

Stainless Steel Top And Exterior Housing

Durable stainless steel construction is designed for commercial food bar use.

Cord With NEMA 6-15P Plug

Includes a power cord and plug for electrical connection.

Positioning Clips Included

Helps secure the unit in the countertop cutout during installation.

Type Hot Food Well
Style Individual Pans
Installation Type Drop-In
Pan Capacity 1
Pan Size 12 Inches x 20 Inches
Controls Infinite
Material Stainless Steel
Interior Finish 316 Marine-Grade Stainless Steel
Voltage 208-240 Volts
Amps 3.6-4.2 Amps
Watts 1 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 6-15P
Water Connection Required
Drain Connection Required
Drain Connection Size 1 Inch
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 15 Inches
Shipping Depth 26 Inches
Shipping Height 22 Inches
Shipping Weight 51 Pounds
Cutout Width 14-1/4 Inches
Cutout Depth 25-1/4 Inches
Corner Radius 7/8 Inch

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Catalog page PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

No. This unit is wet-operation only.
It is designed for one full-size 12 Inches x 20 Inches pan.
Yes. It includes a 1 Inch copper manifold drain with well shutoff and manifold shutoff.
It requires 208-240 Volts, 1-Phase, 60 Hz power and draws 3.6-4.2 Amps at 1000 Watts.
The required cutout is 14-1/4 Inches wide by 25-1/4 Inches deep, with a 7/8 Inch corner radius.
