Vollrath Drop-In Electric Hot Food Well, Auto-Fill, 1 Full-Size 12 x 20 Pan, Wet Operation

SKU: 3646761
$2,689.70
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Food Bars & Buffets Food Holding & Warming Equipment Food Wells & Serving Lines Hot Well New Arrivals Restaurant Equipment Steam Tables & Food Wells Vollrath

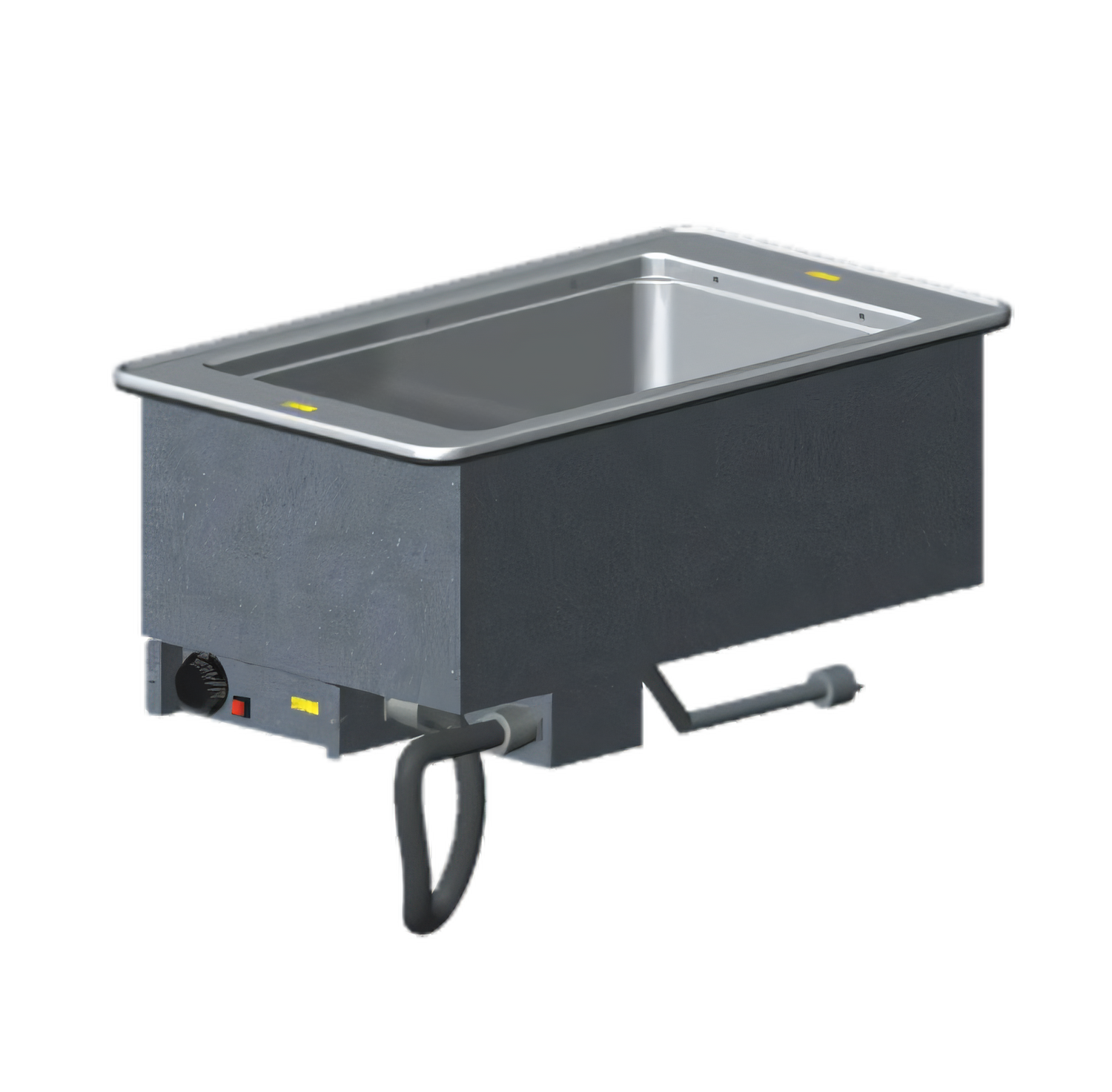

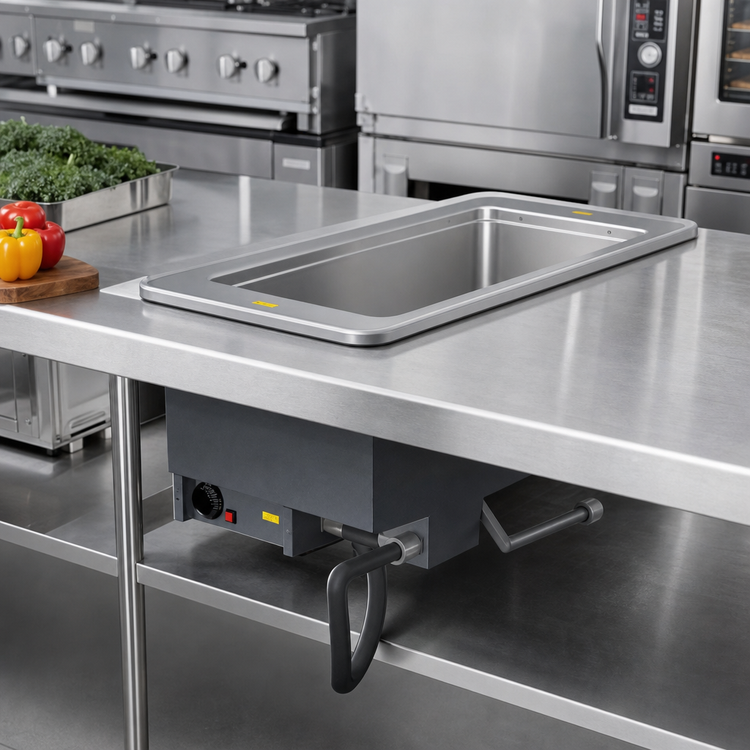

Vollrath Drop-In Electric Hot Food Well, Auto-Fill, 1 Full-Size 12 x 20 Pan, Wet Operation

208-240V, Single-Phase, Infinite Control, Insulated Well

An insulated drop-in hot well with auto-fill and wet-operation control keeps buffet foods safely hot and ready to serve.

  • Designed for wet operation only, making it ideal for hot holding applications.
  • Holds one full-size 12 x 20-inch pan in an individual-pan layout.
  • Auto-fill design with panel-mounted infinite control and power indicator light.
  • 20-gauge stainless steel insulated well helps retain heat during service.
  • 18-gauge stainless steel top with galvanized exterior housing for durable, commercial use.
  • 1-inch copper manifold drain includes well shutoff and manifold shutoff.
  • Includes positioning clips and a cord with NEMA 6-15P plug.

Overall Dimensions:

15.0"W x 26.0"D x 21.5"H

Product Weight:

51.0 lb

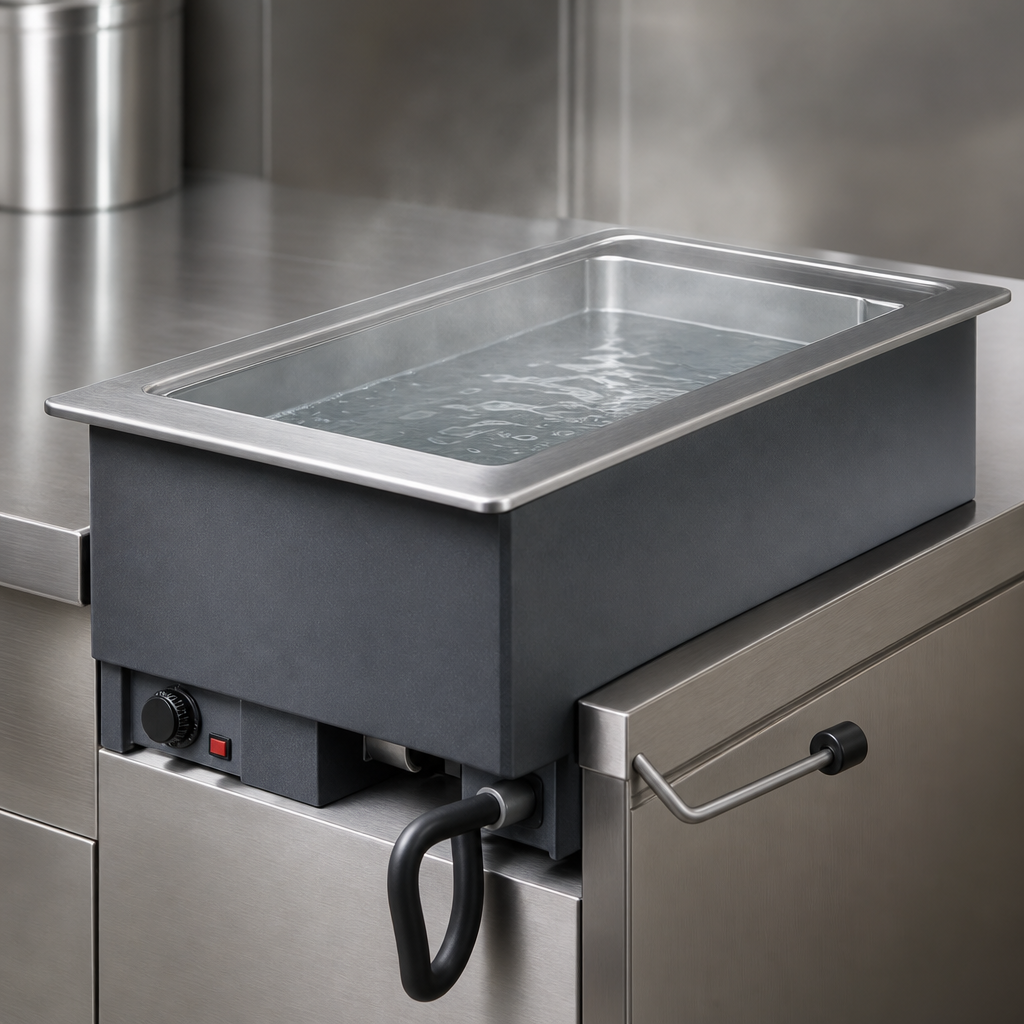

Wet Operation Only

Built for use with water in the well.

Auto-Fill System

Helps maintain water in the well automatically during operation.

Infinite Panel-Mounted Control

Provides precise heat adjustment and includes a power indicator light.

Insulated Stainless Steel Well

20-gauge insulated well helps retain heat and support consistent holding temperatures.

Drip-Free Flange

Helps contain spills around the cutout area.

Copper Manifold Drain

1-inch drain includes well shutoff and manifold shutoff for controlled drainage.

Stainless Steel Top

18-gauge stainless steel top provides a durable, easy-to-clean work surface.

Galvanized Exterior Housing

Corrosion-resistant exterior housing supports long-term commercial use.

Includes Positioning Clips

Helps secure the unit during installation.

NEMA 6-15P Cord

Includes a power cord with plug for compatible electrical connections.

Type Hot Food Well
Style Individual Pans
Installation Type Drop-In
Pan Capacity 1 Full-Size (12 x 20 Inch) Pan
Controls Infinite
Material Stainless Steel
Voltage 208-240 Volts
Amps 3.6-4.2 Amps
Watts 1 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 6-15P
Drain Connection Size 1 Inch
Water Connection Required
Drain Connection Required
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 15 Inches
Shipping Depth 26 Inches
Shipping Height 22 Inches
Shipping Weight 51 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Catalog page PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It is designed for wet operation only.
It holds one full-size 12 x 20-inch pan.
Yes, it includes an auto-fill design.
It operates on 208-240V, 60 Hz, single-phase power and draws 3.6-4.2 amps at 1000 watts.
It includes a cord with a NEMA 6-15P plug.
The required cutout size is 14-1/4 inches wide by 25-1/4 inches deep with a 7/8-inch corner radius.
