Vollrath

Vollrath Drop-In Electric Hot Food Well, 1 Full-Size Pan, Wet Operation Only, Auto-Fill, 208V

SKU: 3646760
$2,689.70
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Food Bars & Buffets Food Holding & Warming Equipment Food Wells & Serving Lines Hot Well New Arrivals Restaurant Equipment Steam Tables & Food Wells Vollrath

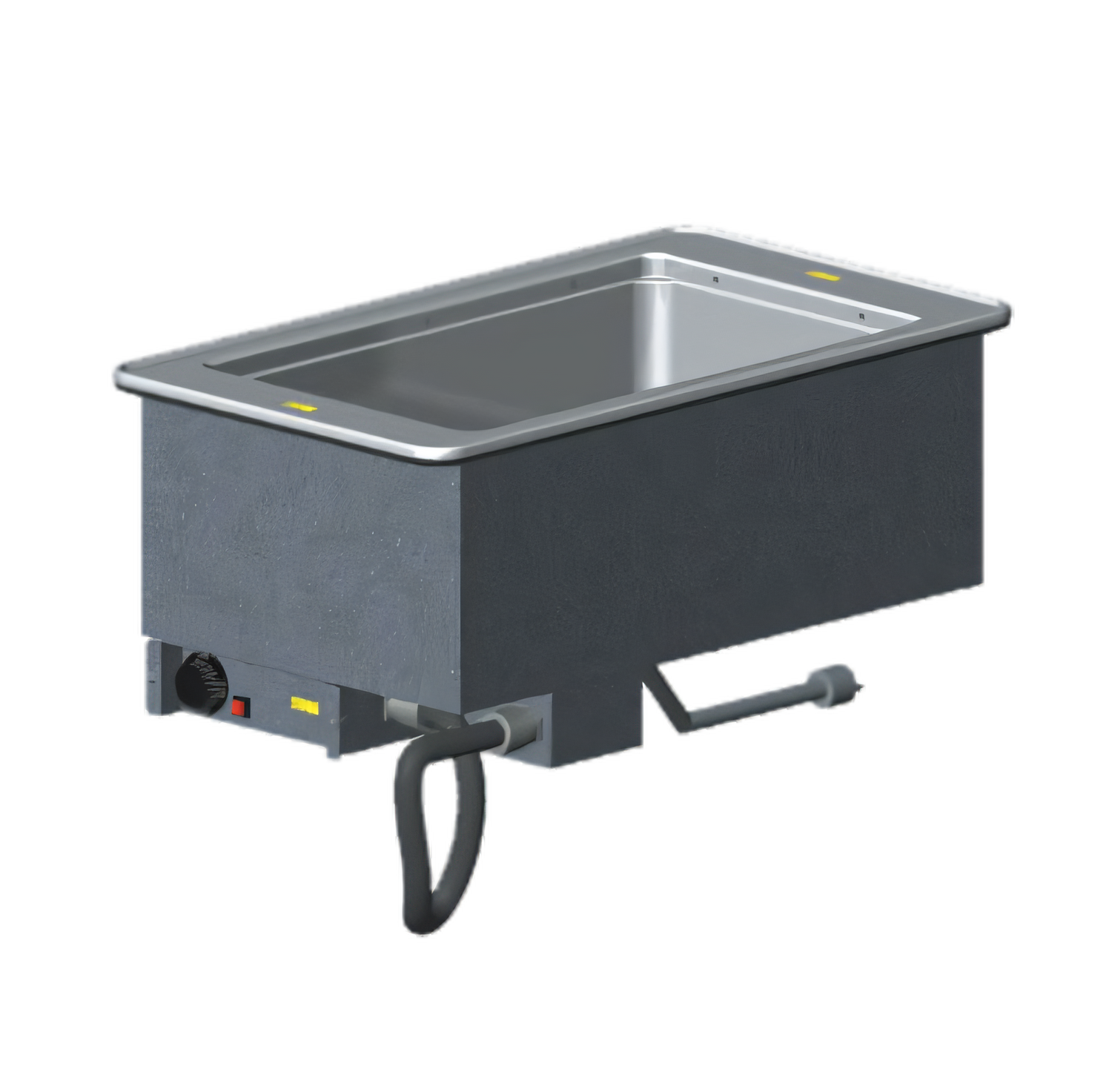

Vollrath Drop-In Electric Hot Food Well, 1 Full-Size Pan, Wet Operation Only, Auto-Fill, 208V

Insulated stainless steel well with infinite control and NEMA 6-15P cord.

Keep one full-size pan of hot food ready to serve with a compact, insulated drop-in well designed for wet operation and automatic fill.

  • Holds one full-size 12 x 20-inch pan in an insulated drop-in well.
  • Wet-operation design with auto-fill helps maintain proper water level.
  • Infinite control and power indicator light simplify everyday operation.
  • Stainless steel top and insulated well are built for durability and heat retention.
  • Includes drip-free flange, drain shutoff, positioning clips, and a NEMA 6-15P cord.
  • 208V, 625W, single-phase electrical design for commercial buffet applications.

Overall Dimensions:

15.0"W x 26.0"D x 21.5"H

Product Weight:

50.65 lb

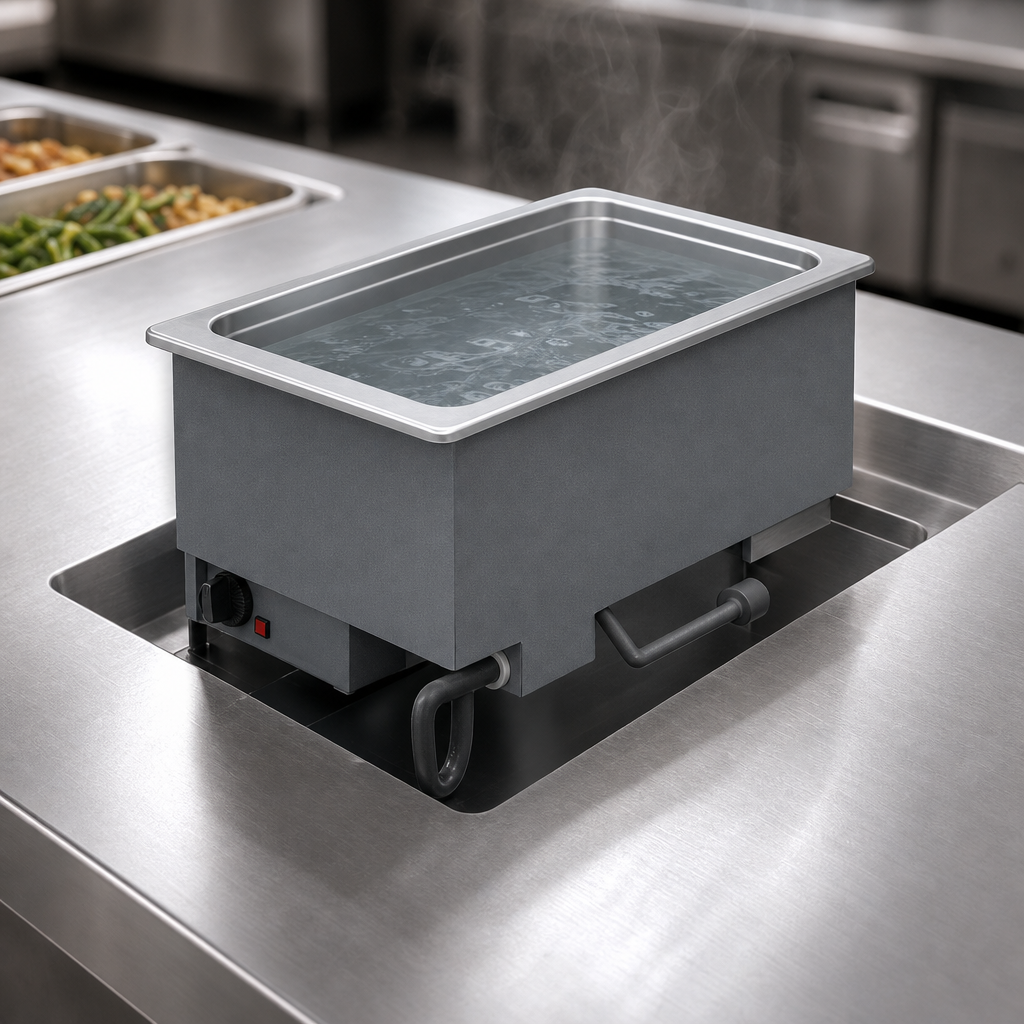

Wet Operation Only

Designed for wet operation only to support hot food holding with a water-filled well.

Auto-Fill

Automatic fill helps maintain the proper water level during operation.

Infinite Panel Control

Panel-mounted infinite control provides adjustable heat control.

Power Indicator Light

Visual indicator shows when the unit is energized.

Insulated Stainless Steel Well

20-gauge stainless steel insulated well helps retain heat efficiently.

Durable Top and Housing

18-gauge stainless steel top with 18-gauge galvanized exterior housing for durability.

Drain Shutoff Assembly

Includes a 1-inch copper manifold drain with well shutoff and manifold shutoff for easier draining and cleanup.

Drip-Free Flange

Helps reduce mess around the countertop opening.

Included Positioning Clips

Positioning clips are included to help secure proper installation.

NEMA 6-15P Cord

Supplied with a cord and NEMA 6-15P plug for electrical connection.

Cutout Requirements

Requires a 14-1/4-inch by 25-1/4-inch cutout with a 7/8-inch corner radius.

Type Hot Food Well
Installation Type Drop-In
Style Individual Pans
Pan Capacity 1 Full-Size Pan
Pan Size 12 x 20 Inches
Controls Infinite
Material Stainless Steel
Interior Finish Stainless Steel
Voltage 208 Volts
Amps 3.0 Amps
Watts 625 Watts
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 6-15P
Drain Connection Size 1 Inch
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 15 Inches
Shipping Depth 26 Inches
Shipping Height 22 Inches
Shipping Weight 50.65 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Catalog page PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It holds one full-size 12 x 20-inch pan.
This unit is wet operation only.
It operates on 208 volts, 60 Hz, single-phase power and draws 3.0 amps.
It includes a cord with a NEMA 6-15P plug.
It requires a 14-1/4-inch by 25-1/4-inch cutout with a 7/8-inch corner radius.
Yes. It includes a 1-inch copper manifold drain with well shutoff and manifold shutoff.
