Description

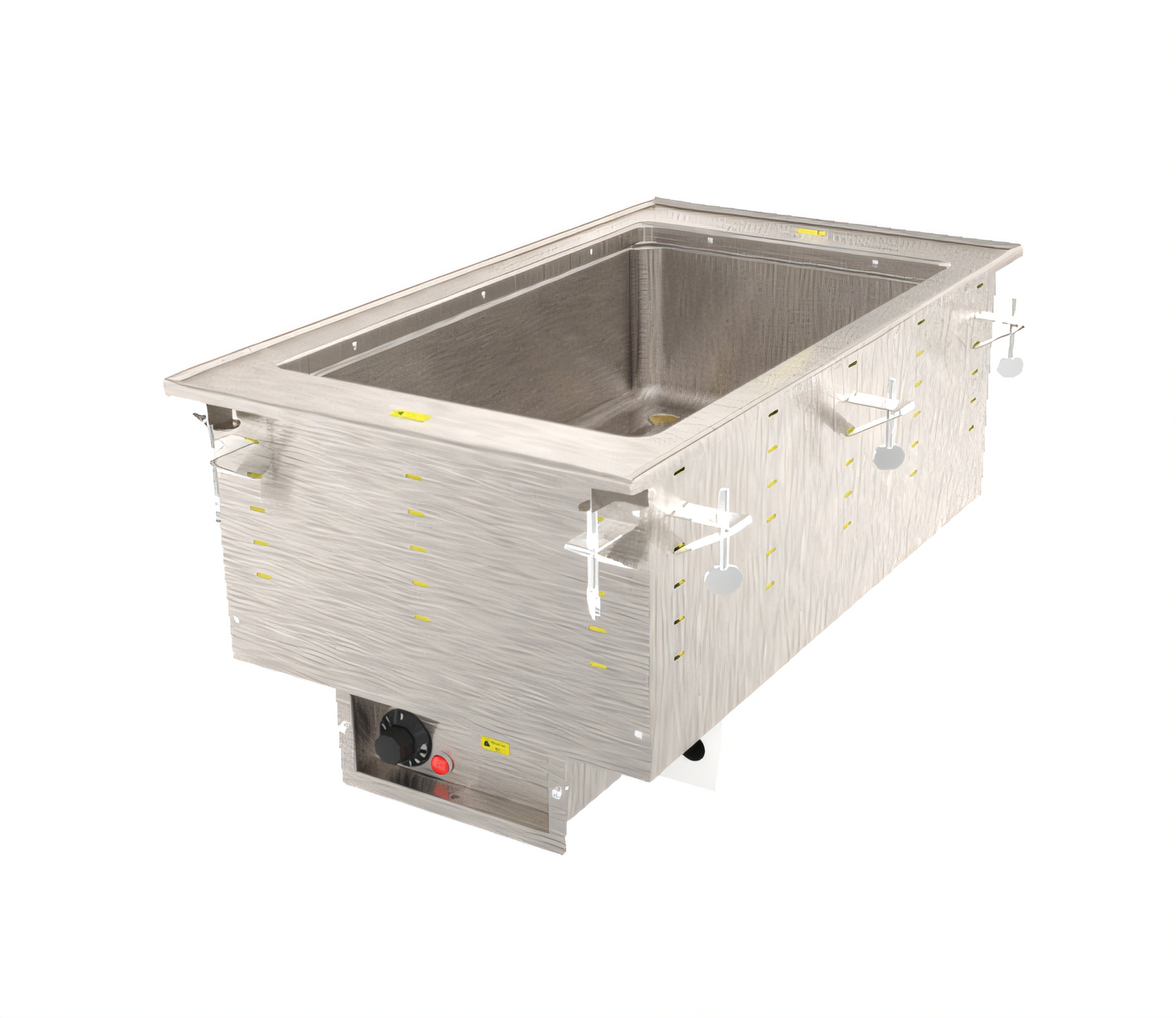

Vollrath 3646711HD Marine-Grade 1-Well Hot Food Drop-In — 1000 W, Thermostatic, 208-240 V

Built-for-purpose holding power in a corrosion-proof stainless steel well.

Keep entrées, sides and sauces at safe, appetizing temperatures with Vollrath’s premium marine-grade drop-in hot well. Engineered for top-mount installation, this self-contained unit simply drops into a 14 ¼ × 25 ¼ in. cut-out, plugs into a standard 208-240 V receptacle and is ready for service.

Key Features
  • Full-size 12 × 20 in. well formed from 20-ga 316 marine-grade stainless steel for maximum corrosion resistance.
  • Precise thermostatic remote control panel (4 ft tether) with power indicator light.

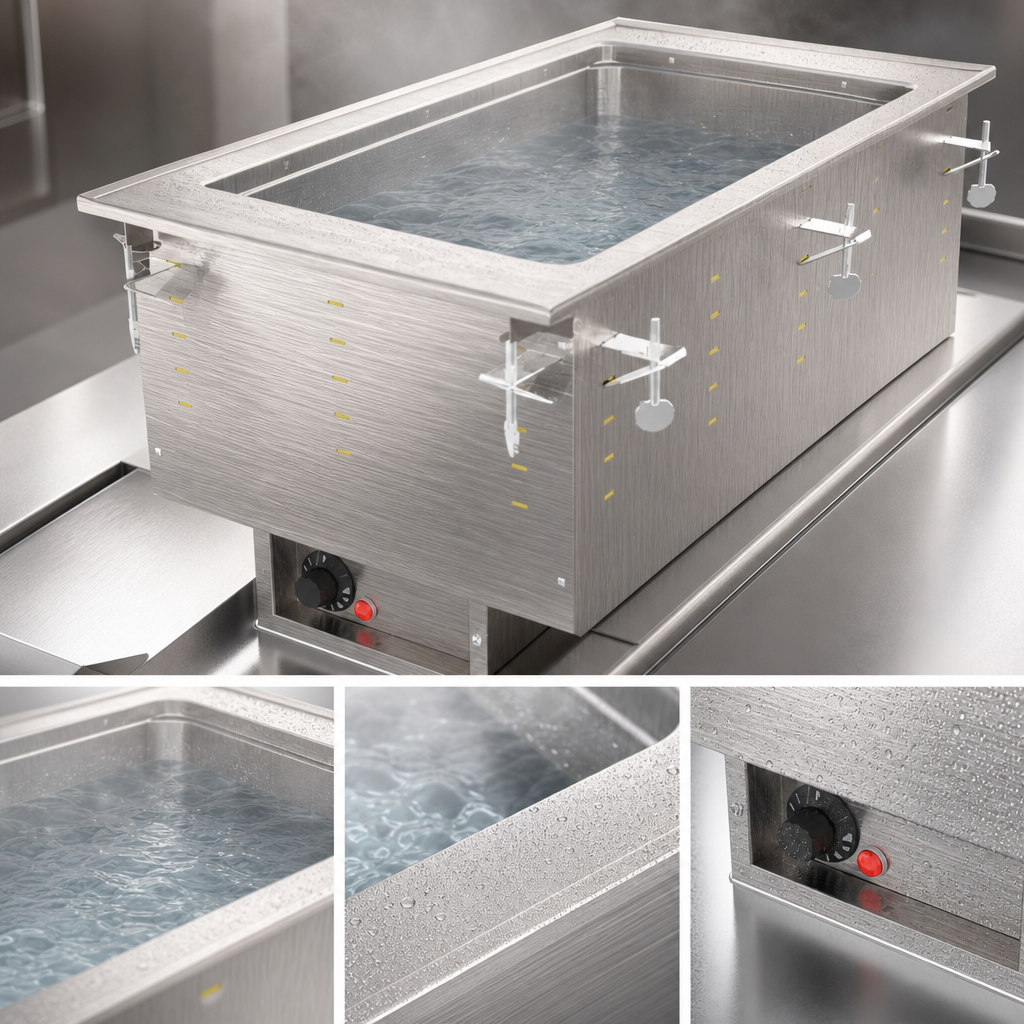

  • Wet operation only – water bath ensures gentle, even heat and prevents food from drying out.
  • Full-perimeter drip-edge and ½ in. MPT drain with ball-valve shut-off for quick, mess-free cleanup.
  • 18-ga stainless steel top and fully insulated housing retain heat while protecting surrounding surfaces.
  • Ships ready to use with 6 ft (1.8 m) cord and NEMA 6-15P plug – no hard-wiring required.
  • Accepts full-size or fractional pans up to 6 in. (15.2 cm) deep; adapter bars recommended for fractional pans.
  • Includes gasket and mounting clips for counters up to 3 in. (7.6 cm) thick; zero-clearance installation.
  • NSF 4 and cULus listed; Made in the USA and backed by a 2-year limited Vollrath warranty.
Specifications
Item number 3646711HD
Wells 1  |  12 × 20 in. (full-size)
Overall dimensions 15 W × 26 D × 15 H in. (38.1 × 66 × 38.1 cm)
Counter cut-out 14 ¼ W × 25 ¼ D in.  |  7/8 in. corner radius
Operation Wet only
Control type Thermostatic dial with pilot light (remote panel)
Heating element 1000 W
Electrical 208-240 V / 60 Hz / 1-ph  |  3.6-4.2 A
Plug NEMA 6-15P (6 ft cord)
Drain ½ in. MPT with internal ball-valve
Construction 20-ga 316 SS well  |  18-ga stainless top  |  fully insulated housing
Certifications NSF, cULus
Origin / Warranty Made in USA / 2-year limited
Important: Always fill the well with water before energizing the unit. Operating dry may damage the heating element and will void the warranty. Do not modify the factory-installed cord or plug.

Indoor use only. Ambient room temperature and HVAC conditions can affect holding performance. Drop-in units are built to order and are non-returnable once shipped.

For complete warranty information visit vollrathfoodservice.com.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

15.0in

Width

15.0in

Depth

26.0in

Shipping Weight

33.15lbs

Insulated or Non-Insulated

insulated

Pan Capacity

(1) full size (12" x 20")

Style

individual pans

Controls

thermostatic controls

Drain

with drain

Construction

stainless steel construction

Wet or Dry operation

wet

Specifications

Hot Food Well Unit, Drop-In, electric, (1) 12" x 20" 20 gauge/316 marine grade stainless steel insulated well, 15"W x 26"D x 15"H (overall), wet operation only, thermostatic control mounted in panel with cord, power indicator light, drip-free flange, drain shutoff, 18 gauge stainless steel top, stainless steel exterior housing, includes positioning clips, 1000 watts, 208-240v/60/1-ph, 3.6-4.2 amps, cord with NEMA 6-15P, NSF, cULus, Made in USA (14-1/4"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
