Vollrath | SKU:
3646711
Vollrath 3646711 Steam Tables & Food Wells
$1,217.10
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Vollrath 3646711 Steam Tables & Food Wells is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Vollrath 3646711 Steam Tables & Food Wells
$1,217.10
Unit price
/
Unavailable
Description

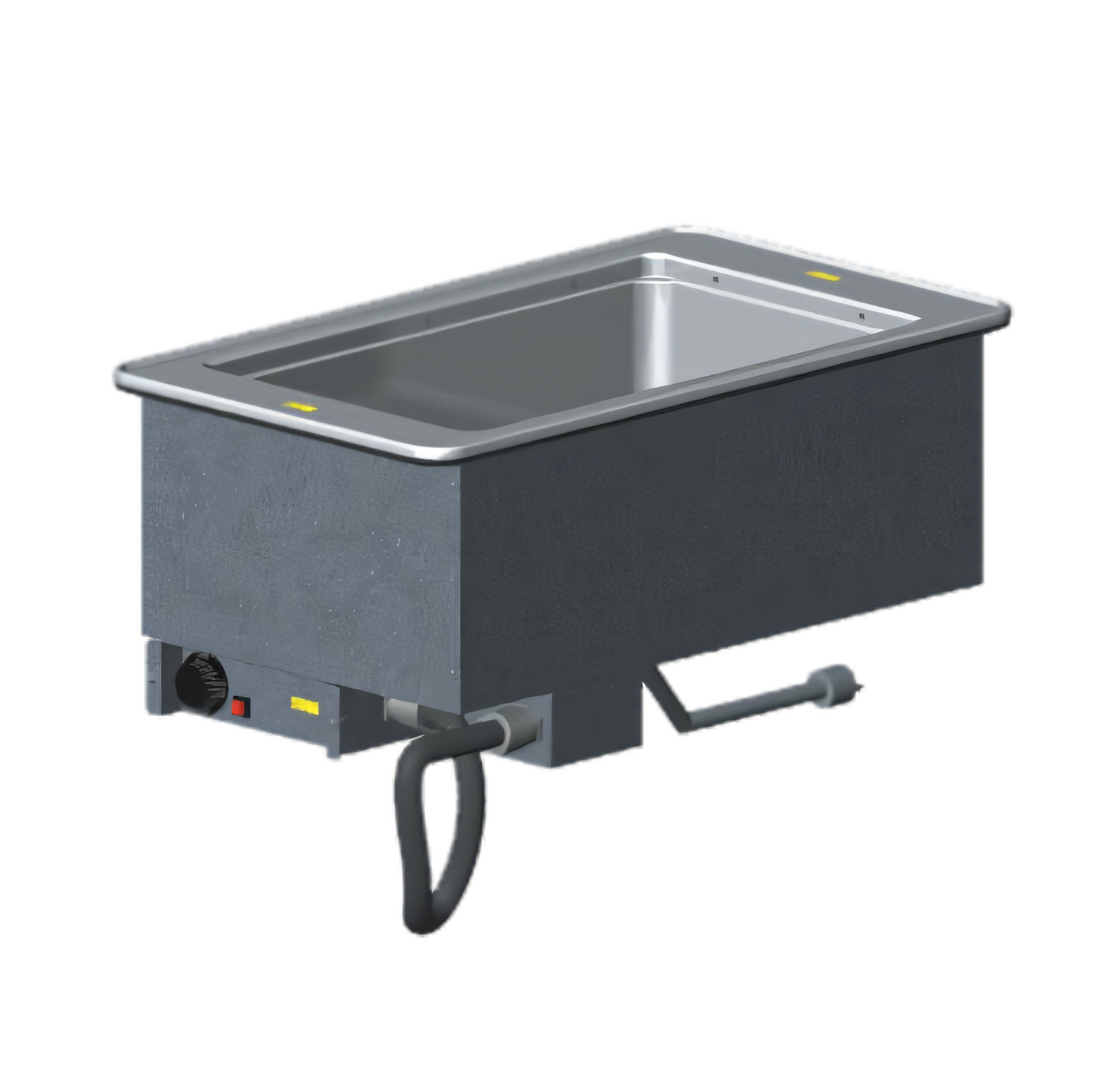

Vollrath 1-Well Hot Drop-In Food Well — 1000 W, Thermostatic, 208-240 V
Model series 36467 — built for permanent, top-mount installationBring dependable, wet-heat food holding to any counter or serving line with this Made-in-USA drop-in from Vollrath. A deep-drawn 12 × 20 inch stainless well, powerful 1 kW element and simple thermostatic control keep entrées, sides and sauces at the perfect serving temperature — all day, every day.
Why you’ll love it
- Wet operation only — meets NSF 4 hot-food standards for safe, even heating
- Deep-drawn, 20-gauge stainless well accepts full-size or fractional pans up to 6" deep
- 18-gauge stainless top with full-perimeter drip edge prevents messes on your counter
- High-density glass-fiber insulation on all sides allows zero-clearance installation
- Thermostatic control panel (tethered 3 ft cord) with power-on indicator light
- Built-in ½" drain with below-deck ball-valve shut-off for quick, safe water removal
- Includes breaker gasket, positioning & mounting clips for counters up to 3" thick
- 6 ft factory-installed cord with NEMA 6-15P — no hard-wiring required
- Certified NSF 4 & cULus, and proudly made in Sheboygan, Wisconsin
Technical specifications
| Well size (usable) | 12" W × 20" D × 6" H |
|---|---|
| Overall dimensions | 15" W × 26" D × 15" H |
| Counter cutout | 14 ¼" W × 25 ¼" D Requires 7⁄8" corner radius |
| Construction | 18-ga stainless top, 20-ga stainless well, 18-ga galvanized exterior housing |
| Heat source | 1,000 watts tubular element (wet operation) |
| Controls | Thermostatic dial, panel-mounted, power indicator lamp |
| Electrical | 208-240 V / 60 Hz / 1-ph, 3.6 – 4.2 A, NEMA 6-15P plug |
| Certifications | NSF 4, cULus |
| Country of origin | USA |
| Warranty | 1-year parts & labor (see full policy) |
Important: This unit is designed for wet operation only. Always fill the well with
water before energizing the element to avoid premature heater failure.
Optional accessories
- Sheet-pan adapter – Vollrath #19186
- Manifold drain with auto-fill kit (adds labor-saving automatic water level control)
- Stainless adaptor bars for fractional pans
Features & Specs
Features & Specs
Manufacturer
Vollrath
Certifications
NSF, cULus, Made in USA
Height
15.0in
Width
15.0in
Depth
26.0in
Shipping Weight
33.15lbs
Pan Capacity
(1) full size (12" x 20")
Style
individual pans
Controls
thermostatic controls
Construction
stainless steel top, corrosion resistant steel exterior
Insulated or Non-Insulated
insulated
Drain
with drain
Wet or Dry operation
wet
Specifications
Hot Food Well Unit, Drop-In, electric, (1) 12" x 20" 20 gauge stainless steel insulated well, 15"W x 26"D x 15"H (overall), wet operation only, thermostatic control mounted in panel with cord, power indicator light, drip-free flange, drain shutoff, 18 gauge stainless steel top, 18 gauge galvanized exterior housing, includes positioning clips, 1000 watts, 208-240v/60/1-ph, 3.6-4.2 amps, cord with NEMA 6-15P, NSF, cULus, Made in USA (14-1/4"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
