Vollrath 3646710HD Steam Tables & Food Wells
Description

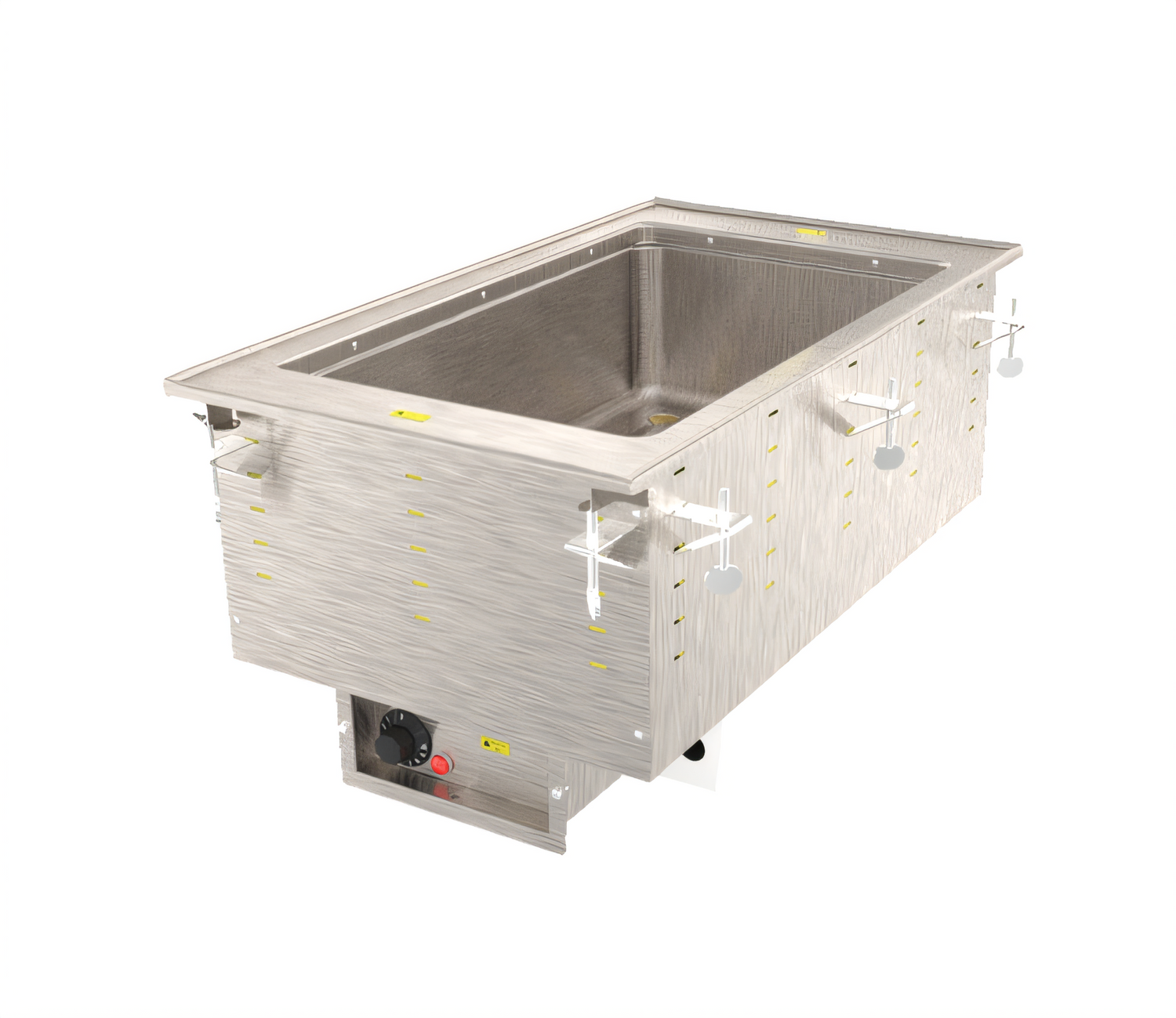

Vollrath 1-Well Marine-Grade Hot Drop-In – 625 W Thermostatic, 208 V
Model 3646710HD | Cutout: 14-1/4" × 25-1/4" (7/8" corner radius)Engineered for demanding commercial kitchens, this Vollrath marine-grade drop-in food well keeps soups, sauces and entrées at safe serving temperatures—day after day, service after service. It ships fully wired with a cord and NEMA 6-15P plug, making installation in existing counters fast and frustration-free.
Why you’ll love it
- Built-to-last 20-gauge, Type 316 stainless steel well resists corrosion from harsh food acids and salt solutions.
- Thermostatic control with power indicator light maintains precise holding temps with less monitoring.
- Full-perimeter drip-free flange and ½" drain with ball-valve shut-off simplify cleanup.

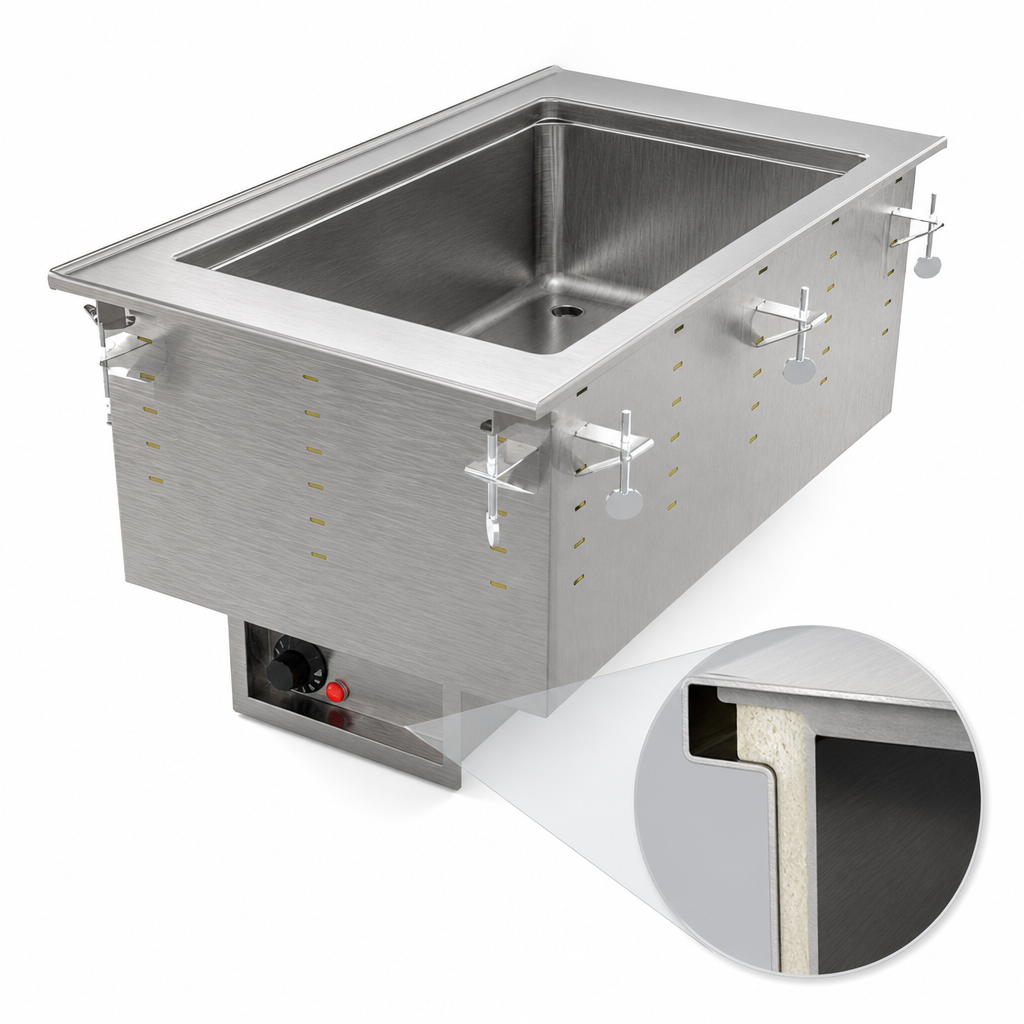

- All-side insulation (including between well and housing) maximises energy efficiency at only 625 watts.
- Remote stainless-steel control panel on a 4' tether lets you mount controls where staff can reach them safely.
- Accepts one full-size or fractional pans up to 6" deep—adapter bars recommended for fractional pans.
- Includes mounting gasket and clips for counters up to 3" thick; no hard-wiring required.
- NSF 4 & cULus listed and proudly Made in the USA.
Technical specifications
| Operation | Wet (water required for even heating) |
|---|---|
| Well size | 12" × 20" full-size pan |
| Overall dimensions | 15" W × 26" D × 15" H (38.1 × 66 × 38.1 cm) |
| Cutout dimensions | 14-1/4" W × 25-1/4" D (7/8" corner radius) |
| Top material | 18-gauge stainless steel |
| Exterior housing | Stainless steel |
| Heat control | Thermostatic dial with power indicator |
| Heating power | 625 W |
| Electrical | 208 V / 60 Hz / 1-ph, 3.0 A, cord & NEMA 6-15P plug |
| Certifications | NSF 4, cULus |
| Included | Mounting clips, gasket, drain shut-off valve, remote control panel |
| Country of origin | USA |
Installation at a glance
- Zero-clearance design—ideal for tight counter layouts.
- Drop into a stainless, solid-surface or stone countertop (up to 3" thick) using the supplied clips.
- Must be located indoors; ambient room temperature & HVAC will affect holding performance.
- Do not modify the cord or plug—doing so voids warranty.
Complete installation, operating and warranty details are available at vollrathfoodservice.com.
Warranty
Backed by Vollrath’s two-year parts & labor warranty against defects in materials and workmanship.
