Vollrath  |  SKU: 3646710

Vollrath 3646710 Steam Tables & Food Wells

$1,217.10
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Vollrath 3646710 One-Well Hot Drop-In Food Well – 208 V / 625 W

Thermostatic Control • Wet Operation • Made in the USA

Keep soups, sauces and sides at safe serving temperatures without sacrificing counter space. The Vollrath 3646710 drop-in hot well installs easily from the top, plugs into a standard 208 V receptacle and delivers even, energy-efficient heat thanks to its insulated stainless steel construction and precise thermostatic controls.

Why You’ll Love It

  • Wet-heat only design meets NSF 4 performance standards for exceptional food safety.
  • Deep-drawn 12" × 20" 20-gauge stainless well accepts full-size or fractional pans up to 6" (15.2 cm) deep.
  • 18-gauge stainless top with full-perimeter drip edge contains spills and adds strength.
  • High-density glass-fiber insulation on all sides allows zero-clearance installation.
  • Thermostatic dial and power indicator light mounted on a tethered stainless control panel—panel can be remote-mounted for a custom fit.
  • ½" stainless drain fitting with below-housing ball-valve shut-off speeds end-of-day cleanup.

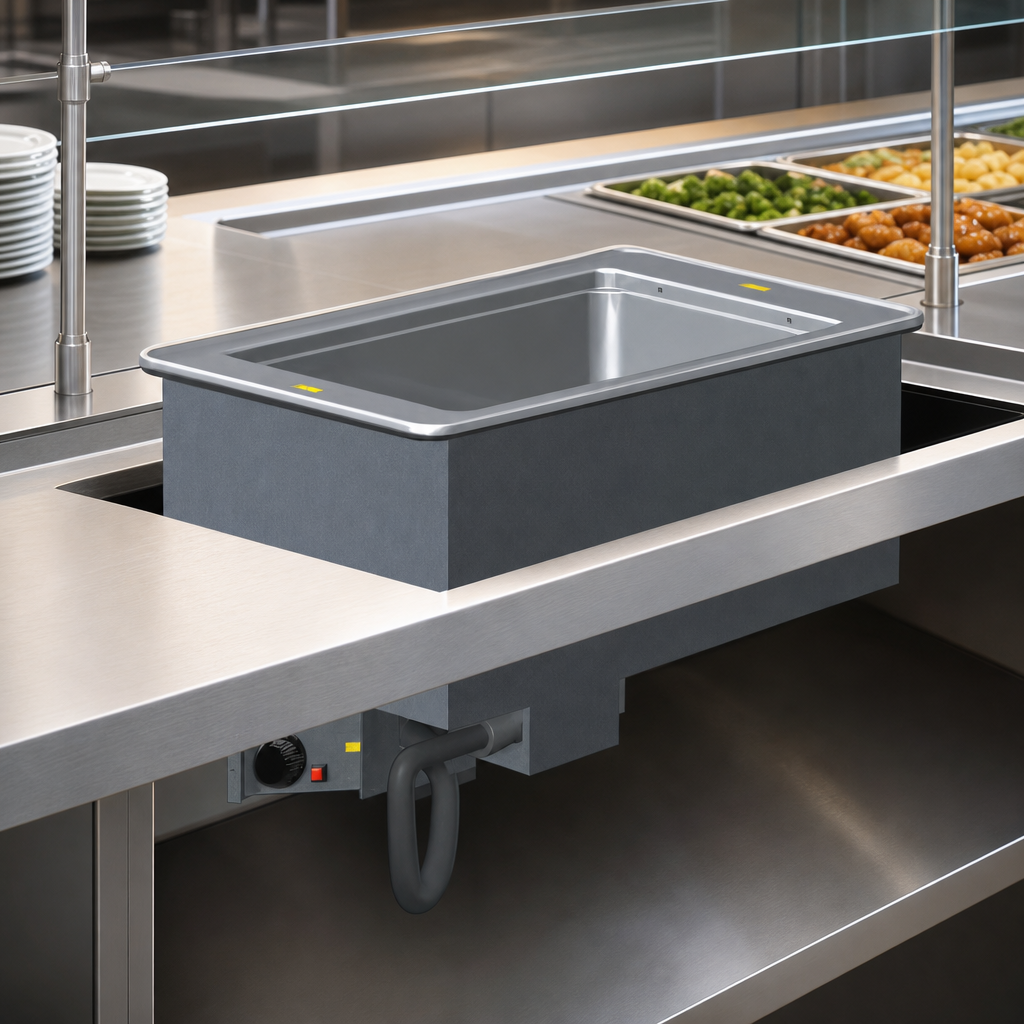

  • Includes positioning and mounting clips for counters up to 3" (7.6 cm) thick—no hard-wiring required.
  • 6 ft (1.8 m) cord with NEMA 6-15P; draws only 3.0 A for energy-saving operation.
  • NSF & cULus listed and proudly made in the USA.

At-a-Glance Specs

Model 3646710
Capacity (1) 12" × 20" pan (full-size) or fractional equivalents, up to 6" deep
Operation Wet heat only
Control Type Thermostatic dial with power indicator
Wattage 625 W
Electrical 208 V / 60 Hz / 1-phase, 3.0 A, NEMA 6-15P plug
Overall Dimensions 15" W × 26" D × 15" H (38 × 66 × 38.1 cm)
Counter Cutout 14-¼" W × 25-¼" D (36.2 × 64.1 cm) with 7/8" corner radius
Top Material 18-gauge stainless steel
Well Material 20-gauge stainless steel, fully insulated
Exterior Housing 18-gauge galvanized steel
Drain ½" MPT stainless fitting with ball-valve shut-off
Certifications NSF 4, cULus
Warranty 1-year parts & labor (see VollrathFoodservice.com for full policy)
Wet Operation Only: Always keep water in the well during use to prevent damage and ensure even heating.

Modular drop-ins are built to order and cannot be canceled or returned.
Accessory sheet-pan adapter (item 19186) sold separately.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

15.0in

Width

15.0in

Depth

26.0in

Shipping Weight

33.15lbs

Pan Capacity

(1) full size (12" x 20")

Style

individual pans

Controls

thermostatic controls

Construction

stainless steel top, corrosion resistant steel exterior

Insulated or Non-Insulated

insulated

Drain

with drain

Wet or Dry operation

wet

Specifications

Hot Food Well Unit, Drop-In, electric, (1) 12" x 20" 20 gauge stainless steel insulated well, 15"W x 26"D x 15"H (overall), wet operation only, thermostatic controls mounted in panel with cord, power indicator light, drip-free flange, drain shutoff, 18 gauge stainless steel top, 18 gauge galvanized exterior housing, includes positioning clips, 625 watts, 208v/60/1-ph, 3.0 amps, cord with NEMA 6-15P, NSF, cULus, Made in USA (14-1/4"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
