Vollrath  |  SKU: 3646701

Vollrath 3646701 Steam Tables & Food Wells

$1,145.70
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

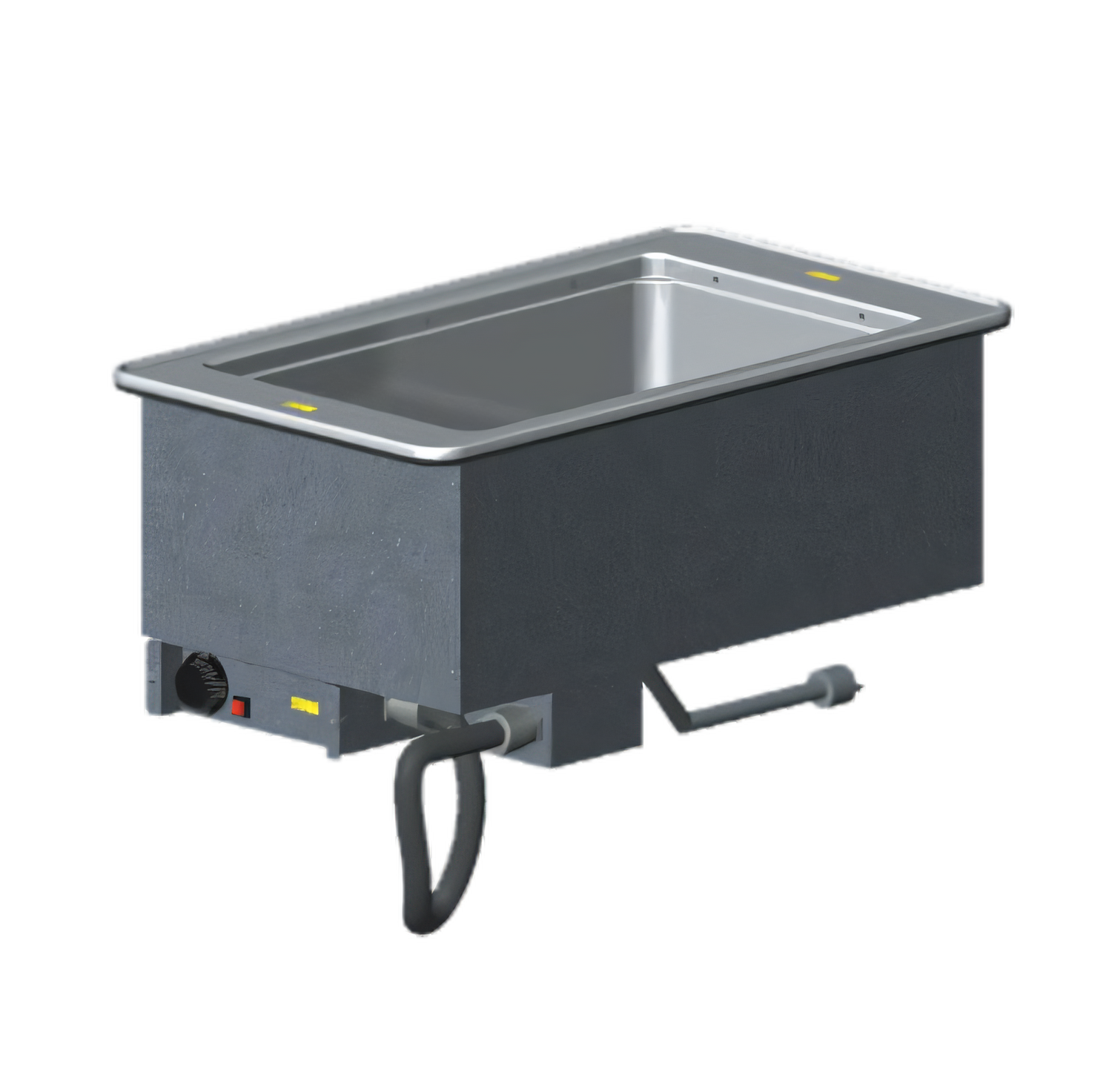

Vollrath 1-Well Drop-In Hot Food Well – 1000 W, 208-240 V

Model 3646701 | Standard drain | Infinite control

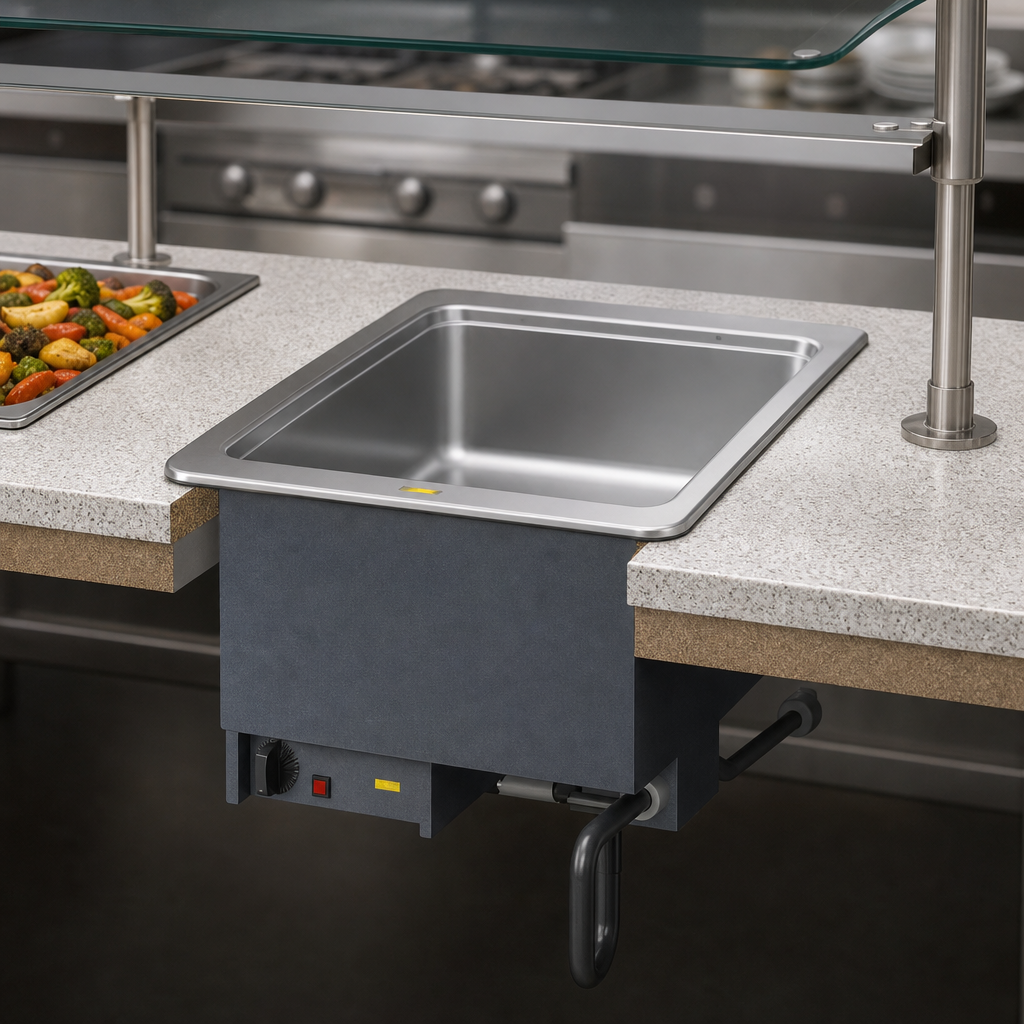

Engineered for busy commercial kitchens, this NSF-listed, Made-in-USA hot food well delivers consistent moist-heat holding without the hassle of hard-wiring. Simply drop it into your counter, plug it in, and keep entrées at safe, delicious serving temperatures all day long.

Key Features

  • Single 12" × 20" deep-drawn, 20 ga stainless steel well fits full-size or fractional pans up to 6" deep
  • 18 ga stainless steel top with full-perimeter drip-free flange contains spills and condensation
  • Wet-operation design with high-density glass-fiber insulation on all sides for zero-clearance installs
  • Infinite manual control dial with power indicator light on a stainless steel remote panel (3' tether)
  • ½" NPT stainless steel drain with below-deck ball-valve shut-off for quick, mess-free clean-up
  • 6' (1.8 m) cord and NEMA 6-15P plug—no electrician required
  • Positioning & mounting clips (up to 3" counter thickness) plus breaker gasket included
  • NSF & cULus certified; backed by a 1-year parts & labor warranty

Specifications

Overall dimensions 15" W × 26" D × 15" H (38 × 66 × 38 cm)
Counter cut-out 14-1/4" W × 25-1/4" D (7/8" corner radius required)
Operation Wet heat only (water must be added to well)
Heating power 1000 watts
Electrical 208-240 V / 60 Hz / 1-phase  |  3.6 – 4.2 A  |  NEMA 6-15P
Control type Infinite manual dial
Construction 20 ga stainless well, 18 ga stainless top, 18 ga galvanized exterior housing
Certifications NSF, cULus
Country of origin USA

Refer to vollrathfoodservice.com for full warranty policy details.

Important: This unit is designed for moist-heat holding. Always fill the well with water before powering on.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

15.0in

Width

15.0in

Depth

26.0in

Shipping Weight

33.15lbs

Controls

infinite controls

Style

individual pans

Pan Capacity

(1) full size (12" x 20")

Insulated or Non-Insulated

insulated

Construction

stainless steel top, corrosion resistant steel exterior

Drain

with drain

Wet or Dry operation

wet

Specifications

Hot Food Well Unit, Drop-In, electric, (1) 12" x 20" 20 gauge stainless steel insulated well, 15"W x 26"D x 15"H (overall), wet operation only, infinite control mounted in panel with cord, power indicator light, drip-free flange, drain shutoff, 18 gauge stainless steel top, 18 gauge galvanized exterior housing, includes positioning clips, 1000 watts, 208-240v/60/1-ph, 3.6-4.2 amps, cord with NEMA 6-15P, NSF, cULus, Made in USA (14-1/4"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
