Vollrath  |  SKU: 36467

Vollrath 36467 Steam Tables & Food Wells

$1,145.70
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

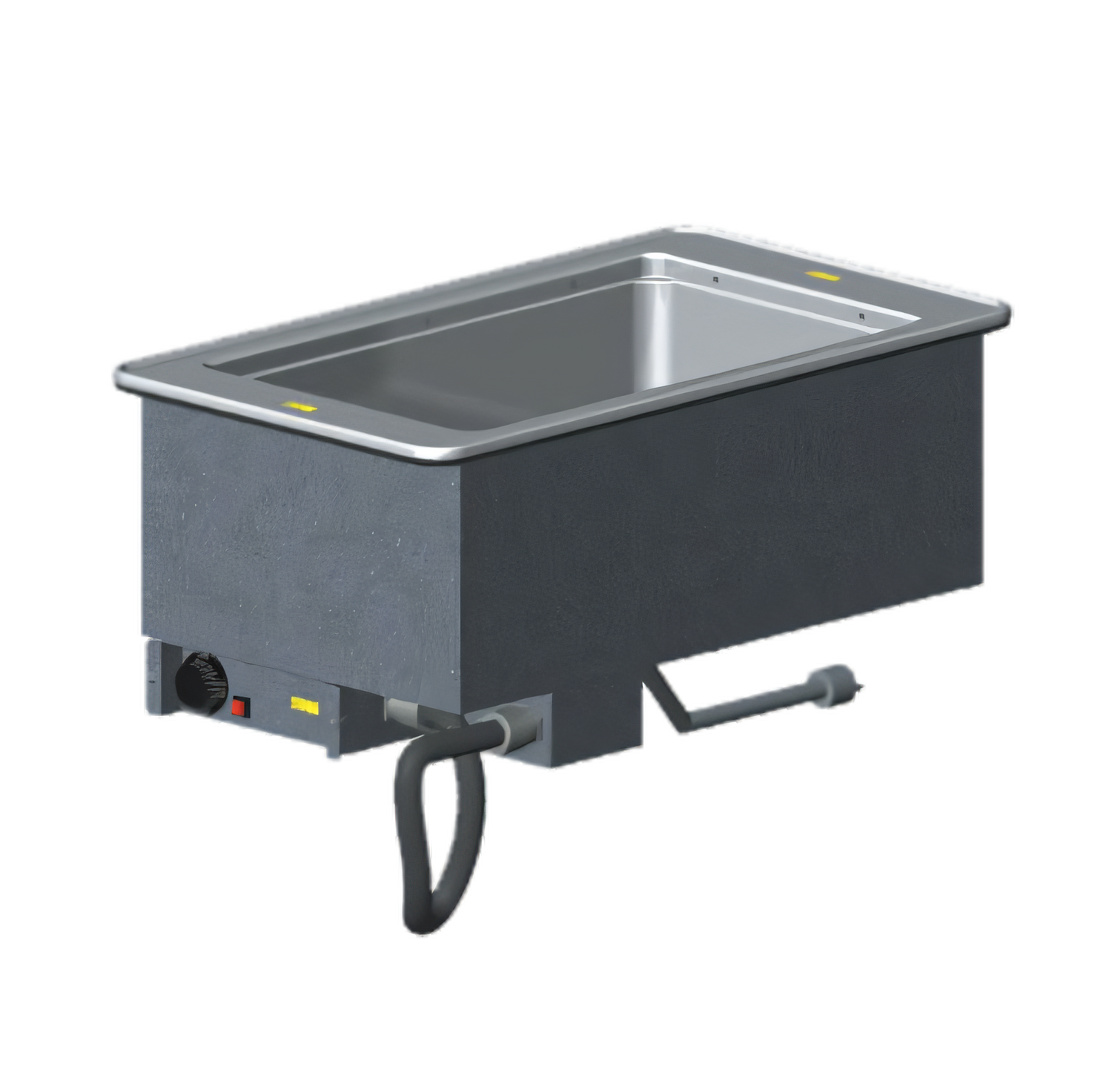

Vollrath 1-Well Hot Drop-In, 625 W, 208 V – Infinite Control

Item # 36467 • Made in USA • NSF & cULus Listed

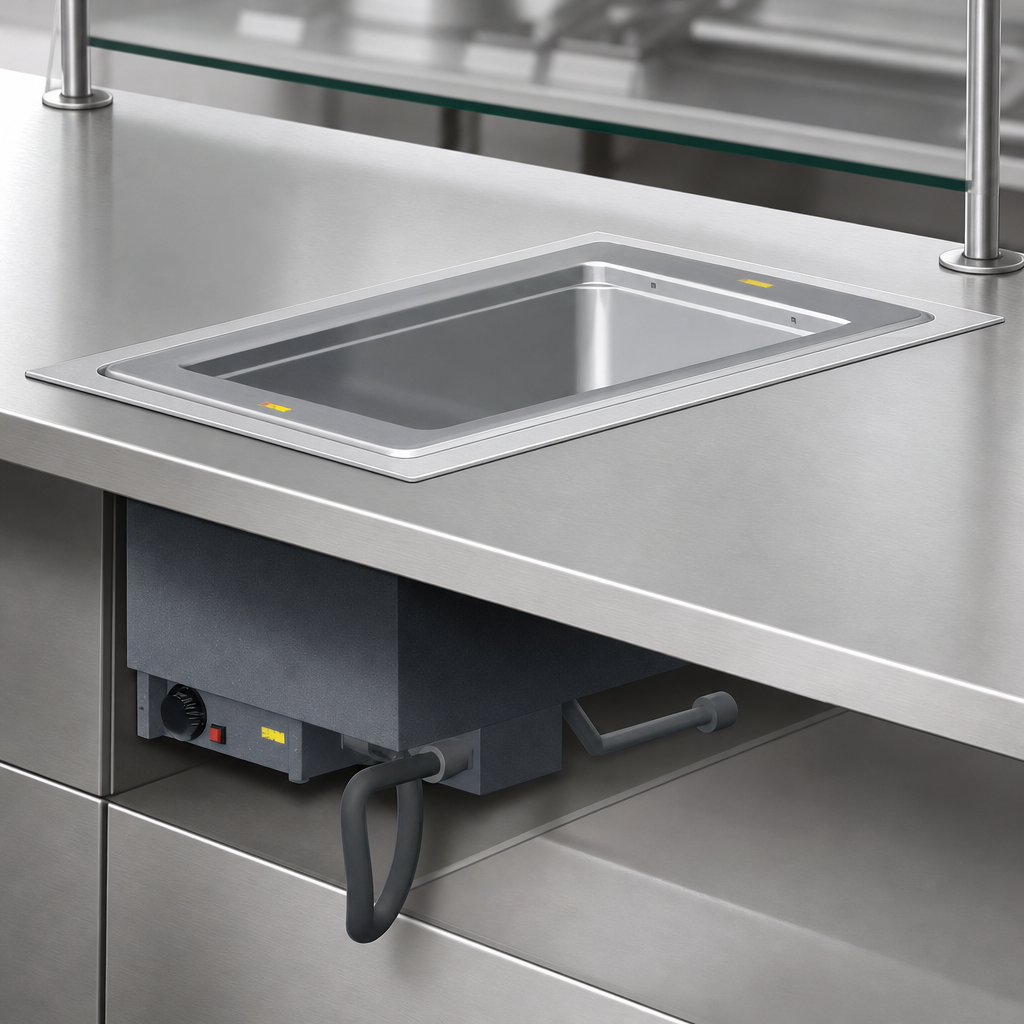

Give your serving line a low-maintenance, energy-efficient boost. Designed for quick top-mount installation, this single 12 × 20 in. drop-in well delivers consistent, moisture-rich heat while containing messes with its drip-free stainless rim. Ship-ready with a factory-wired cord and plug, it’s the easiest way to keep entrées and sides safely hot—no hard-wiring, no guesswork.

Why you’ll love it

  • 625-watt element maintains food-safe holding temps with lower operating costs.
  • Wet-heat design meets NSF 4 performance standards for even, gentle heating.
  • Deep-drawn 20-ga stainless well accepts full-size or fractional pans up to 6 in. deep.
  • Full-perimeter drip edge strengthens the flange and keeps condensation off the counter.
  • Infinite manual control plus power-on light in a stainless panel (3 ft tether—mount remotely or on unit).
  • High-density fiberglass insulation on every side allows zero-clearance installation.
  • Integral ½ in. NPT drain with ball-valve shutoff for quick, sanitary cleanup.
  • Includes mounting & positioning clips for counters up to 3 in. thick.
  • 6 ft factory-installed cord with NEMA 6-15P plug—no electrician required.

Specifications

Item number 36467
Wells / size 1 well, 12 × 20 in. (GN 1/1)
Control type Infinite manual dial
Operation Wet heat only
Wattage 625 W
Electrical 208 V / 60 Hz / 1-ph, 3.0 A, NEMA 6-15P
Overall dimensions 15 W × 26 D × 15 H in. (38 × 66 × 38 cm)
Counter cutout 14¼ W × 25¼ D in. (36.2 × 64.1 cm) – ⅞ in. corner radius
Materials 18-ga stainless top, 20-ga stainless well, 18-ga galvanized exterior housing
Drain ½ in. NPT with external ball valve
Cord length 6 ft (1.8 m)
Certifications NSF 4 (wet), cULus
Warranty 1 year parts & labor (see Vollrath warranty policy)
Important: Unit is engineered for moist heat only. Always operate with water to maintain even temperatures and preserve the heating element. Dry use will void NSF compliance and warranty coverage.

Need accessories? Adaptor bars and sheet-pan adapters (Item # 19186) are available separately.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

15.0in

Width

15.0in

Depth

26.0in

Shipping Weight

33.15lbs

Controls

infinite controls

Style

individual pans

Pan Capacity

(1) full size (12" x 20")

Insulated or Non-Insulated

insulated

Construction

stainless steel top, corrosion resistant steel exterior

Drain

with drain

Wet or Dry operation

wet

Specifications

Hot Food Well Unit, Drop-In, electric, (1) 12" x 20" 20 gauge stainless steel insulated well, 15"W x 26"D x 15"H (overall), wet operation only, infinite controls mounted in panel with cord, power indicator light, drip-free flange, drain shutoff, 18 gauge stainless steel top, 18 gauge galvanized exterior housing, includes positioning clips, 625 watts, 208v/60/1-ph, 3.0 amps, cord with NEMA 6-15P, NSF, cULus, Made in USA (14-1/4"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
