Vollrath  |  SKU: 36466HD

Vollrath 36466HD Steam Tables & Food Wells

$1,234.05
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

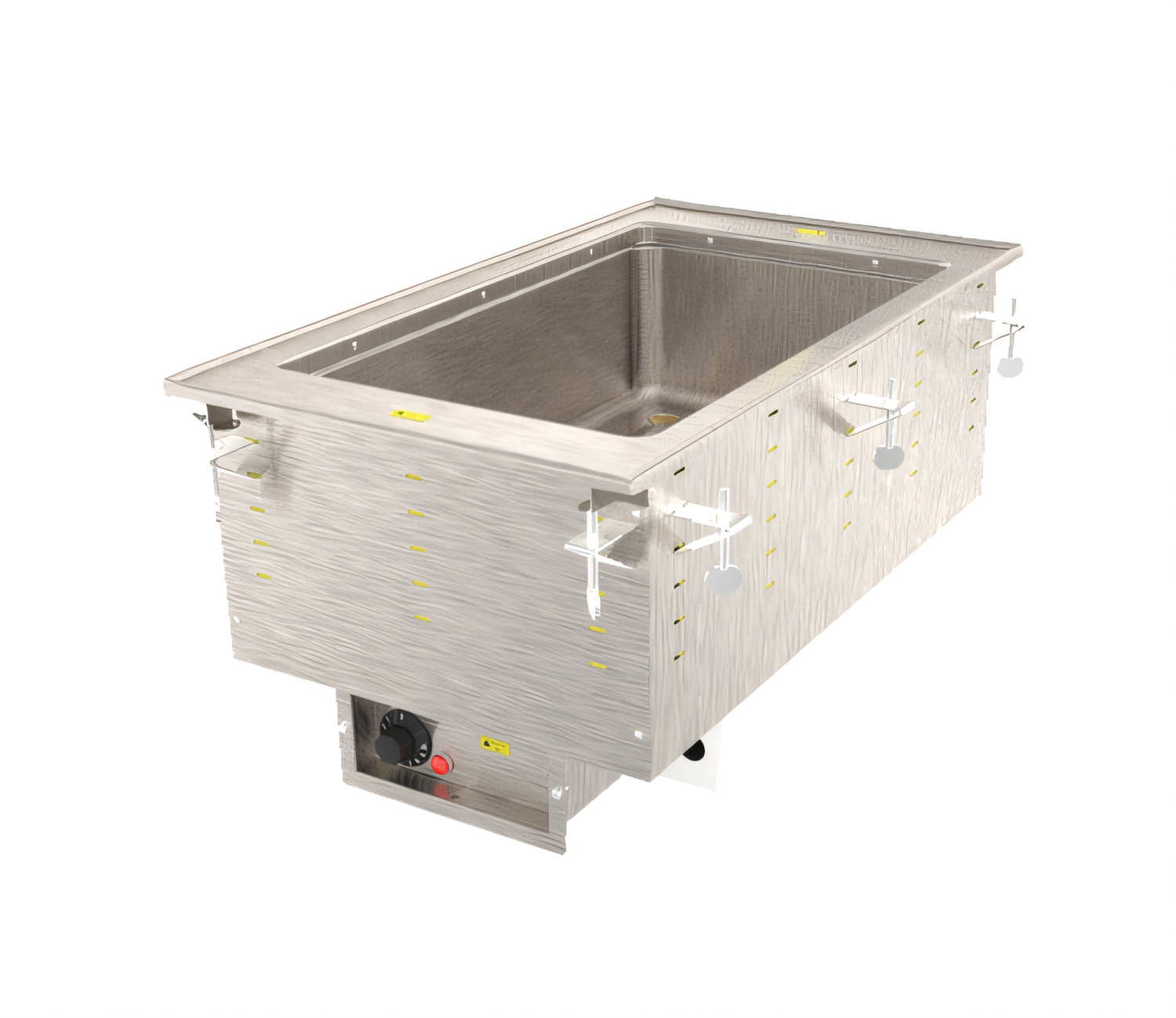

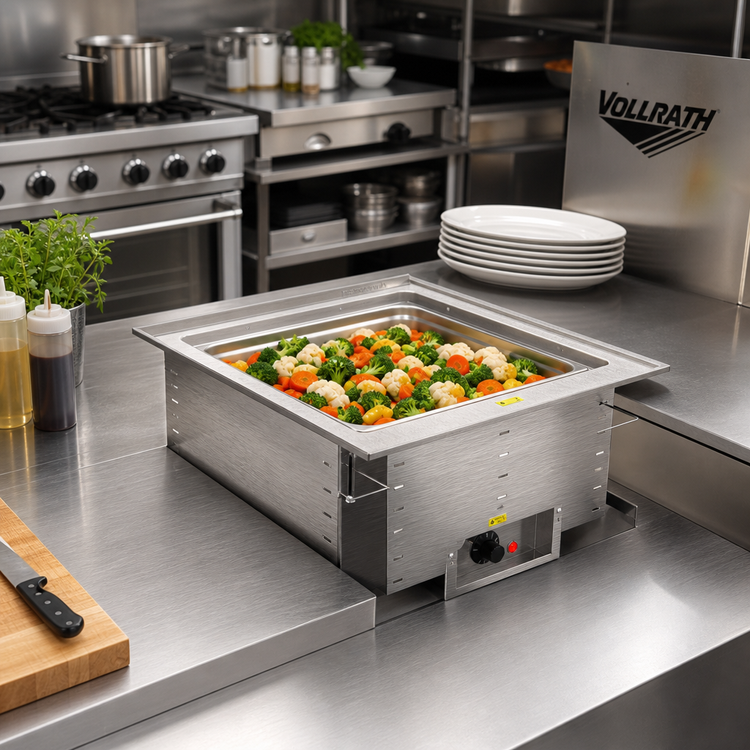

Vollrath One-Well Marine-Grade Hot Drop-In – 120 V / 625 W

Model 36466HD | fits one 12" × 20" full-size pan

Hold soups, sauces and sides at perfect serving temperature with the durability you expect from Vollrath. This plug-and-play drop-in features a corrosion-resistant 316 stainless steel well and an easy, remote infinite control so you can install it fast and focus on food quality.

Why choose this hot well

  • Marine-grade 316 stainless steel well resists acidic foods and harsh cleaners.
  • Wet-heat design delivers even, gentle warming for safer holding.
  • Full-perimeter, drip-free flange keeps condensation and spills off the counter.
  • 1 ⁄ 2" NPT drain with ball-valve shut-off makes daily cleanup quick and sanitary.
  • Remote stainless-steel panel with infinite dial & power light for fingertip control (4 ft tether).
  • Fully insulated on all sides for energy-efficient performance.
  • Ships with mounting gasket & clips for counters up to 3" thick—no hard-wiring required.
  • Made in the USA and cULus & NSF 4 listed for peace of mind.

Specifications

Pan capacity (1) full-size 12" × 20" steam-table pan; accepts fractional pans up to 6" deep
Operation Wet heat only
Control type Infinite knob with power indicator light (remote, tethered)

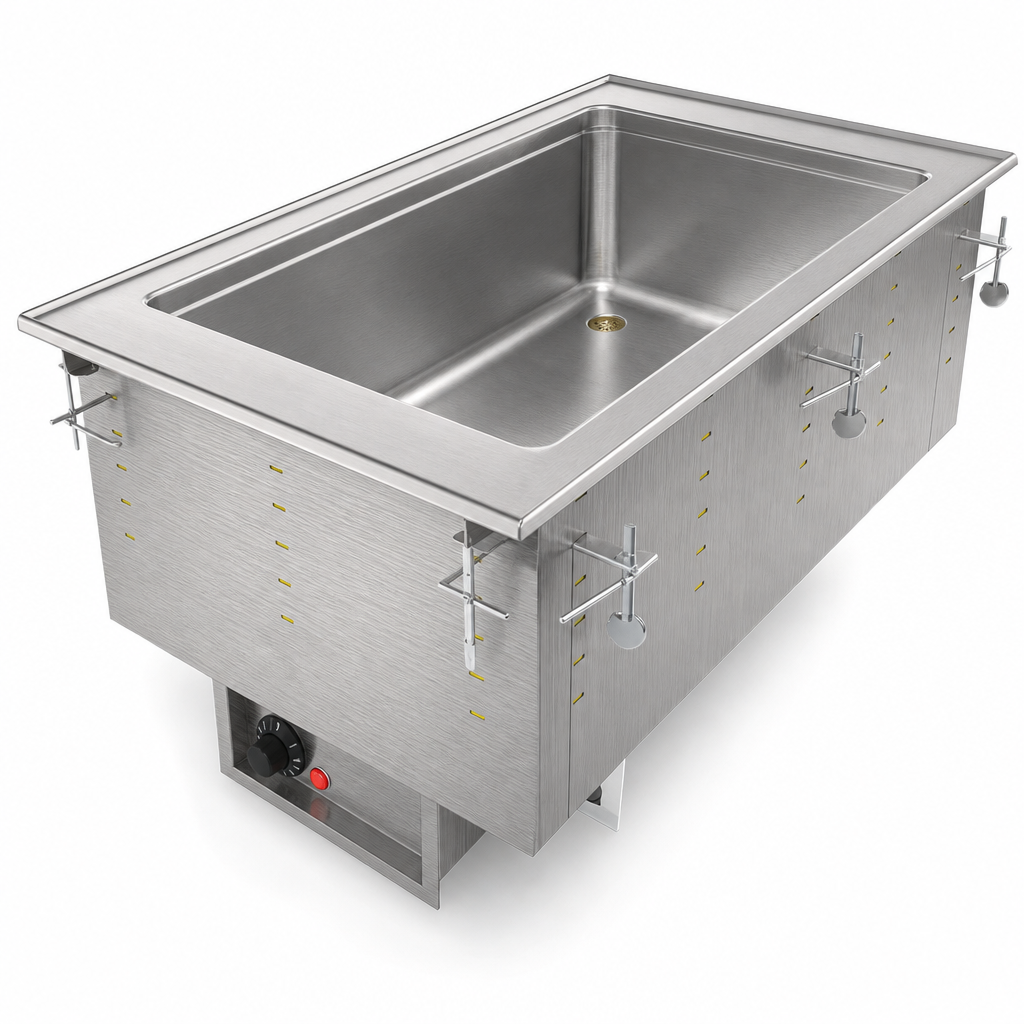

Well material 20 ga 316 marine-grade stainless steel, fully insulated
Top flange 18 ga stainless steel, drip-free design
Drain ½" NPT with ball-valve shut-off
Overall dimensions 15" W × 26" D × 15" H (38.1 × 66 × 38.1 cm)
Counter cut-out 14¼" W × 25¼" D (36.2 × 64.1 cm) with 7⁄8" (2.2 cm) corner radius
Electrical 625 W  |  120 V / 60 Hz / 1-ph  |  5.2 A  |  6' cord, NEMA 5-15P
Certifications NSF 4 (wet), cULus
Country of origin Made in USA
Warranty 2-year limited parts & labor (see VollrathFoodservice.com for details)

Installation & use

  • Zero-clearance installation—ideal for tight buffet lines and custom counters.
  • Indoor use only; maintain room temperature HVAC for optimal performance.
  • Unit must be operated with water in the well for even heating.

Need to run sheet pans? Add Vollrath sheet-pan adapter #19186 (sold separately).

Important: Drop-in units are built to order and cannot be canceled or returned.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

15.0in

Width

15.0in

Depth

26.0in

Shipping Weight

33.5lbs

Pan Capacity

(1) full size (12" x 20")

Insulated or Non-Insulated

insulated

Controls

infinite controls

Style

individual pans

Construction

stainless steel construction

Drain

with drain

Wet or Dry operation

wet

Specifications

Hot Food Well Unit, Drop-In, electric, (1) 12" x 20" 20 gauge/316 marine grade stainless steel insulated well, 15"W x 26"D x 15"H (overall), wet operation only, infinite controls mounted in panel with cord, power indicator light, drip-free flange, drain shutoff, 18 gauge stainless steel top, stainless steel exterior housing, includes positioning clips, 625 watts, 120v/60/1-ph, 5.2 amps, cord with NEMA 5-15P, NSF, cULus, Made in USA (14-1/4"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
