Vollrath 3646681HD Steam Tables & Food Wells
$2,306.75
Unit price
/
Unavailable
Description

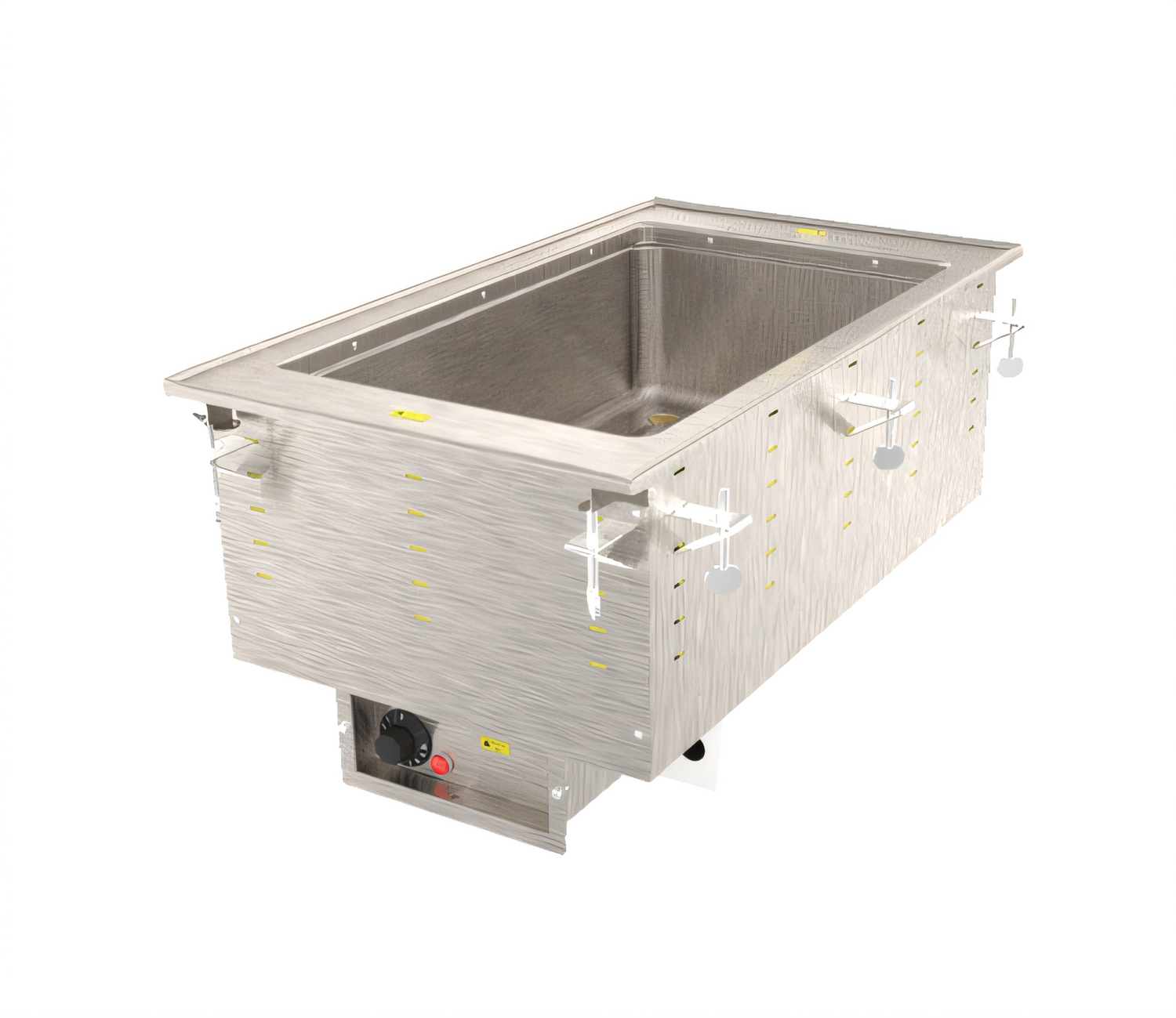

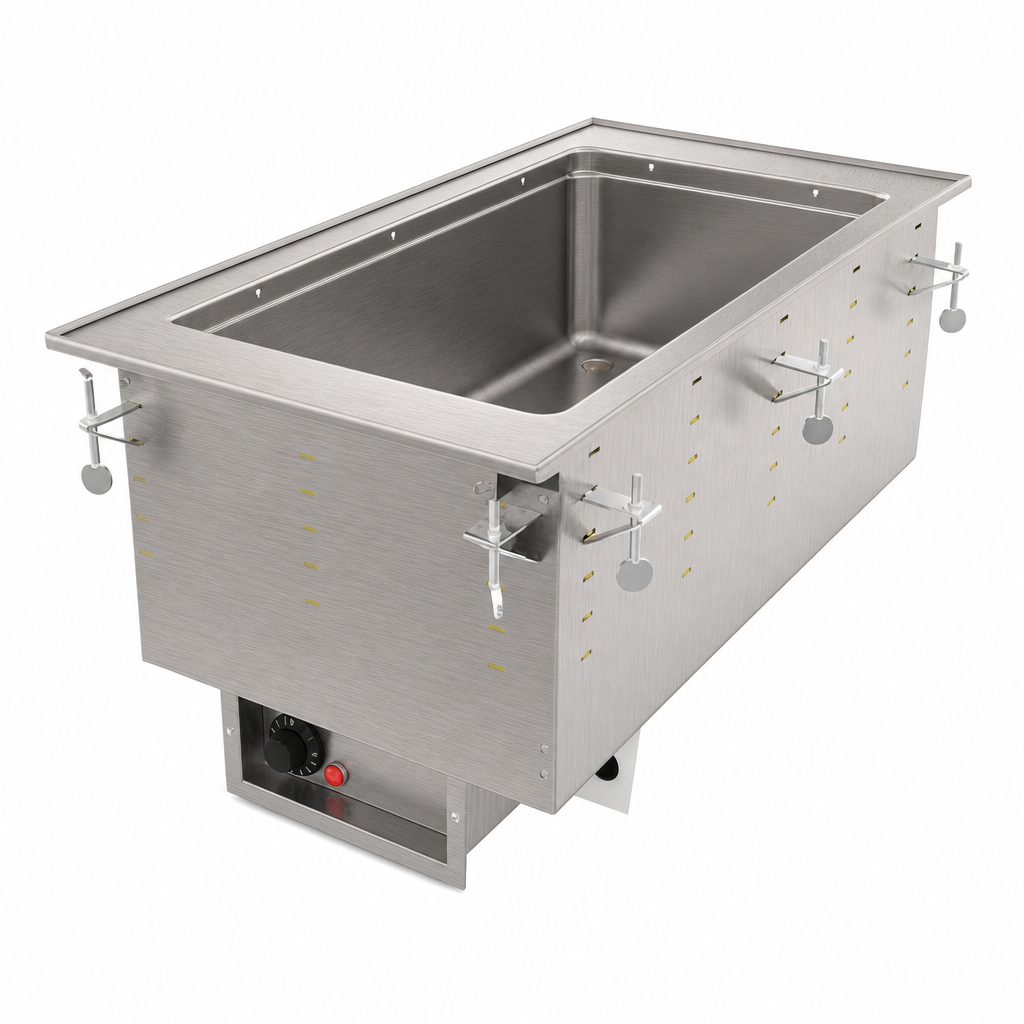

Vollrath 3646681HD Marine-Grade Auto-Fill Hot Food Well – 1/1 GN (12" x 20")
Thermostatic • 1000 W • 120 V • Drop-InKeep soups, sauces and entrées at safe, appetizing temperatures with the durability of SAE 316 marine-grade stainless steel. This fully insulated, one-well drop-in comes factory-equipped with auto-fill, thermostatic control and a 1" copper manifold drain for effortless, worry-free operation in high-volume kitchens.
Key advantages
- SAE 316 marine-grade, 20-gauge well resists corrosion from salt & acidic foods.
- Auto-fill maintains the correct water level for consistent, even heat.
- Precise thermostatic control (mounted on a stainless panel with 4' tether) includes power indicator light.
- 1" copper manifold drain with individual well shut-off and master shut-off speeds clean-up.
- Drip-free full-perimeter flange contains spills and condensation below counter level.
- 18-gauge stainless top and exterior housing built for long service life.
- Ships with mounting/positioning clips for counters up to 3" (7.6 cm) thick – no hard-wiring required.
- Accepts full-size or fractional pans up to 6" (15.2 cm) deep (adapter bars recommended for fractional pans).
- NSF & cULus listed; made in the USA.
Wet operation only: unit meets NSF 4 performance standards only when operated with water in the well.
Technical specifications
| Well size | 12" × 20" (1/1 GN) |
|---|---|
| Overall dimensions | 15" W × 26" D × 21 ½" H (38 × 66 × 54.6 cm) |
| Counter cut-out | 14 ¼" W × 25 ¼" D (36.2 × 64.1 cm) – 7/8" corner radius required |
| Heat source | Electric, 1000 W tubular element |
| Control type | Thermostatic, remote panel with power light (4' tethered cord) |
| Operation | Wet, auto-fill with 3/8" water inlet |
| Drain | 1" copper manifold, individual well ball valve & master shut-off |
| Electrical | 120 V / 60 Hz / 1-phase, 8.3 A |
| Plug | NEMA 5-15P, 6' (1.8 m) cord included |
| Installation clearance | Zero-clearance – top-mount drop-in |
| Certifications | NSF, cULus |
| Country of origin | USA |
| Warranty | 2-year parts & labor (see VollrathFoodservice.com for full policy) |
Need a sheet-pan adapter? Order Vollrath item 19186.
Features & Specs
Features & Specs
Manufacturer
Vollrath
Certifications
NSF, cULus, Made in USA
Height
21.5in
Width
15.0in
Depth
26.0in
Shipping Weight
50.14lbs
Controls
thermostatic controls
Pan Capacity
(1) full size (12" x 20")
Style
individual pans
Insulated or Non-Insulated
insulated
Construction
stainless steel construction
Drain
with drain
Wet or Dry operation
wet
Specifications
Hot Food Well Unit, Drop-In, electric, (1) 12" x 20" 20 gauge/316 marine grade stainless steel insulated well, 15"W x 26"D x 21-1/2"H (overall), wet operation only, auto-fill, thermostatic control mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with well shutoff & manifold shutoff, 18 gauge stainless steel top, stainless steel exterior housing, includes positioning clips, 1000 watts, 120v/60/1-ph, 8.3 amps, cord with NEMA 5-15P, NSF, cULus, Made in USA (14-1/4"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
