Vollrath Drop-In Electric Wet Hot Food Well with Auto-Fill, 1 Full-Size Pan

SKU: 3646681
$2,646.75
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

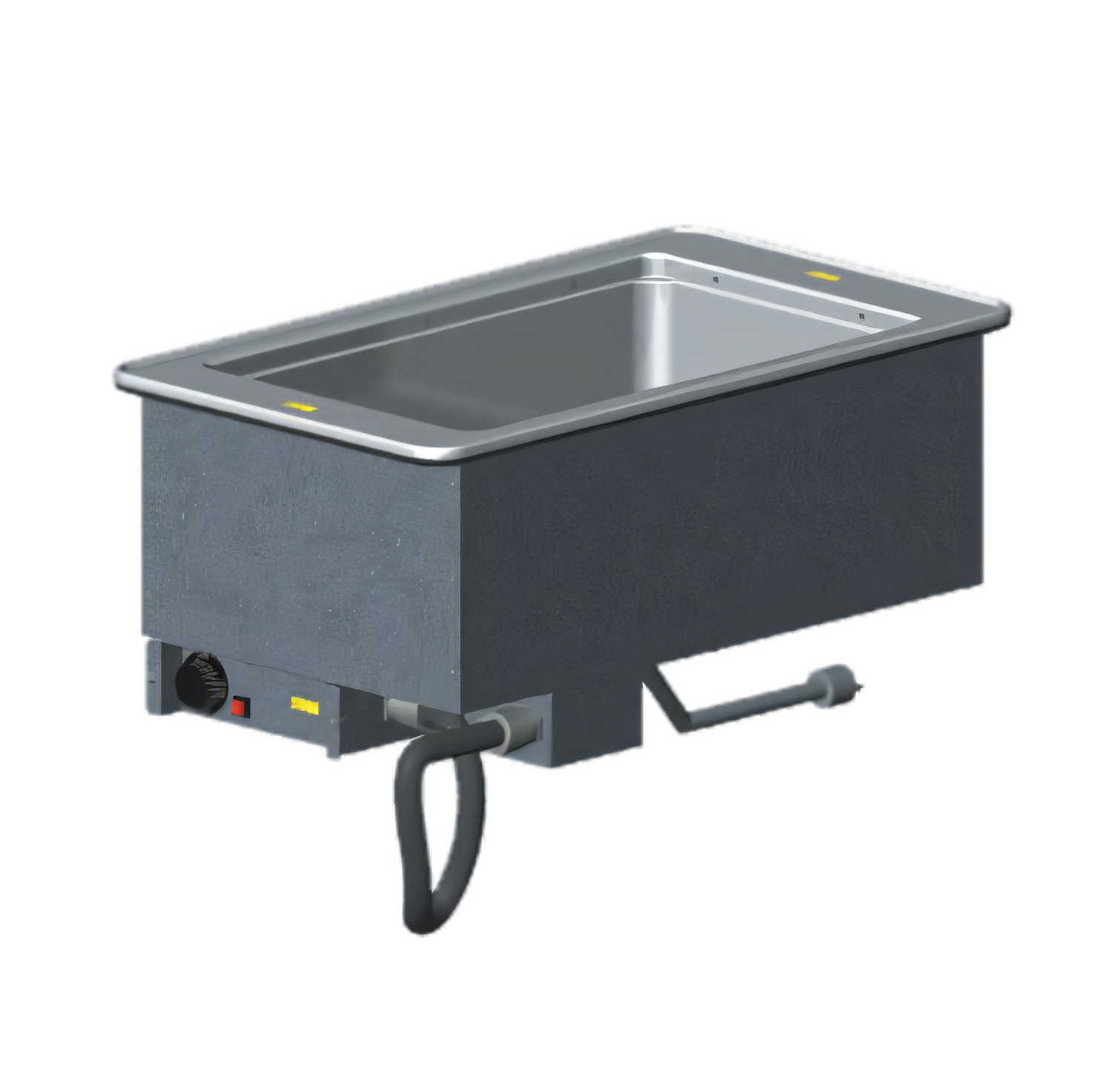

Vollrath Drop-In Electric Wet Hot Food Well with Auto-Fill, 1 Full-Size Pan

Insulated well, 120V, wet operation only

Keep one full-size pan hot and ready for service with an insulated drop-in wet well that features auto-fill convenience and thermostatic control.

  • Holds one full-size 12" x 20" pan in an insulated wet well.
  • Auto-fill design helps maintain the proper water level during service.
  • Thermostatic panel control and a power indicator light support consistent heat management.
  • Built with an 18-gauge stainless steel top and corrosion-resistant galvanized exterior housing.
  • Includes a 1" copper manifold drain with well shutoff and manifold shutoff for easier service.
  • Comes with positioning clips and a NEMA 5-15P cord for installation.

Overall Dimensions:

15.0"W x 26.0"D x 21.5"H

Product Weight:

50.14 lb

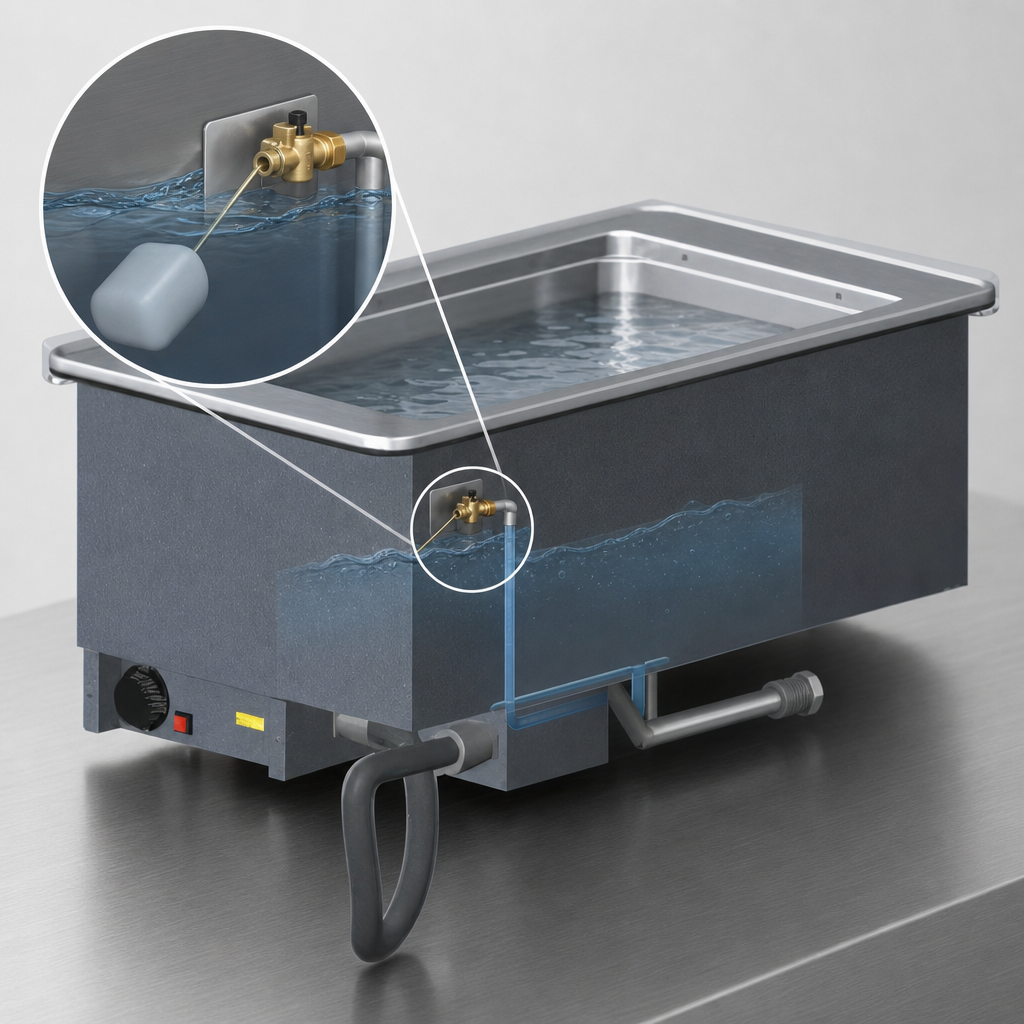

Auto-Fill System

Helps maintain the correct water level for wet operation without constant manual attention.

Thermostatic Panel Control

Mounted in the panel for straightforward temperature management, with a power indicator light.

Insulated Stainless Steel Well

The 20-gauge stainless steel well is insulated to help hold heat efficiently.

Drip-Free Flange

Helps contain spills around the cutout for a cleaner serving line.

Copper Manifold Drain

Includes a 1" copper manifold drain with well shutoff and manifold shutoff.

Stainless Steel Top

Built with an 18-gauge stainless steel top for durability and easy cleaning.

Corrosion-Resistant Exterior Housing

18-gauge galvanized exterior housing adds strength and resists wear in foodservice environments.

Positioning Clips Included

Helps secure the unit during installation.

Type Hot Food Well Unit
Installation Type Drop-In
Style Individual Pans
Compartments 1
Pan Capacity 1 Full-Size Pan
Pan Size 12 Inches x 20 Inches
Controls Thermostatic
Material Stainless Steel
Interior Finish Stainless Steel
Drain Connection Required
Drain Connection Size 1 Inch
Voltage 120 Volts
Amps 8.3 Amps
Watts 1 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 15 Inches
Shipping Depth 26 Inches
Shipping Height 22 Inches
Shipping Weight 50.14 lb.

Frequently Asked Questions

It is designed for one full-size 12" x 20" pan.
No. This unit is wet operation only.
It operates on 120V, 60Hz, single-phase power and draws 8.3 amps with a NEMA 5-15P cord.
The required cutout size is 14-1/4" W x 25-1/4" D with a 7/8" corner radius.
Yes. It includes a 1" copper manifold drain with well shutoff and manifold shutoff.
Positioning clips are included.
