Vollrath

Vollrath Drop-In Electric Hot Food Well, Single Full-Size Pan, Auto-Fill, 120V

SKU: 3646680HD
$2,798.35
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Food Bars & Buffets Food Holding & Warming Equipment Food Wells & Serving Lines Hot Well New Arrivals Restaurant Equipment Steam Tables & Food Wells Vollrath

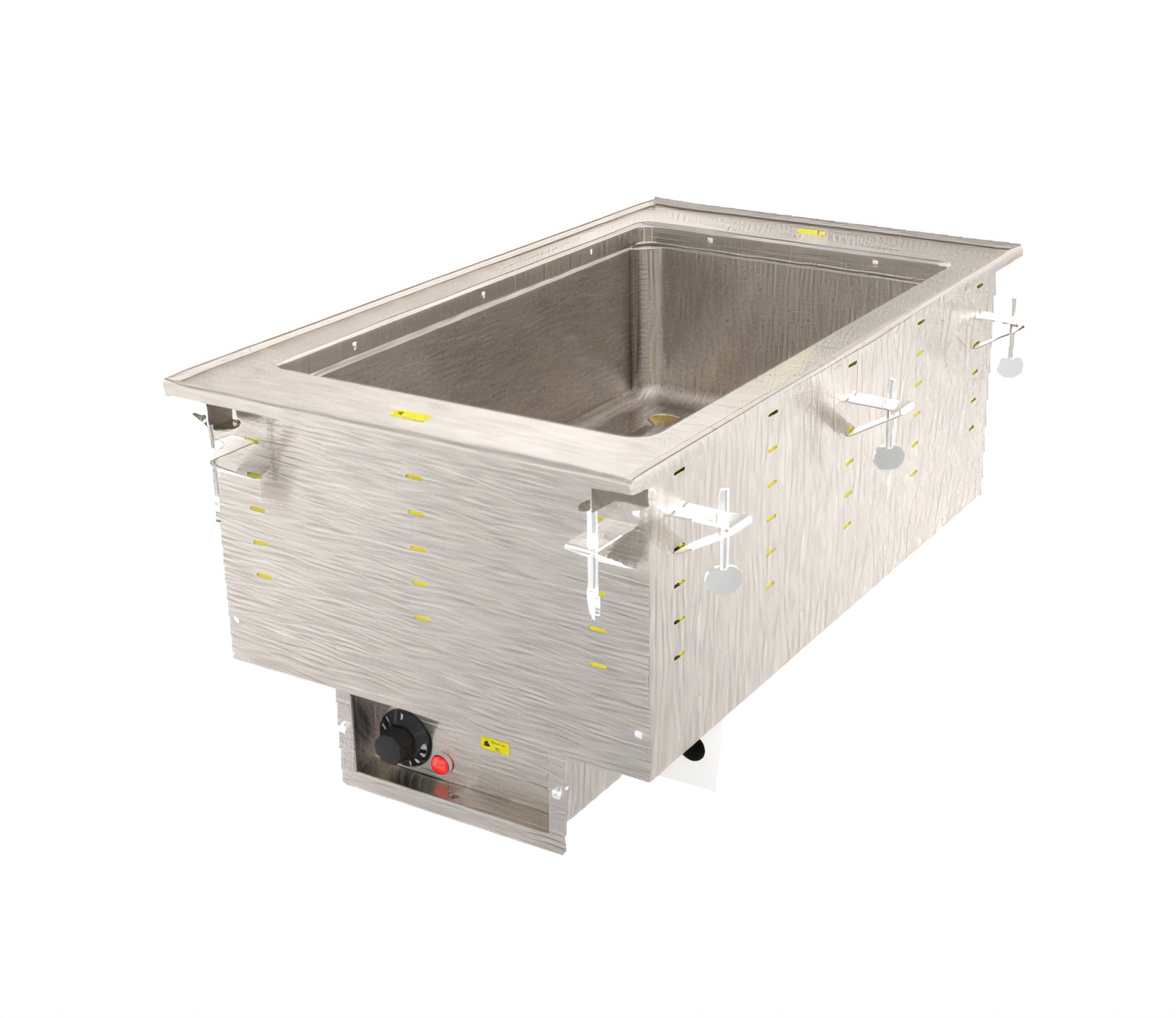

Vollrath Drop-In Electric Hot Food Well, Single Full-Size Pan, Auto-Fill, 120V

Wet Operation Only, Thermostatic Control, Stainless Steel

This drop-in electric hot food well keeps one full-size pan hot and ready with auto-fill wet operation, thermostatic control, and durable stainless steel construction.

  • Holds one full-size 12 x 20 Inch pan in a drop-in wet-operation design.
  • Auto-fill helps maintain the proper water level for dependable hot holding.
  • Thermostatic, panel-mounted control includes a power indicator light.
  • 316 marine-grade stainless steel insulated well helps improve durability and heat retention.
  • 1 Inch copper manifold drain with individual well shutoffs and a manifold shutoff supports easier service.
  • Includes positioning clips and a cord with NEMA 5-15P plug for installation.

Overall Dimensions:

15.0"W x 26.0"D x 21.5"H

Product Weight:

50.14 lb

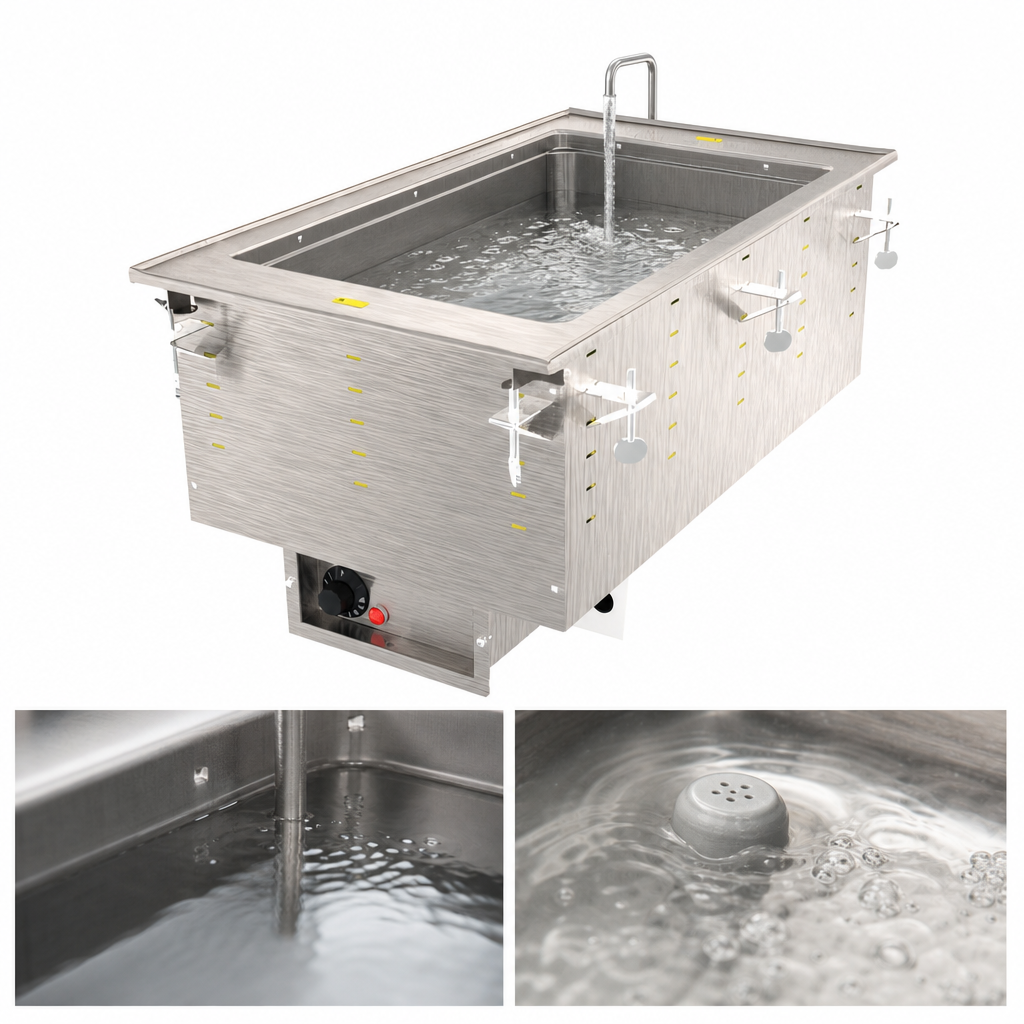

Auto-Fill Wet Operation

Automatically maintains the water level for wet holding applications.

Thermostatic Panel Control

Panel-mounted thermostatic control includes a power indicator light for easy operation monitoring.

316 Marine-Grade Insulated Well

Single 20-gauge insulated well is built from 316 marine-grade stainless steel for durability.

Stainless Steel Top and Housing

18-gauge stainless steel top and stainless steel exterior housing provide a durable finish.

1-Inch Copper Manifold Drain

Includes a copper manifold drain with individual well shutoffs and a manifold shutoff.

Includes Positioning Clips

Positioning clips are included to help secure the unit during installation.

120V Cord and Plug

Supplied with a cord and NEMA 5-15P plug for standard electrical connection.

Type Hot Food Well
Style Individual Pans
Installation Type Drop-In
Pan Capacity 1 Full-Size Pan
Pan Size 12 Inches x 20 Inches
Compartments 1
Controls Thermostatic
Water Connection Required
Drain Connection Required
Drain Connection Size 1 Inch
Material Stainless Steel
Interior Finish 316 Marine Grade Stainless Steel
Finish Stainless Steel
Watts 625 Watts
Voltage 120 Volts
Amps 5.2 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Shipping Width 15 Inches
Shipping Depth 26 Inches
Shipping Height 22 Inches
Shipping Weight 50.14 Pounds
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Refer to vollrathfoodservice.com for full warranty policy.

Documents

PDF Cutsheet PDF Download PDF Catalog page PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

No. This unit is wet operation only.
It is designed for one full-size 12 x 20 Inch pan.
Yes. The unit includes auto-fill.
It uses 120 Volts, 60 Hz, 1-Phase power, draws 5.2 Amps, and includes a NEMA 5-15P cord.
Yes. It includes a 1 Inch copper manifold drain with individual well shutoffs and a manifold shutoff.
The required cutout size is 14-1/4 Inches W x 25-1/4 Inches D with a 7/8 Inch corner radius.
