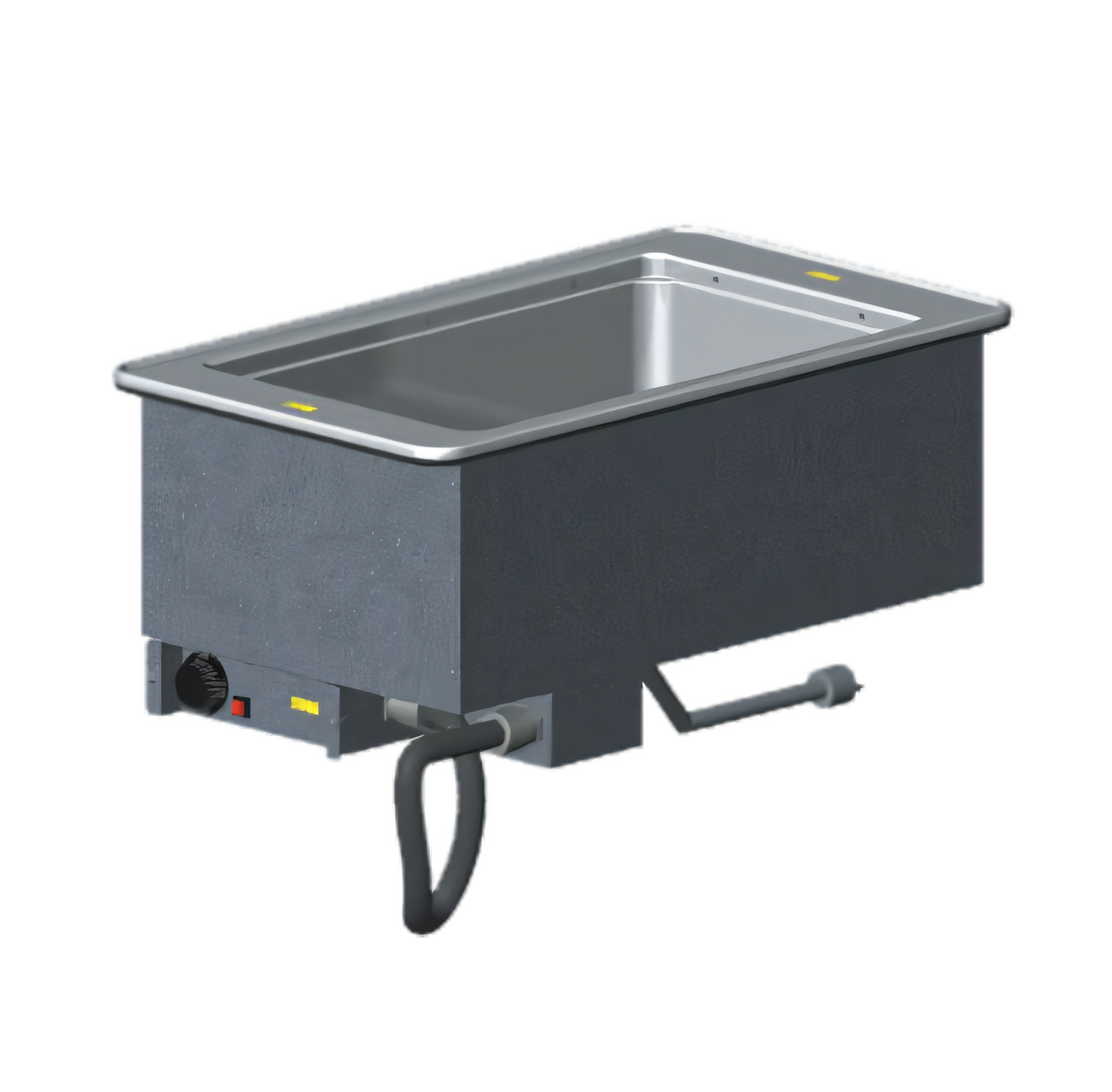

Vollrath Drop-In Electric Hot Food Well Unit with 1 Full-Size Insulated Wet Well, Auto-Fill

Wet Operation Only, 120V, Thermostatic Controls

Keep a full-size pan of food hot and ready with a compact drop-in wet well built for reliable thermostatic control and easy drain management.

  • Holds one full-size 12" x 20" pan in a single insulated stainless steel well.
  • Wet-operation design with auto-fill and thermostatic control mounted in the panel.
  • Drip-free flange, power indicator light, and manifold drain system help streamline operation and cleanup.
  • Built with an 18-gauge stainless steel top and galvanized exterior housing for durability.
  • Includes individual well shutoffs plus a manifold shutoff for added control.
  • 120V operation with a NEMA 5-15P cord simplifies electrical hookup.
  • Positioning clips are included for installation.

Overall Dimensions:

15.0"W x 26.0"D x 21.5"H

Product Weight:

50.14 lb

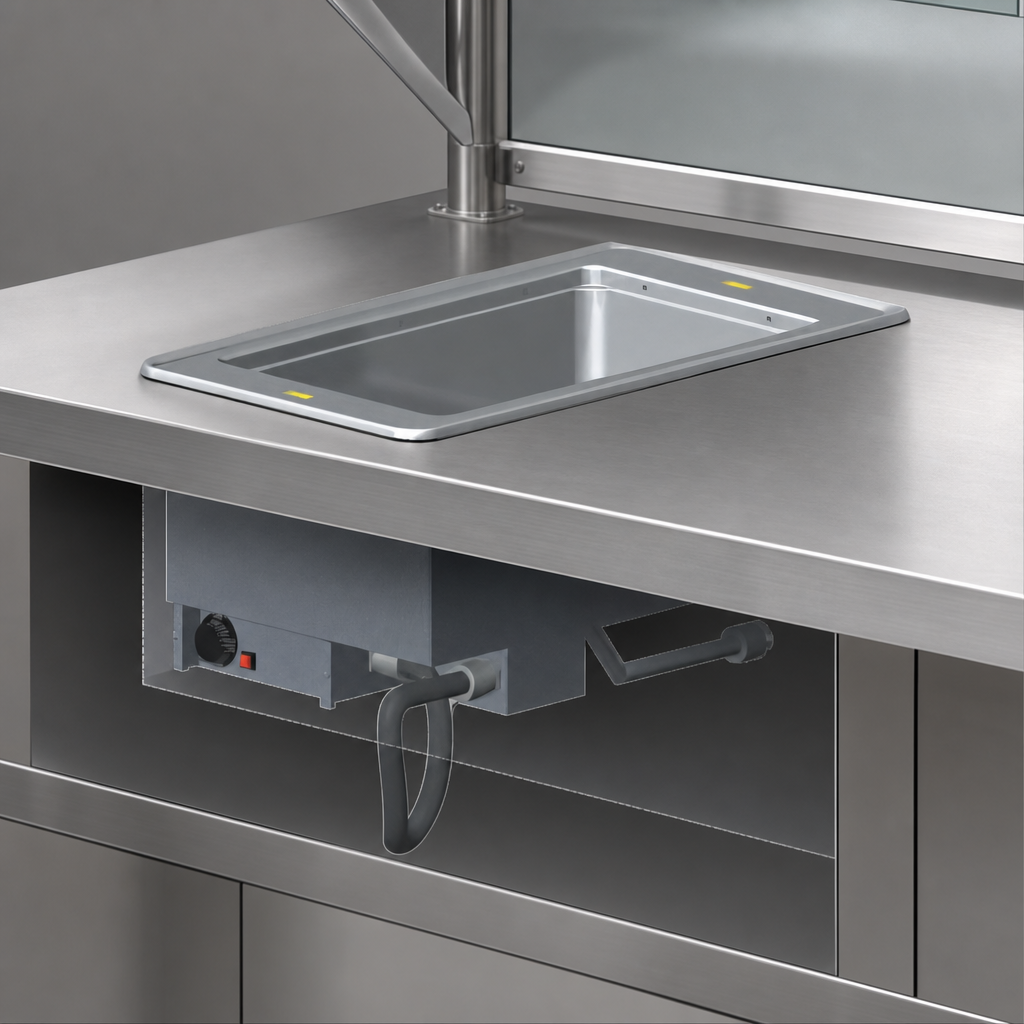

Drop-In Design

Installs into a countertop opening for a clean, integrated buffet or serving line layout.

Single Full-Size Well

Configured for one 12" x 20" full-size pan, making it a good fit for standard hot holding applications.

Wet Operation Only

Designed specifically for wet use to maintain heat and food quality during service.

Auto-Fill Capability

Automatically helps maintain water level in the well for more consistent operation.

Thermostatic Panel Control

Mounted control allows temperature adjustment for dependable hot holding.

Drain and Shutoff System

Includes a 1" copper manifold drain with individual well shutoffs and a manifold shutoff to assist with servicing and cleanup.

Insulated Stainless Steel Well

The 20-gauge stainless steel well is insulated to help retain heat more efficiently.

Durable Top and Housing

Features an 18-gauge stainless steel top and 18-gauge galvanized exterior housing.

Cord and Indicator Light

Includes a power cord with NEMA 5-15P plug and a power indicator light for easy status checks.

Positioning Clips Included

Positioning clips are included to help secure the unit during installation.

Type Hot Food Well
Installation Type Drop-In
Style Individual Pans
Controls Thermostatic
Pan Capacity 1 Full-Size Pan
Voltage 120 Volts
Amps 5.2 Amps
Watts 625 Watts
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Material Stainless Steel
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 15 Inches
Shipping Depth 26 Inches
Shipping Height 22 Inches
Shipping Weight 50.14 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Catalog page PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

This unit is wet operation only.
It is designed for one full-size 12" x 20" pan.
The unit operates on 120V, 60 Hz, single-phase power and draws 5.2 amps at 625 watts.
Yes. It includes a 1" copper manifold drain with individual well shutoffs and a manifold shutoff.
The required cutout size is 14-1/4" W x 25-1/4" D with a 7/8" corner radius.
