Vollrath  |  SKU: 3646661HD

Vollrath 3646661HD Steam Tables & Food Wells

$1,856.40
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

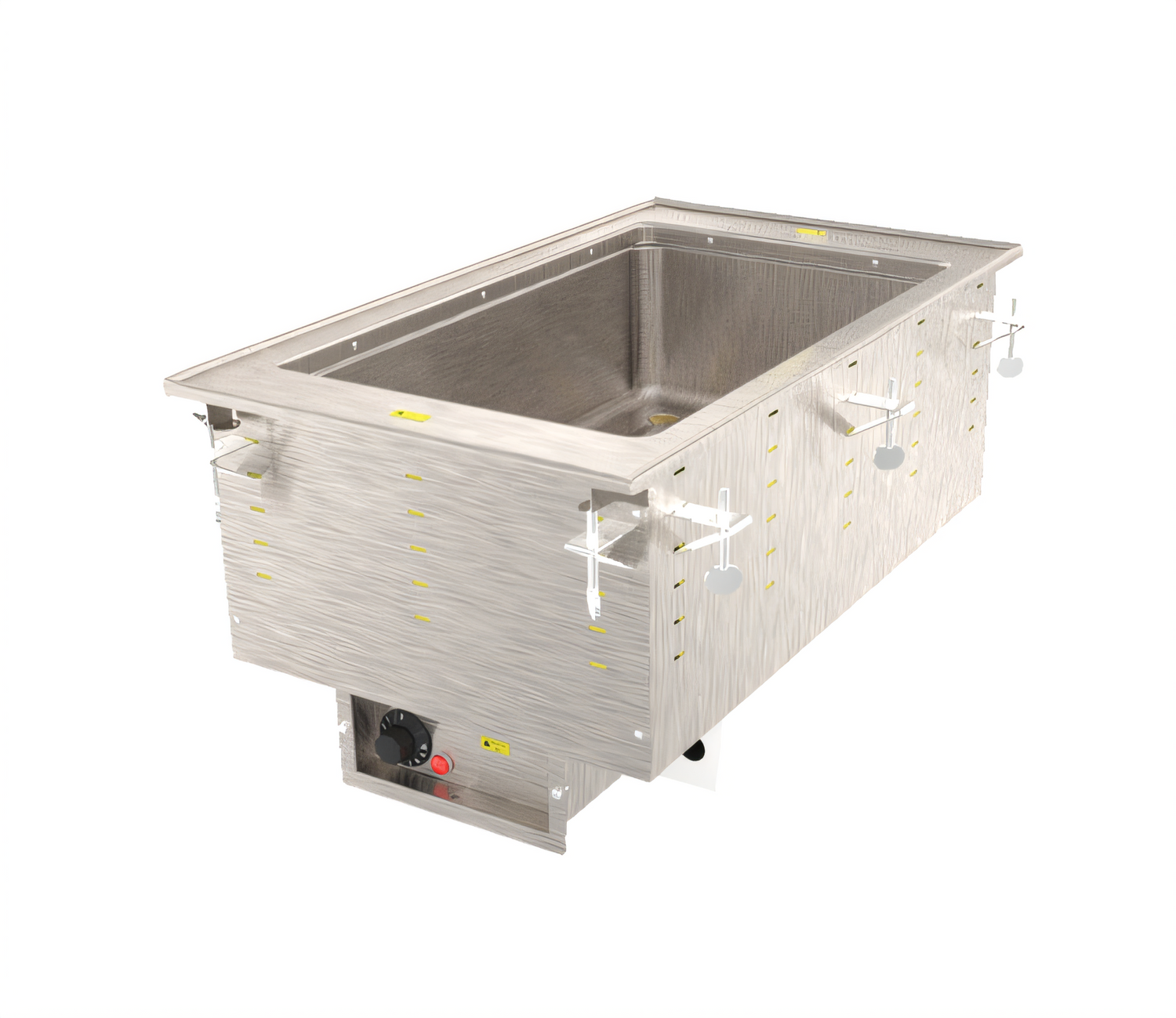

Vollrath 3646661HD Modular Hot Drop-In Food Well – 1 Marine-Grade Pan, Auto-Fill, 120 V

1000 W • Infinite Control • 1″ Manifold Drain • Made in USA

Built for busy buffets, cafeterias and serving lines, this Vollrath one-well drop-in keeps soups, sauces and entrées irresistibly hot while saving operators time thanks to its automatic water-fill and quick-install design.

Key advantages
  • Premium 12" × 20" well is formed from 20-gauge 316 marine-grade stainless steel for superior corrosion resistance.

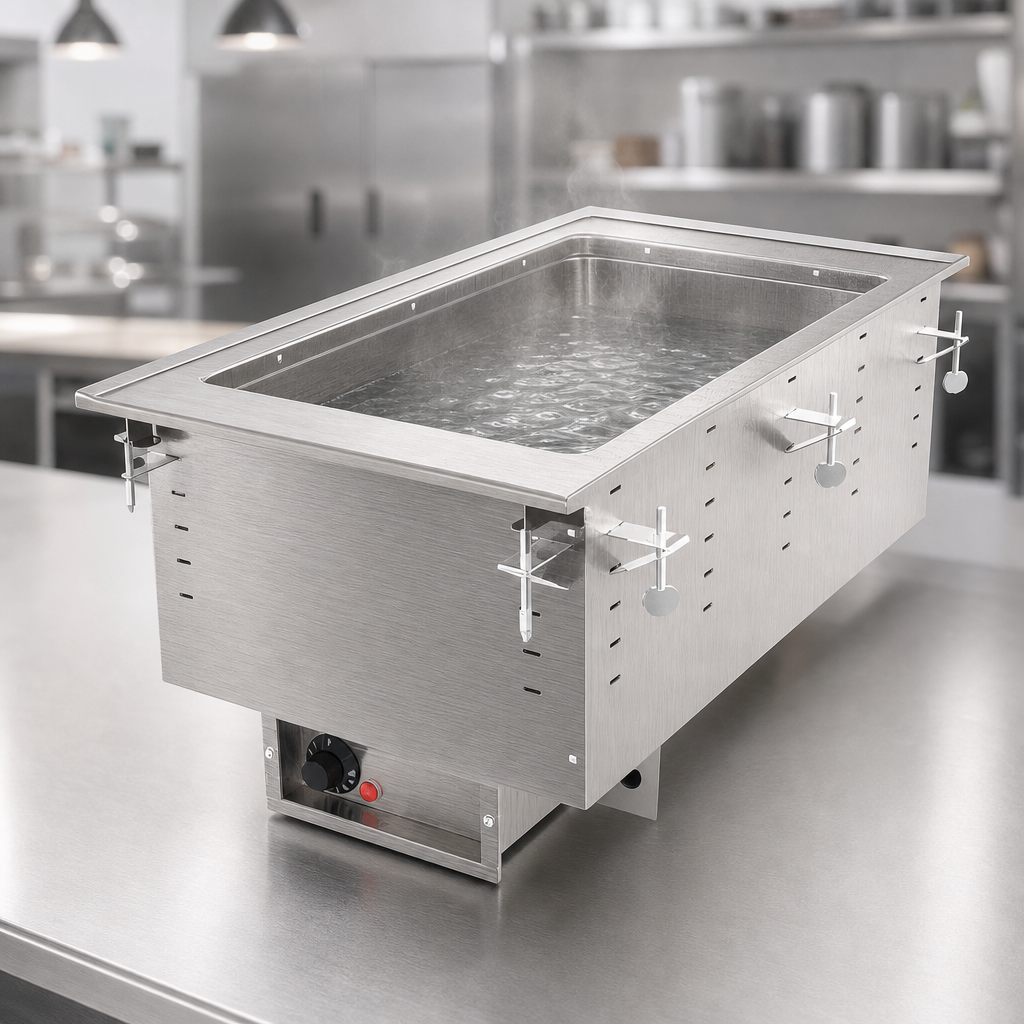

  • Wet-operation ONLY design with integrated auto-fill keeps the water level perfect for even, consistent heating.
  • 1,000 watts of heat controlled by a precise infinite knob; front power indicator light confirms operation at a glance.
  • Top-mount, zero-clearance drop-in installs fast—includes positioning clips, under-flange gasket and 6' cord with NEMA 5-15P plug (no hard-wiring).
  • Full-perimeter drip-free flange contains condensation and spills, protecting your countertop.
  • 1" copper manifold drain with individual well shut-off plus master manifold shut-off for quick, mess-free water removal.
  • Thick insulation on all sides (including between well and housing) improves efficiency and keeps surrounding surfaces cool.
  • Accepts full-size or fractional steam-table pans up to 6" deep; adapter bars recommended for fractional pans.
  • NSF listed, cULus certified and proudly made in the USA; covered by a 2-year limited warranty.
Detailed specifications
Item number 3646661HD
Capacity (1) full-size 12" × 20" pan
Operation type Wet only, automatic water-fill
Control type Infinite, remote panel with 4' (1.22 m) tether
Heating power 1,000 W
Electrical 120 V / 60 Hz / 1-ph, 8.3 A, NEMA 5-15P
Well material 20-ga 316 stainless steel
Top flange material 18-ga stainless steel
Drain 1" copper manifold, individual well & master shut-offs
Overall dimensions 15" W × 26" D × 21-1/2" H (38 × 66 × 54.6 cm)
Counter cut-out 14-1/4" W × 25-1/4" D, 7/8" corner radius
Cord length 6' (1.8 m)
Certifications NSF 4 (wet use), cULus
Country of origin USA
Perfect for
  • Restaurant serving lines & buffets
  • College & corporate cafeterias
  • Convenience & grocery hot bars
  • Custom built-in catering stations
Important: This unit is designed for wet heating only. Operating without water will damage the element and void the warranty.

For complete installation, operating and warranty details, visit VollrathFoodservice.com.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

21.5in

Width

15.0in

Depth

26.0in

Shipping Weight

43.6lbs

Construction

stainless steel construction

Pan Capacity

(1) full size (12" x 20")

Style

individual pans

Controls

infinite controls

Insulated or Non-Insulated

insulated

Drain

with drain

Wet or Dry operation

wet

Specifications

Hot Food Well Unit, Drop-In, electric, (1) 12" x 20" 20 gauge/316 marine grade stainless steel insulated well, 15"W x 26"D x 21-1/2"H (overall), wet operation only, auto-fill, infinite control mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with well shutoff & manifold shutoff, 18 gauge stainless steel top, stainless steel exterior housing, includes positioning clips, 1000 watts, 120v/60/1-ph, 8.3 amps, cord with NEMA 5-15P, NSF, cULus, Made in USA (14-1/4"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
