Vollrath  |  SKU: 3646661

Vollrath 3646661 Steam Tables & Food Wells

$1,681.05
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

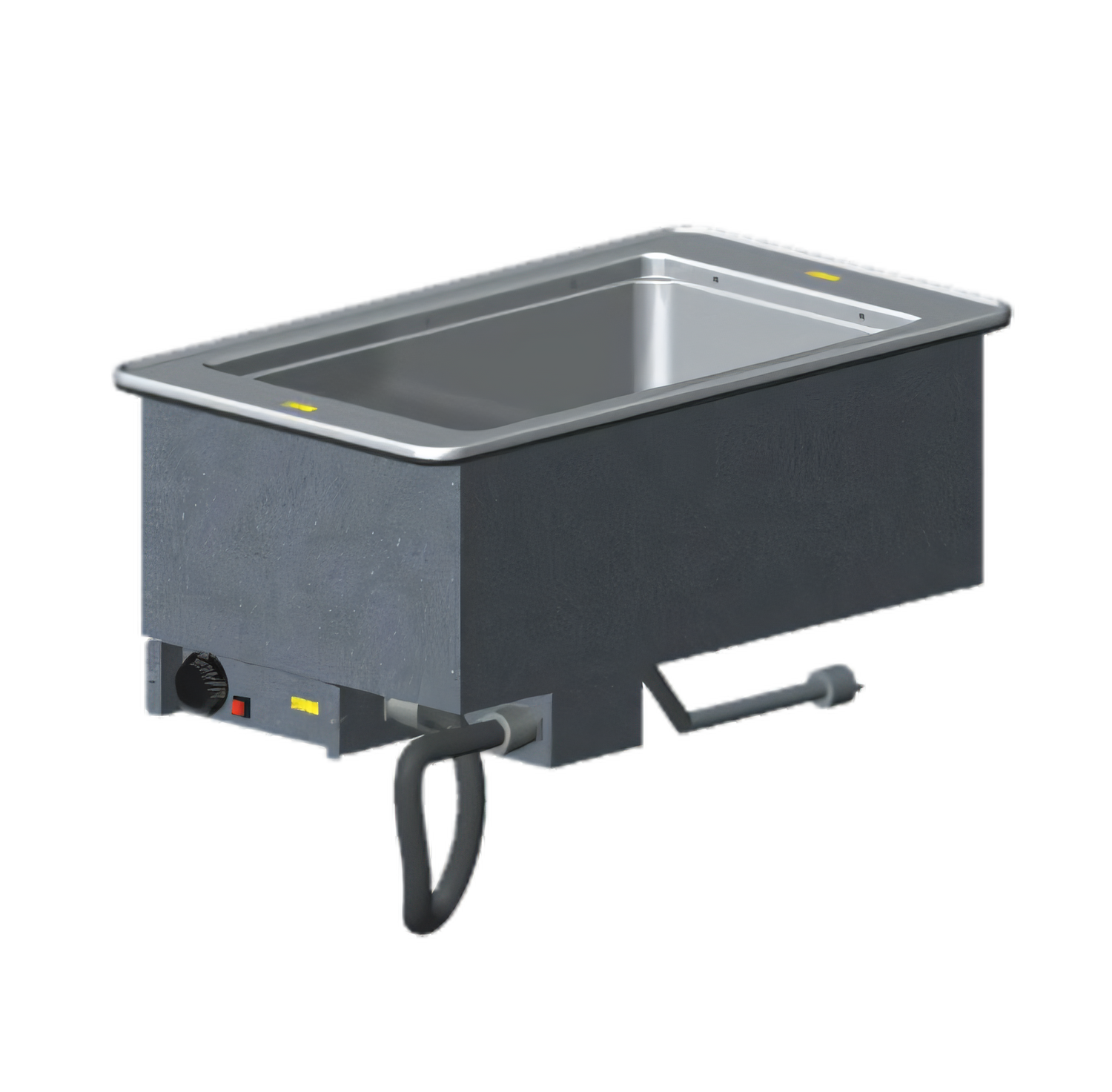

Vollrath 1-Well Hot Drop-In w/ Auto-Fill, Infinite Control – 1000 W

Model 3646661 • 12" x 20" stainless well • 120 V / NEMA 5-15P • NSF & cULus Listed • Made in USA

Create a seamless, sanitary hot-food holding station in any counter with this Vollrath modular drop-in. The deep-drawn stainless well and automatic water-fill system deliver consistent, moist heat while the full-perimeter drip edge contains spills for a cleaner service line.

Why You’ll Love It

  • Automatic water level control – built-in auto-fill maintains the perfect steam level and reduces labor.
  • Infinite temperature control with power indicator light for simple, precise adjustment.
  • Premium construction – 18 ga stainless top, 20 ga stainless well, 18 ga galvanized housing.
  • 1" copper manifold drain with individual well shut-off and master manifold shut-off.
  • Full-perimeter drip-edge flange keeps condensation and spills off the counter.

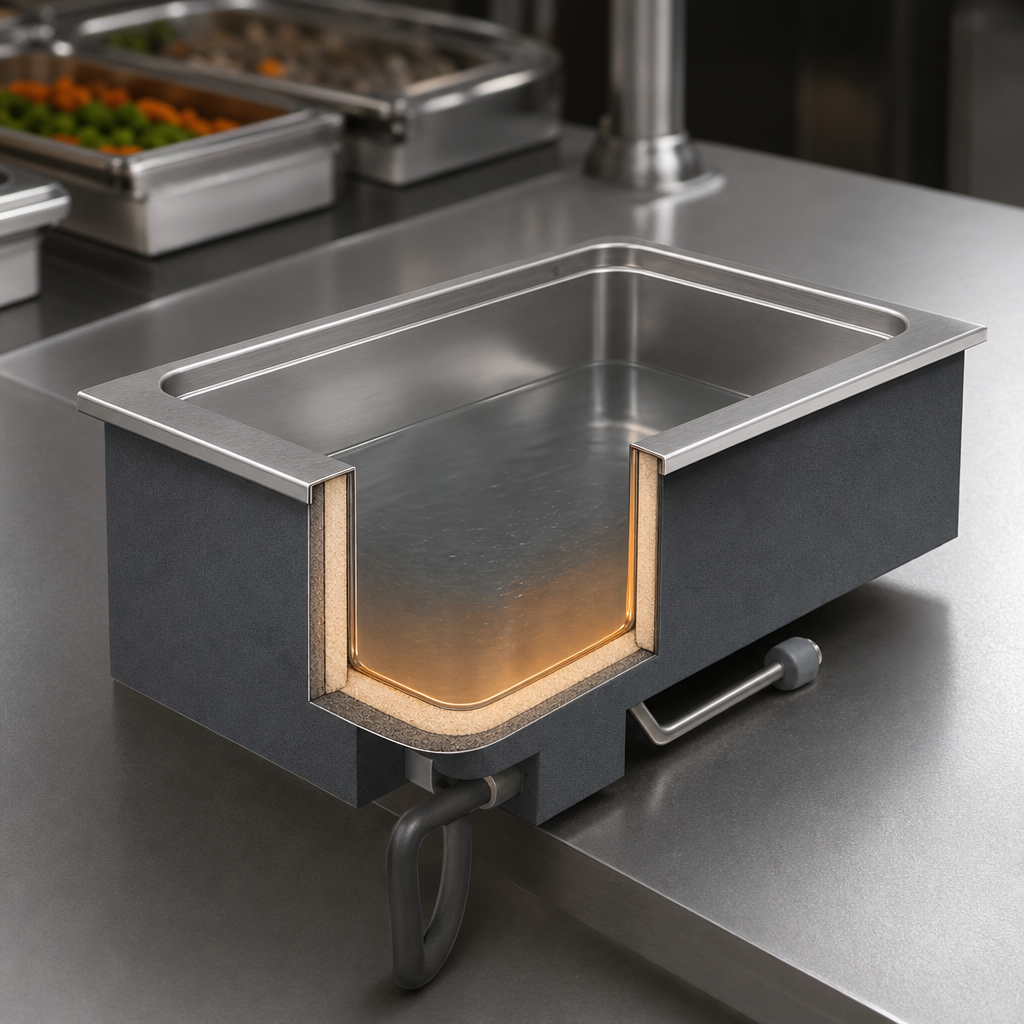

  • High-density glass-fiber insulation on all sides—safe zero-clearance installation.
  • Accepts full-size or fractional pans up to 6" (15.2 cm) deep.
  • Ships ready to use with 6' (1.8 m) cord and NEMA 5-15P plug—no hard-wiring required.
  • Includes positioning & mounting clips for counters up to 3" (7.6 cm) thick.
  • Backed by Vollrath’s one-year parts & labor warranty.

Technical Specifications

Item number 3646661
Type Single well, drop-in, wet operation only
Well size (interior) 12" W x 20" D; 20 ga stainless steel
Overall dimensions 15" W x 26" D x 21 1⁄2" H (38 x 66 x 54.5 cm)
Counter cut-out 14 1⁄4" W x 25 1⁄4" D; 7⁄8" corner radius required
Control type Infinite knob, remote stainless panel (3' tether)
Heating output 1000 W
Electrical 120 V / 60 Hz / 1-ph, 8.3 A, cord & NEMA 5-15P plug
Drain system 1" copper manifold drain with individual and master shut-offs; auto-fill included (requires separate 120 V service)
Certifications NSF 4 (wet), cULus
Country of origin USA
Warranty 1-year parts & labor (see vollrathfoodservice.com for full policy)
Important: This unit is designed for moist-heat operation only. Fill well with water before energizing and maintain water level during use.

Need multi-well configurations or marine-grade construction? Contact us for additional Vollrath models and options.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

21.5in

Width

15.0in

Depth

26.0in

Shipping Weight

43.6lbs

Controls

infinite controls

Style

individual pans

Pan Capacity

(1) full size (12" x 20")

Insulated or Non-Insulated

insulated

Construction

stainless steel top, corrosion resistant steel exterior

Drain

with drain

Wet or Dry operation

wet

Specifications

Hot Food Well Unit, Drop-In, electric, (1) 12" x 20" 20 gauge stainless steel insulated well, 15"W x 26"D x 21-1/2"H (overall), wet operation only, auto-fill, infinite control mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with well shutoff & manifold shutoff, 18 gauge stainless steel top, 18 gauge galvanized exterior housing, includes positioning clips, 1000 watts, 120v/60/1-ph, 8.3 amps, cord with NEMA 5-15P, NSF, cULus, Made in USA (14-1/4"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
