Vollrath  |  SKU: 3646660HD

Vollrath 3646660HD Steam Tables & Food Wells

$1,856.40
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

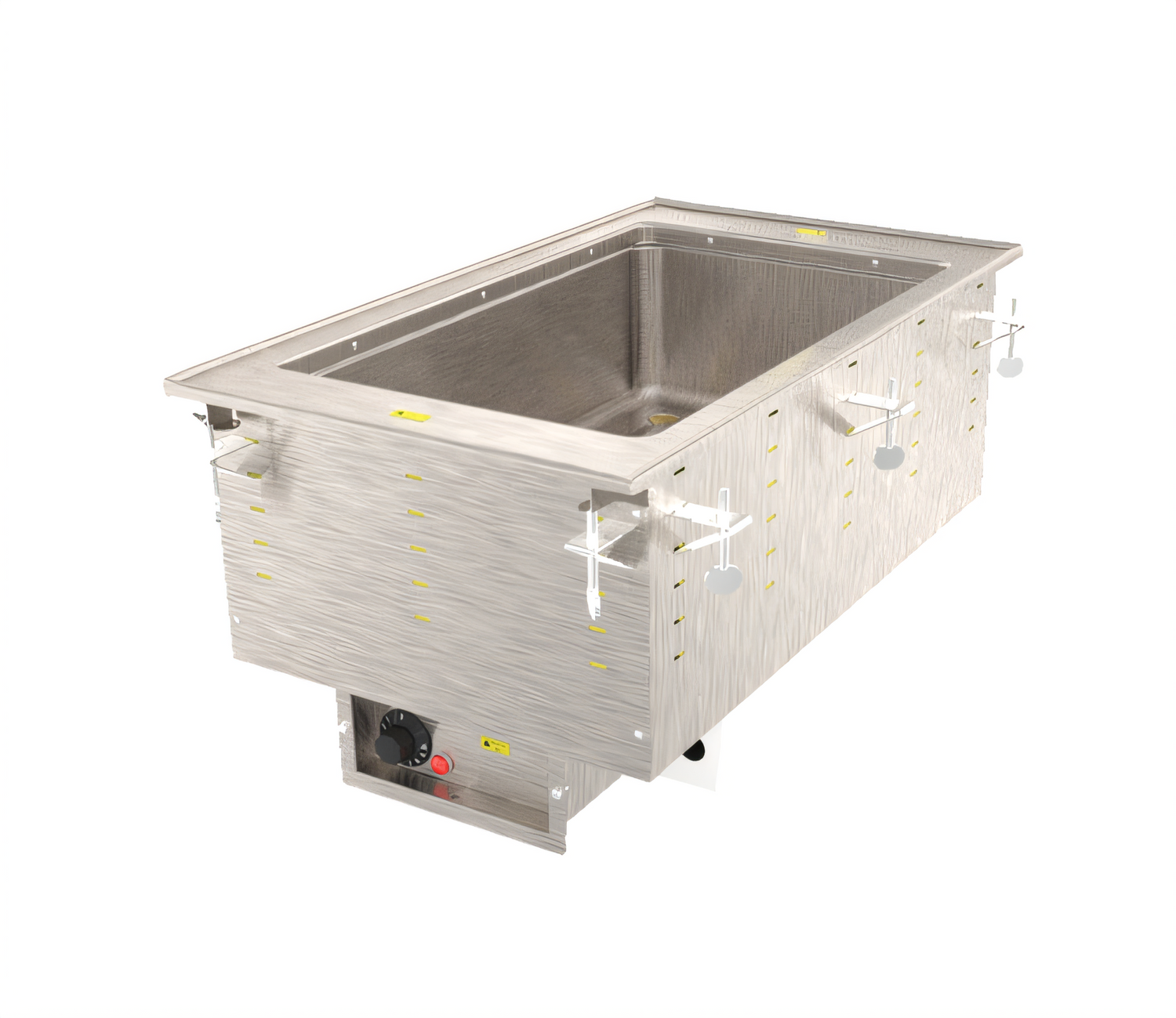

Vollrath 3646660HD Modular Hot Drop-In Food Well

1 × 12" × 20" Marine-Grade Well • Auto-Fill • 120 V / 625 W

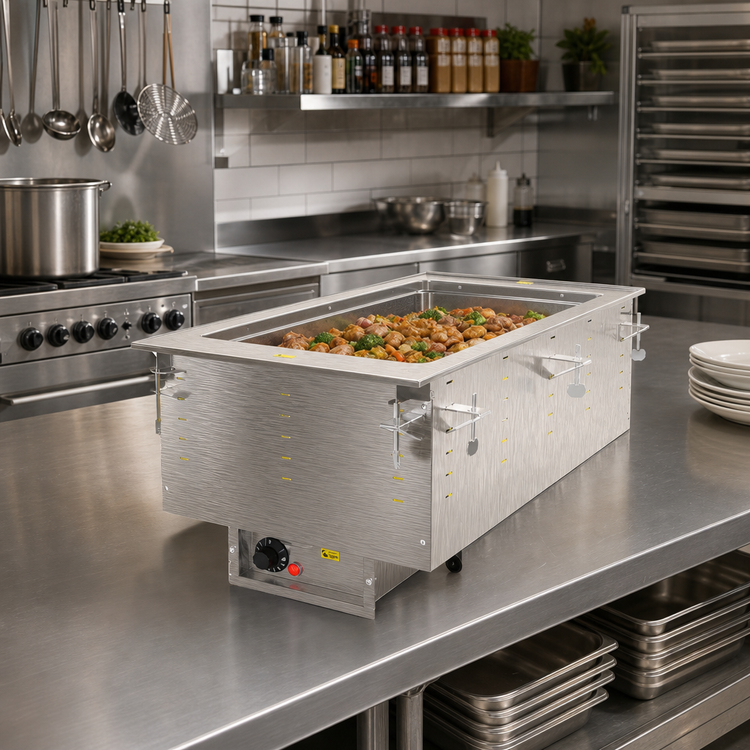

Give your buffet, salad bar or cookline the professional built-in look while keeping menu items hot, safe and ready to serve. This Made-in-USA Vollrath drop-in combines a corrosion-resistant 316 stainless well with automatic water fill and an easy-to-reach remote control panel—no hard-wiring, no hassles.

Why you’ll love it
  • Drawn 20 ga 316 marine-grade stainless well resists pitting from chlorides and cleaners.

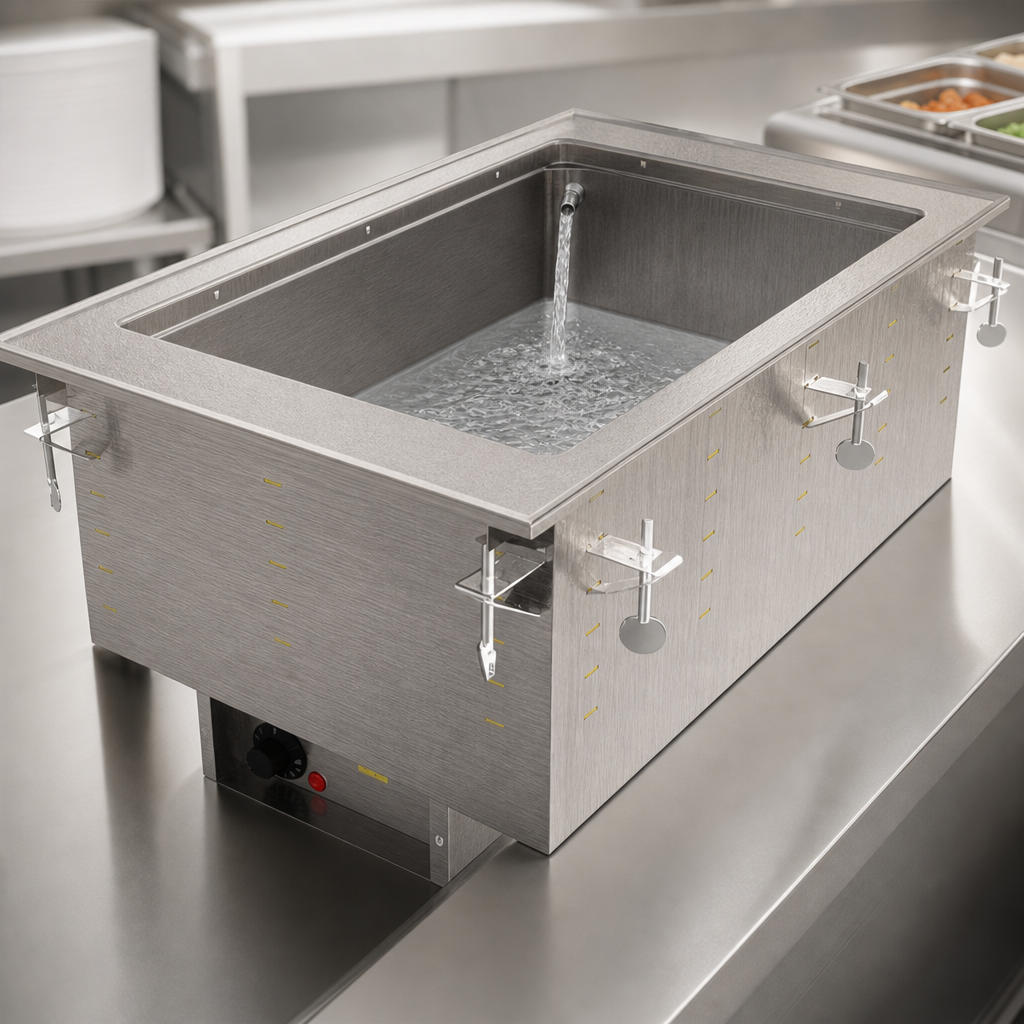

  • Auto-fill maintains the proper water level for consistent, worry-free wet operation.
  • 1" copper manifold drain with individual well shut-off plus master shut-off speeds cleanup.
  • Infinite control knob with illuminated power indicator on a stainless panel (4' tether) lets you mount controls where staff can reach them, not customers.
  • Full-perimeter, drip-free flange keeps condensation and spills off the counter.
  • Fully insulated on all non-exposed sides for higher efficiency and a cooler exterior.
  • 6' (1.8 m) cord with NEMA 5-15P plug—just drop it in and plug it in.
  • Zero-clearance design; mounting clips included for counters up to 3" thick.
  • NSF 4 & cULus listed for food-service safety, quality built in Sheboygan, Wisconsin.
Performance & capacity
  • 625 W, 120 V, 5.2 A—fits any standard 15 A outlet without overloading the circuit.
  • Accepts one full-size or fractional pans up to 6" (15.2 cm) deep (adapter bars recommended for fractional pans).
  • Wet operation only—water is required for even heating and NSF compliance.
Specifications
Overall dimensions 15" W × 26" D × 21-1/2" H (38 × 66 × 54.6 cm)
Recommended cut-out 14-1/4" W × 25-1/4" D (36.2 × 64.1 cm), 7/8" corner radius
Control panel cut-out 8" W × 3-5/16" H (20.3 × 8.4 cm)
Water inlet (auto-fill) 3/8" compression connection
Drain 1" copper manifold, male pipe thread
Construction 18 ga stainless top & housing; insulated 20 ga 316 SS well
Electrical 120 V / 60 Hz / 1-ph, 625 W, 5.2 A, NEMA 5-15P plug
Agency approvals NSF, cULus
Warranty 2-year parts & labor (see Vollrath website for details)
Country of origin USA
What’s in the box
  • Marine-grade insulated drop-in well with removable bottom service panel
  • Stainless remote control panel with infinite control & indicator light
  • Auto-fill hardware and 1" manifold drain assembly
  • Mounting gasket & positioning clips
  • Installation and operation manual
Important: Modular drop-ins are built to order and cannot be cancelled or returned. Verify cut-out size, electrical supply, and plumbing connections before purchasing.

Meets NSF 4 performance standards only when operated with water. For complete warranty information, visit vollrathfoodservice.com.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

21.5in

Width

15.0in

Depth

26.0in

Shipping Weight

34.98lbs

Controls

infinite controls

Style

individual pans

Pan Capacity

(1) full size (12" x 20")

Construction

stainless steel construction

Insulated or Non-Insulated

insulated

Drain

with drain

Wet or Dry operation

wet

Specifications

Hot Food Well Unit, Drop-In, electric, (1) 12" x 20" 20 gauge/316 marine grade stainless steel insulated well, 15"W x 26"D x 21-1/2"H (overall), wet operation only, auto-fill, infinite control mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with well shutoff & manifold shutoff, 18 gauge stainless steel top, stainless steel exterior housing, includes positioning clips, 625 watts, 120v/60/1-ph, 5.2 amps, cord with NEMA 5-15P, NSF, cULus, Made in USA (14-1/4"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
