Vollrath Drop-In Electric Hot Food Well with Auto-Fill and Drain, Single Full-Size Pan, Wet Operation

15-Inch Wide, Infinite Control, 120V

Keep one full-size pan hot and ready with an insulated, auto-fill drop-in well built for wet operation and simple panel-mounted infinite control.

  • Drop-in electric hot food well designed for food bars and serving lines.
  • Single insulated 12 x 20 inch well for wet operation only.
  • Auto-fill design helps maintain water level during service.
  • Infinite panel-mounted control and power indicator light simplify operation.
  • Stainless steel top with galvanized exterior housing and drip-free flange.
  • Includes positioning clips for installation.
  • 1-inch copper manifold drain with well shutoff and manifold shutoff.

Overall Dimensions:

15.0"W x 26.0"D x 21.5"H

Product Weight:

34.98 lb

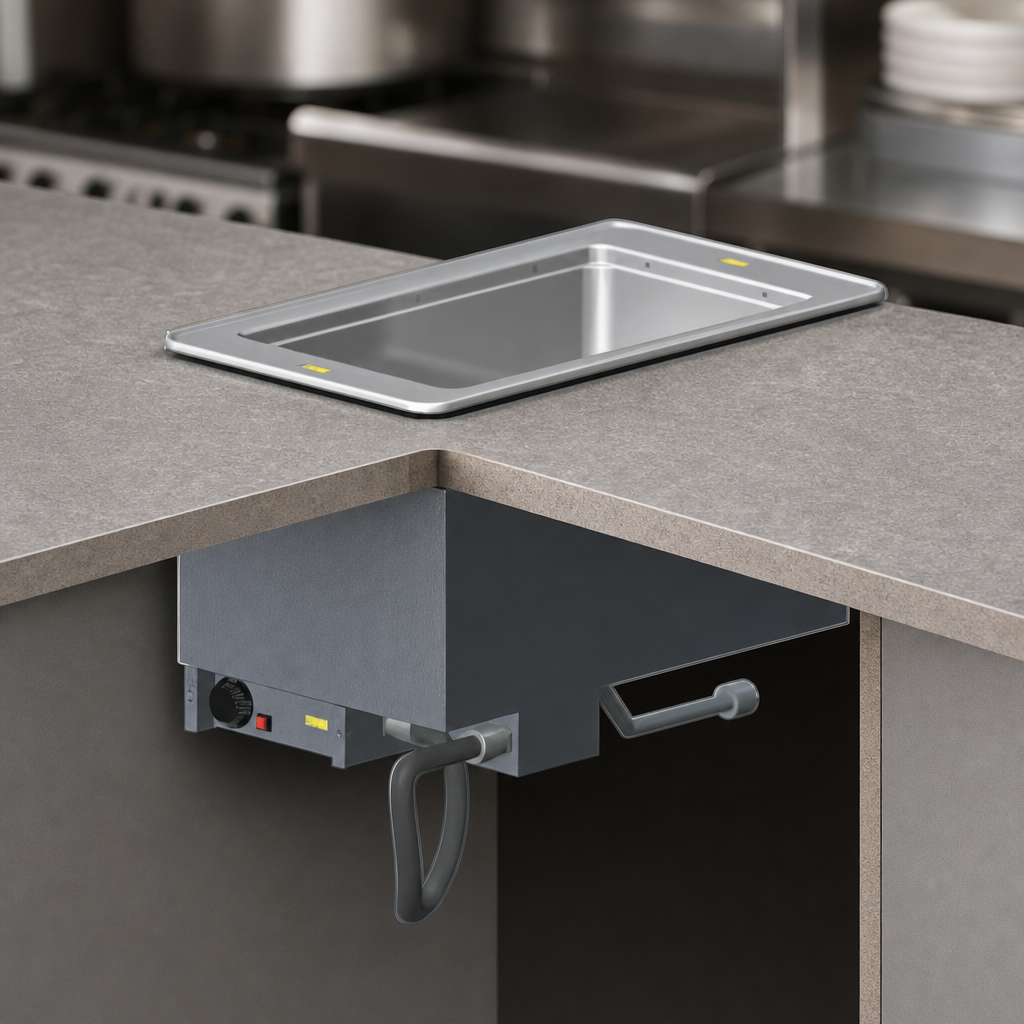

Drop-In Installation

Designed to install into a countertop cutout for a clean, built-in presentation.

Single Insulated Well

One 12 x 20 inch well helps retain heat and supports a full-size pan.

Wet Operation Only

Intended for use with water to help maintain even heating during service.

Auto-Fill

Automatically helps maintain water level for consistent operation.

Infinite Control

Panel-mounted infinite control provides adjustable heat management.

Drip-Free Flange

Helps keep the surrounding countertop area cleaner during use.

Copper Manifold Drain

Includes a 1-inch copper manifold drain with well shutoff and manifold shutoff.

Durable Construction

Built with an 18-gauge stainless steel top and 18-gauge galvanized exterior housing.

Included Positioning Clips

Positioning clips are included to assist with installation.

Electrical Setup

Operates on 120V/60Hz/1-phase power, draws 5.2 amps, and uses a NEMA 5-15P cord.

Cutout Requirements

Requires a 14-1/4 x 25-1/4 inch cutout and a 7/8 inch corner radius.

Type Hot Food Well
Style Individual Pans
Installation Type Drop-In
Pan Capacity 1 Full-Size Pan
Controls Infinite
Water Connection Required
Drain Connection Required
Material Stainless Steel
Interior Finish Stainless Steel
Voltage 120 Volts
Amps 5.2 Amps
Watts 625 Watts
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Shipping Width 15 Inches
Shipping Depth 26 Inches
Shipping Height 22 Inches
Shipping Weight 34.98 lb.
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Catalog page PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It holds one full-size 12 x 20 inch pan.
Wet operation only.
It operates on 120V, 60Hz, single-phase power, draws 5.2 amps, and uses a NEMA 5-15P cord.
It requires a 14-1/4 inch by 25-1/4 inch cutout with a 7/8 inch corner radius.
Yes, auto-fill is included.
Yes, it includes a 1-inch copper manifold drain with well shutoff and manifold shutoff.
