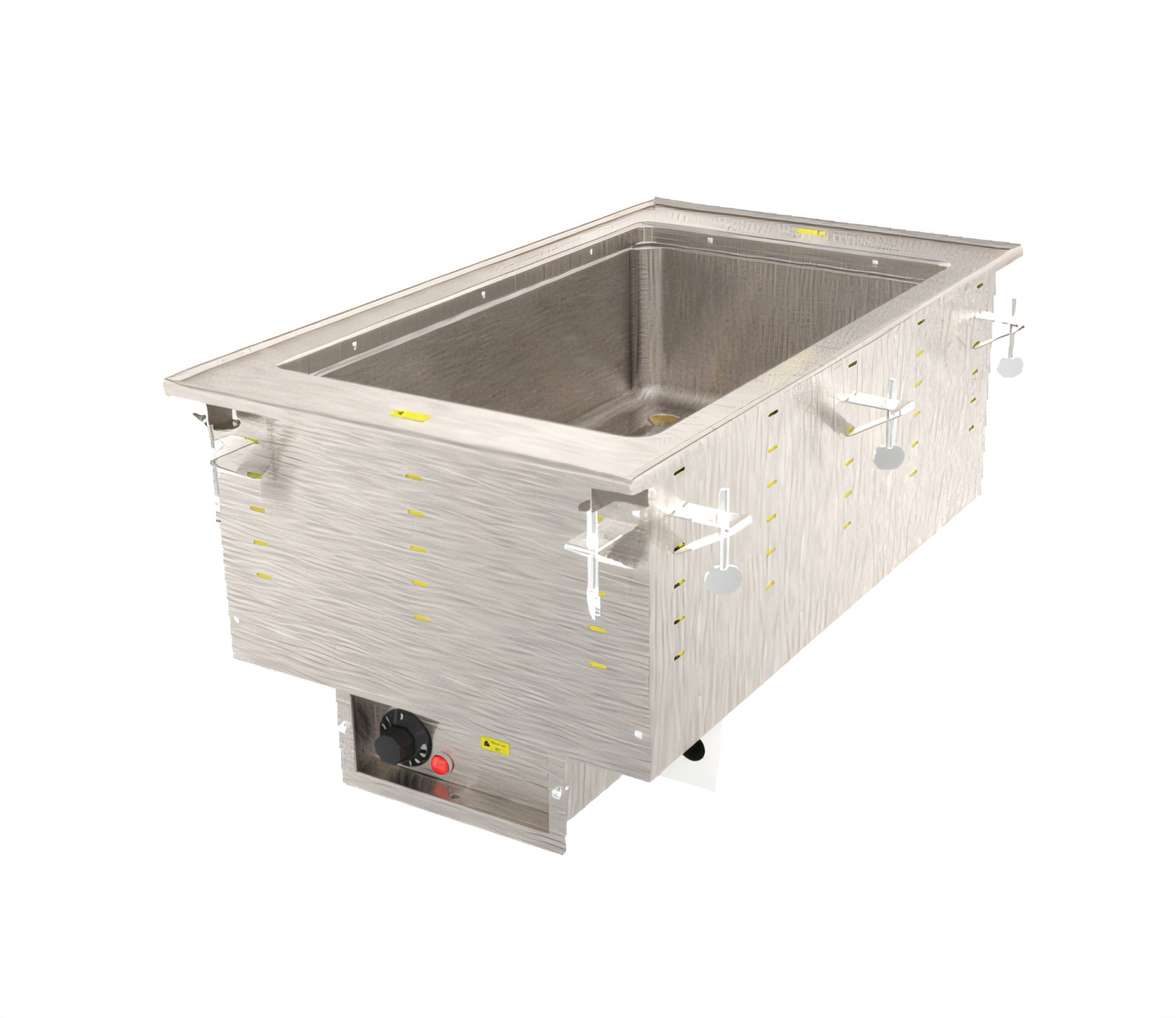

Vollrath Drop-In Electric Hot Food Well, 1 Full-Size Pan, Wet Operation

Thermostatic controls, 316 stainless steel insulated well, and drain shutoff

Keep one full-size pan of food hot and ready with a durable drop-in well designed for wet operation and precise thermostatic control.

  • Drop-in electric hot food well for one full-size 12 x 20-inch pan.
  • Wet-operation design with thermostatic control for dependable holding performance.
  • 316 marine-grade stainless steel insulated well with stainless steel top and exterior housing.
  • Drip-free flange, drain shutoff, and power indicator light support easy daily use.
  • Includes positioning clips to help simplify installation.
  • 120V, 1000W, 8.3A, single-phase operation with NEMA 5-15P cord.

Overall Dimensions:

15.0"W x 26.0"D x 15.0"H

Product Weight:

33.84 lb

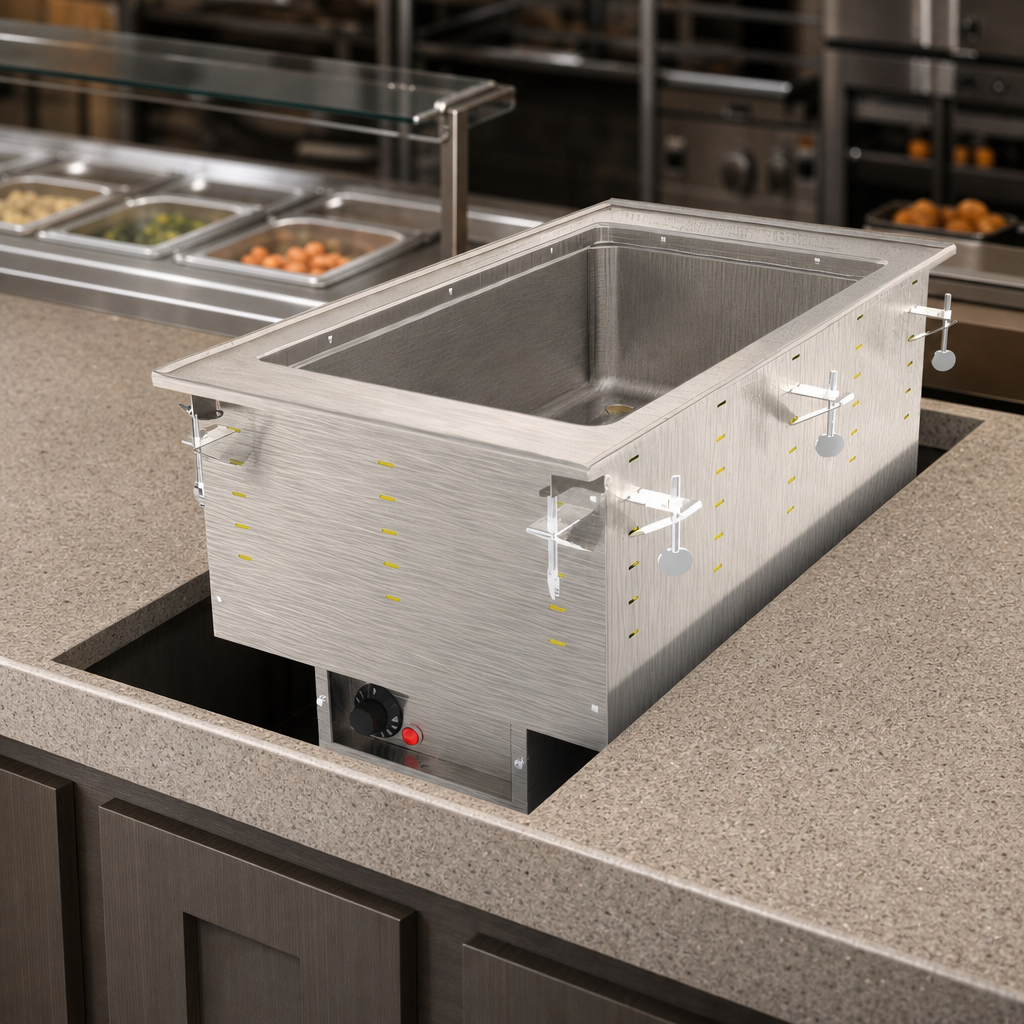

Single Full-Size Holding Well

Designed for one full-size 12 x 20-inch pan, making it a good fit for individual pan holding applications.

316 Marine-Grade Stainless Steel Well

The insulated well is built from 20-gauge 316 marine-grade stainless steel for durability and heat retention.

Wet-Operation Design

Intended for wet operation only, helping maintain foods with added moisture during service.

Thermostatic Panel-Mounted Control

Thermostatic control is mounted in the panel with cord for straightforward temperature adjustment.

Drip-Free Flange and Drain Shutoff

Helps reduce mess around the well and makes draining simpler after use.

Power Indicator Light

Provides a clear visual indication when the unit is powered on.

Includes Positioning Clips

Positioning clips are included to assist with installation and secure placement.

Standard 120V Cord Set

Operates on 120 volts, 1000 watts, 8.3 amps, single-phase power and includes a cord with NEMA 5-15P plug.

Drop-In Cutout Requirements

Requires a 14-1/4-inch by 25-1/4-inch cutout with a 7/8-inch corner radius.

Type Hot Food Well
Style Individual Pans
Installation Type Drop-In
Pan Capacity 1 Full-Size Pan
Pan Size 12 x 20 Inches
Controls Thermostatic
Material Stainless Steel
Interior Finish 316 Stainless Steel
Voltage 120 Volts
Amps 8.3 Amps
Watts 1 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 15 Inches
Shipping Depth 26 Inches
Shipping Height 15 Inches
Shipping Weight 33.84 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Refer to the manufacturer website for full warranty policy.

Documents

PDF Cutsheet PDF Download PDF Catalog page PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It is designed for wet operation only.
It holds one full-size 12 x 20-inch pan.
It operates on 120V, 1000W, 8.3A, single-phase power and includes a NEMA 5-15P cord.
The required cutout size is 14-1/4 inches wide by 25-1/4 inches deep, with a 7/8-inch corner radius.
Yes, positioning clips are included.
