Vollrath 3646610HD Steam Tables & Food Wells
Description

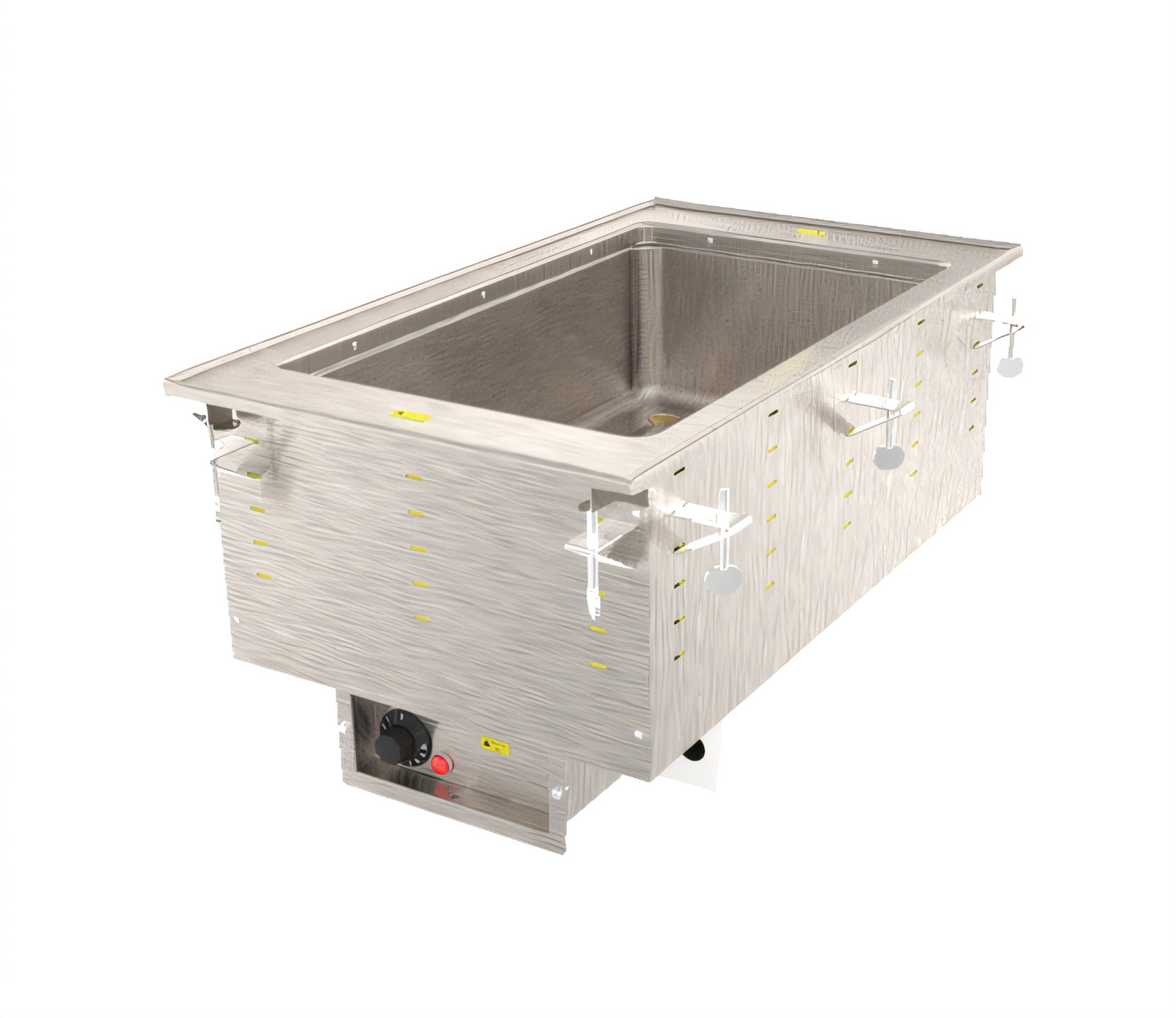

Vollrath 3646610HD Marine-Grade One-Well Hot Drop-In
Thermostatic • 12" × 20" well • 625 W • 120 VDesigned for demanding food-service lines and harsh coastal environments, this Vollrath drop-in hot well keeps entrées and sides at safe serving temperatures without the need for hard-wiring. The SAE 316 stainless-steel well resists corrosion from salt, acidic foods and aggressive cleaning chemicals, delivering years of worry-free performance.
Why you’ll love it
- Marine-grade, 20-ga 316 stainless steel 12" × 20" well—built to outlast standard 304 wells.
- Thermostatic control with easy-read power light for precise hold & energy savings.
- Wet operation only for consistent heat distribution across the entire pan.
- Full-perimeter, drip-free flange keeps condensation off your counter.
- ½" NPT drain with exterior ball-valve shut-off speeds end-of-day cleanup.
- Fully insulated on every side (even between wells) to keep counters cool.
- 18-ga stainless steel top & rugged stainless exterior housing.

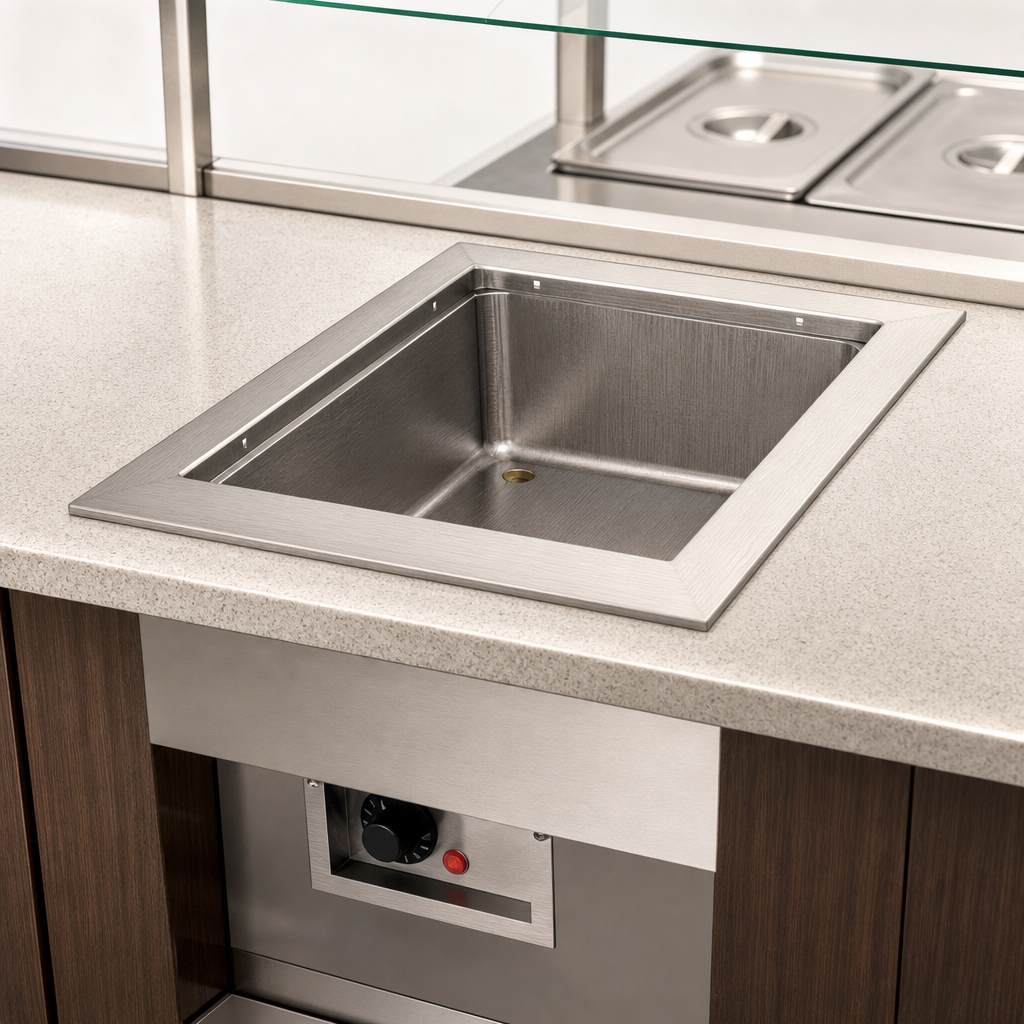

- Includes mounting/positioning clips for counters up to 3" (7.6 cm) thick—zero-clearance install.
- 6 ft (1.8 m) cord with NEMA 5-15P—plug in and serve, no electrician required.
- NSF 4 & cULus listed; proudly Made in the USA.
Perfect for
- School & university serving lines
- Quick-service & fast-casual restaurants
- Buffet or catering build-outs
- Cruise ships and coastal operations requiring marine-grade durability
Technical Specifications
| Model | 3646610HD |
|---|---|
| Capacity | One full-size (12" × 20") steam pan, up to 6" (15.2 cm) deep |
| Operation | Wet heat only |
| Heat control | Remote thermostatic panel, 4' (122 cm) tether |
| Overall size | 15" W × 26" D × 15" H (38.1 × 66.0 × 38.1 cm) |
| Counter cut-out | 14¼" W × 25¼" D (36.2 × 64.1 cm), 7⁄8" corner radius |
| Well material | 20-ga SAE-316 stainless steel, fully insulated |
| Top flange | 18-ga stainless steel, drip-free edge |
| Drain | ½" MPT with ball valve shut-off |
| Electrical | 120 V / 60 Hz / 1-ph, 625 W, 5.2 A, NEMA 5-15P |
| Cord length | 6 ft (1.8 m) |
| Certifications | NSF, cULus |
| Warranty | 2-year limited parts & labor (see VollrathFoodservice.com) |
| Country of origin | USA |
This drop-in meets NSF 4 performance standards only when operated with water in the well.
