Vollrath

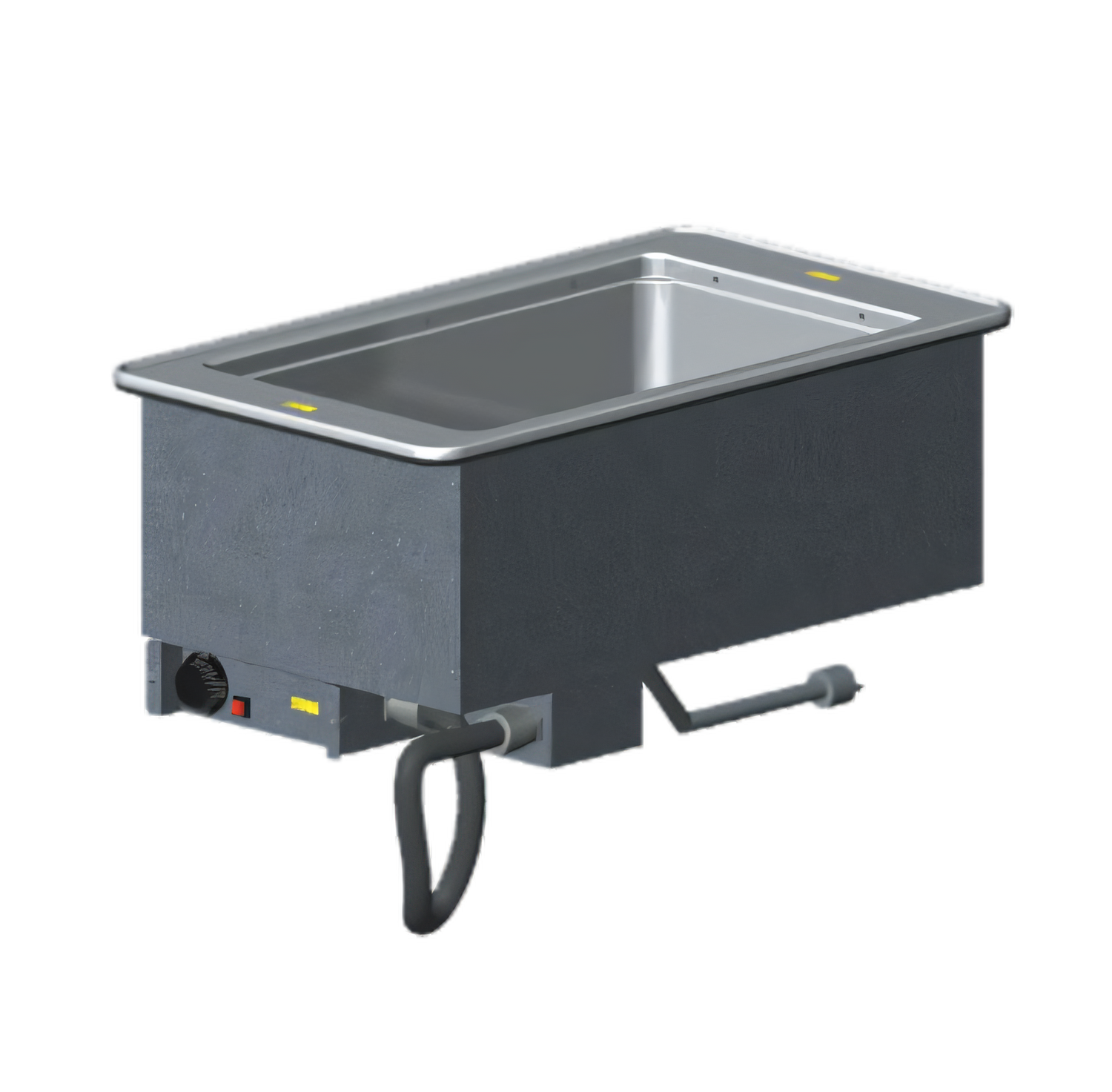

Vollrath Drop-In Electric Insulated Hot Food Well Unit, 1 Full-Size Pan, Wet Operation

SKU: 3646610
$1,267.30
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Food Bars & Buffets Food Holding & Warming Equipment Food Wells & Serving Lines Hot Well New Arrivals Restaurant Equipment Steam Tables & Food Wells Vollrath

Vollrath Drop-In Electric Insulated Hot Food Well Unit, 1 Full-Size Pan, Wet Operation

Thermostatic Controls, Drain Shutoff, Stainless Steel Top

Keep a full-size pan of food hot in a compact drop-in well designed for wet operation, precise thermostatic control, and easy installation.

  • Holds one 12" x 20" full-size pan in an insulated hot well for wet operation.
  • Drop-in design is made for buffet lines, food bars, and serving stations.
  • Thermostatic controls and a power indicator light help maintain consistent heat.
  • Drip-free flange and drain shutoff support cleaner operation and easier maintenance.
  • Includes positioning clips and a cord with NEMA 5-15P plug for installation.
  • Built with a stainless steel top and galvanized exterior housing for durability.

Overall Dimensions:

15.0"W x 26.0"D x 15.0"H

Product Weight:

36.06 lb

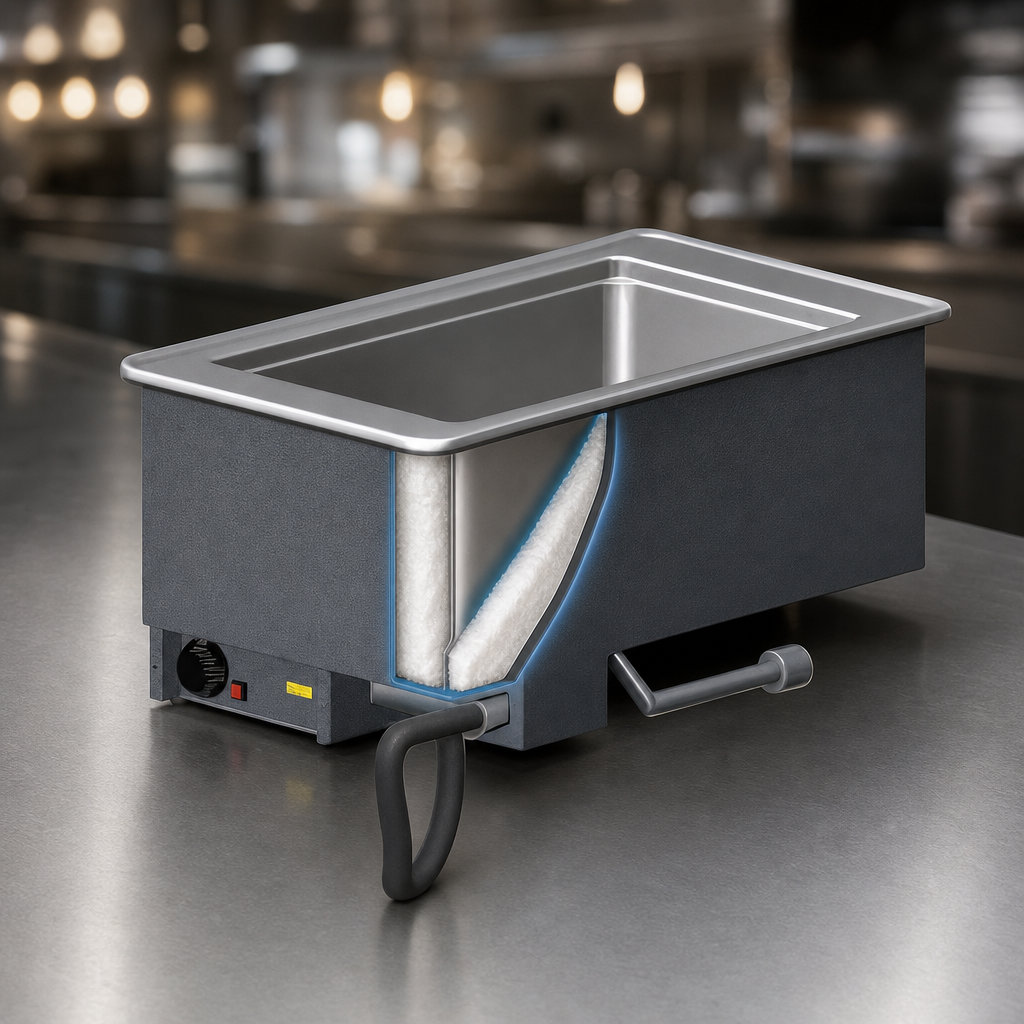

Insulated Stainless Steel Well

20-gauge insulated well helps retain heat during wet operation.

Thermostatic Controls

Panel-mounted thermostatic controls provide straightforward temperature adjustment.

Power Indicator Light

Lets staff quickly confirm when the unit is powered.

Drip-Free Flange and Drain Shutoff

Helps contain messes and simplifies draining and cleanup.

Durable Construction

Features an 18-gauge stainless steel top and 18-gauge galvanized exterior housing.

Includes Positioning Clips

Positioning clips are included to help secure the unit during installation.

Wet Operation Only

Designed specifically for wet operation and not intended for dry use.

Cutout Requirements

Requires a 14-1/4" W x 25-1/4" D cutout with a 7/8" corner radius.

Type Hot Food Well
Style Individual Pans
Installation Type Drop-In
Capacity 1 Full-Size Pan
Pan Size 12 Inches x 20 Inches
Controls Thermostatic
Material Stainless Steel
Finish Galvanized
Voltage 120 Volts
Amps 5.2 Amps
Watts 625 Watts
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 15 Inches
Shipping Depth 26 Inches
Shipping Height 15 Inches
Shipping Weight 36.06 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Catalog page PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It is designed for wet operation only.
It holds one full-size 12" x 20" pan.
The unit operates on 120V, 60 Hz, single-phase power and draws 5.2 amps at 625 watts.
It comes with a cord fitted with a NEMA 5-15P plug.
It requires a 14-1/4" W x 25-1/4" D cutout with a 7/8" corner radius.
Yes, it includes a drain shutoff.
