Vollrath 3646601HD Steam Tables & Food Wells
Description

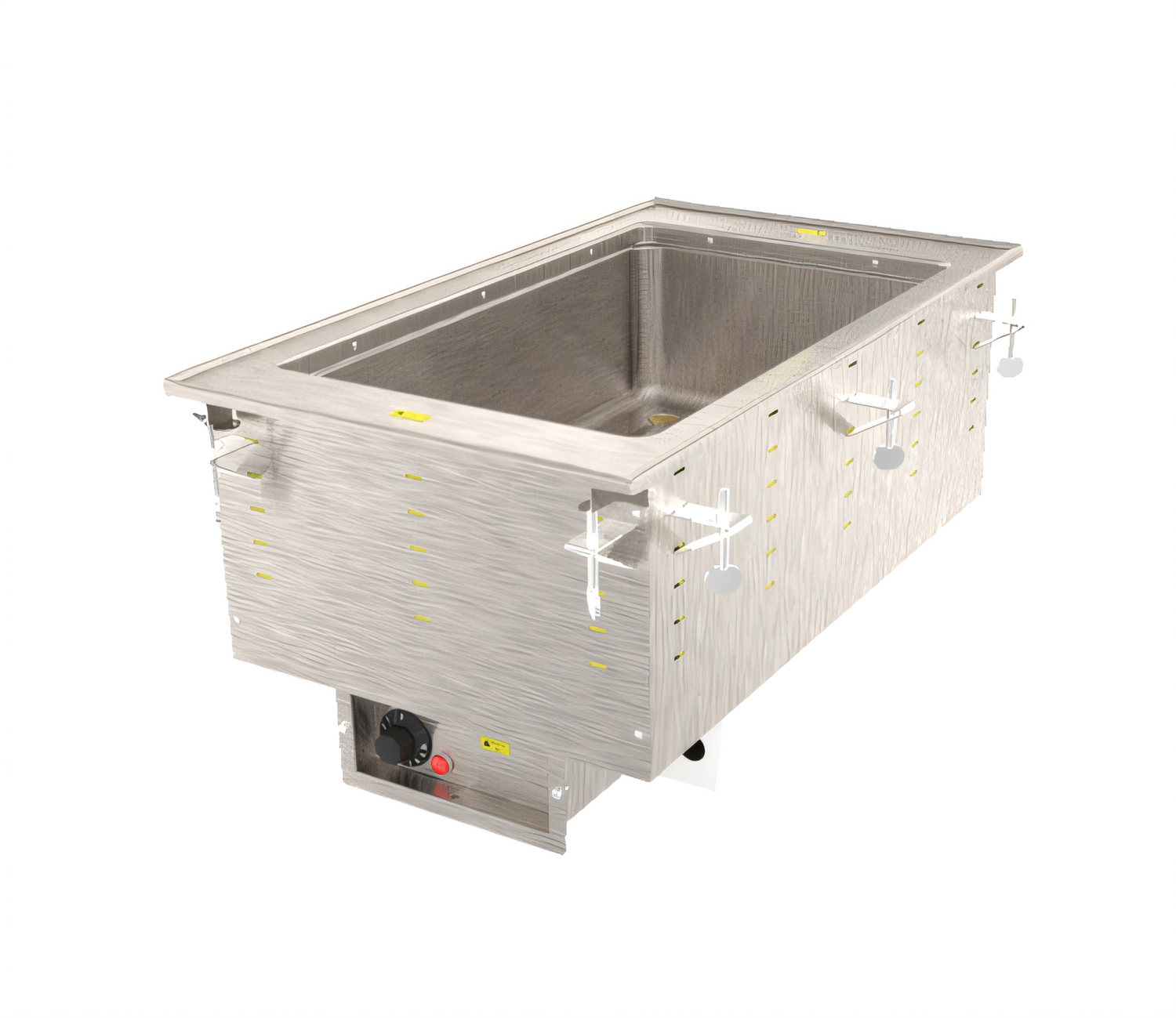

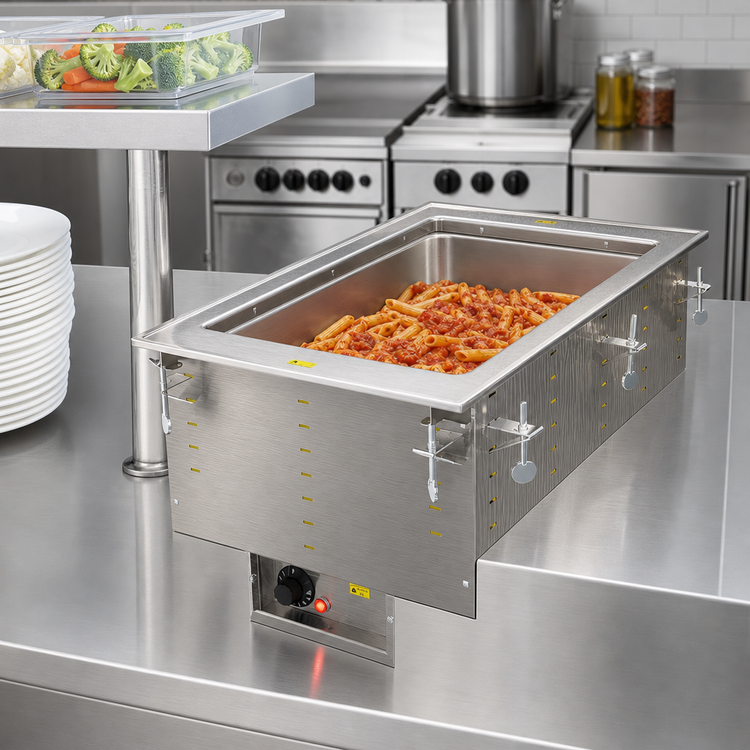

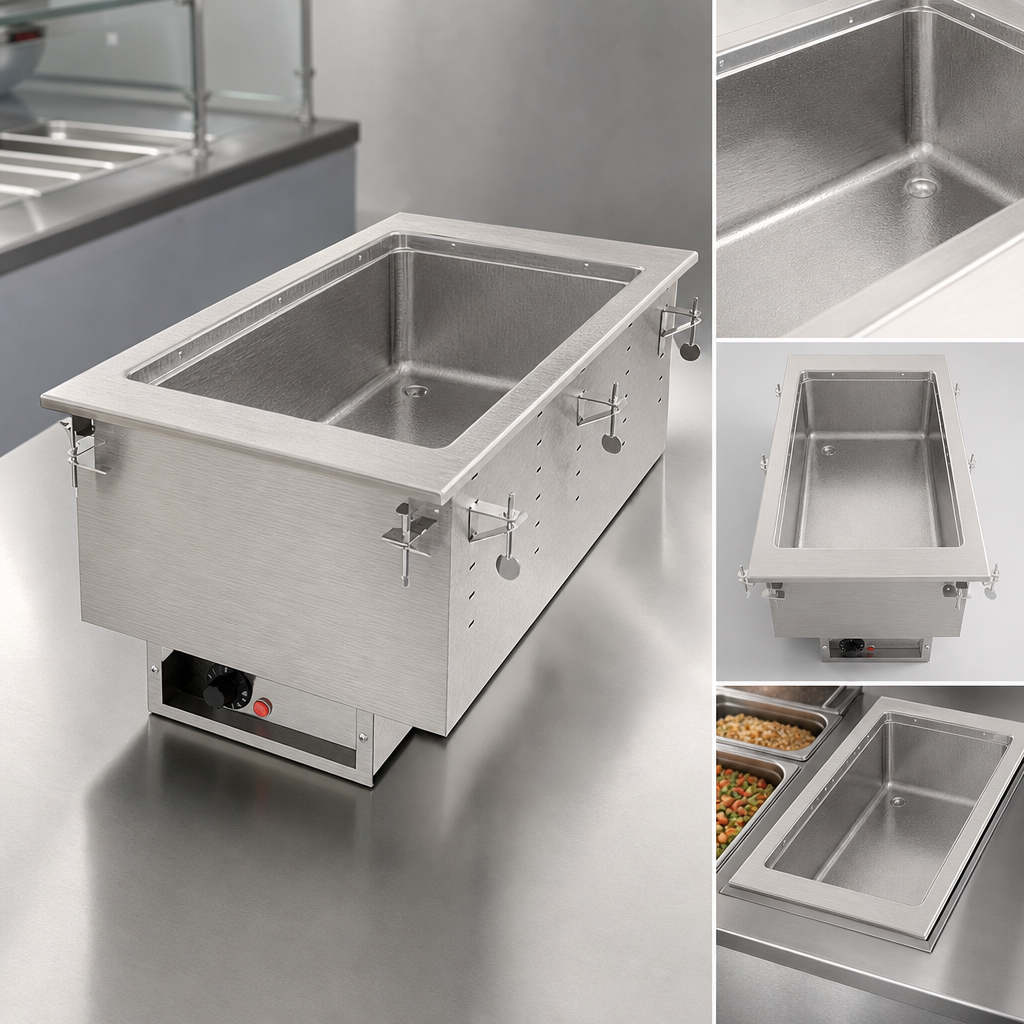

Vollrath 1-Well Hot Food Drop-In with Marine-Grade Well
120 V | 1000 W | Wet Operation OnlyGive soups, sauces and entrées the perfectly even holding temperature they deserve with Vollrath’s commercial-grade drop-in hot well. Built from 316 marine-grade stainless steel, this single full-size (12" × 20") well stands up to salts, acids and the everyday rigors of a busy serving line—all while dropping neatly into a 14 ¼" × 25 ¼" counter cut-out for zero-clearance installation.
Key Benefits
- Drawn 20-gauge 316 stainless steel well resists corrosion and pitting.
- Wet-operation design surrounds pans with gentle, uniform heat.
- 6' (1.8 m) cord with NEMA 5-15P plug—no hard-wiring required.
- Infinite control knob with bright power indicator light for intuitive temperature adjustment.
- Full-perimeter drip-free flange contains spills and condensation beneath the counter surface.
- ½" drain with positive shut-off valve speeds end-of-day cleanup.
- Factory-installed insulation on every side (and between wells) maximizes efficiency and keeps counters cool.
- Mounting clips included for counters up to 3" (7.6 cm) thick—fast, tool-free installation.
- Accepts full-size and fractional pans up to 6" (15.2 cm) deep (adapter bars recommended for fractional pans).
- NSF 4 & cULus listed; Made in the USA.
Technical Specifications
| Well capacity | 1 × Full Size (12" × 20") pan |
|---|---|
| Overall dimensions | 15" W × 26" D × 15" H (38 × 66 × 38 cm) |
| Counter cut-out | 14 ¼" W × 25 ¼" D (36.2 × 64.1 cm) with 7⁄8" corner radius |
| Construction | 20-ga 316 SS well, 18-ga stainless top & exterior housing |
| Heat control | Infinite • Panel-mounted with 4' tether |
| Electrical | 120 V / 60 Hz / 1-Ph • 1000 W • 8.3 A • NEMA 5-15P |
| Drain | ½" MPT with ball-valve shut-off |
| Cord length | 6' (1.8 m) |
| Agency listings | NSF 4 (wet operation), cULus |
| Country of origin | United States of America |
| Warranty | 2 years parts & labor (see Vollrath for full policy) |
Installation & Operation Tips
- Unit is designed for indoor commercial use and requires wet operation for NSF performance.
- Do not modify the cord or plug—doing so voids the warranty.
- Maintain room HVAC at normal service-area temperatures for best holding results.
Drop-in wells are built to order and cannot be cancelled or returned once in production. Refer to VollrathFoodservice.com for complete warranty terms.
