Vollrath  |  SKU: 3646601

Vollrath 3646601 Steam Tables & Food Wells

$1,145.70
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

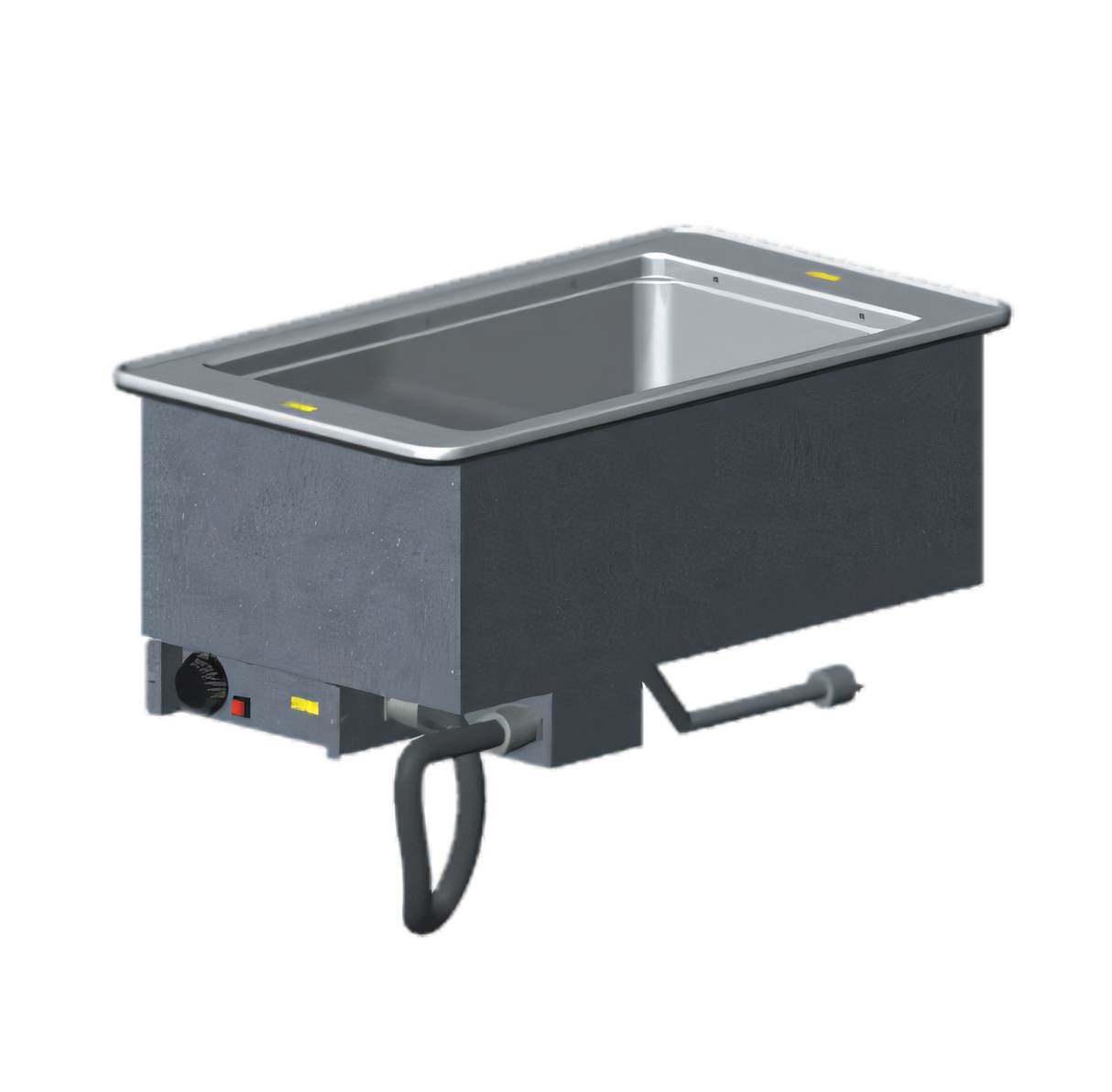

Vollrath 3646601 One-Well Hot Drop-In, 1000 W, 120 V

Self-contained wet-operation food well – 12 × 20 in.

Give your serving line the dependable heat it deserves. This Made-in-USA Vollrath drop-in keeps entrées, sides and sauces at food-safe temperatures while fitting seamlessly into new or existing counters.

Why you’ll love it
  • Wet operation only for gentle, even heat distribution.
  • 20-gauge stainless well accepts full-size or fractional pans up to 6 in. deep.
  • Full-perimeter drip-edge flange contains condensation and spills.
  • 1000 W element with infinite dial and power indicator light.
  • 6 ft cord with NEMA 5-15P plug – no hard-wiring required.
  • ½ in. stainless drain with below-deck ball-valve shut-off.

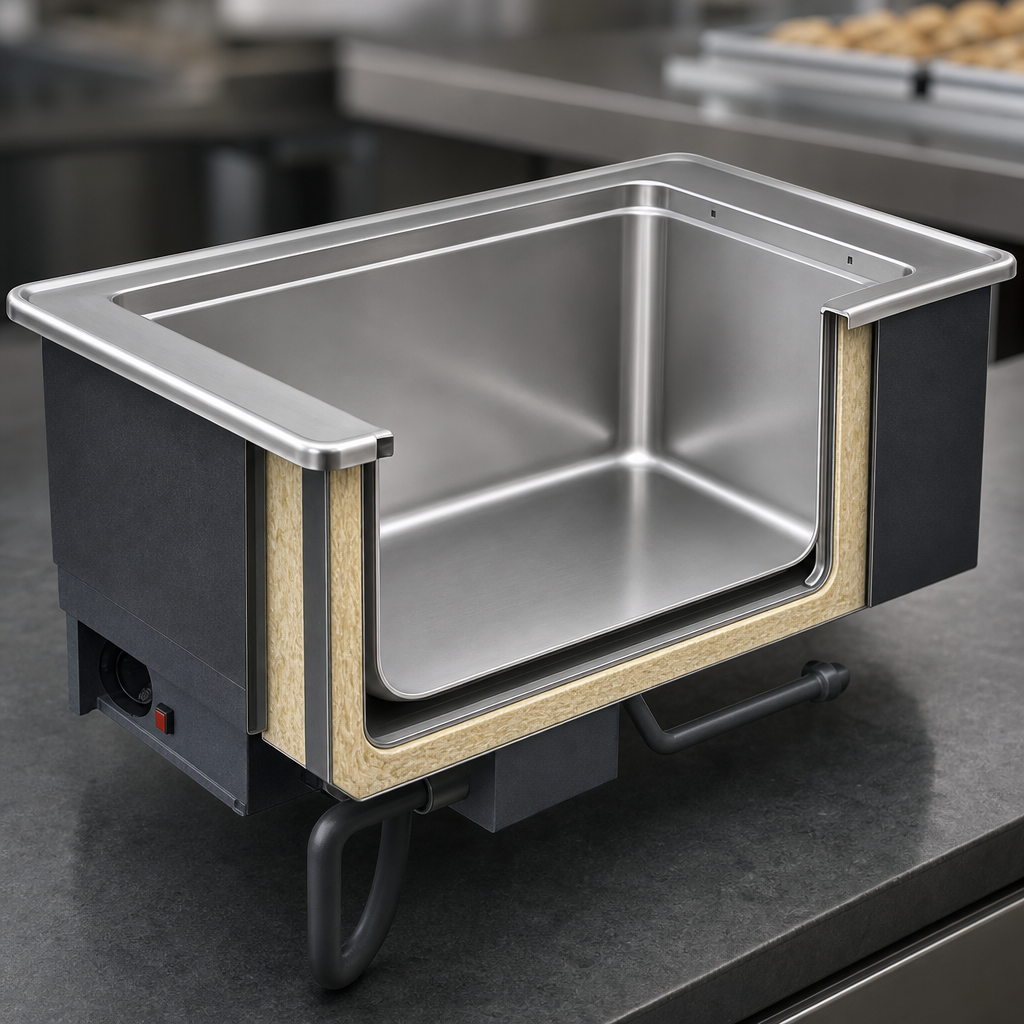

  • High-density glass-fiber insulation on all sides for zero-clearance installation.
  • 18-gauge stainless top and galvanized exterior built for commercial abuse.
  • Includes positioning & mounting clips for counters up to 3 in. thick.
  • NSF & cULus listed; backed by a one-year parts & labor warranty.
Specifications
Model 3646601
Well size (1) 12 × 20 in. pan (6 in. max depth)
Operation Wet only (water required in well)
Control type Infinite manual dial, stainless panel on 3 ft tether
Overall dimensions 15 W × 26 D × 15 H in. (38 × 66 × 38 cm)
Required cut-out 14 ¼ W × 25 ¼ D in.; 7⁄8 in. corner radius
Electrical 120 V / 60 Hz / 1 ph, 1000 W, 8.3 A, NEMA 5-15P
Drain connection ½ in. MPT with ball-valve shut-off
Materials 18-ga stainless top, 20-ga stainless well, 18-ga galvanized housing
Cord length 6 ft (1.8 m)
Certifications NSF, cULus
Country of origin USA

Switching to fractional pans? Pair with Vollrath adaptor bars for perfect steam coverage. Sheet-pan adaptor Item 19186 sold separately.

Important: This unit is designed for moist-heat use only. Always keep the well filled with water to maintain even temperatures and prevent damage.

For complete warranty terms, please visit vollrathfoodservice.com.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

15.0in

Width

15.0in

Depth

26.0in

Shipping Weight

34.62lbs

Pan Capacity

(1) full size (12" x 20")

Style

individual pans

Controls

infinite controls

Insulated or Non-Insulated

insulated

Construction

stainless steel top, corrosion resistant steel exterior

Drain

with drain

Wet or Dry operation

wet

Specifications

Hot Food Well Unit, Drop-In, electric, (1) 12" x 20" 20 gauge stainless steel insulated well, 15"W x 26"D x 15"H (overall), wet operation only, infinite control mounted in panel with cord, power indicator light, drip-free flange, drain shutoff, 18 gauge stainless steel top, 18 gauge galvanized exterior housing, includes positioning clips, 1000 watts, 120v/60/1-ph, 8.3 amps, cord with NEMA 5-15P, NSF, cULus, Made in USA (14-1/4"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
