Description

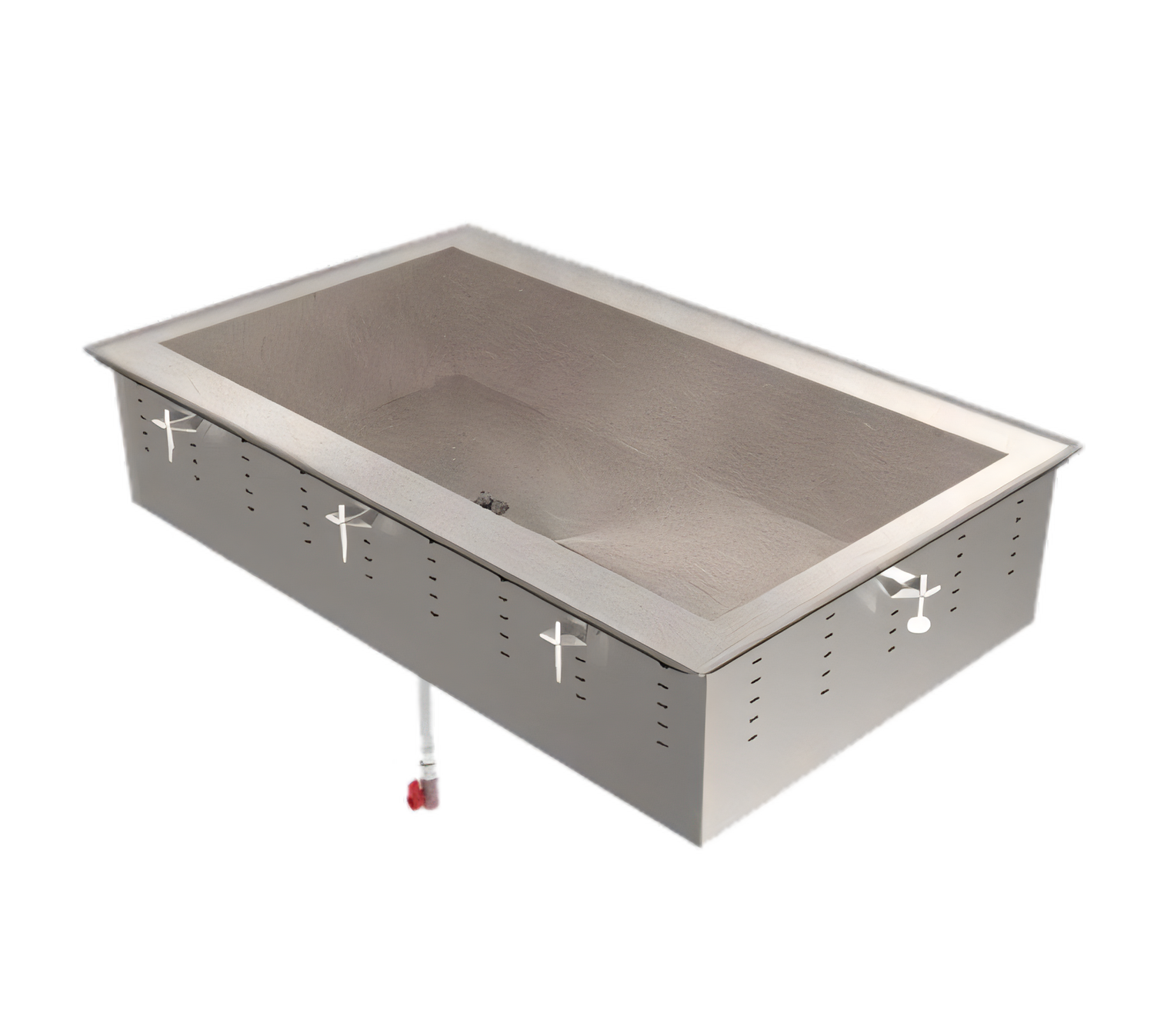

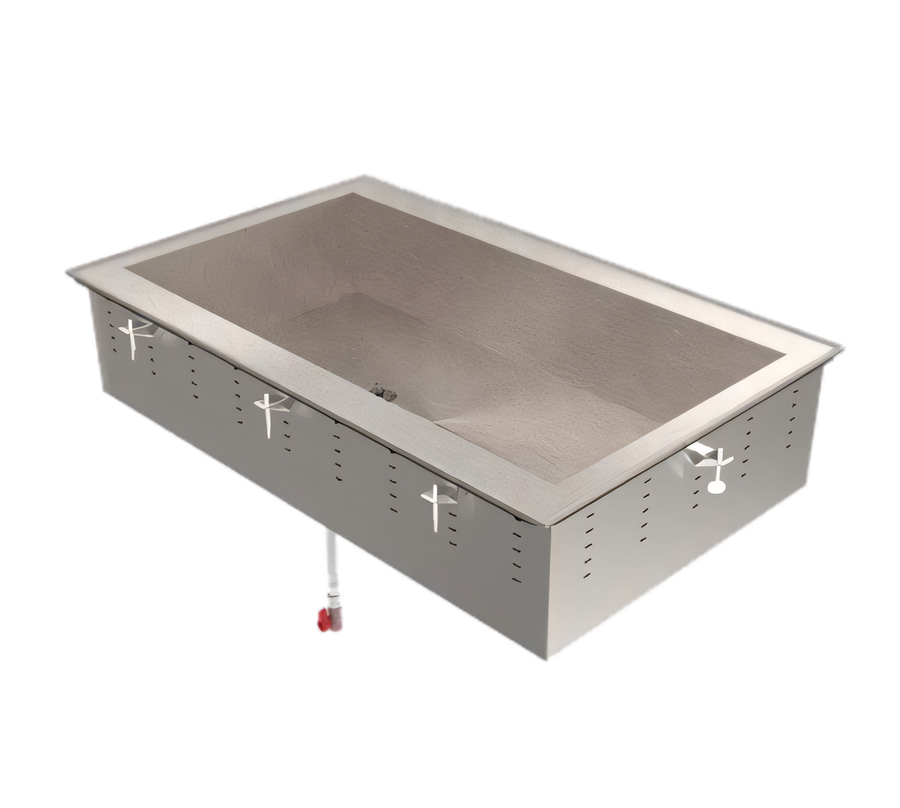

Vollrath 36456R NSF7 Remote Refrigerated Cold Pan – 1-Pan Drop-In

Remote refrigeration (compressor not included) • Made in USA • cULus & NSF7 Listed

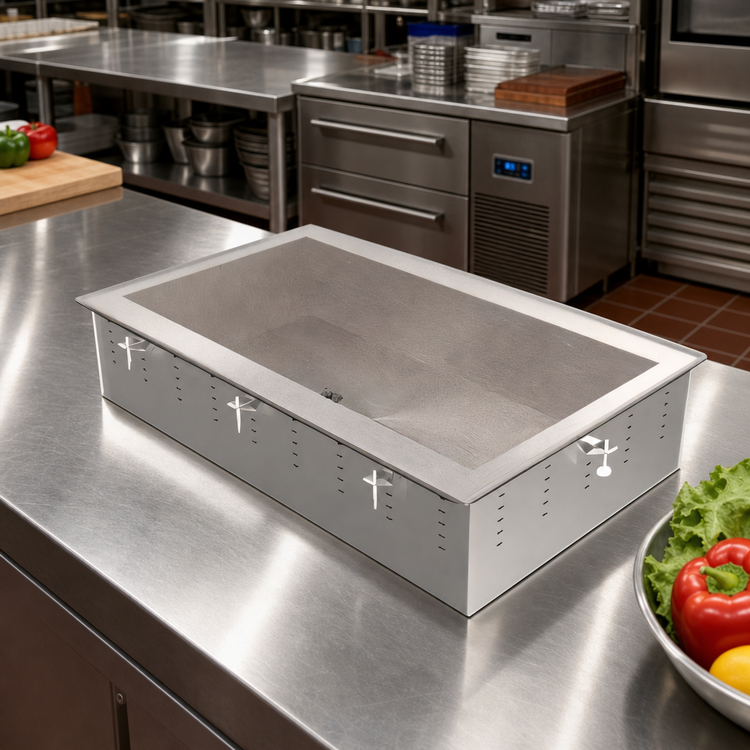

Perfect for salad bars, sandwich stations, and grab-and-go lines, this Vollrath NSF7 drop-in cold pan keeps one full-size 12" × 20" pan of salads, proteins, or desserts safely chilled and attractively displayed. The remote design lets you place the condensing unit in a back-of-house location for quieter operation and easier service access.

Key Features & Benefits
  • NSF7 certified for open food presentation
  • Remote refrigeration—integrates with your existing condensing system (compressor not included)
  • Holds (1) standard 12" × 20" pan; use adaptor bars for fractional pans
  • 6 5/8" (16.8 cm) deep seamless well offers ample ice/refrigeration space
  • 18-gauge 304 stainless-steel top & well for superior corrosion resistance
  • 3 ⁄ 8" full-perimeter drip-free flange with molded breaker gasket contains spills and condensation
  • Foamed-in-place polyurethane insulation retains cold and improves efficiency
  • 1" NPT drain with plug for fast, mess-free clean-up
  • Factory-installed copper capillary tube ready for field-mounted thermostat
  • Galvanized 18-gauge exterior housing for long-lasting strength
  • Positioning clips ensure a perfect fit inside the counter cut-out
  • One-year limited parts & labor warranty*
Specifications
Model 36456R
Pan Capacity (1) full-size 12" × 20" (GN 1/1)
Overall Top Dimensions 18" L × 26" W (45.7 × 66 cm)
Required Counter Cut-Out* 17 1/4" L × 25 1/4" W (43.8 × 64.1 cm)
Well Depth 6 5/8" (16.8 cm)
Overall Height (below counter) 18 1/2" (47 cm)
Drain Size 1" NPT with plug
Cooling Capacity 800 BTUH @ 100 °F cond. / –10 °F evap.
Construction 18-ga 304 stainless well & top; 18-ga galvanized exterior
Insulation Foamed-in-place polyurethane
Certifications NSF7, cULus
Country of Origin USA

*Cut-out must have a 7/8" (2.2 cm) corner radius.

Recommended Accessories (sold separately)
  • 36480 – Solenoid Valve Kit (120 V)
  • 36481 – Expansion Valve
  • 36482 – Thermostat with Knob Control
  • 36483 – Filter & Sight-Glass Kit
  • 23540-1 – Remote Lighted Toggle Switch (30 A, 120/240 V)
  • Perforated 1" stainless-steel false bottom

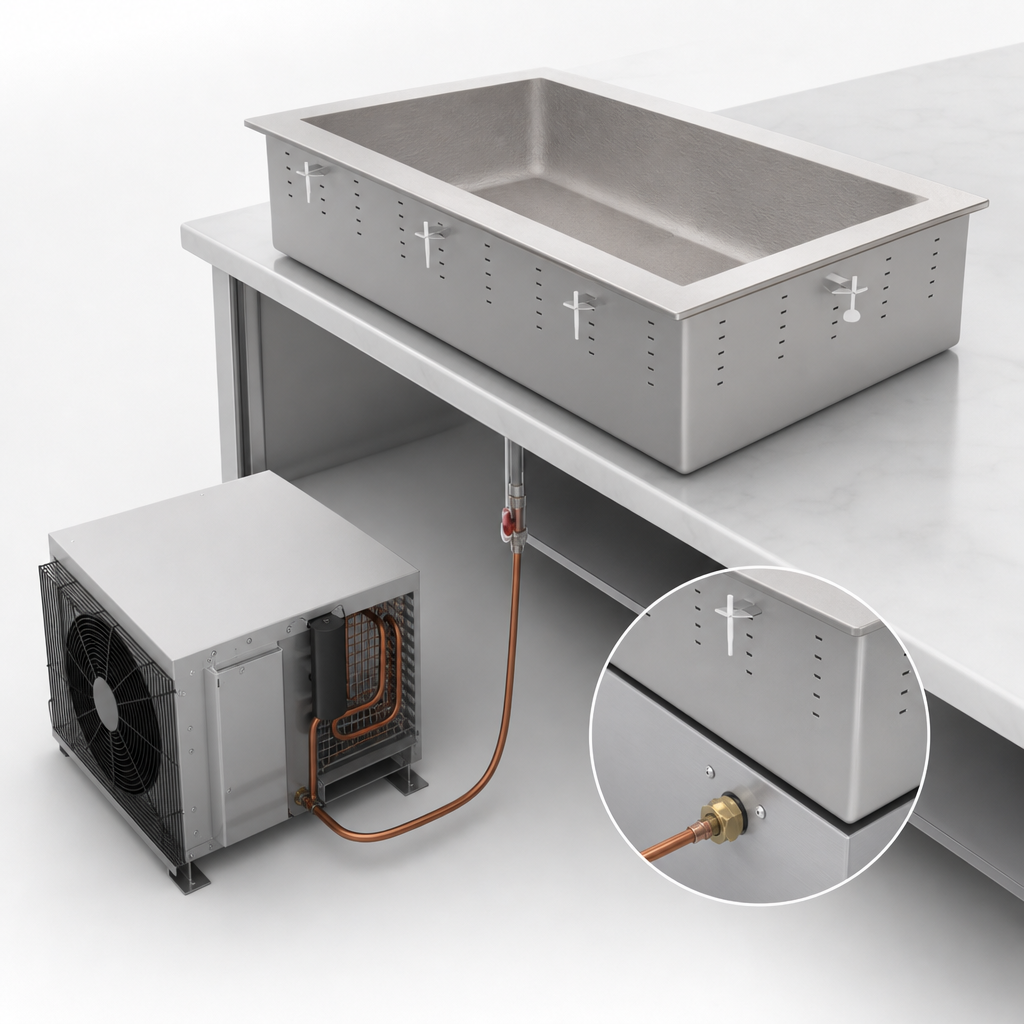

Remote unit notice: This cold pan is supplied without a compressor. A field-supplied remote condensing unit and installation by a certified refrigeration technician are required.

*See VollrathFoodservice.com for complete warranty policy. Contact Vollrath for current lead times.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

23.5in

Width

26.0in

Depth

18.0in

Shipping Weight

47.0lbs

Layout

narrow

Style

remote refrigeration (no compressor)

Finish

stainless steel top & inner liner, galvanized outer liner

Pan Qty

1-pan

Width (side - side)

13 - 18 inches

Insulation

insulated

Pan Size

full-size (12" x 20")

Specifications

NSF7 Refrigerated Cold Pan, remote, drop-In, 1-pan, 6-5/8" deep well, accommodates standard 12" x 20" pans with adaptor bars, drip-free flange, polyurethane foam insulated, 18/8 stainless steel, 18 gauge galvanized exterior housing, remote refrigeration, cULus, NSF, Made in USA (note: remote units do not include compressor) contact Vollrath for lead time) (Refer to vollrathfoodservice.com for full warranty policy)
