Description

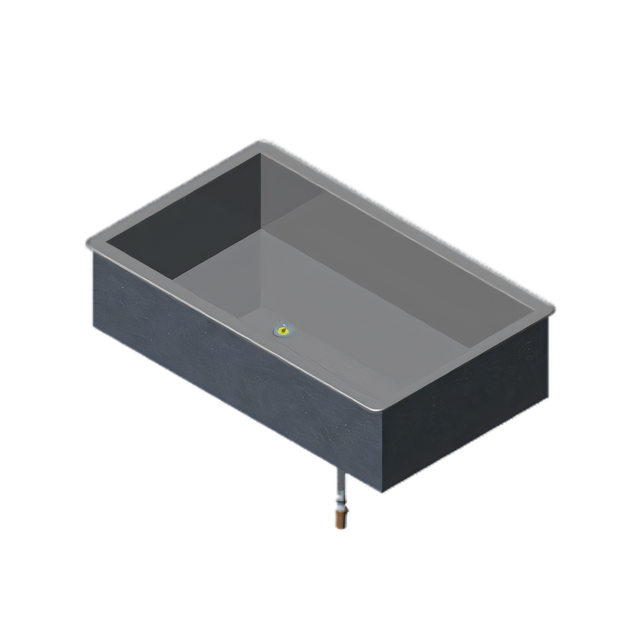

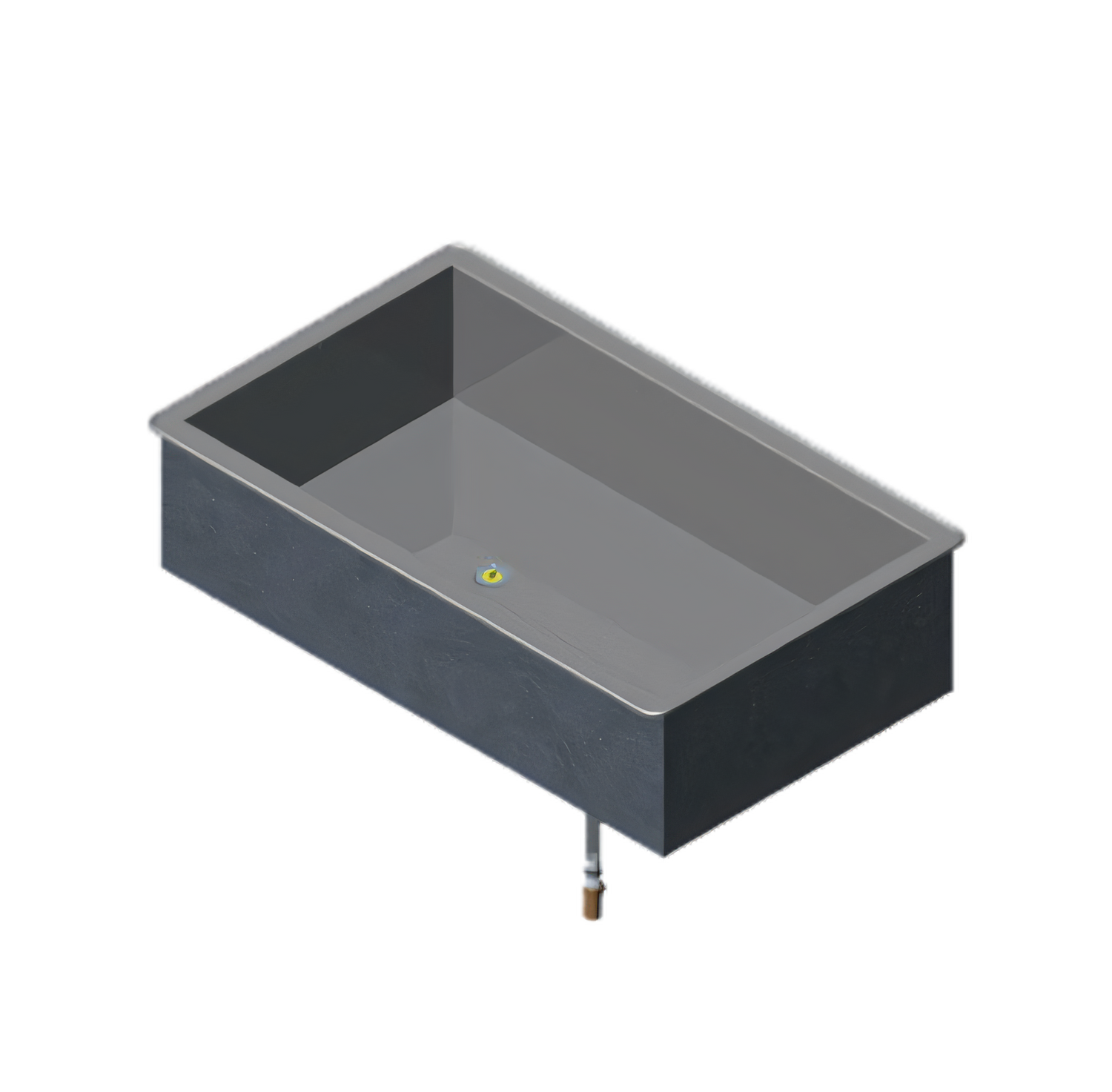

Vollrath 36454 Six-Pan Non-Refrigerated Drop-In Cold Food Pan

Ice-cooled well • 81-1/4" x 26" footprint • NSF Listed • Made in USA

Keep salads, desserts and cold entrées fresh and food-safe without the cost or complexity of mechanical refrigeration. The Vollrath 36454 drop-in cold pan holds six full-size 12" x 20" pans in a deep, ice-cooled well, delivering mobile, energy-free cold holding that installs cleanly into any counter or serving line.

Why You’ll Love It

  • Ice-cooled design requires no electricity, plumbing or refrigeration lines.
  • Seamless 18-gauge Type 304 stainless steel well for maximum durability and easy sanitation.
  • 3⁄8" full-perimeter stainless drip edge with molded breaker gasket keeps condensation off your countertop.
  • High-density, foamed-in-place polyurethane insulation maintains ice longer and controls exterior temperature.
  • 1" (2.5 cm) integral center drain with included drain plug for fast, mess-free cleanup.
  • Flat work surface around opening simplifies station design and food pan changes.
  • Exterior housing formed from rugged 18-gauge galvanized steel.
  • NSF listed and proudly made in the USA.

Specifications

Model / Item # 36454
Pan Capacity Six full-size 12" x 20" steam table pans (not included)
Overall Dimensions 81-1/4" W × 26" D × 17-15/16" H  (206.4 × 66 × 45.1 cm)
Well Dimensions 75-3/4" W × 19-7/8" D × 8" Deep  (192.4 × 50.5 × 20.3 cm)
Counter Cutout * 80-1/2" W × 25-1/4" D  with 7/8" radius corners (204.5 × 64.1 cm)
Top / Well Material 18-ga 304 stainless steel
Exterior Material 18-ga galvanized steel
Drain 1" integral center drain with plug
Insulation Foamed-in-place polyurethane
Agency Listings NSF
Country of Origin USA

*Countertop rise above surface: 3⁄8" (9.5 mm)

Compatible Accessory

  • Perforated 1" stainless steel false bottom – model 98855-2 (reduces usable depth by 1")

Warranty & Ordering Info

One-year parts & labor warranty. For complete details, visit vollrathfoodservice.com.

Lead Time: This item is built to order. Please contact Vollrath for current production lead time before purchasing.
Final Sale: Modular drop-ins cannot be canceled or returned once the order is placed.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, Made in USA

Height

17.94in

Width

81.25in

Depth

26.0in

Shipping Weight

190.0lbs

Interior Liner

stainless steel

Pan Qty

6-pan

Layout

straight

Depth (front-to-back) OA

25 - 30 inches

Exterior Liner

galvanized steel

Width (side - side) OA

79 - 84 inches

Specifications

Cold Food Pan, Drop-In, (6) pan, non-refrigerated, ice cooled, 81-1/4"W x 26"D x 17-15/16"H (overall), 75-3/4"W x 19-7/8"D x 8"deep (pan), drip-free flange, polyurethane foam insulated, 1" integral center drain, 18/304 stainless steel interior, 18 gauge galvanized exterior, NSF, Made in USA (contact Vollrath for lead time) (Refer to vollrathfoodservice.com for full warranty policy)
