Description

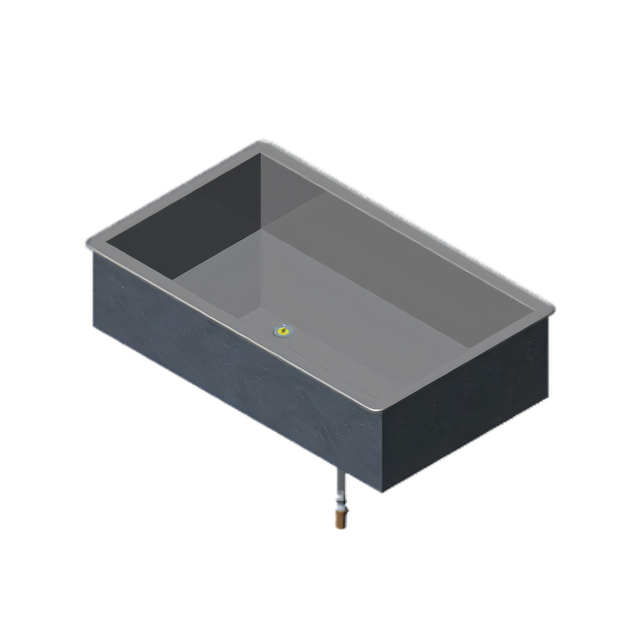

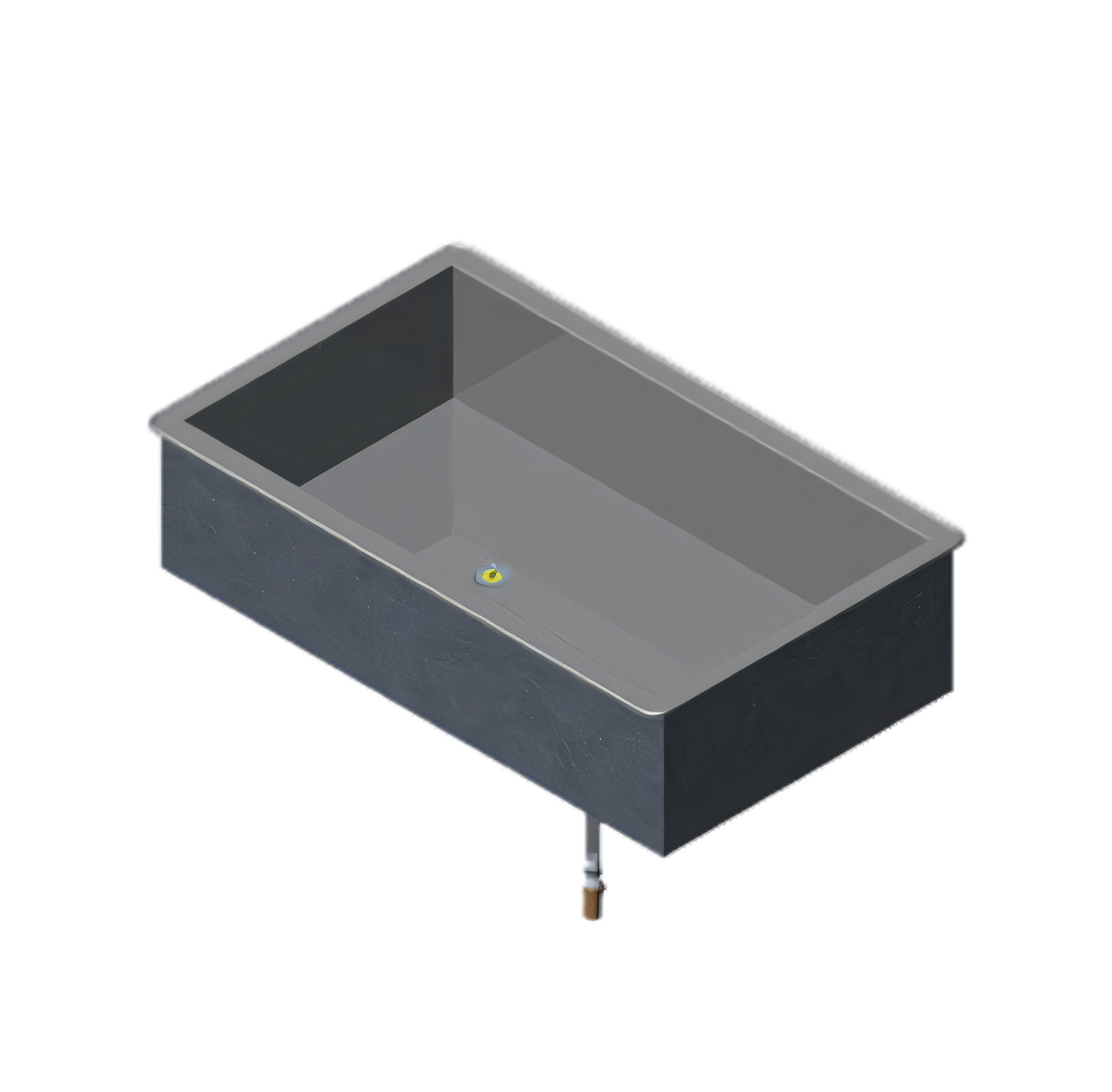

Vollrath 36453 Five-Pan Ice-Cooled Drop-In Cold Food Pan

68" non-refrigerated cold well – NSF, Made in USA

Serve crisp salads, chilled toppings and refreshing desserts without the expense of refrigeration. Vollrath’s five-pan ice-cooled drop-in installs flush with your counter, keeping product at safe temperatures while maintaining a sleek, professional look.

Key features

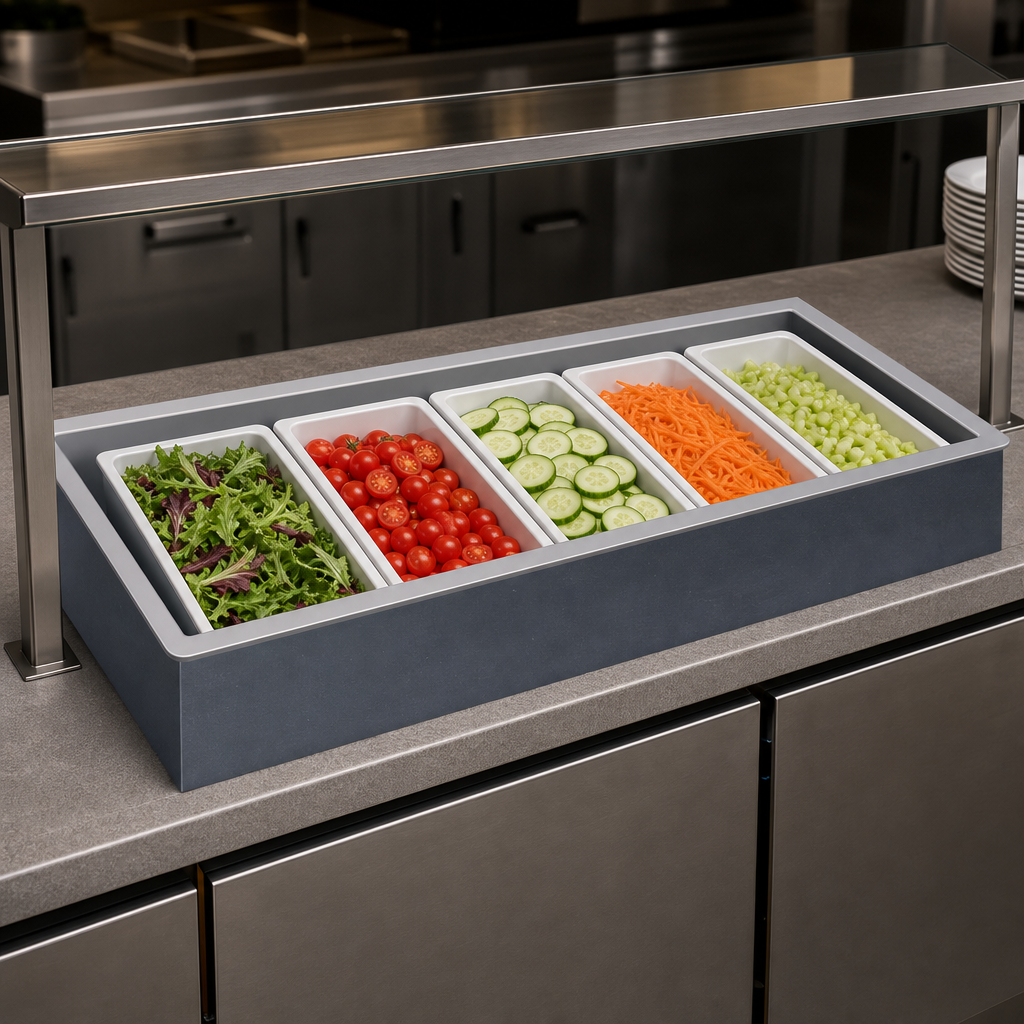

  • Holds five full-size 12" × 20" steam-table pans (or fractional equivalents).
  • Ice-cooled well delivers dependable cold holding anywhere—no power required.
  • Top & seamless well: 18-gauge Type 304 stainless steel for superior corrosion resistance.
  • 3/8" overhang with full-perimeter drip edge and molded gasket keeps condensation off the counter.
  • Foamed-in-place polyurethane insulation surrounds the well, extending ice life.
  • 1" integral center drain with plug ensures fast melt-water removal.
  • Supplied positioning clips center the unit in the cutout for a clean install.
  • NSF listed for food-safe operation.
  • Proudly made in the USA.

Specifications

Model 36453
Pan capacity 5 full-size (12" × 20") pans
Overall dimensions 68" L × 26" W × 17-15/16" H (172.7 × 66 × 45.1 cm)
Well dimensions 63" L × 19-7/8" W × 8" D (160 × 50.5 × 20.3 cm)
Counter cutout* 67-1/4" L × 25-1/4" W (170.8 × 64.1 cm), 7/8" radius corners
Interior material 18-ga 304 stainless steel (seamless)
Exterior housing 18-ga galvanized steel
Insulation Foamed-in-place polyurethane
Drain 1" (2.5 cm) integral center drain with plug
Optional accessory 1" perforated false bottom (Item 36916-2)
Agency listing NSF

*Maintain the specified corner radius for proper gasket seal.

Built for busy food-service operations

  • Ideal for buffets, salad bars, cafeterias and prep lines.
  • Flat stainless work surface around the well adds plating or utensil space.
  • Seamless interior corners speed cleaning and reduce bacteria traps.
  • Compatible with Vollrath breath guards and other drop-in accessories (sold separately).
  • Backed by a one-year parts & labor warranty and Vollrath’s nationwide service network.
Lead time notice: This modular drop-in is built to order. Contact Vollrath for current lead times. Modular drop-ins cannot be cancelled or returned once ordered.

For full warranty details, visit vollrathfoodservice.com.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, Made in USA

Height

17.94in

Width

68.0in

Depth

26.0in

Shipping Weight

180.0lbs

Interior Liner

stainless steel

Width (side - side) OA

67 - 72 inches

Layout

straight

Depth (front-to-back) OA

25 - 30 inches

Exterior Liner

galvanized steel

Pan Qty

5-pan

Specifications

Cold Food Pan, Drop-In, (5) pan, non-refrigerated, ice cooled, 68"W x 26"D x 17-15/16"H (overall), 63"W x 19-7/8"D x 8"deep (pan), drip-free flange, polyurethane foam insulated, 1" integral center drain, 18/304 stainless steel interior, 18 gauge galvanized exterior, NSF, Made in USA (contact Vollrath for lead time (Refer to vollrathfoodservice.com for full warranty policy)
