Vollrath 36450 Steam Tables & Food Wells
Description

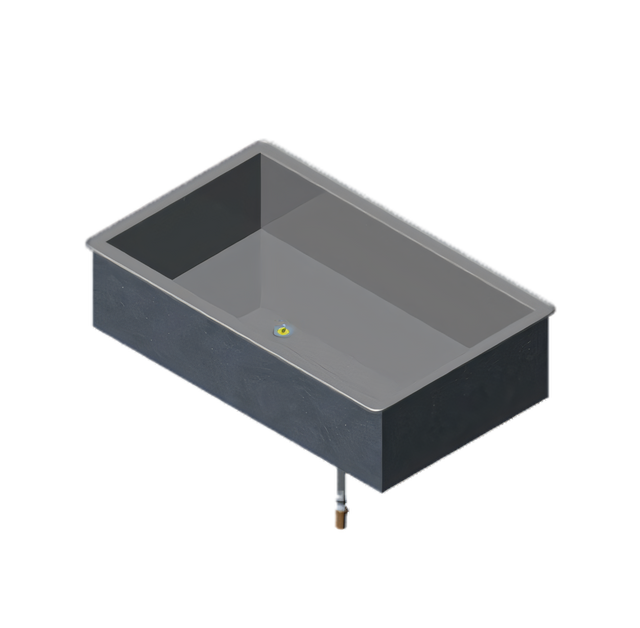

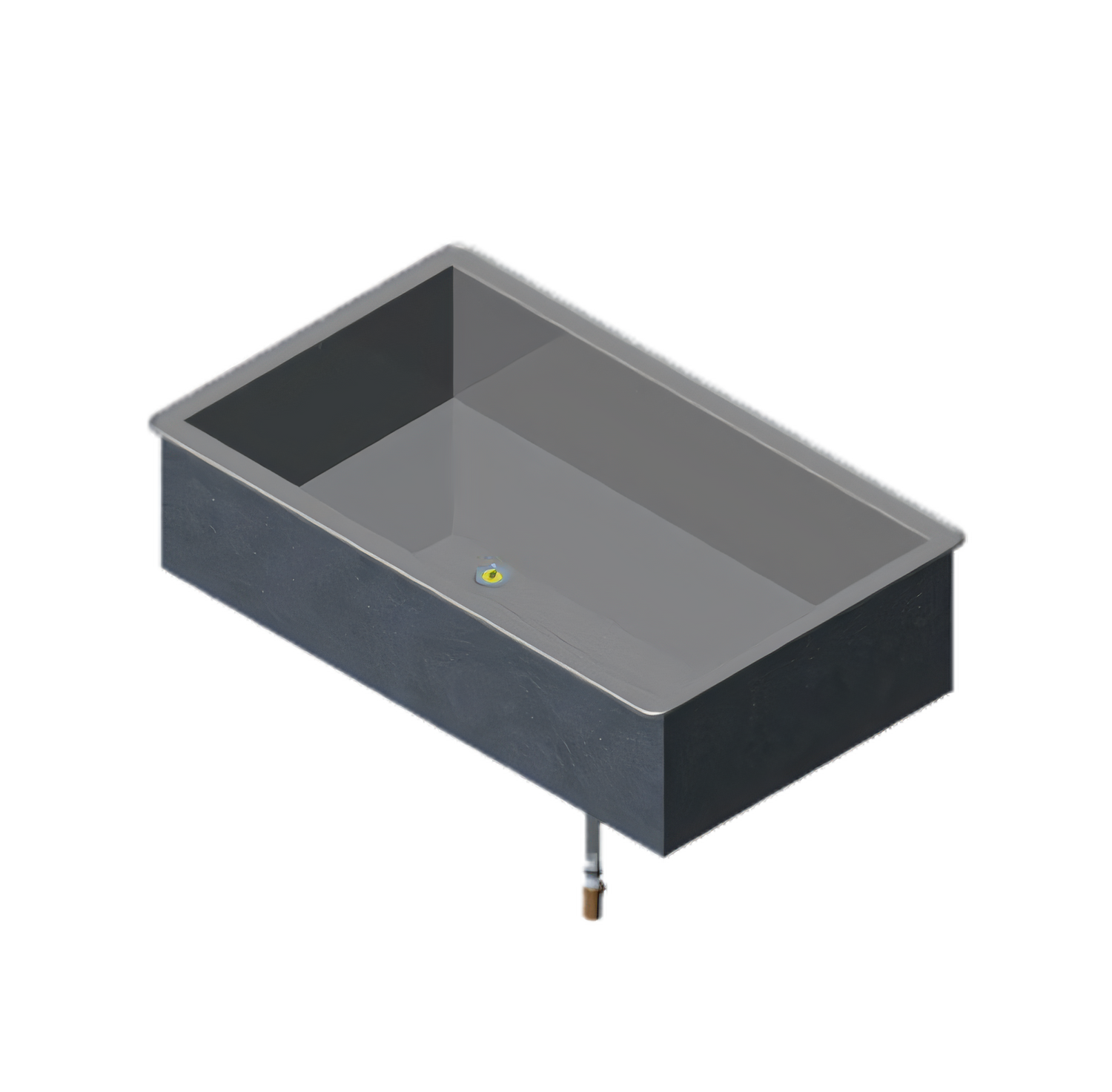

Vollrath 36450 Drop-In Non-Refrigerated Cold Pan – 2-Pan

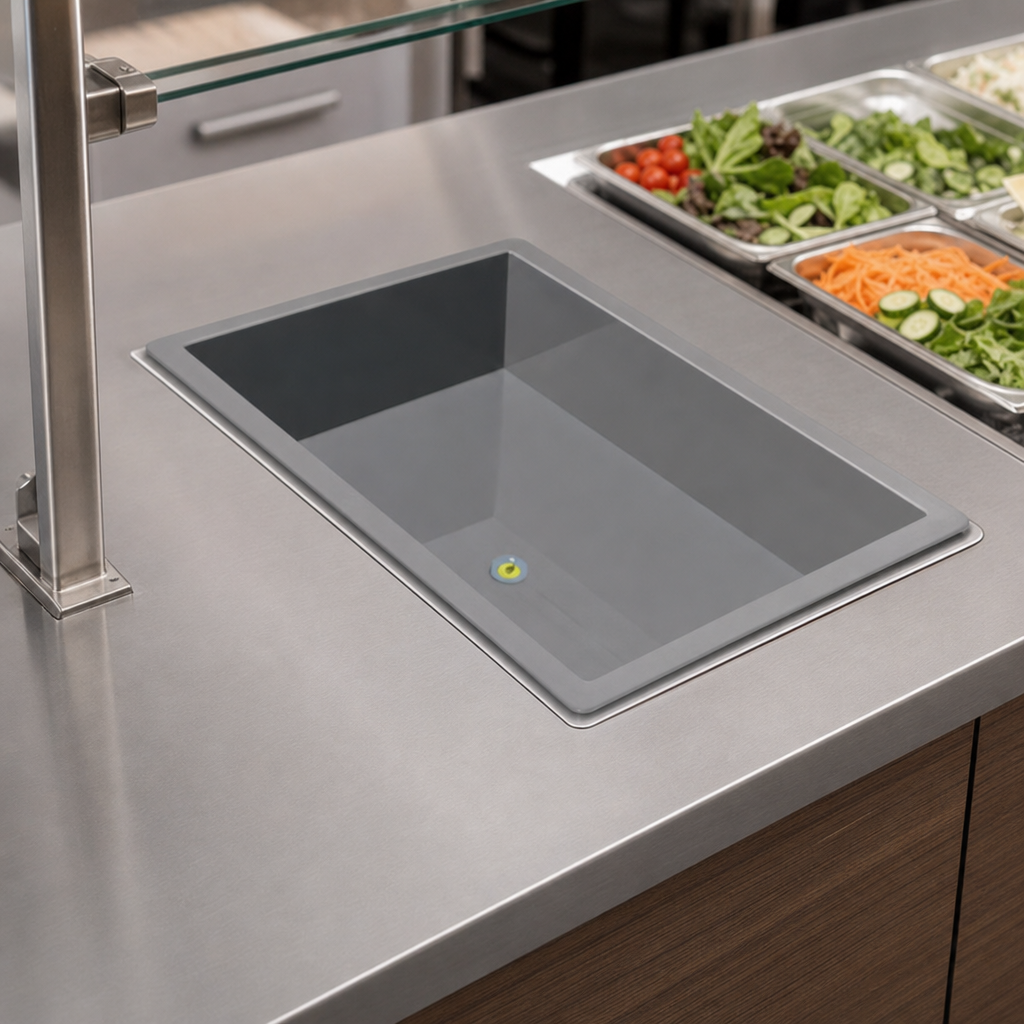

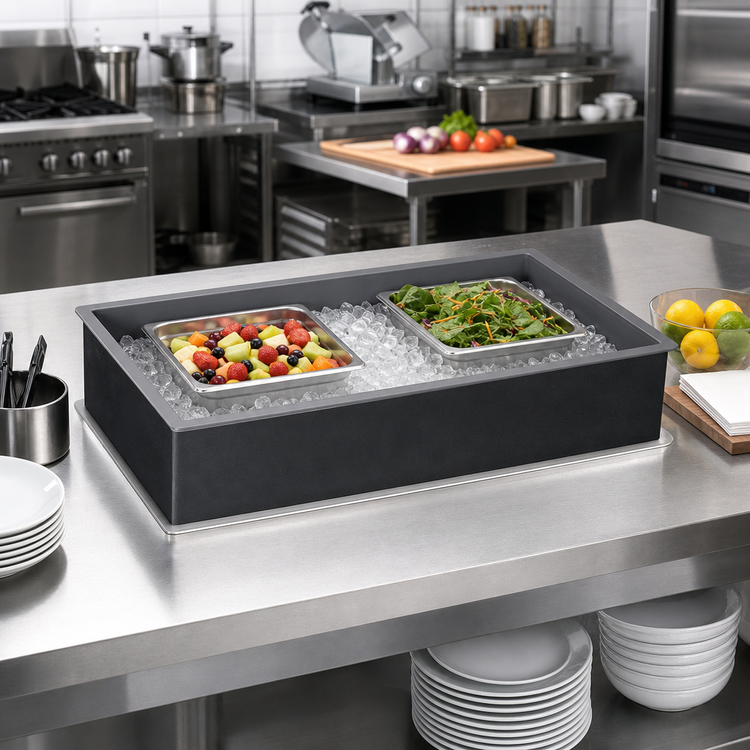

Ice-cooled, NSF-listed well for fresh, high-volume cold holdingBuilt for demanding buffet, cafeteria and salad-bar service, this Vollrath modular cold pan holds two full-size 12 in × 20 in steam table pans in a deep, ice-cooled well— no refrigeration system required. Simply load with ice and you’ll have reliable, even chilling for hours, all inside a rugged, drop-in package that installs flush with your counter.
Why you’ll love it
- Non-refrigerated, ice-cooled design—no compressors, wiring or maintenance headaches.
- 8 in (20.3 cm) deep seamless well maximizes ice capacity for longer cold holding.
- 18-gauge 304 stainless steel interior resists corrosion and cleans up fast.
- 18-gauge galvanized steel exterior adds structural strength for long service life.
- Full-perimeter drip edge with molded breaker gasket keeps condensation off counter tops.
- High-density polyurethane foam insulation maintains temperature and slows ice melt.
- 1 in (2.5 cm) integral center drain with plug for quick, complete drainage.
- 3⁄8 in (9.5 mm) top overhang lays flush on counter; positioning clips included for perfect alignment.
- NSF listed and proudly Made in the USA.
Technical specifications
| Model | 36450 (2-Pan) |
|---|---|
| Overall dimensions | 29 in W × 26 in D × 17-15/16 in H (73.7 cm × 66 cm × 45.1 cm) |
| Well (interior) size | 24-3/4 in L × 19-7/8 in W × 8 in D (62.9 cm × 50.5 cm × 20.3 cm) |
| Cutout size* | 28-1/4 in L × 25-1/4 in W (7/8 in corner radius) |
| Material – well / top | 18-gauge, Type 304 stainless steel |
| Material – exterior | 18-gauge galvanized steel |
| Insulation | Foamed-in-place high-density polyurethane |
| Drain | 1 in NPT integral center drain with plug (included) |
| Certifications | NSF, UL US & Canada, Made in USA |
| Warranty | 1-year parts & labor (see Vollrath warranty for details) |
*Opening cutout must maintain the listed corner radius to ensure proper fit and seal.
Optional accessories
- Perforated false bottom (Model 36913-2) – supports food pans above melt water, reduces usable depth by 1 in.
- Breath guards and serving shelves – see Vollrath.com for compatible models.
Refer to vollrathfoodservice.com for complete warranty policy and installation instructions.
