Vollrath 36448R Steam Tables & Food Wells
Description

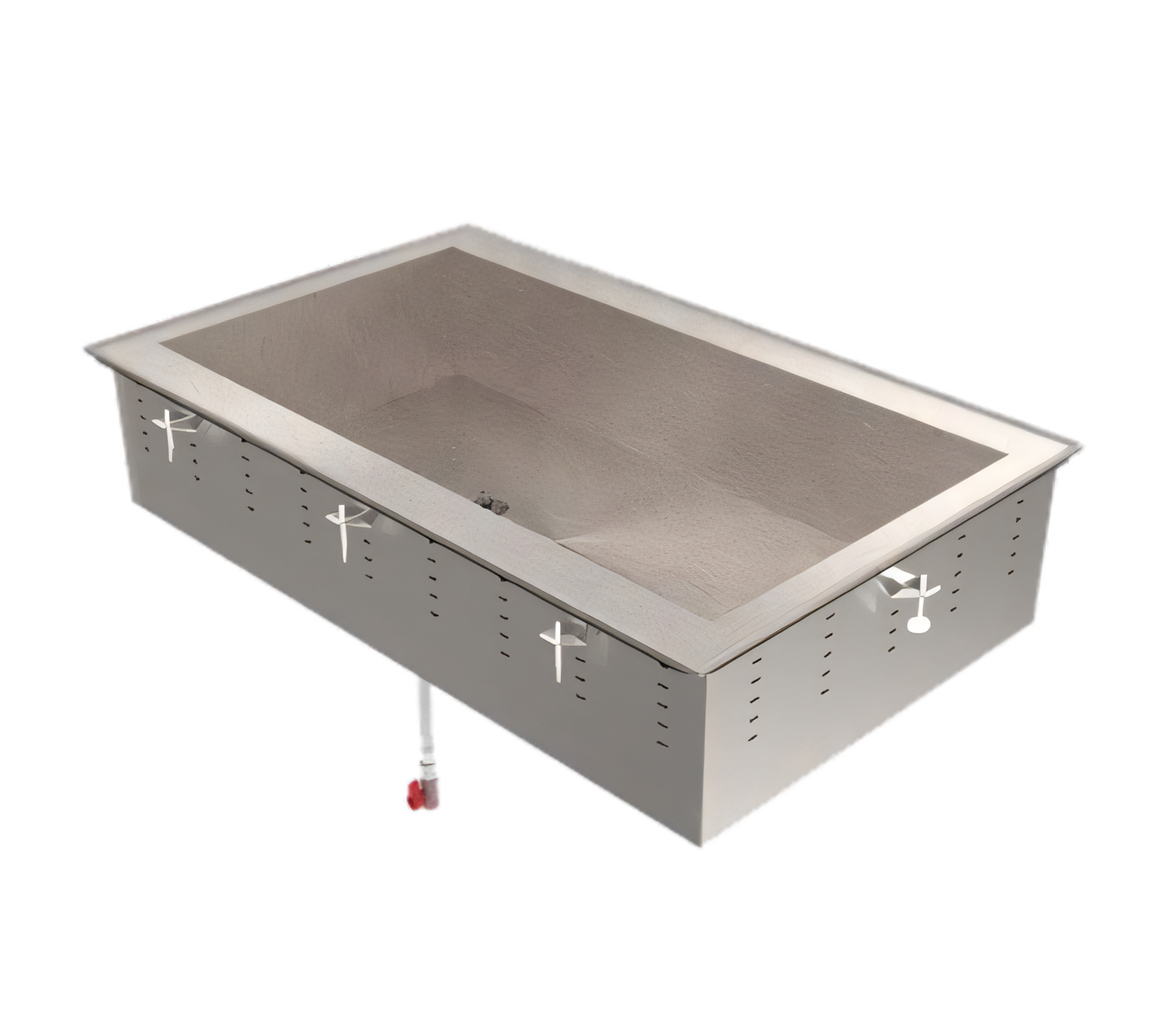

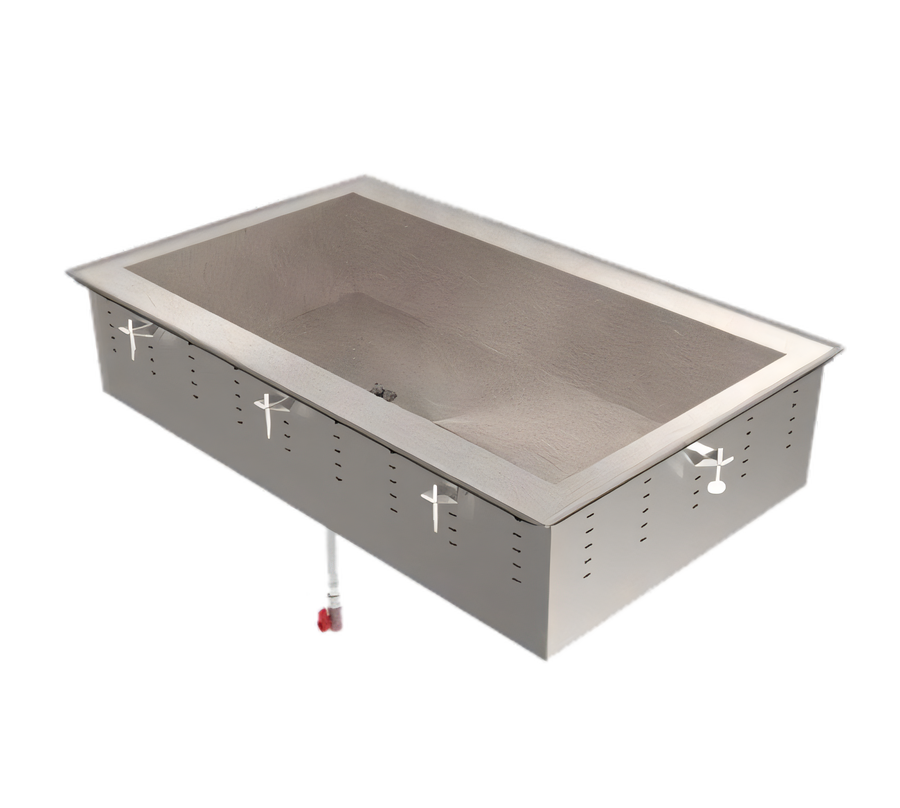

Vollrath 36448R Modular Remote Refrigerated Cold Pan – 6-Pan Drop-In
Standard Series • 81¼" L × 26" W opening • 8" deep well • Made in USAGive your serving line the capacity and temperature control it deserves. The Vollrath 36448R drop-in cold pan holds six full-size (12" × 20") steam-table pans in an 8-inch-deep, foamed-in-place well that keeps product at safe, appetizing temperatures for up to four hours*—perfect for salad bars, deli islands, cafeterias, and grab-and-go stations.
Why You’ll Love It

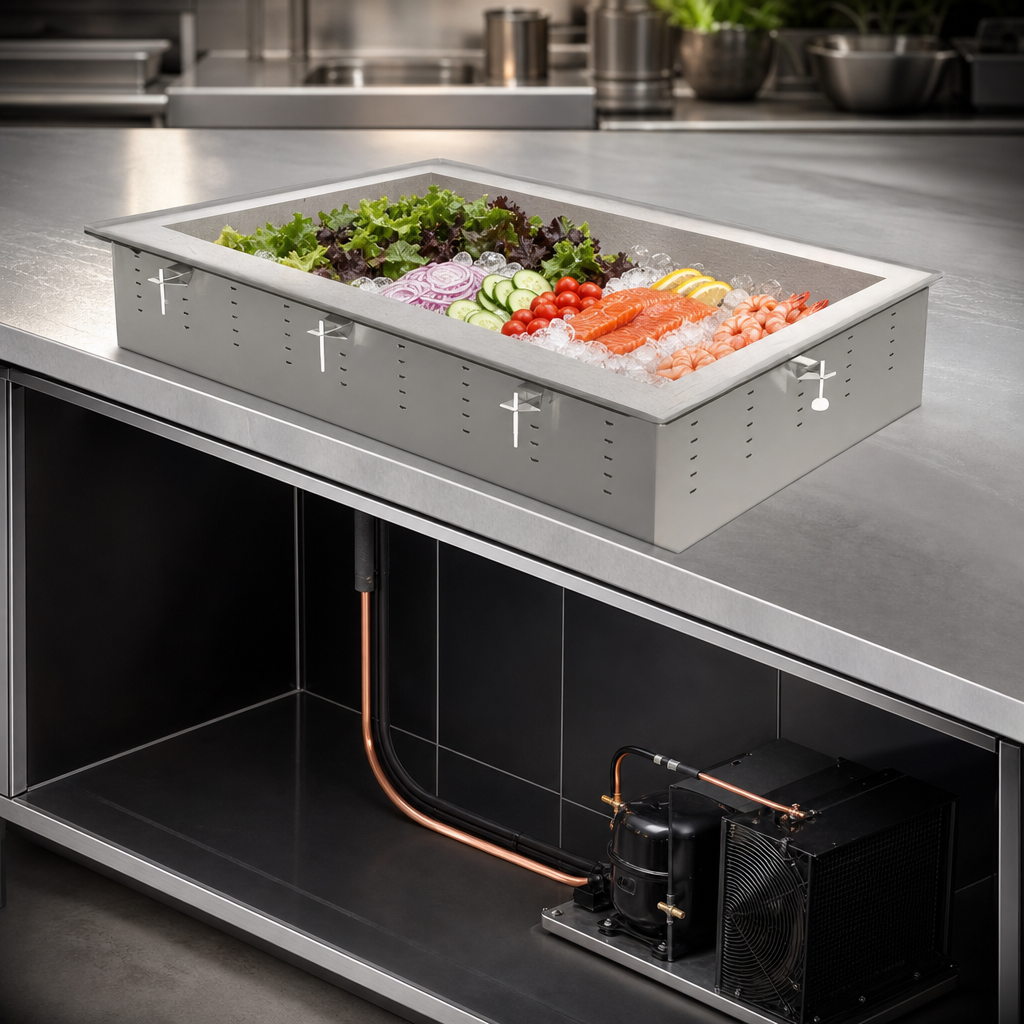

- Remote refrigeration design lets you place the compressor out of sight and away from heat-sensitive guests.
- 18-gauge 18/8 stainless-steel top with 3/8" overhang and seamless, drip-free flange keeps counters clean.
- Foamed-in-place polyurethane insulation maintains consistent cold and reduces energy use.
- Deep 8" (20.3 cm) well maximizes ice capacity for peak performance and presentation.
- Factory-installed ⅜" O.D. copper tube accepts your capillary thermostat control for quick hook-up.
- 1" (2.5 cm) threaded drain plug speeds cleanup; optional perforated false bottom available to keep pans above melted ice.
- Rugged 18-gauge galvanized exterior housing stands up to daily commercial abuse.
- Positioning clips included for fast, centered installation in the counter cut-out.
- Certified cULus & NSF 7 for open food holding; built and assembled in Sheboygan, Wisconsin.
Key Specifications
| Model / Item No. | 36448R (Standard Remote) |
|---|---|
| Pan Capacity | 6 × full-size 12" × 20" pans (adaptor bars required) |
| Overall Well Depth | 8" (20.3 cm) |
| Interior Length | 75 ¾" (192.4 cm) |
| Counter Cut-Out* | 80 ½" L × 25 ¼" W (7/8" corner radius) |
| Top Flange Size | 81 ¼" L × 26" W |
| Overall Height | 17" (43.2 cm) |
| BTUH Load | 4,600 BTUH @ 100 °F condensing / –10 °F evaporating |
| Drain Connection | 1" NPT threaded plug |
| Construction | 18-gauge 304 stainless well & top, 18-gauge galvanized exterior |
| Insulation | High-density, foamed-in-place polyurethane |
| Certifications | NSF, cULus |
| Warranty | 1-year parts & labor (see VollrathFoodservice.com for full policy) |
*Opening must have a 7/8" (2.2 cm) corner radius.
Popular Remote-Installation Accessories †
- Solenoid valve kit – Vollrath 36480
- Expansion valve – Vollrath 36481
- Thermostat w/ knob – Vollrath 36482
- Filter & sight-glass kit – Vollrath 36483
- Lighted 30 A toggle switch – Vollrath 23540-1
†Sold separately. Order direct from Vollrath or through your preferred distributor.
Remote units ship without a compressor and must be connected to a properly sized remote condensing unit by a certified refrigeration technician. Modular drop-ins are custom-built and cannot be cancelled or returned. Please contact Vollrath for current lead time.
*For best results, use stainless-steel food pans and limit holding time to four hours or less.
