Vollrath | SKU:
36446R
Vollrath 36446R Steam Tables & Food Wells
$2,720.25
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Vollrath 36446R Steam Tables & Food Wells is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Vollrath 36446R Steam Tables & Food Wells
$2,720.25
Unit price
/
Unavailable
Description

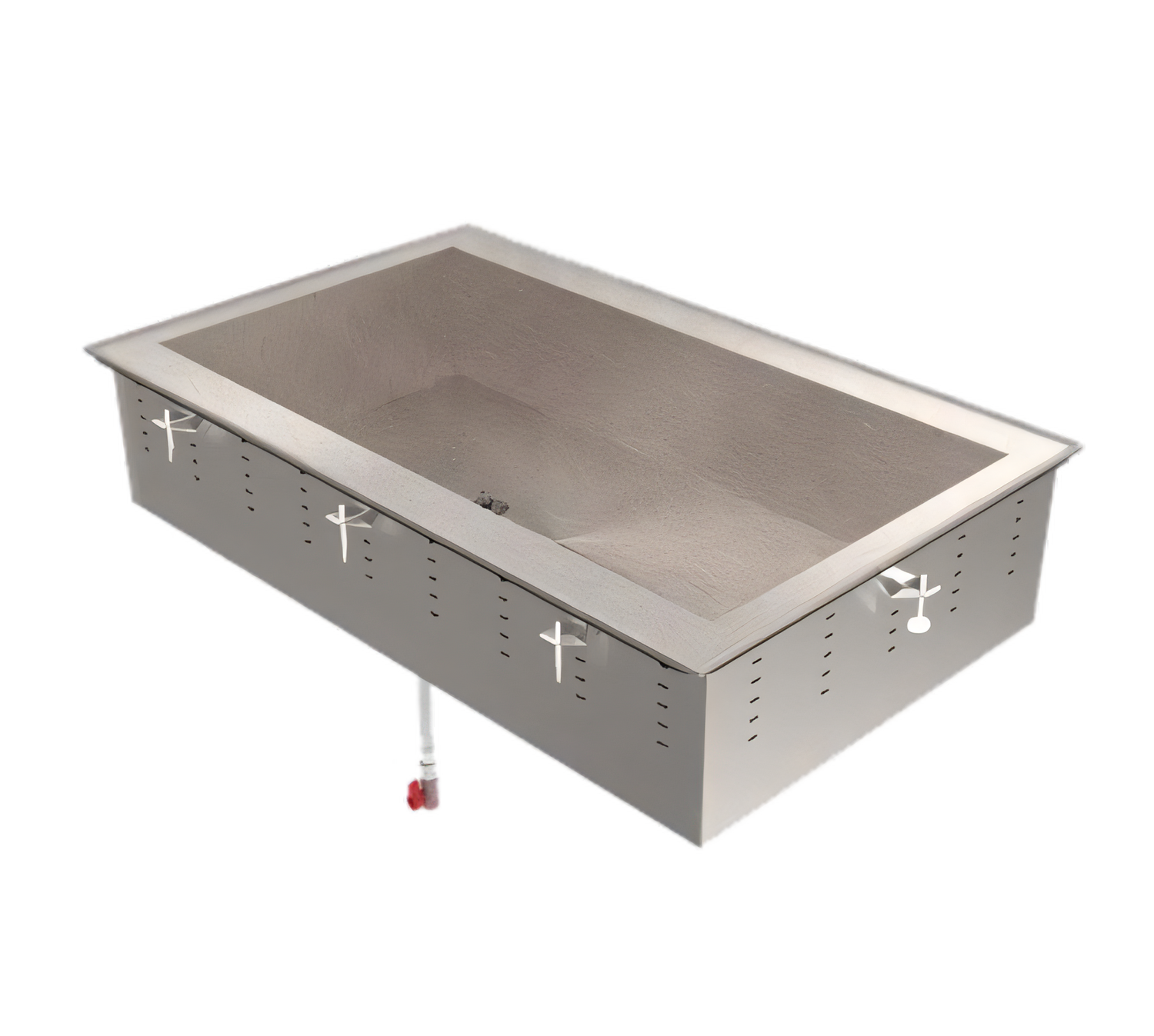

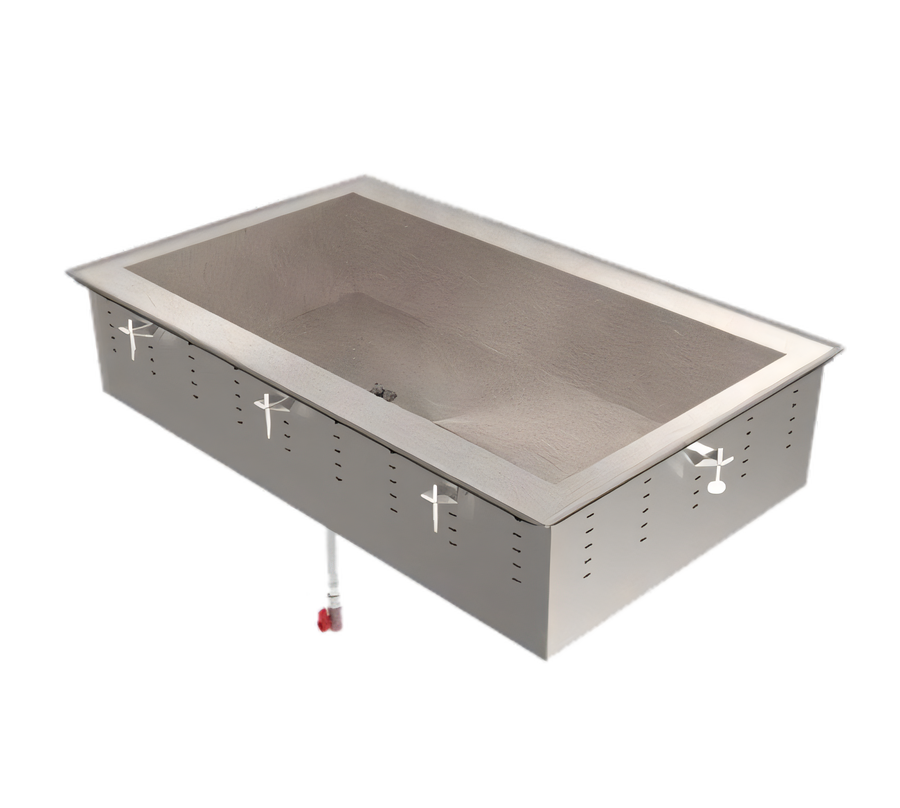

Vollrath Drop-In Remote Refrigerated Cold Pan – 5 Pan
Model 36446R • remote compressor required (not included)Hold up to five full-size 12" × 20" pans safely below 41 °F (5 °C) while keeping your countertop uncluttered. Engineered and built in the USA, Vollrath’s 5-pan remote cold well combines 18/8 stainless steel construction, foamed-in-place insulation, and a drip-free flange for a professional, worry-free cold-food display.
Highlights
- Accommodates 5 standard 12" × 20" pans (use adaptor bars for other configurations).
- 8" (20.3 cm) deep seamless well – ideal for generous ice or refrigerant packs.
- Top & well: heavy-gauge Type 304 stainless steel with full-perimeter, drip-free flange.
- Thick foamed-in-place polyurethane insulation maintains temperature & saves energy.
- 18-gauge galvanized exterior housing adds strength and corrosion resistance.
- Factory-installed ⅜" ODF copper tubing for capillary-type thermostat connection.
- 1" (2.5 cm) threaded drain plug for fast, sanitary clean-up.
- Positioning clips and ⅜" (1 cm) top overhang for true “zero-clearance” drop-in installation.
- cULus listed, NSF certified – safe for open-food use.
- Made in the USA and backed by Vollrath’s one-year parts & labor warranty*.
Specifications
| Pan Capacity | 5 full-size pans (12" × 20") |
|---|---|
| Overall Dimensions (L × W) | 68" × 26" (172.7 × 66 cm) |
| Well Depth | 8" (20.3 cm) |
| Interior Length | 63" (160 cm) |
| Cut-out Size* | 67¼" × 25¼" (170.8 × 64.1 cm) with ⅞" (2.2 cm) corner radius |
| Rise Above Counter | ⅜" (1 cm) |
| BTU Requirement | 3,900 BTUH @ 100 °F condensing / –10 °F evaporating |
| Drain | 1" (2.5 cm) threaded plug |
| Construction | 18/8 Type 304 stainless steel well, 18-ga galvanized exterior |
| Certifications | cULus, NSF Listed |
Optional Remote Accessories (sold separately)
- 36480 – Solenoid Valve with 120 V coil
- 36481 – Expansion Valve
- 36482 – Thermostat with knob control
- 36483 – Filter & Sight-Glass kit
- 23540-1 – Lighted toggle switch (30 A, 120/240 V)
Important:

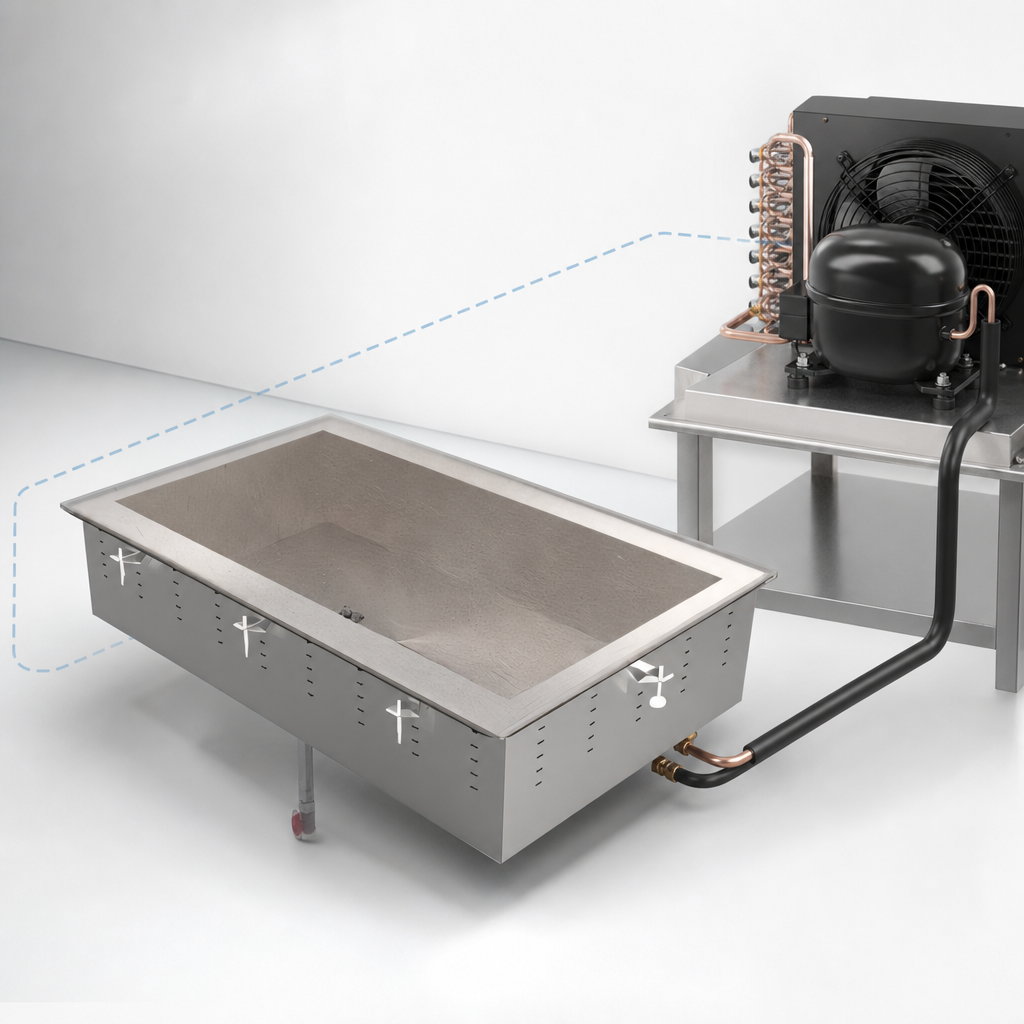

• Remote units ship without a compressor; a qualified refrigeration technician must supply and install the remote system.
• Modular drop-ins cannot be cancelled or returned once ordered.
• Contact Vollrath for current lead times.
• Remote units ship without a compressor; a qualified refrigeration technician must supply and install the remote system.
• Modular drop-ins cannot be cancelled or returned once ordered.
• Contact Vollrath for current lead times.
*See the full warranty policy at vollrathfoodservice.com.
Features & Specs
Features & Specs
Manufacturer
Vollrath
Certifications
NSF, cULus, Made in USA
Height
22.75in
Width
68.0in
Depth
26.0in
Shipping Weight
300.0lbs
Pan Qty
5-pan
Style
remote refrigeration (no compressor)
Finish
stainless steel top & inner liner, galvanized outer liner
Width (side - side)
67 - 72 inches
Layout
deep
Insulation
insulated
Pan Size
full-size (12" x 20")
Specifications
Refrigerated Cold Pan, remote, drop-In, 5-pan, 8" deep well, accommodates standard 12" x 20" pans with adaptor bars, drip-free flange, polyurethane foam insulated, 18/8 stainless steel, 18 gauge galvanized exterior housing, remote refrigeration, cULus, NSF, Made in USA (note: remote units do not include compressor) (contact Vollrath for lead time) (Refer to vollrathfoodservice.com for full warranty policy)
