Vollrath 36444R Steam Tables & Food Wells
Description

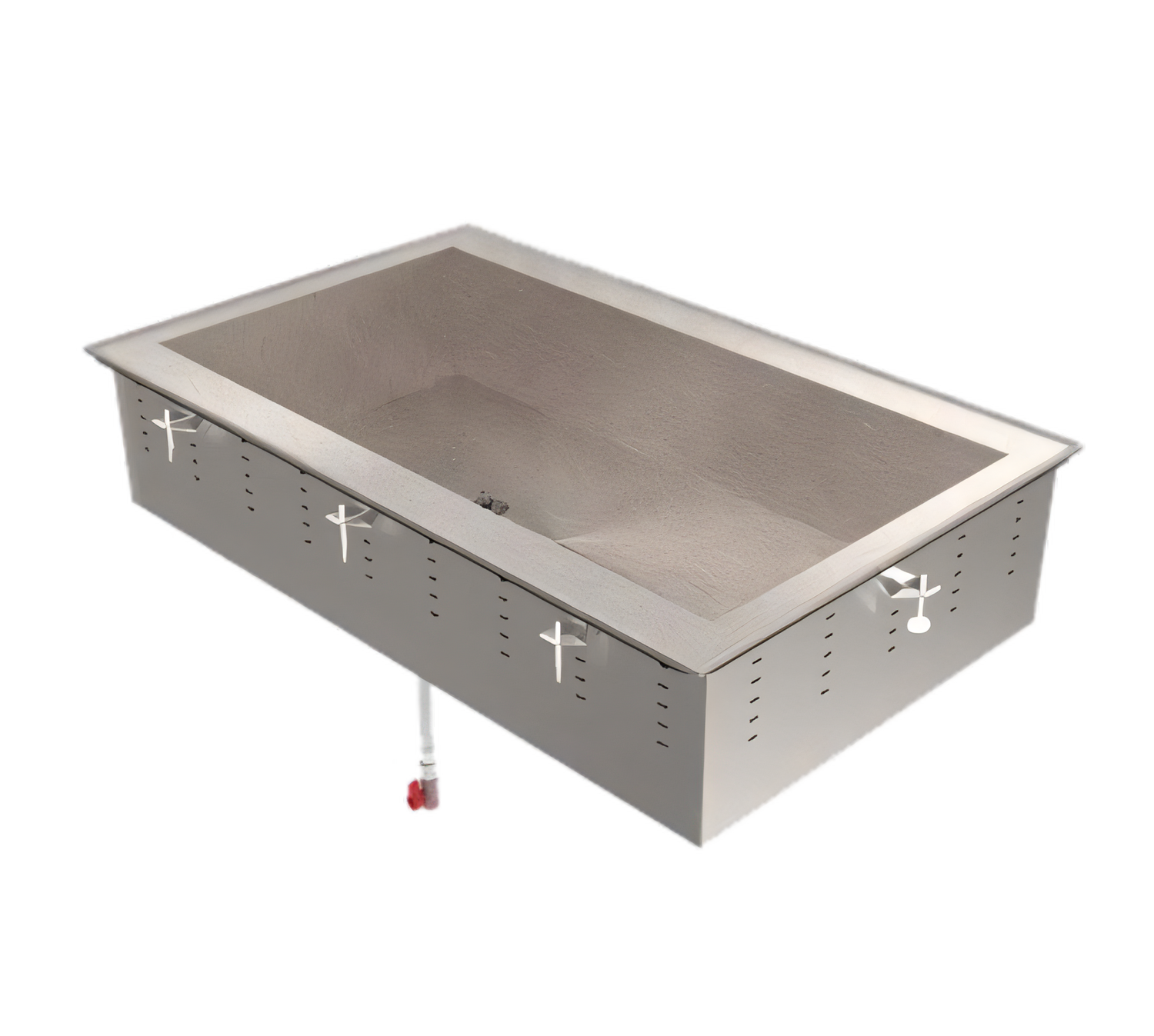

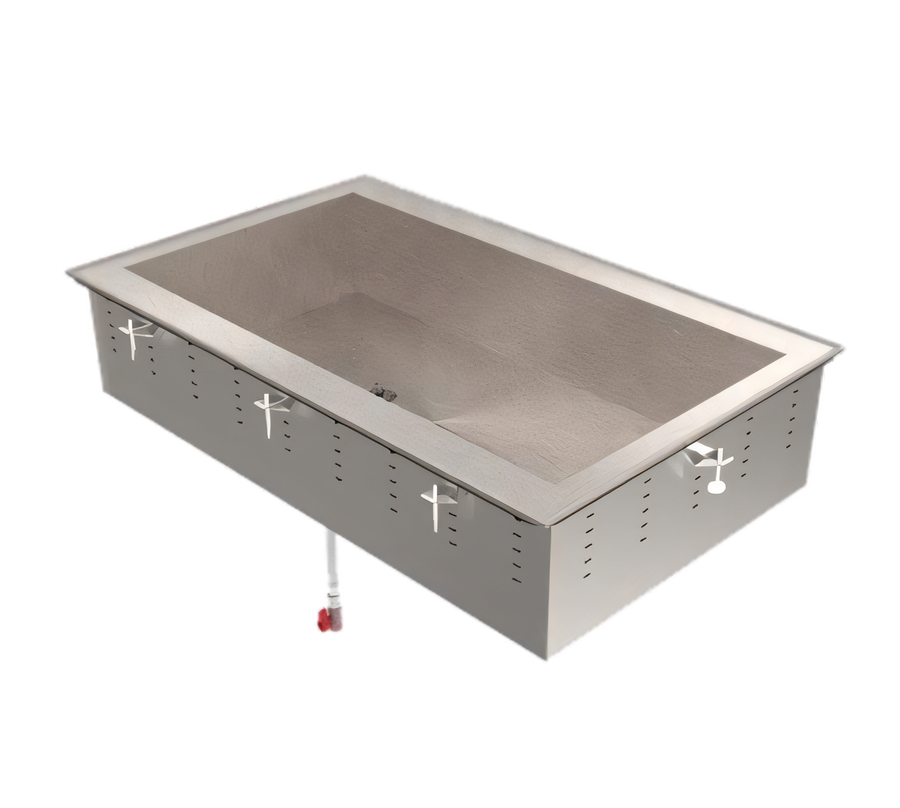

Vollrath 36444R Remote Drop-In Refrigerated Cold Pan – 4 Pan
8" deep well | remote refrigeration | stainless steel | Made in USAKeep salads, toppings and grab-n-go favorites safely chilled and beautifully displayed with the Vollrath 36444R four-pan remote refrigerated cold pan. Built for heavy commercial use, this drop-in unit delivers even, reliable cooling while giving you complete flexibility to place the compressor wherever it best suits your installation.
Key benefits
- Holds four standard 12" × 20" full-size food pans (with adaptor bars, pans sold separately).
- 8" (20.3 cm) deep seamless well provides maximum ice capacity and product visibility.
- 18 ga 18/8 type 304 stainless-steel top with full-perimeter drip-free flange keeps condensation off the counter.
- Foamed-in-place high-density polyurethane insulation maintains cold temperatures longer and improves efficiency.
- Exterior housing is heavy-duty 18 ga galvanized steel for long-lasting structural strength.
- Zero-clearance, top-mount design makes retrofit or new installs fast and clean.
- Copper capillary tube supplied for quick connection to your remote thermostat/control.
- 1" (2.5 cm) drain plug included for easy cleanup; optional perforated false bottom available.
- cULus listed and NSF certified for safe, code-compliant operation.
- Proudly made in the USA and backed by a 1-year parts & labor warranty.
Technical specifications
| Model | 36444R (standard remote) |
|---|---|
| Pan capacity | 4 full-size (12" × 20") pans |
| Overall dimensions (L × W) | 54 ¾" × 26" (139.1 cm × 66 cm) |
| Well depth | 8" (20.3 cm) |
| Interior length | 50 ¼" (127.6 cm) |
| Cut-out size* | 54" × 25 ¼" (137.2 cm × 64.1 cm) – 7/8" corner radius |
| Compressor capacity † | 3,100 BTUH @ 100 °F condensing / –10 °F evaporating |
| Construction | 18 ga 18/8 stainless well & top, 18 ga galvanized exterior housing |
| Drain | 1" NPT with removable plug |
| Certifications | NSF, cULus |
| Country of origin | USA |
*Positioning clips are included to center the drop-in in the counter cut-out.
†Remote compressor and controls are not included.
Recommended remote accessories (sold separately)
- Solenoid valve kit, 120 V (Vollrath #36480)
- Expansion valve (Vollrath #36481)
- Thermostat with knob control (Vollrath #36482)
- Filter & sight glass kit (Vollrath #36483)
- Remote lighted toggle switch, 30 A, 120/240 V (Vollrath #23540-1)
• Remote units ship without a compressor and must be connected to a customer-supplied refrigeration system by a properly certified technician.
• Modular drop-ins cannot be canceled or returned once ordered.
• Verify cut-out and BTUH requirements with your refrigeration professional before ordering.
• Lead times vary; contact Vollrath for current availability.
For complete warranty terms, visit vollrathfoodservice.com.
