Vollrath 36442R Steam Tables & Food Wells
Description

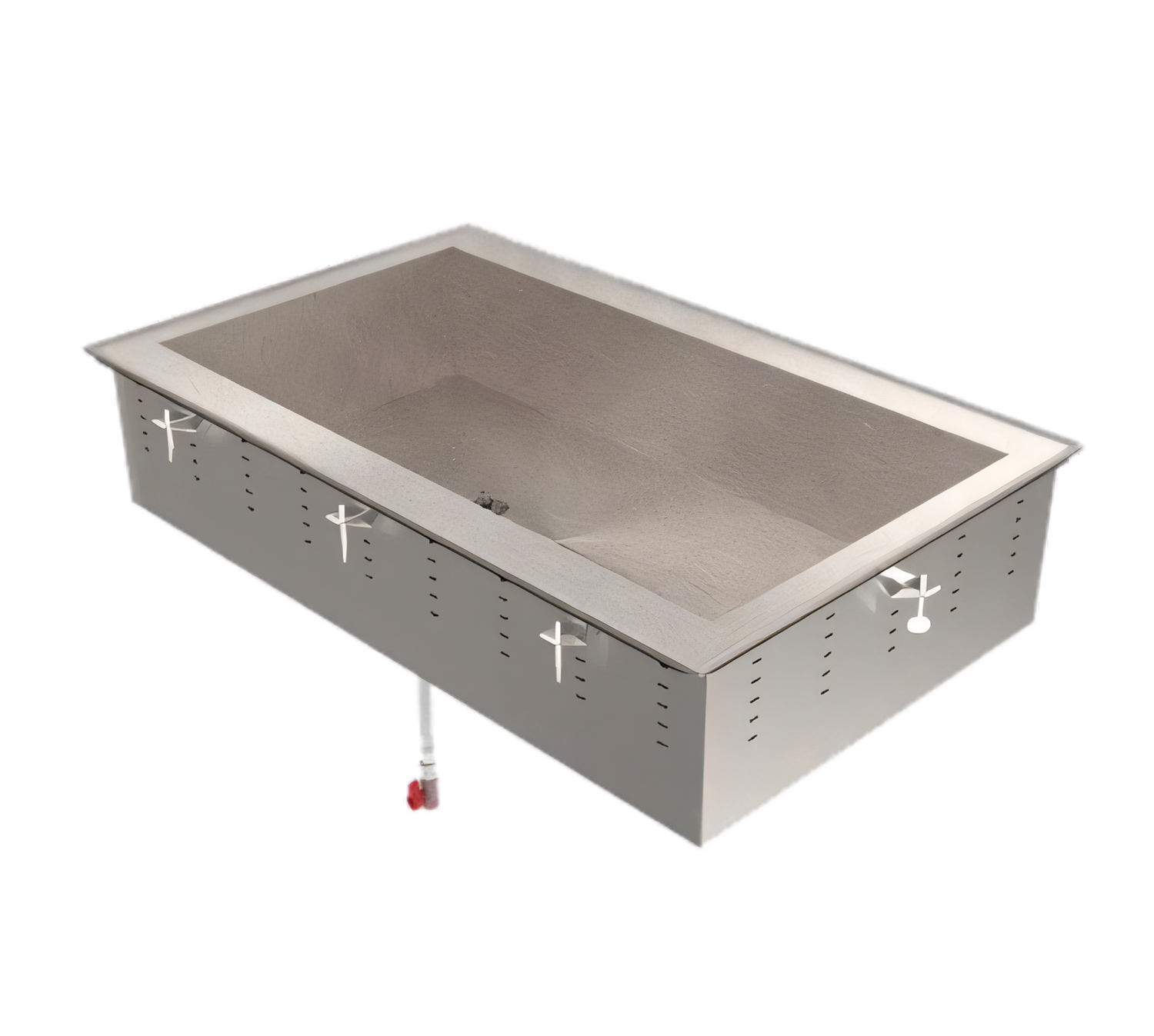

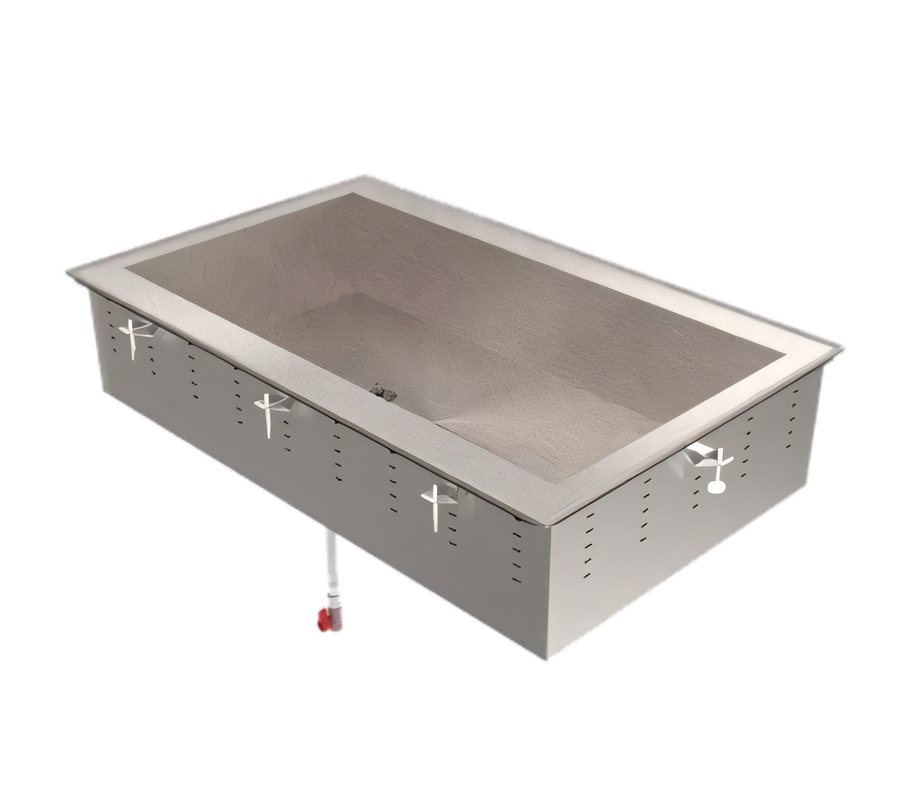

Vollrath 36442R Remote Refrigerated Cold Pan – 3-Pan

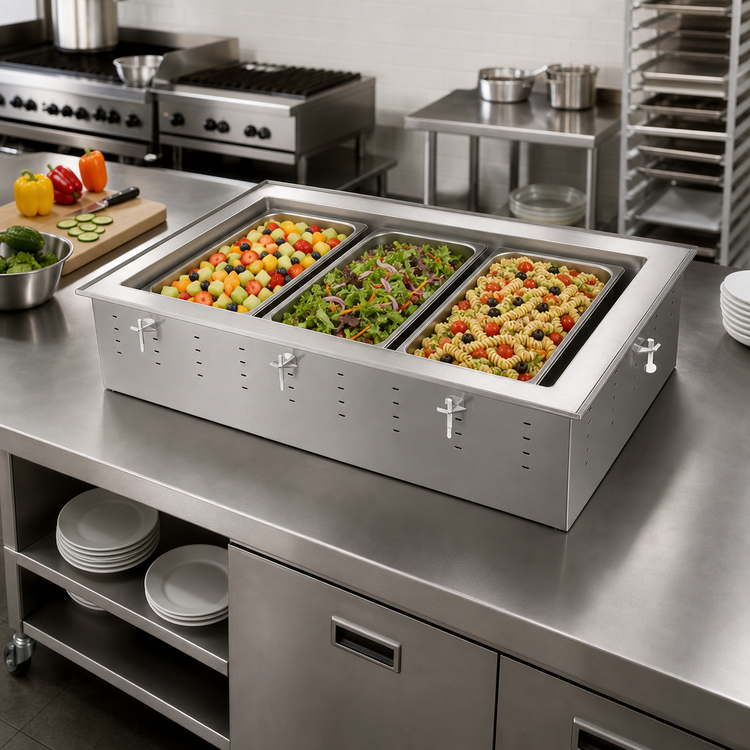

Drop-in well, 8" deep • Holds three full-size 12" × 20" pans • Made in the USAGive your salad bar, deli, or buffet the professional edge with Vollrath’s remote 3-pan refrigerated well. Engineered for top-mount, zero-clearance installation, this drop-in keeps product below 41 °F for up to four hours*— without the clutter of an onboard compressor.
Why You’ll Love It
- Full 8 in (20.3 cm) deep well maximizes ice capacity and food visibility.

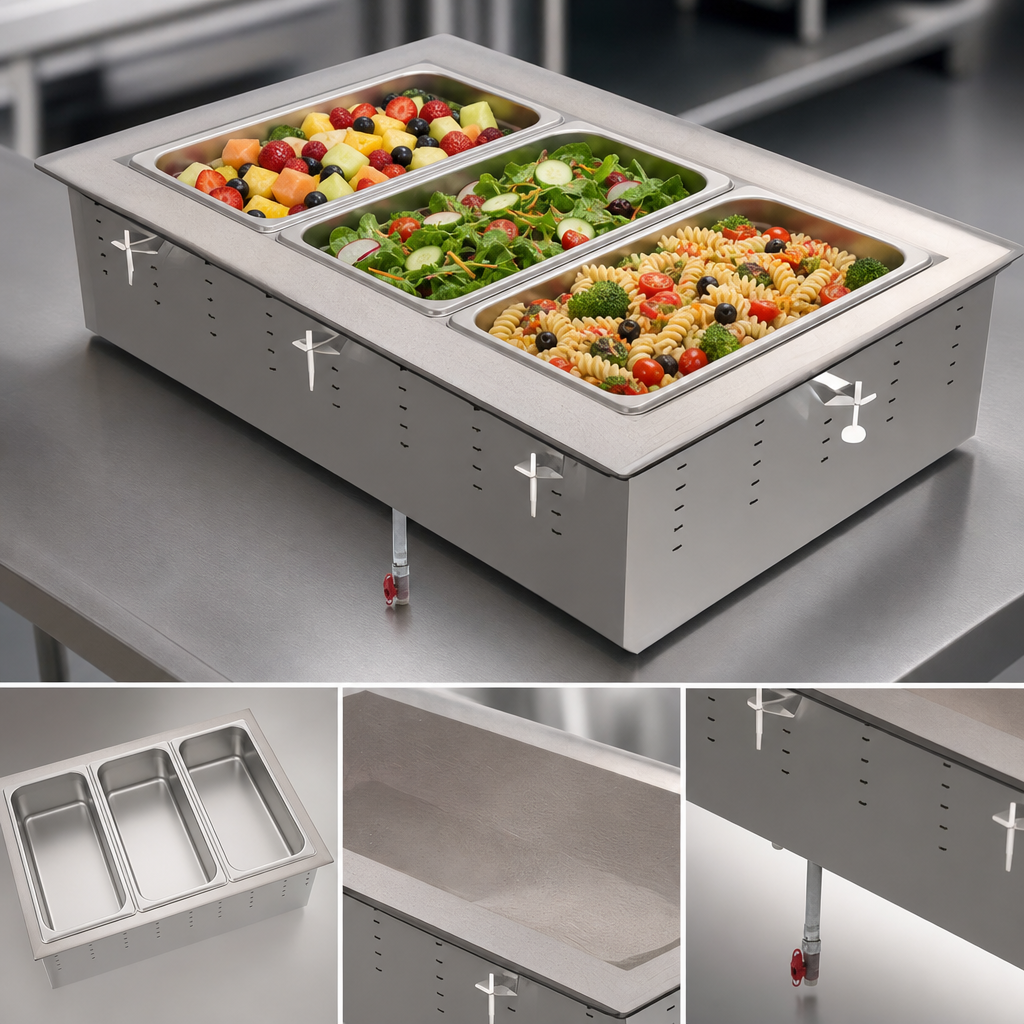

- Accepts (3) standard 12 × 20 in pans with adaptor bars (pans & adaptor bars sold separately).
- 18-gauge 18/8 stainless-steel top with 3/8 in overhang and seamless, drip-free flange.
- Foamed-in-place polyurethane insulation locks in cold and lowers operating costs.
- 1 in (2.5 cm) factory-installed drain plug speeds cleanup.
- Galvanized 18-gauge exterior housing built to take daily commercial abuse.
- Supplied copper capillary tube for quick connection to your remote thermostat.
- Factory-welded positioning clips center the unit perfectly in the counter cutout.
- cULus & NSF listed for safe, sanitary operation.
At-a-Glance Specs
| Model | 36442R (standard depth, remote) |
|---|---|
| Pan capacity | 3 full-size (12 × 20 in) steam table pans |
| Interior dimensions | 37 ½ × 19 ⅞ in |
| Overall dimensions (L × W × H) | 41 ½ × 26 × 17 in |
| Well depth | 8 in (20.3 cm) |
| Counter cutout* (L × W) | 40 ¾ × 25 ¼ in | 7/8 in corner radius |
| Required refrigeration capacity | 2,300 BTUH at 100 °F condensing / −10 °F evaporating |
| Materials | 18-gauge 304 stainless (top & well) • 18-gauge galvanized steel (housing) |
| Drain size | 1 in NPT with plug |
| Certifications | cULus • NSF • Made in USA |
| Warranty | 1-year parts & labor (see Vollrath website for full policy) |
Remote-Ready Convenience
The 36442R ships without a compressor so you can locate the condensing unit where it works best for you— under a counter, in a back room, or outdoors—keeping customer areas quieter and cooler.
- Factory-installed copper tubing accepts your capillary thermostat control.
- Compatible accessories (order separately): Solenoid Valve Kit (36480), Expansion Valve (36481), Thermostat & Knob (36482), Filter/Sight Glass Kit (36483), Lighted Toggle Switch (23540-1).
- Installation must be performed by a properly certified refrigeration technician.
Popular Add-Ons
- Perforated 1 in stainless-steel false bottom—keeps pans above melted ice.
- Stainless-steel adaptor bars for fractional pans.
- Full-size Super Pan V® steam table pans for maximum cold-holding efficiency.
*Holding time depends on ambient conditions, food density, and proper installation. Refer to VollrathFoodservice.com for detailed installation manuals and full warranty terms.
