Vollrath  |  SKU: 36441R

Vollrath 36441R Steam Tables & Food Wells

$1,840.10
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

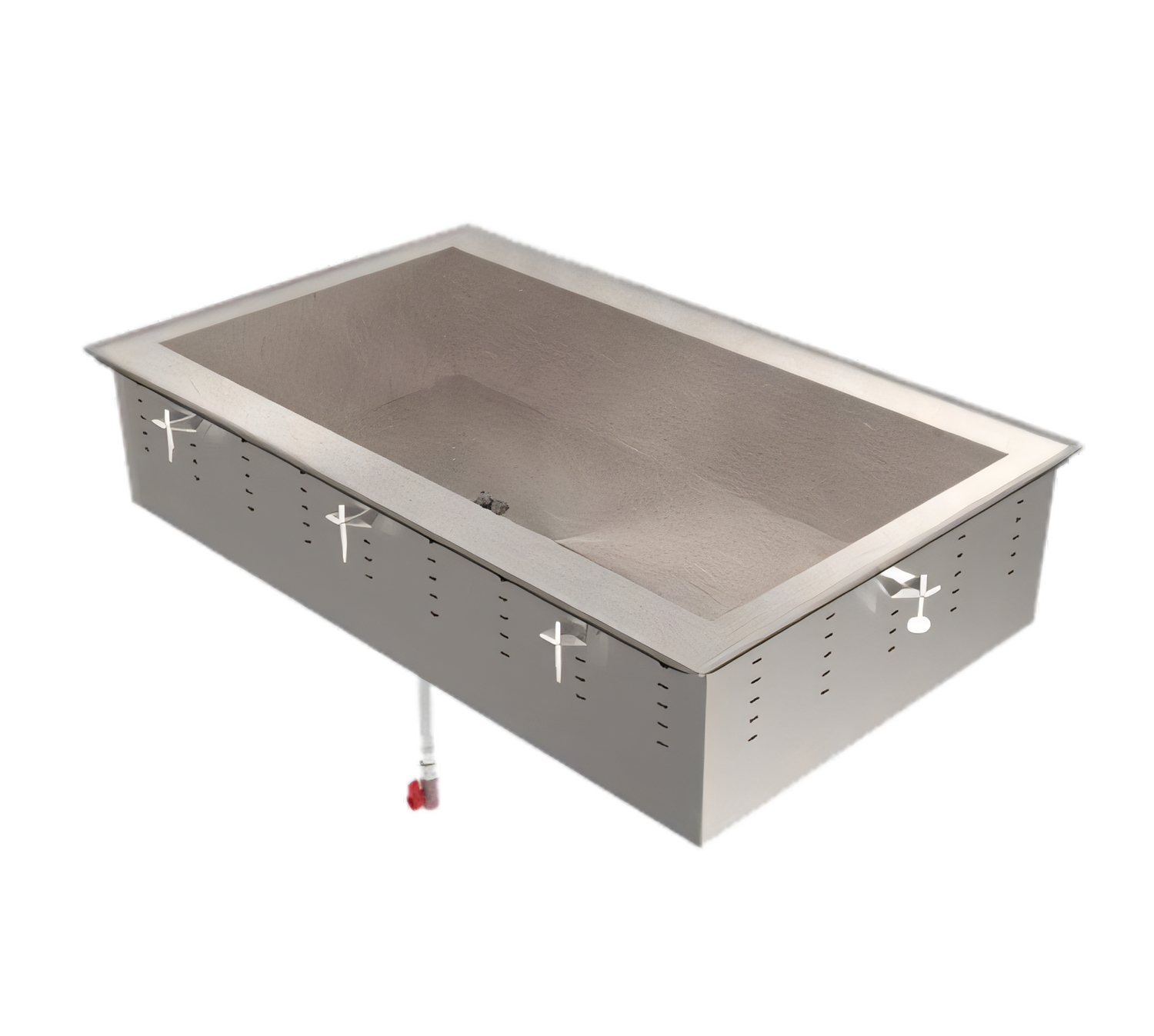

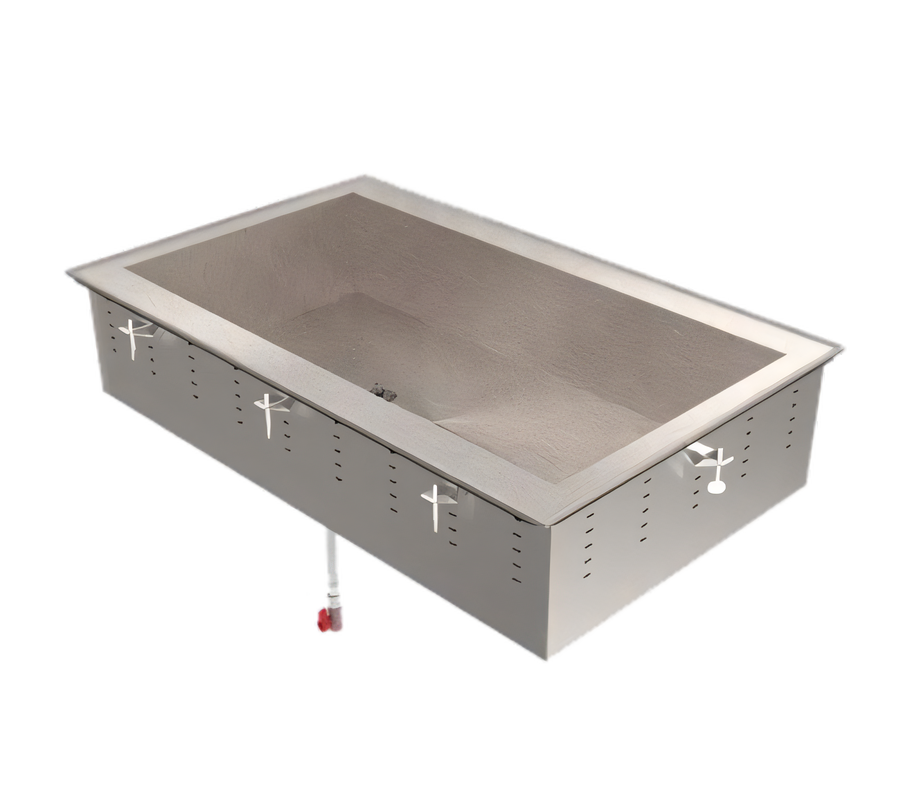

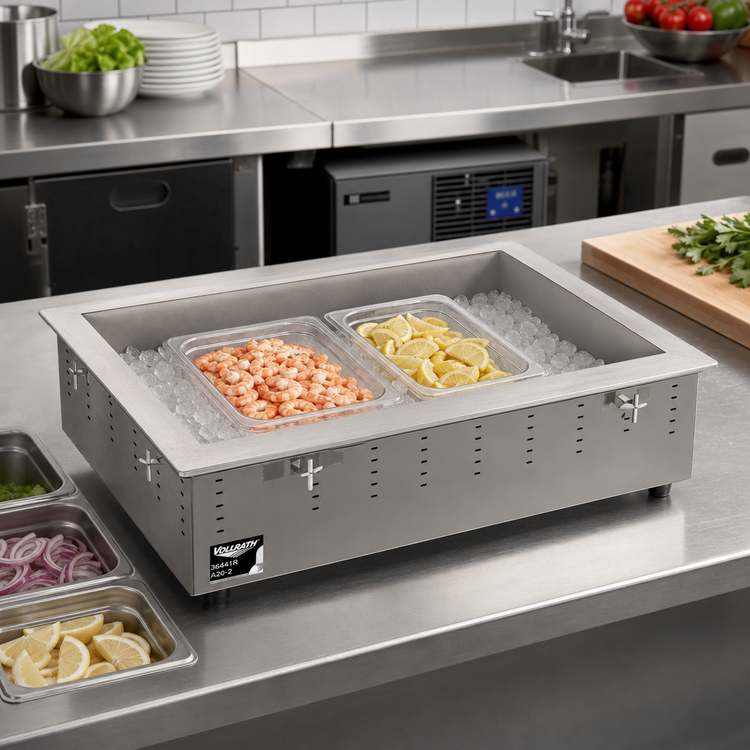

Vollrath Modular Remote Refrigerated Cold Pan – 2 Pan

Standard 8 in (20.3 cm) Deep Well • Drop-In • Remote Refrigeration

Keep salads, condiments and chilled entrées perfectly cold inside your countertop with Vollrath’s 2-pan remote refrigerated drop-in. Designed for demanding commercial kitchens, this NSF-listed well surrounds food pans with even, reliable cold while a seamless drip-free flange keeps surrounding surfaces clean.

Why You’ll Love It
  • Holds two full-size 12 × 20 in pans (or fractional sizes with adaptor bars)
  • 8 in (20.3 cm) deep 18 / 8 stainless-steel well for maximum ice capacity
  • Factory-foamed high-density polyurethane insulation locks in cold and reduces energy load
  • Full-perimeter, die-stamped drip edge with molded breaker gasket prevents condensation from reaching your counter
  • Zero-clearance drop-in design saves space and simplifies installation
  • 18-gauge galvanized exterior housing for strength and corrosion resistance
  • cULus & NSF listed; proudly Made in the USA
Technical Specifications
Model 36441R (Remote, 2-pan)
Pan Capacity 2 full-size (12 × 20 in) steam table pans
Interior Length 24 3⁄4 in | 62.9 cm
Overall Dimensions (L × W) 29 × 26 in | 73.7 × 66 cm
Well Depth 8 in | 20.3 cm
Cut-out Required (L × W)* 28 1⁄4 × 25 1⁄4 in | 71.8 × 64.1 cm
Compressor Capacity † 1,500 BTUH @ 100 °F condensing / −10 °F evaporating
Drain 1 in NPT drain plug (included)
Construction Seamless 18 ga 18 / 8 stainless well & top; 18 ga galvanized exterior

*Opening must have a 7⁄8 in (2.2 cm) corner radius.
†Remote unit ships without compressor – see accessories below.

Remote Refrigeration Accessories (ordered separately)
  • Solenoid Valve with 120 V Coil (Vollrath #36480)
  • Expansion Valve (Vollrath #36481)
  • Thermostat with Knob Control (Vollrath #36482)
  • Filter & Sight Glass Kit (Vollrath #36483)
  • Lighted Toggle Switch, 30 A, 120/240 V (Vollrath #23540-1)
  • Perforated 1 in False Bottom to elevate pans above melt water
Best Performance Practices
  • Limit cold-holding to 4 hours for optimal food quality
  • Use stainless-steel pans for fastest pull-down and recovery
  • Employ a certified refrigeration technician for system sizing, installation and start-up

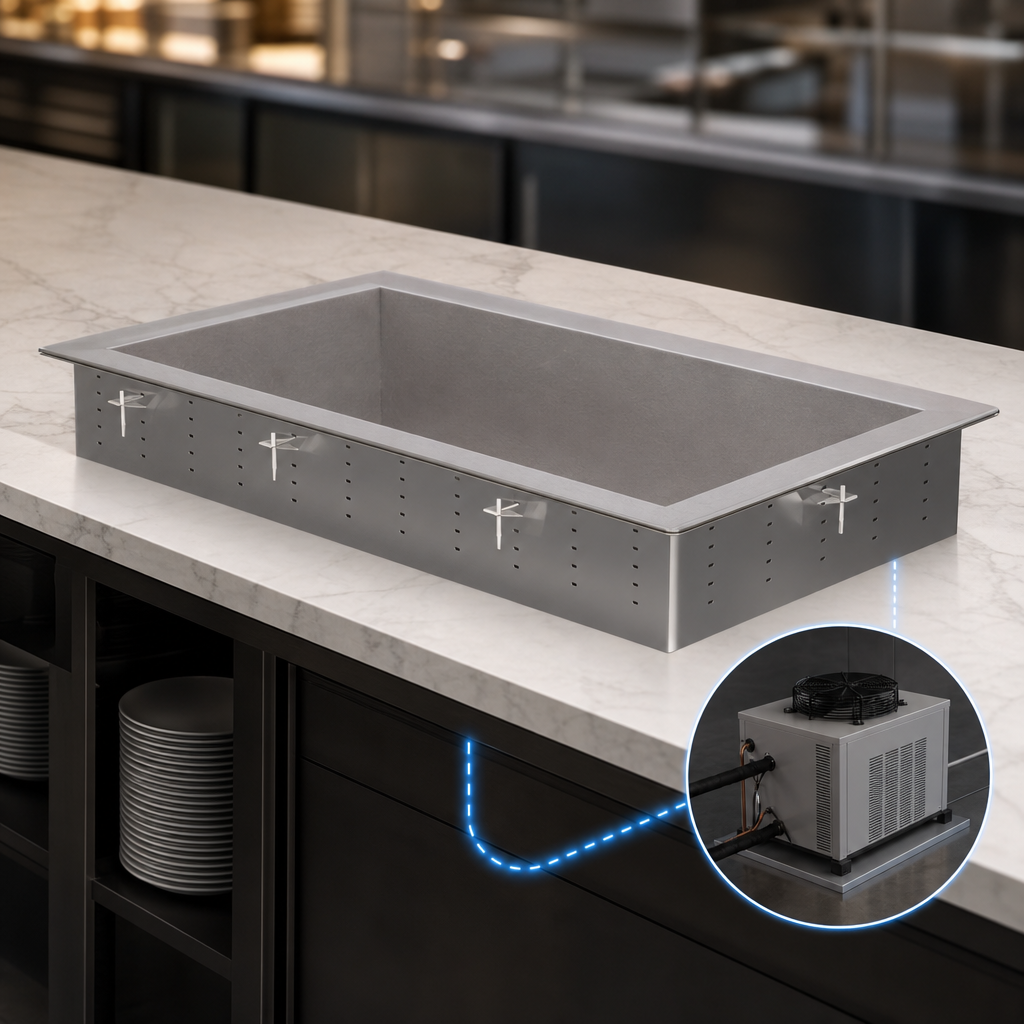

Important: This is a remote unit – compressor, lines, and controls are not included. Modular drop-ins are built to order, cannot be canceled or returned, and require professional installation. Contact Vollrath for current lead times and refrigeration guidance.

Covered by Vollrath’s one-year parts & labor warranty.
See VollrathFoodservice.com for complete warranty details.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

22.75in

Width

29.0in

Depth

26.0in

Shipping Weight

176.0lbs

Pan Qty

2-pan

Width (side - side)

25 - 30 inches

Finish

stainless steel top & inner liner, galvanized outer liner

Layout

deep

Style

remote refrigeration (no compressor)

Insulation

insulated

Pan Size

full-size (12" x 20")

Specifications

Refrigerated Cold Pan, remote, drop-In, 2-pan, 8" deep well, accommodates standard 12" x 20" pans with adaptor bars, drip-free flange, polyurethane foam insulated, 18/8 stainless steel, 18 gauge galvanized exterior housing, remote refrigeration, cULus, NSF, Made in USA (note: remote units do not include compressor) (contact Vollrath for lead time) (Refer to vollrathfoodservice.com for full warranty policy)
