Description

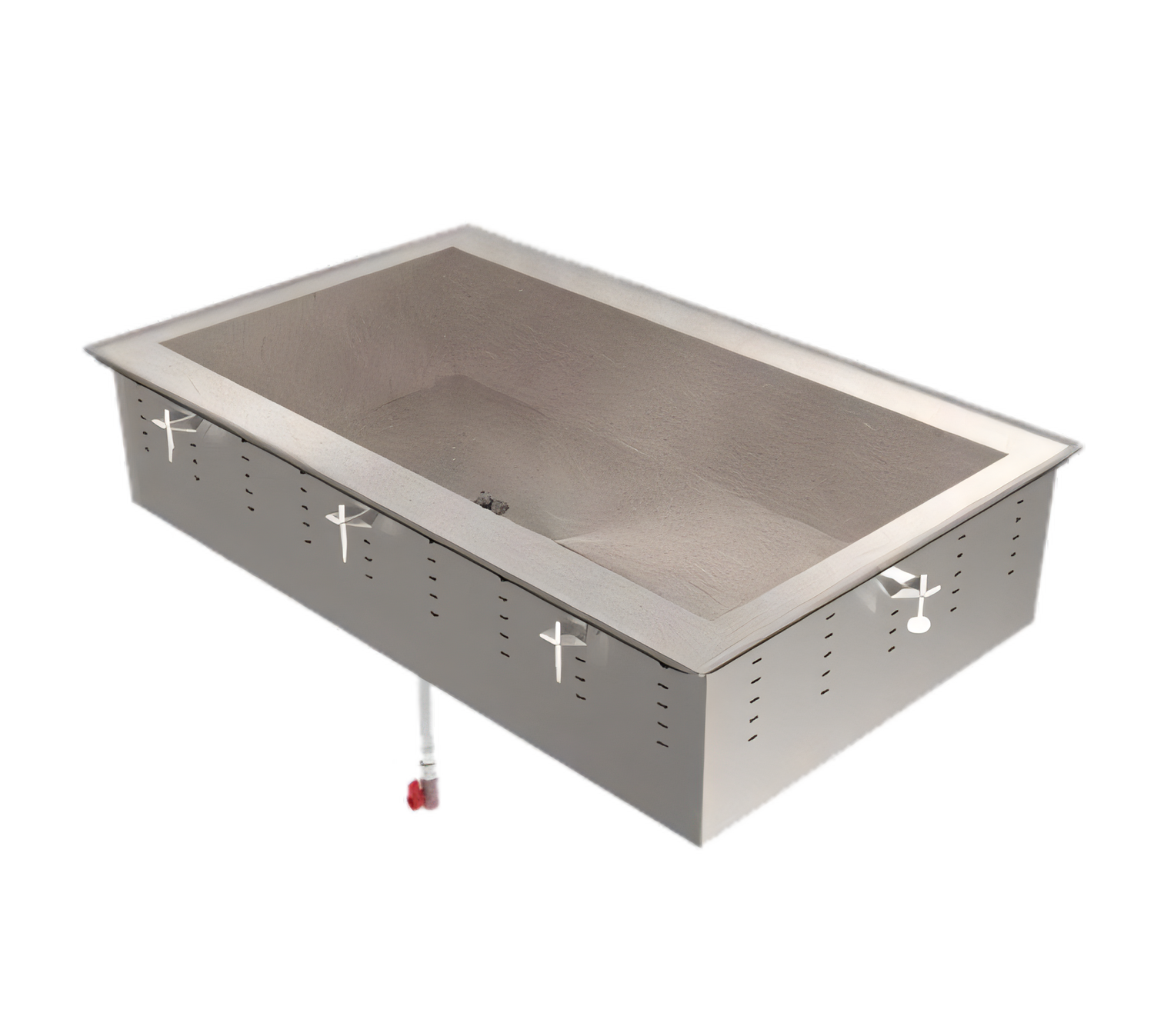

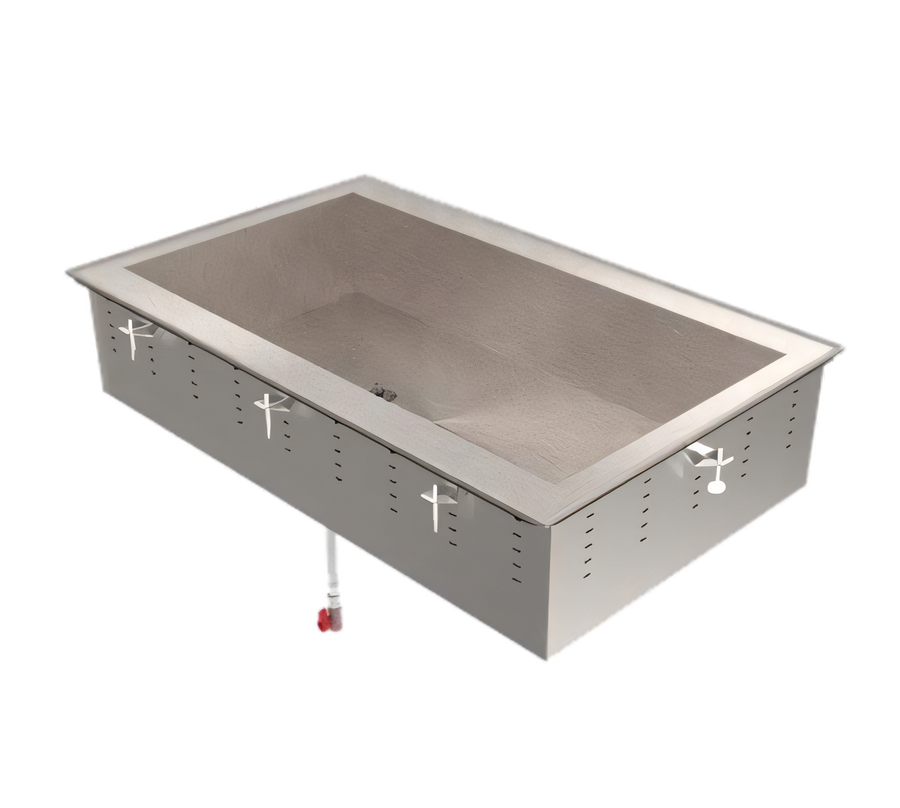

Vollrath 36438R NSF-7 Remote Refrigerated 6-Pan Drop-In Cold Pan

Compressor-ready 81 ¼ in. cold well  •  Made in USA

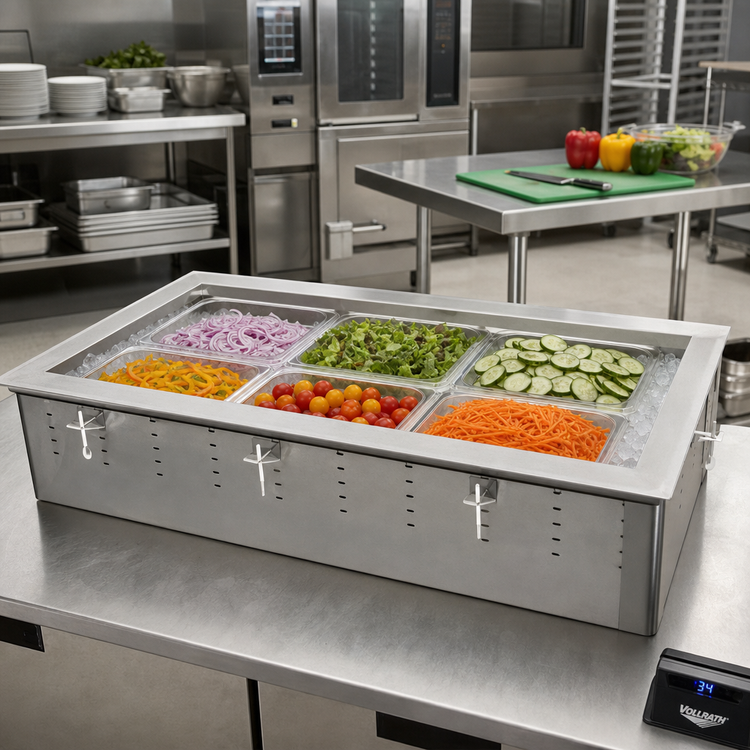

Keep salad, sandwich and entrée ingredients safely chilled and beautifully displayed. The Vollrath 36438R fits flush in your counter, holds six full-size pans, and delivers NSF-7 performance while letting you locate the compressor remotely for a quieter, cooler serving area.

Key features
  • NSF-7 listed – maintains product temperature ≤ 41 °F (5 °C) without ice.
  • Holds six 12 × 20 in. hotel pans or fractional pans with adaptor bars.
  • 6 ⅝ in. (16.8 cm) deep seamless 18-gauge 304 stainless steel well.
  • 18-gauge 304 stainless top with 3/8 in. overhang and full-perimeter drip-free flange.
  • 3 in. recessed shoulder hides pan rims for an upscale presentation.
  • Foamed-in-place polyurethane insulation locks in cold and reduces energy use.
  • 18-gauge galvanized exterior housing resists corrosion and damage.
  • Factory-installed copper tube ready for your remote capillary thermostat.
  • 1 in. drain plug plus optional perforated false bottom for quick clean-up.
  • cULus & NSF certified; built with U.S. & global materials.

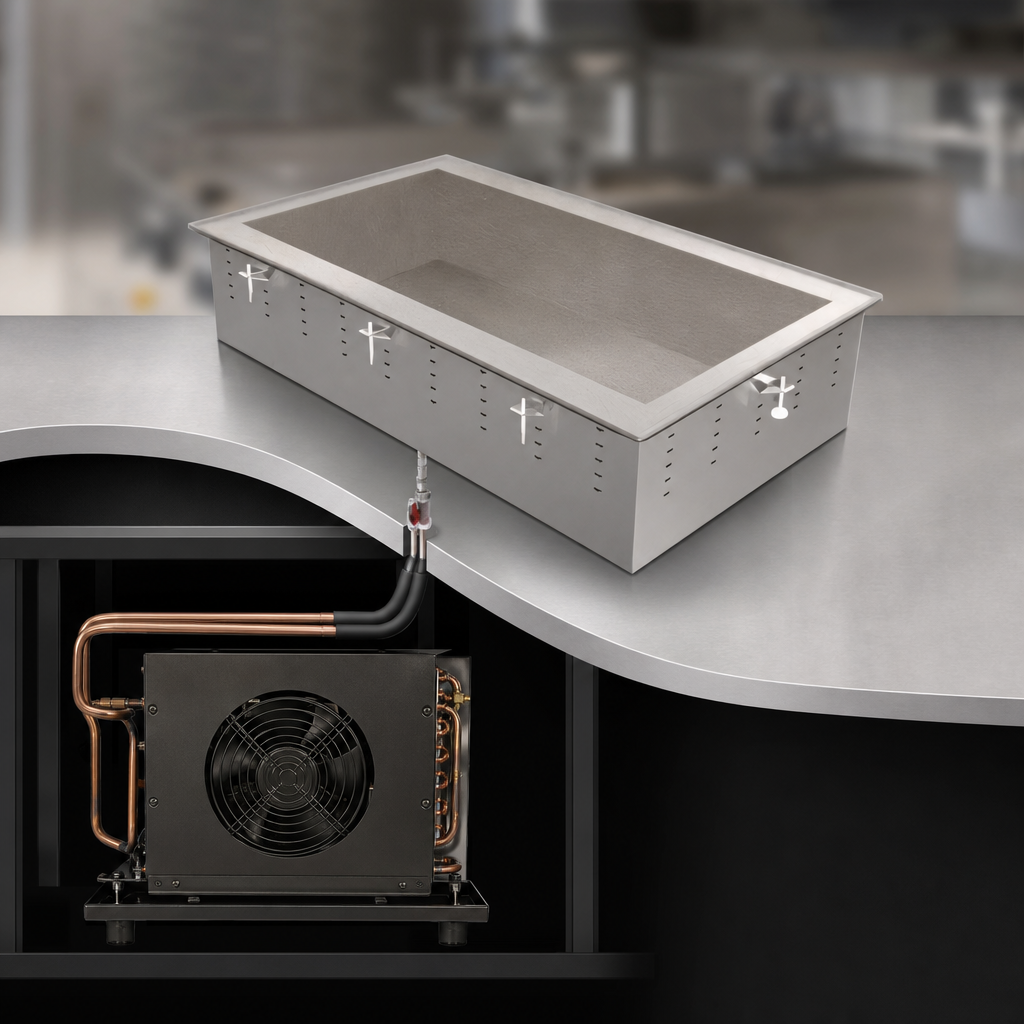

Remote refrigeration ready

This model ships without a compressor so you can match it to the ideal remote condensing unit for your climate and facility layout. The table below lists the required refrigeration capacity—consult your HVAC/R professional or Vollrath technical services for sizing assistance.

Important: Remote units do not include a compressor, controls, refrigerant lines, or start-up. Installation must be performed by a qualified refrigeration technician. Modular drop-ins are non-cancelable and non-returnable.
Specifications
Model 36438R
Pan capacity 6 × full-size 12 × 20 in. pans
Overall length 81 ¼ in. / 206.4 cm
Overall width 26 in. / 66 cm
Overall height 18 ½ in. / 47 cm
Well depth 6 ⅝ in. / 16.8 cm
Interior length 75 ¾ in. / 192.4 cm
Cut-out size* 80 ½ × 25 ¼ in. (204.5 × 64.1 cm) – 7/8 in. corner radius
Required refrigeration 4,600 BTUH @ 100 °F condensing / –10 °F evaporating
Top / well material 18-ga 304 stainless steel
Exterior housing 18-ga galvanized steel
Insulation Foamed-in-place polyurethane
Drain 1 in. NPT plug (included)
Certifications NSF-7, cULus
Country of origin United States

*Opening must include the specified corner radius to maintain structural integrity.

Optional accessories (order separately)
  • Stainless steel perforated false bottom – keeps pans above melt-water.
  • Solenoid valve kit (Vollrath 36480)
  • Thermostatic expansion valve (Vollrath 36481)
  • Thermostat with knob control (Vollrath 36482)
  • Filter & sight-glass kit (Vollrath 36483)
  • Remote lighted toggle switch, 30 A, 120/240 V (Vollrath 23540-1)
Warranty

Backed by Vollrath’s 1-year parts & labor warranty. Full details available at  vollrathfoodservice.com.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

23.5in

Width

81.25in

Depth

26.0in

Shipping Weight

320.0lbs

Finish

stainless steel top & inner liner, galvanized outer liner

Pan Qty

6-pan

Width (side - side)

79 - 84 inches

Style

remote refrigeration (no compressor)

Layout

deep

Insulation

insulated

Pan Size

full-size (12" x 20")

Specifications

NSF7 Refrigerated Cold Pan, remote, drop-In, 6-pan, 6-5/8" deep well, accommodates standard 12" x 20" pans with adaptor bars, drip-free flange, polyurethane foam insulated, 18/8 stainless steel, 18 gauge galvanized exterior housing, remote refrigeration, cULus, NSF, Made in USA (note: remote units do not include compressor) (contact Vollrath for lead time) (Refer to vollrathfoodservice.com for full warranty policy)
