Vollrath  |  SKU: 36436R

Vollrath 36436R Steam Tables & Food Wells

$3,162.15
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Owner's manual Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

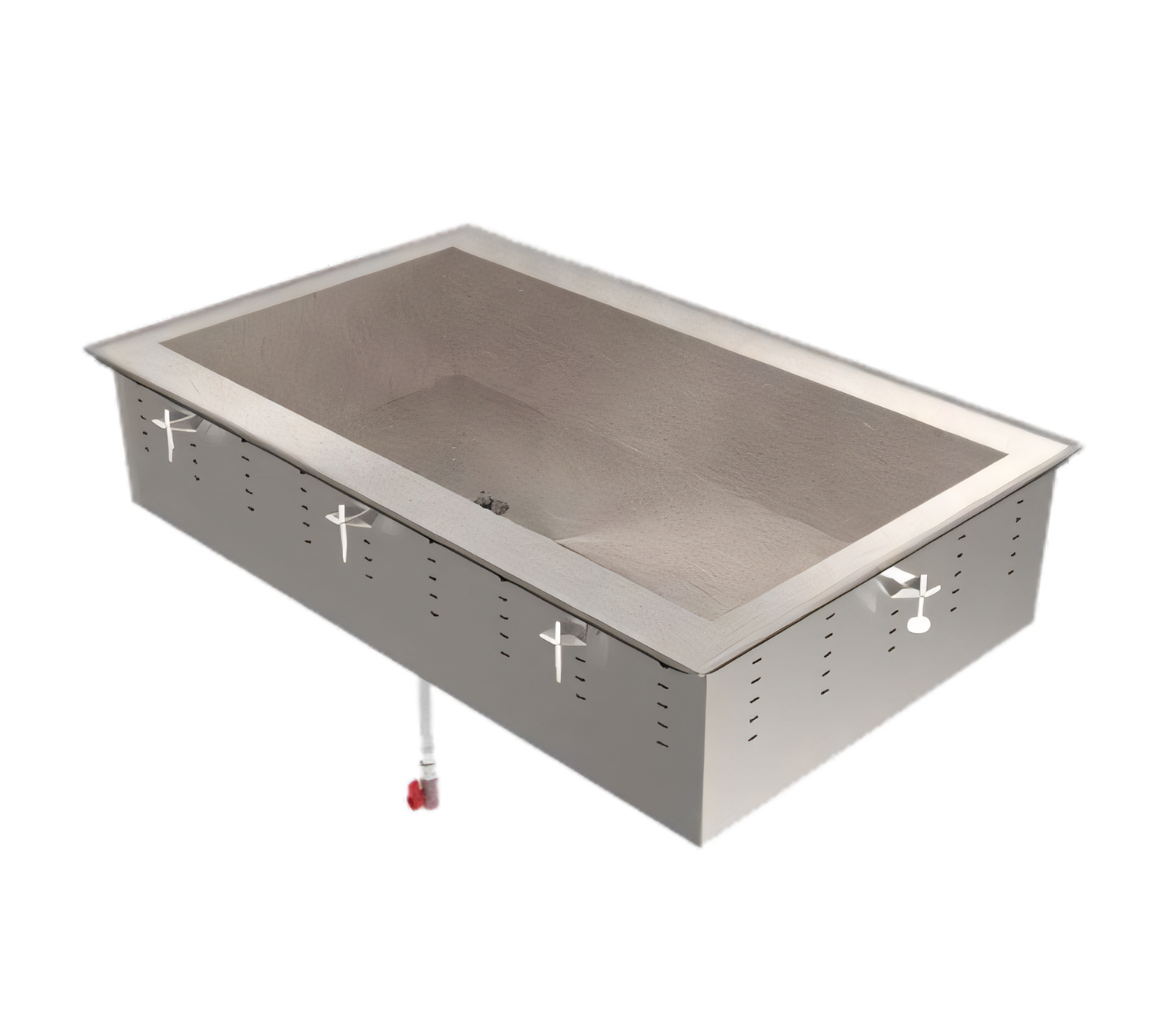

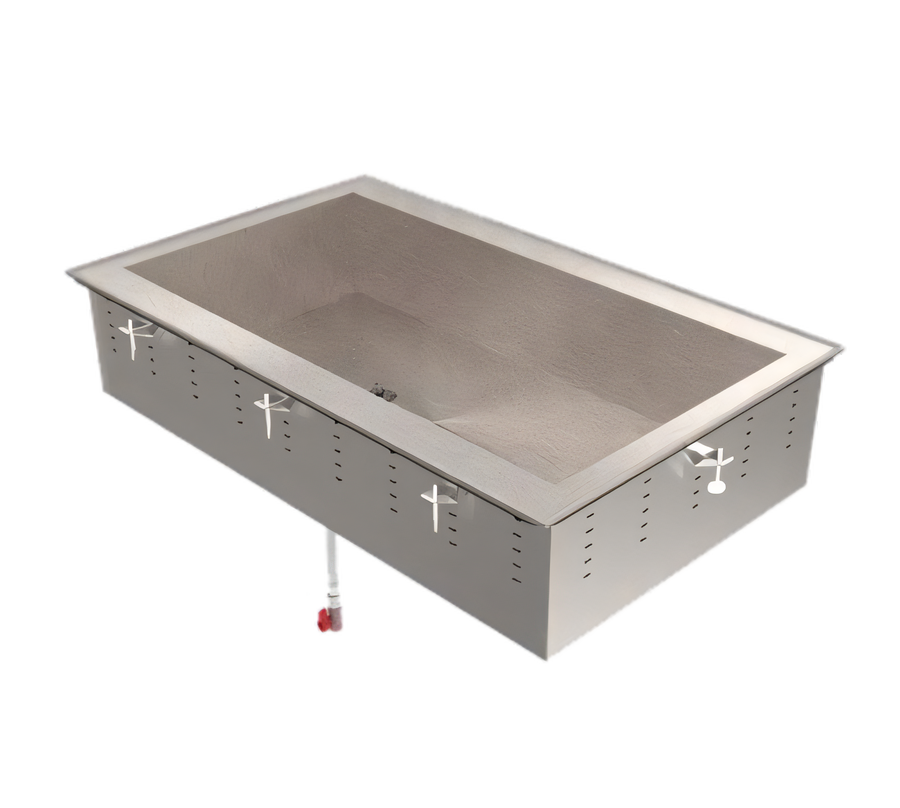

Vollrath NSF7 Remote Refrigerated Cold Pan Drop-In – 5-Pan

Model 36436R | 68" L × 26" W | NSF/ANSI 7 & cULus Listed

Add high-volume, ice-cold merchandising to any buffet, prep, or serving line with Vollrath’s 5-pan NSF7 remote refrigerated cold pan. Designed for top-mount, zero-clearance installation, this drop-in keeps sauces, salads, and proteins safely chilled below 41 °F while presenting them front-and-center for guests.

Key Features

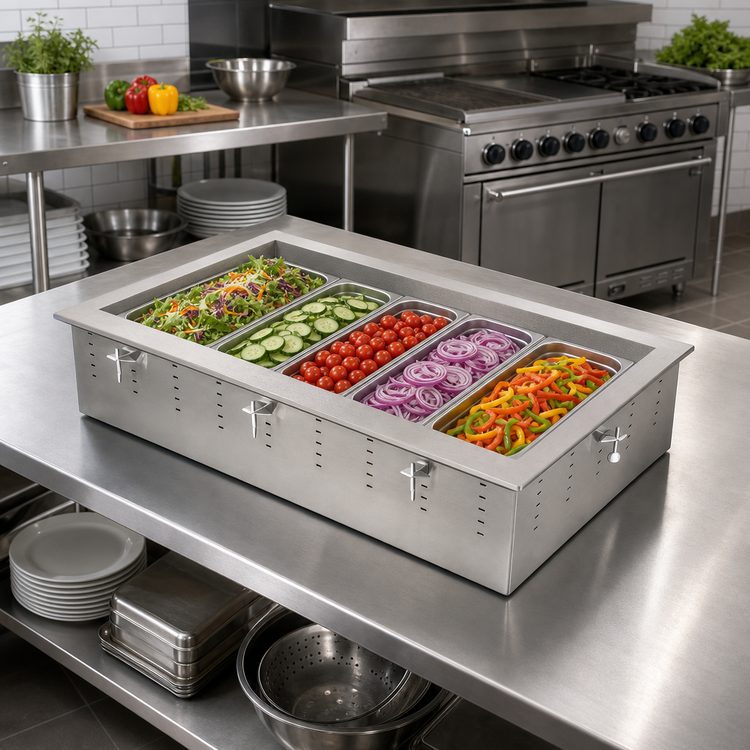

  • Fits five standard 12" × 20" full-size pans (adaptor bars included).
  • 6 5⁄8" (16.8 cm) deep, seamless 18 ga 304 stainless steel well with 3" recessed NSF7 shoulder for maximum food safety.
  • Full-perimeter drip-free flange with molded breaker gasket contains spills and condensation.
  • Foamed-in-place, high-density polyurethane insulation for exceptional cold retention.

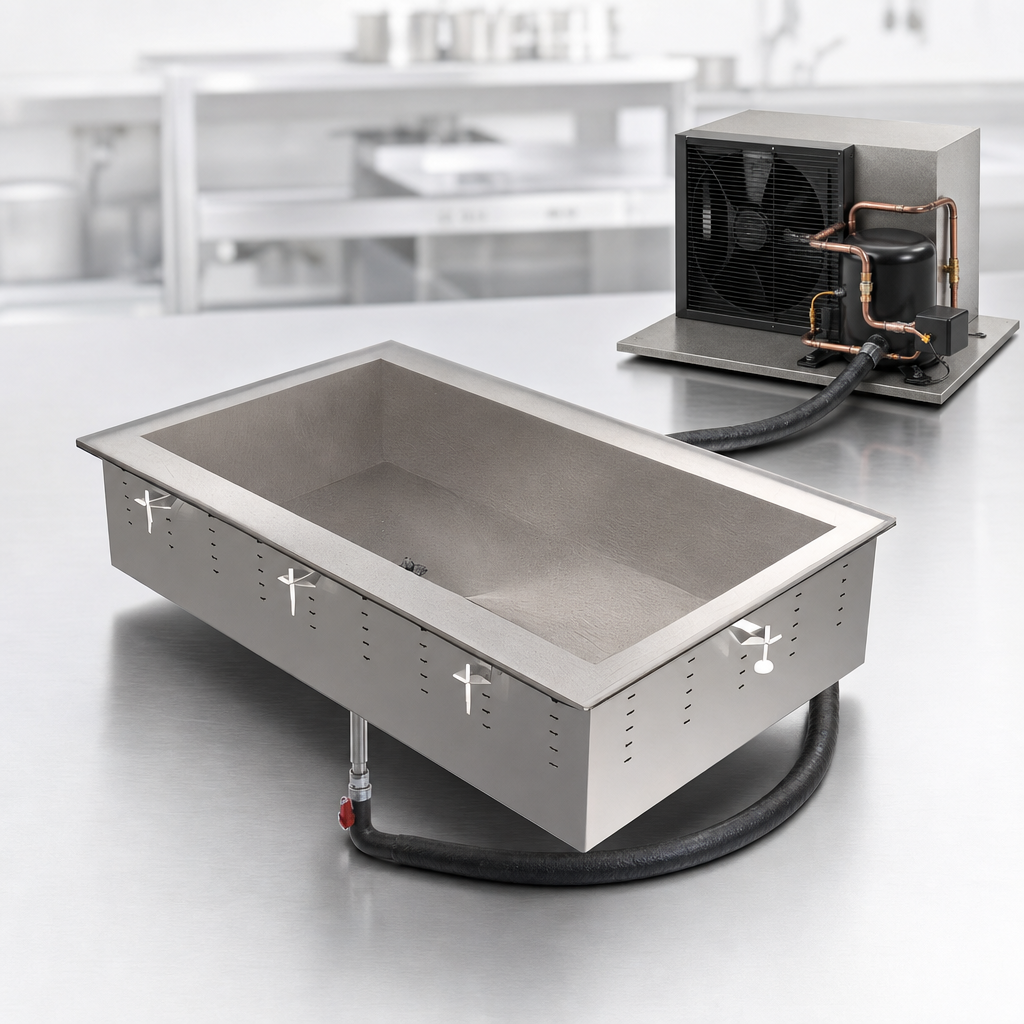

  • Remote refrigeration design provides installation flexibility and quieter operation on the line.
  • 1" NPT drain plug speeds cleanup; optional perforated false bottom keeps pans above melted ice.
  • 18 ga galvanized exterior housing stands up to daily commercial abuse.
  • Made in the USA and backed by a 1-year parts & labor warranty (see site for details).

Technical Specifications

Vollrath item # 36436R
Pan capacity (5) full-size 12" × 20" pans
Overall dimensions 68" L × 26" W × 18 1⁄2" H (172.7 × 66 × 47 cm)
Cut-out (w/ 7⁄8" radius) 67 1⁄4" L × 25 1⁄4" W (170.8 × 64.1 cm)
Interior length 63" (160 cm)
Well depth 6 5⁄8" (16.8 cm)
Material – top & well 18 ga 18/8 Type 304 stainless steel
Exterior housing 18 ga galvanized steel
Insulation Foamed-in-place polyurethane
Refrigeration Remote; 3,900 BTUH @ 100 °F cond. / –10 °F evap. (compressor not included)
Drain 1" NPT with plug
Certifications NSF/ANSI 7, cULus, Made in USA

Optional Remote Installation Kits (sold separately)

  • Item 36480 – Solenoid valve & coil (120 V)
  • Item 36481 – Expansion valve
  • Item 36482 – Thermostat with knob control
  • Item 36483 – Filter & sight-glass kit
  • Item 23540-1 – Lighted remote toggle switch (30 A, 120/240 V)
  • Perforated stainless steel false bottom

Contact Vollrath or your refrigeration professional to size and source the proper compressor and condensing unit.

Important:
  • Remote units ship without a compressor and require installation by a qualified refrigeration technician.
  • Modular drop-in orders cannot be canceled or returned once placed.
  • Lead times vary; please contact Vollrath for current availability.
  • For complete warranty terms, visit vollrathfoodservice.com.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

23.5in

Width

68.0in

Depth

26.0in

Shipping Weight

365.0lbs

Pan Qty

5-pan

Style

remote refrigeration (no compressor)

Finish

stainless steel top & inner liner, galvanized outer liner

Width (side - side)

67 - 72 inches

Layout

deep

Insulation

insulated

Pan Size

full-size (12" x 20")

Specifications

NSF7 Refrigerated Cold Pan, remote, drop-In, 5-pan, 6-5/8" deep well, accommodates standard 12" x 20" pans with adaptor bars, drip-free flange, polyurethane foam insulated, 18/8 stainless steel, 18 gauge galvanized exterior housing, remote refrigeration, cULus, NSF, Made in USA (note: remote units do not include compressor) (contact Vollrath for lead time) (Refer to vollrathfoodservice.com for full warranty policy)
