Vollrath 36434R Steam Tables & Food Wells
Description

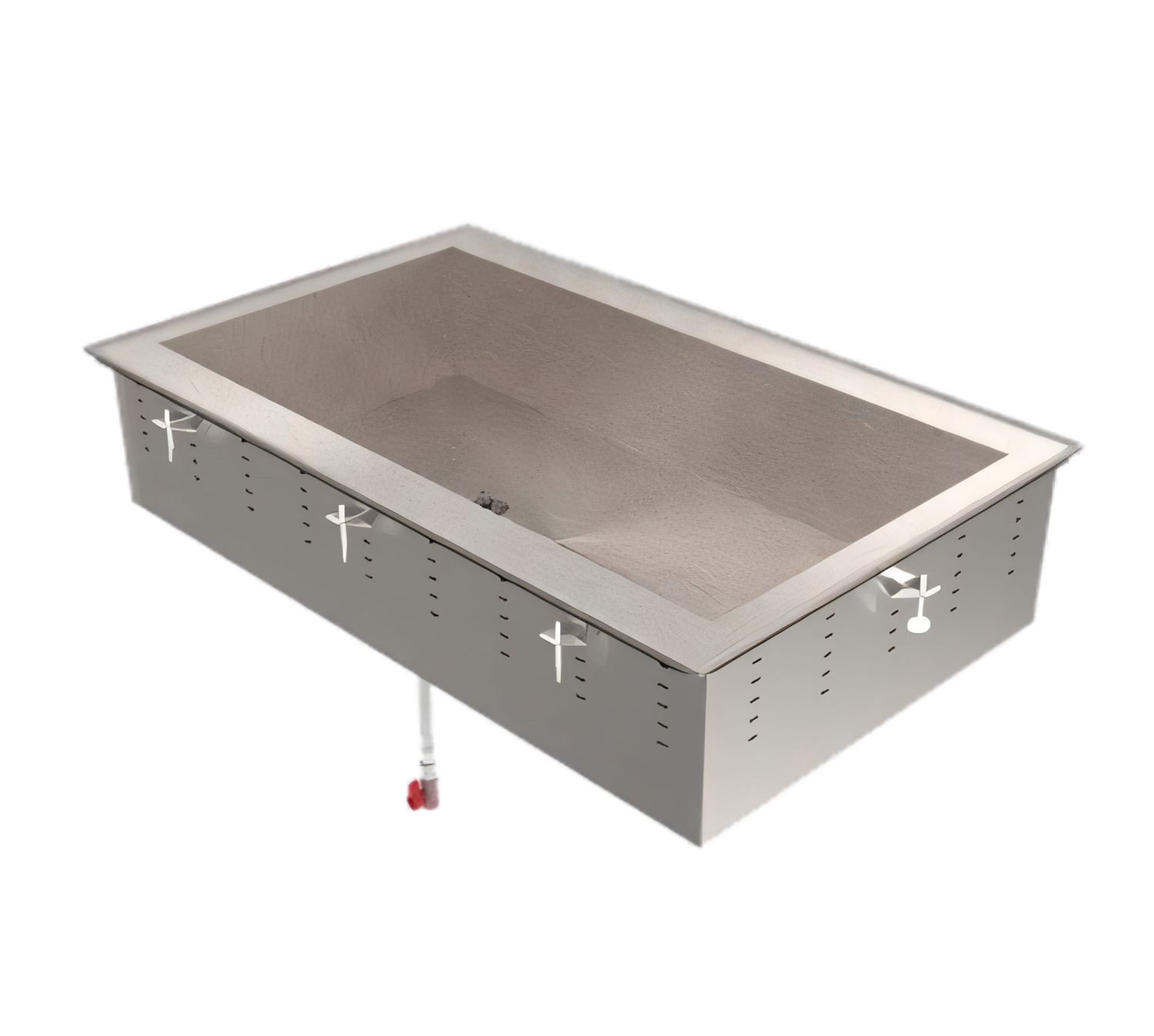

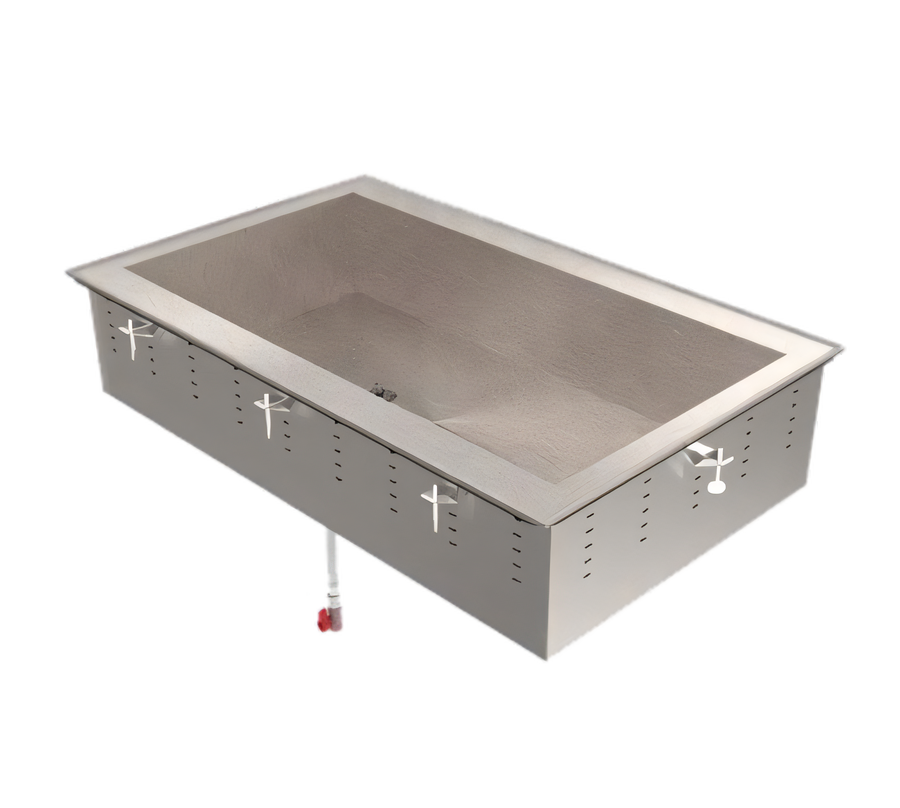

NSF7 Remote Refrigerated Cold Pan – 4-Pan Drop-In

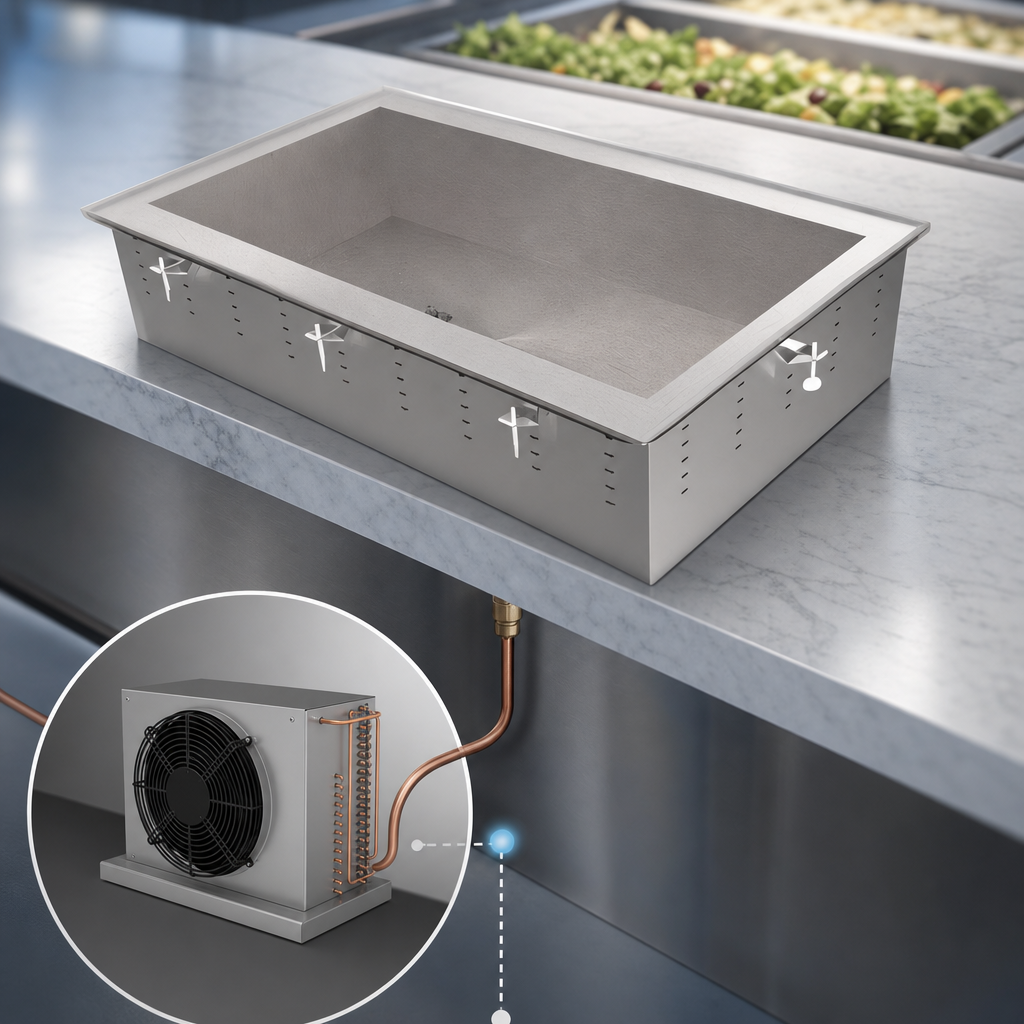

Vollrath | Model 36434R | Made in USAKeep salads, toppings and grab-n-go favorites at food-safe temperatures in this commercial-grade, four-pan cold well. The Vollrath 36434R is built for top-mount installation and pairs with your remote, customer-supplied compressor to deliver even, NSF-7 certified cooling—without sacrificing valuable under-counter space.
Why You’ll Love It

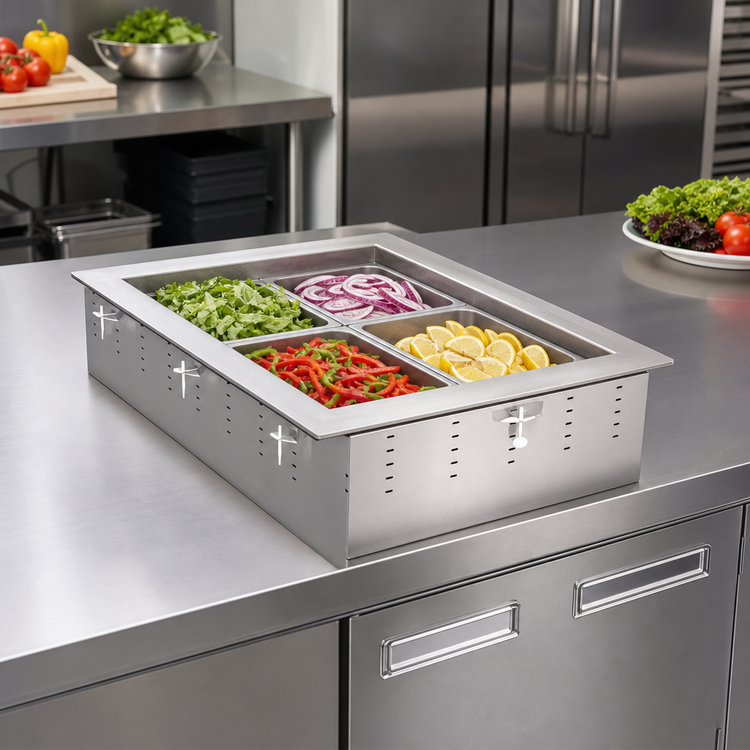

- Holds four standard 12" x 20" full-size pans (adaptor bars included).
- 6-5/8" (16.8 cm) deep forced-air well with 3" recessed shoulder for a clean, eye-level display.
- 18 gauge 304 stainless-steel top & seamless well with full-perimeter, drip-free flange.
- Foamed-in-place polyurethane insulation maintains temperature and minimizes sweat.
- Zero-clearance design—ideal for tight serving lines or retrofit counters.
- Factory-installed copper tube accepts capillary thermostat from your remote system.
- Includes 1" NPT drain plug for quick melt-water removal; optional perforated false bottom available.
- cULus & NSF/ANSI 7 listed for open-food applications.
Technical Specifications
| Model No. | 36434R (remote) |
|---|---|
| Pan Capacity | (4) 12" x 20" full-size pans, up to 6" deep |
| Overall Dimensions | 54 3/4" L × 26" W × 18 1/2" H (139.1 × 66 × 47 cm) |
| Well Depth | 6 5/8" (16.8 cm) |
| Counter Cut-out* | 54" L × 25 1/4" W with 7/8" (2.2 cm) corner radius |
| Rise Above Counter | 3/8" (1 cm) |
| BTU Requirement | 3,100 BTU/h @ 100 °F condensing, –10 °F evaporating |
| Refrigeration Connections | 5/16" ODF inlet & outlet; remote capillary tube inlet |
| Construction | 18 gauge 304 stainless-steel well & top; 18 gauge galvanized exterior |
| Insulation | High-density, foamed-in-place polyurethane |
| Drain | 1" (2.5 cm) threaded plug |
| Certifications | NSF/ANSI 7, cULus |
| Warranty | 1-year parts & labor (see vollrathfoodservice.com for full policy) |
*Positioning clips are supplied to center the unit within the cut-out.
Popular Remote Accessories (ordered separately)
- Solenoid Valve Kit – Vollrath #36480
- Expansion Valve – Vollrath #36481
- Thermostat with Knob Control – Vollrath #36482
- Filter & Sight-Glass Kit – Vollrath #36483
- Lighted Toggle Power Switch – Vollrath #23540-1
Need a current lead time or help configuring your remote refrigeration? Contact Vollrath Technical Services.
