Description

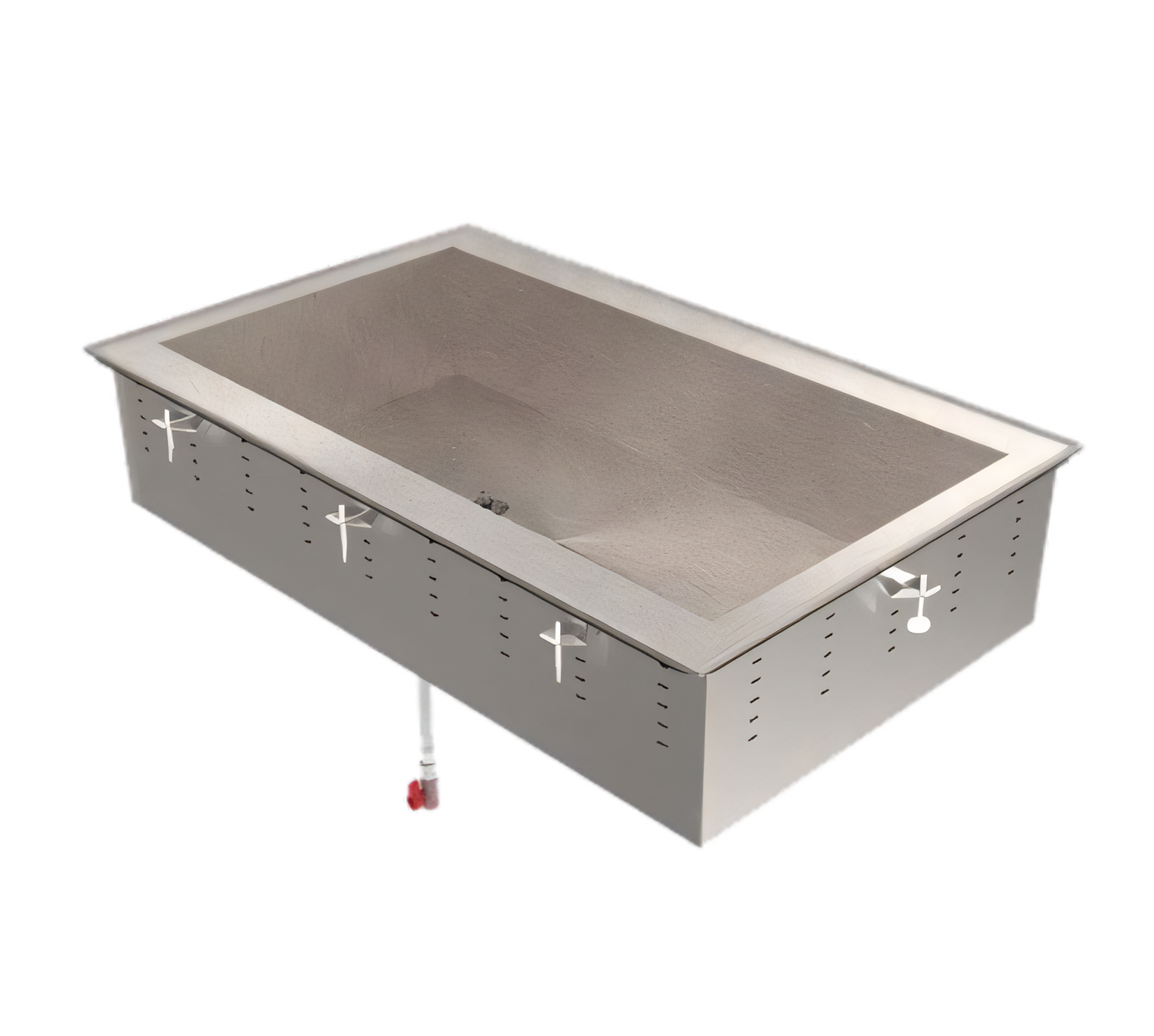

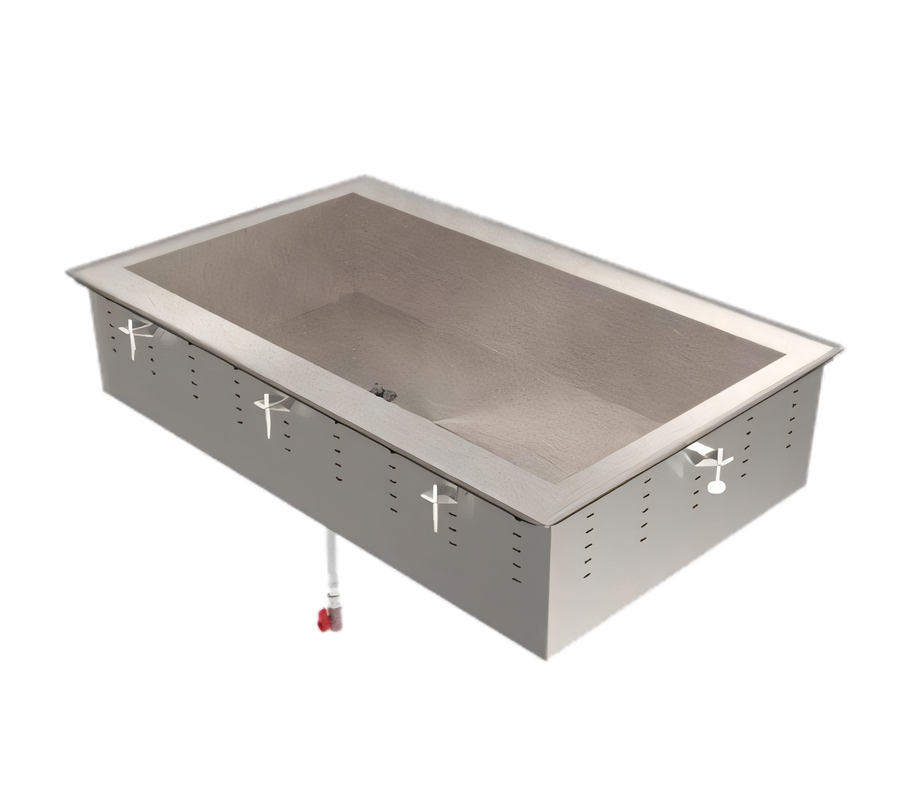

Vollrath 36430R NSF-7 Remote Refrigerated 3-Pan Drop-In Cold Pan

Remote-ready • 6-5/8 in. deep well • Made in the USA

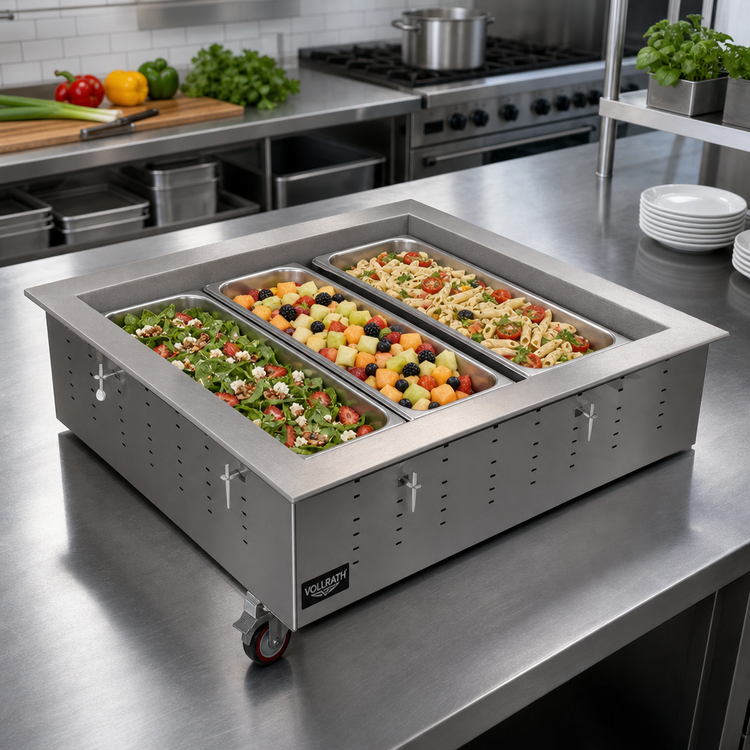

Keep salads, toppings and cold entrées safely chilled and beautifully displayed. The Vollrath 36430R drop-in cold pan installs flush in your counter and uses a customer-supplied remote refrigeration system to deliver even, NSF-7 compliant cooling—without crowding your serving line with a bulky compressor.

Key features
  • Holds three full-size 12 × 20 in. food pans (or fractional sizes with adaptor bars).
  • 6 5/8 in. (16.8 cm) deep, seamless 18-gauge 304 stainless steel well with 1 in. drain plug.
  • NSF-7 forced-air design maintains 33–41 °F (0.5–5 °C) throughout the well.
  • 304 stainless steel top with 3/8 in. overhang, full-perimeter drip-free flange and molded breaker gasket.
  • 3 in. recessed shoulder gives products a shallow, eye-level presentation.
  • Foamed-in-place polyurethane insulation preserves temperatures and saves energy.
  • Tough 18-gauge galvanized exterior housing stands up to daily commercial use.
  • Factory-installed copper capillary tube accepts your remote thermostat control.
  • Zero-clearance, top-mount installation—ideal for both retrofits and new builds.
  • cULus listed, NSF certified and backed by Vollrath quality.
Specifications
Model 36430R
Pan capacity 3 full-size (12 × 20 in.) pans
Overall dimensions (L × W) 41 1/2 × 26 in.  (105.4 × 66 cm)
Counter cut-out* 40 3/4 × 25 1/4 in.  (103.5 × 64.1 cm) – 7/8 in. radius
Interior length 37 1/2 in.  (95.3 cm)
Well depth 6 5/8 in.  (16.8 cm)
Overall height 18 1/2 in.  (47 cm)
Required refrigeration load 2,300 BTUH @ 100 °F condensing / –10 °F evaporating
Refrigerant connections (2) 5/16 in. ODF
Drain 1 in. NPT with plug
Construction 18-ga 304 SS well & top / 18-ga galvanized steel housing
Certifications NSF, cULus
Origin USA

*Positioning clips are provided to center the drop-in in the cut-out.

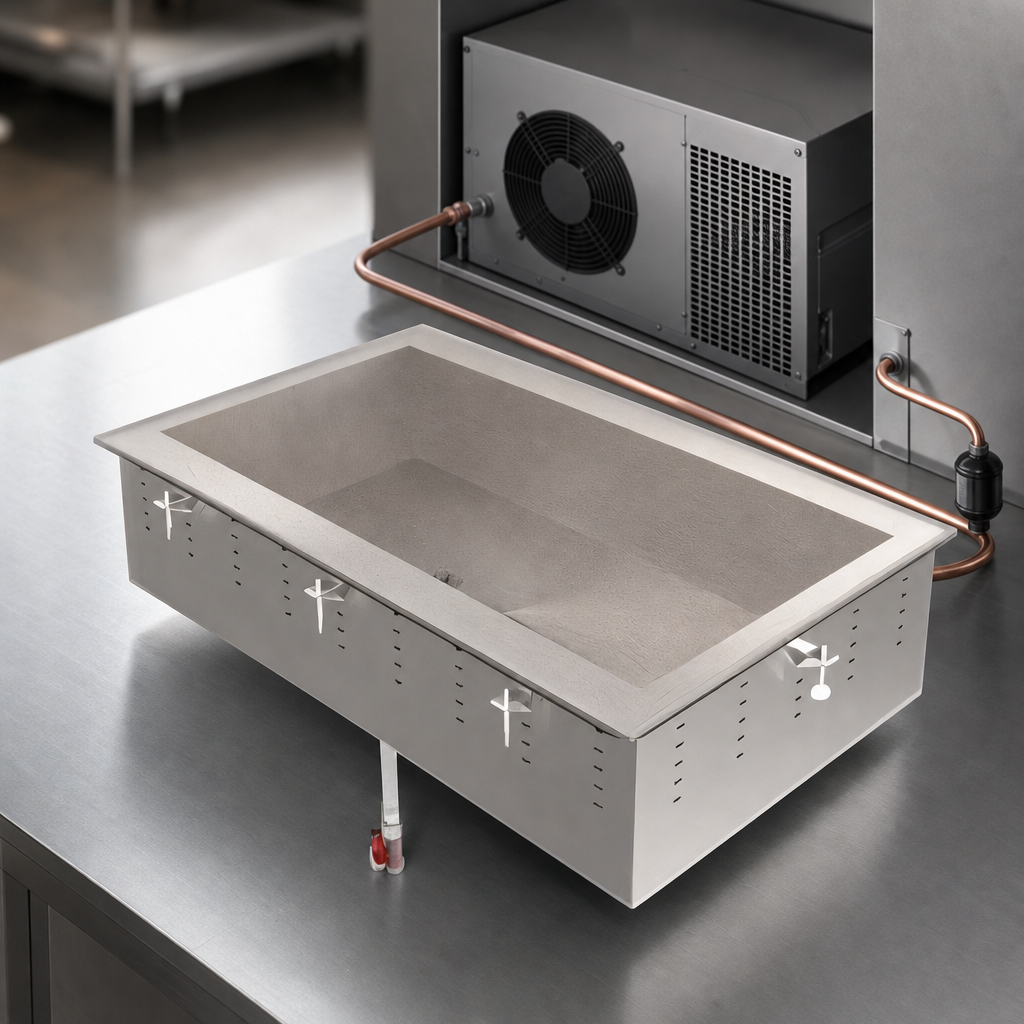

Remote refrigeration required: Unit ships without a compressor. A qualified refrigeration technician must size, supply and install the remote condensing unit, controls and lines. Contact Vollrath Technical Services for assistance and current lead times.
Recommended accessories (sold separately)
  • Perforated 1 in. stainless steel false bottom to keep pans above melted ice.
  • Solenoid valve kit  •  Item 36480
  • Expansion valve  •  Item 36481
  • Thermostat with knob control  •  Item 36482
  • Filter & sight glass kit  •  Item 36483
  • Lighted on/off toggle switch, 30 A 120/240 V  •  Item 23540-1
Peace-of-mind warranty

Covered by Vollrath’s one-year parts & labor warranty. Full policy available at  vollrathfoodservice.com.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

23.5in

Width

41.5in

Depth

26.0in

Shipping Weight

189.0lbs

Finish

stainless steel top & inner liner, galvanized outer liner

Style

remote refrigeration (no compressor)

Pan Qty

3-pan

Width (side - side)

37 - 42 inches

Layout

deep

Insulation

insulated

Pan Size

full-size (12" x 20")

Specifications

NSF7 Refrigerated Cold Pan, remote, drop-In, 3-pan, 6-5/8" deep well, accommodates standard 12" x 20" pans with adaptor bars, drip-free flange, polyurethane foam insulated, 18/8 stainless steel, 18 gauge galvanized exterior housing, remote refrigeration, cULus, NSF, Made in USA (note: remote units do not include compressor) (contact Vollrath for lead time) (Refer to vollrathfoodservice.com for full warranty policy)
