Vollrath  |  SKU: 36429R

Vollrath 36429R Steam Tables & Food Wells

$2,151.75
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Owner's manual Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

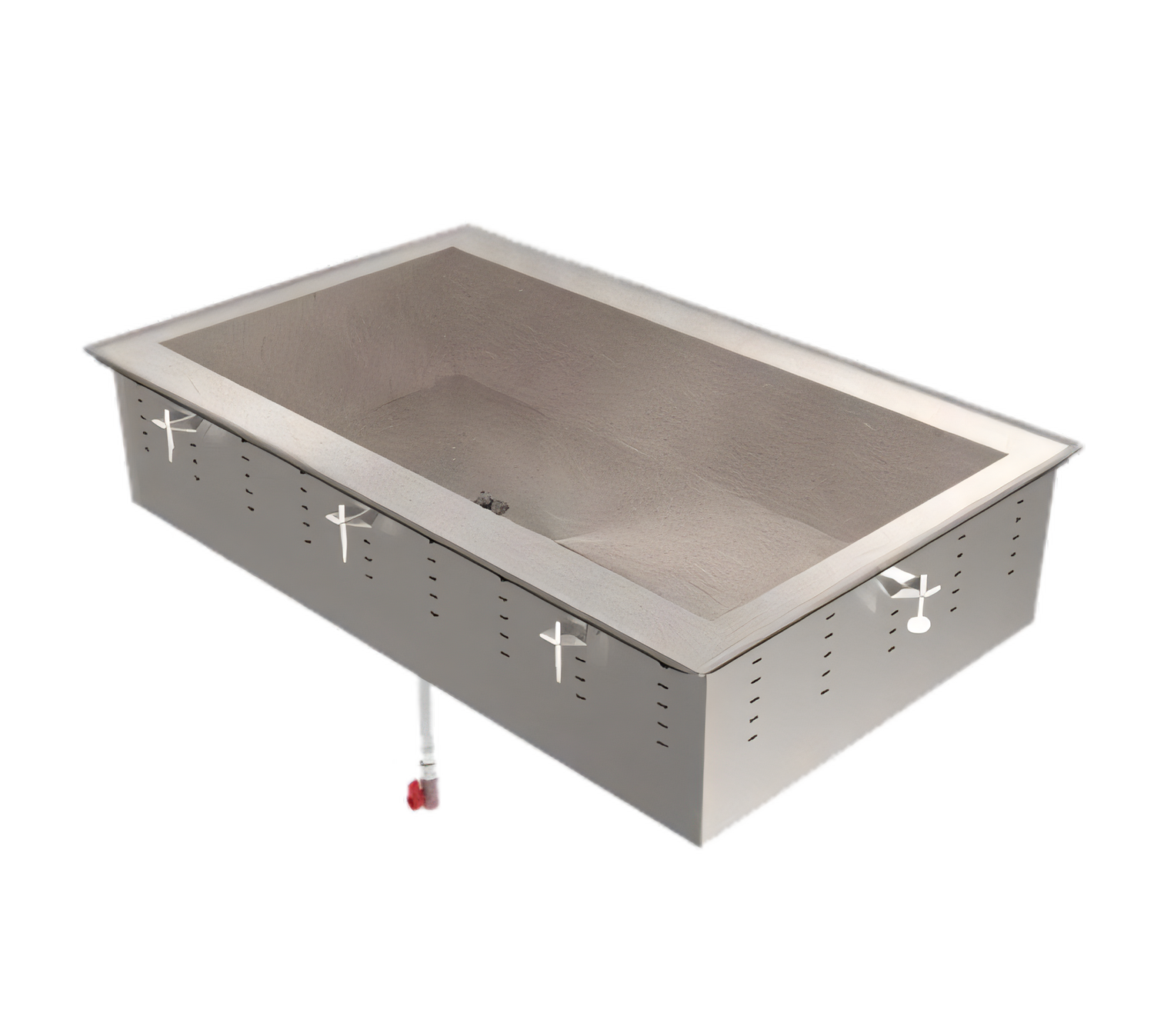

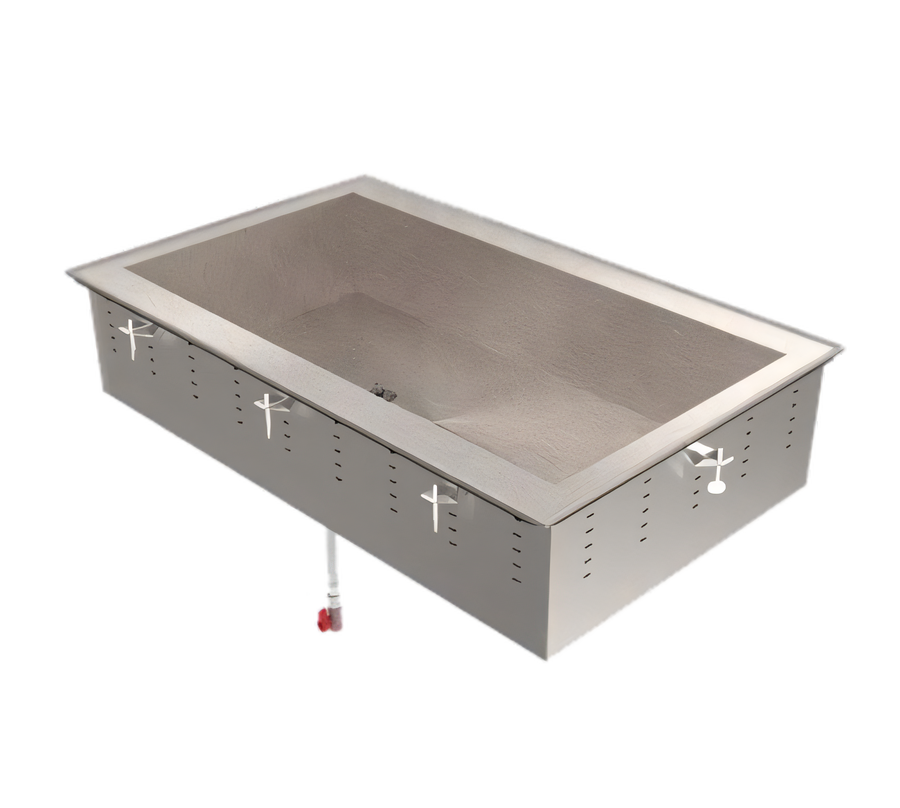

Vollrath 36429R NSF7 Remote Refrigerated Cold Pan – 2 Pan

29 in L x 26 in W • Drop-In • 6-5/8 in Deep Well • Made in USA

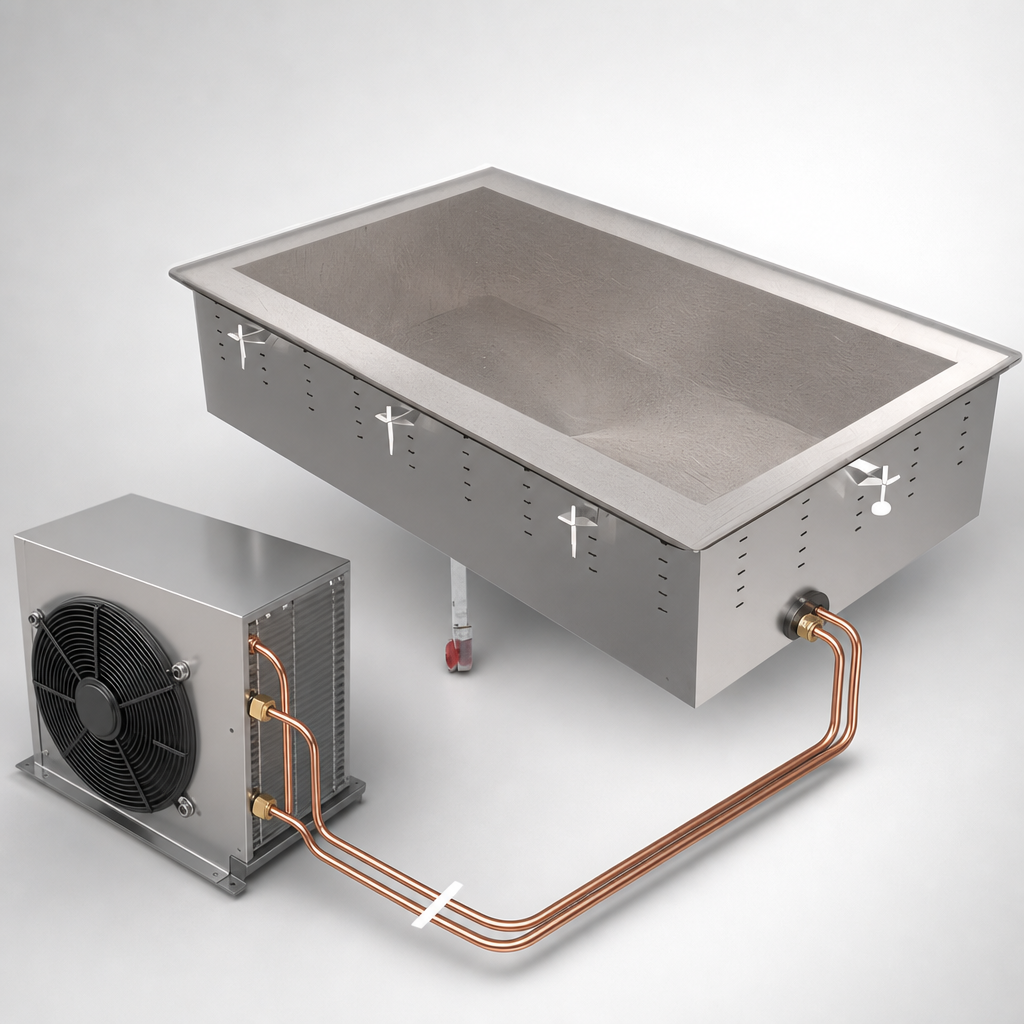

Built for high-volume salad bars, buffets and grab-&-go stations, the Vollrath 36429R keeps two full-size 12 in × 20 in pans of product ice-cold while delivering the clean, flush look operators expect from a premium drop-in. A remote refrigeration design gives you the freedom to locate the compressor out of sight and away from the heat of the serving line, reducing noise and simplifying maintenance.

Key features

  • NSF 7 listed remote cold pan – maintains 41 °F (5 °C) or below for open-food display
  • Holds (2) standard 12 × 20 in hotel pans with included adaptor bars
  • 6 5/8 in (16.8 cm) deep, seamless Type 304 stainless well for maximum ice capacity
  • 3 in recessed shoulder and full-perimeter 3/8 in drip-free flange contain spills
  • Foamed-in-place polyurethane insulation delivers outstanding temperature retention
  • 18 ga Type 304 stainless-steel top with molded breaker gasket – zero-clearance, top-mount installation
  • 18 ga galvanized exterior housing stands up to demanding commercial kitchens
  • Factory-installed 1 in drain plug for quick ice melt removal
  • Copper capillary tube provided for customer-supplied thermostat control
  • cULus & NSF certified; proudly made in Sheboygan, WI

Specifications

Model 36429R
Pan capacity 2 × Full-size (12 × 20 in) pans
Overall dimensions (L × W) 29 × 26 in  (73.7 × 66 cm)
Display well depth 6 5/8 in  (16.8 cm)
Interior length 24 3/4 in  (62.9 cm)
Required BTUH* 1,500 BTUH @ 100 °F condensing / -10 °F evaporating
Construction 18/8 (Type 304) stainless well & flange; 18 ga galvanized exterior
Drain 1 in NPT with removable plug
Certifications NSF 7, cULus

*Compressor, controls and refrigerant components are supplied & sized by the installer.

Optional remote accessories (order separately)

  • 36480 – Solenoid valve w/ 120 V coil
  • 36481 – Expansion valve
  • 36482 – Thermostat with knob control
  • 36483 – Filter/drier & sight glass kit
  • 23540-1 – Lighted remote toggle switch (30 A, 120/240 V)
Important: This is a remote unit – NO compressor or refrigeration controls are included. Installation must be completed by a qualified refrigeration technician. Modular drop-ins cannot be canceled or returned once ordered. Contact Vollrath for current lead time.

For complete warranty terms visit  vollrathfoodservice.com.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

23.5in

Width

29.0in

Depth

26.0in

Shipping Weight

188.0lbs

Style

remote refrigeration (no compressor)

Finish

stainless steel top & inner liner, galvanized outer liner

Layout

deep

Pan Qty

2-pan

Width (side - side)

25 - 30 inches

Insulation

insulated

Pan Size

full-size (12" x 20")

Specifications

NSF7 Refrigerated Cold Pan, remote, drop-In, 2-pan, 6-5/8" deep well, accommodates standard 12" x 20" pans with adaptor bars, drip-free flange, polyurethane foam insulated, 18/8 stainless steel, 18 gauge galvanized exterior housing, remote refrigeration, cULus, NSF, Made in USA (note: remote units do not include compressor) (contact Vollrath for lead time) (Refer to vollrathfoodservice.com for full warranty policy)
