Vollrath | SKU:
36409HD
Vollrath 36409HD Steam Tables & Food Wells
$4,961.70
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Vollrath 36409HD Steam Tables & Food Wells is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Vollrath 36409HD Steam Tables & Food Wells
$4,961.70
Unit price
/
Unavailable
Description

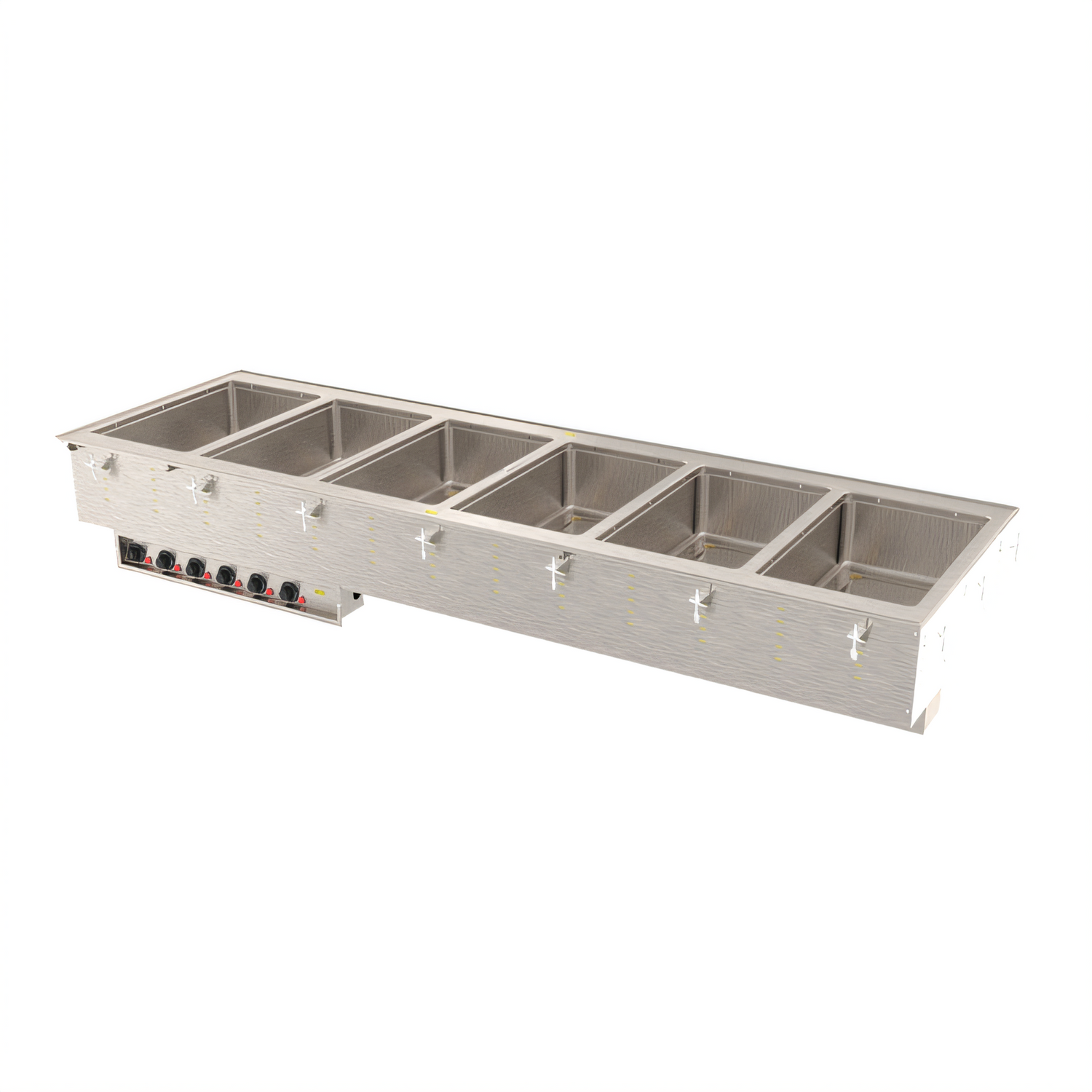

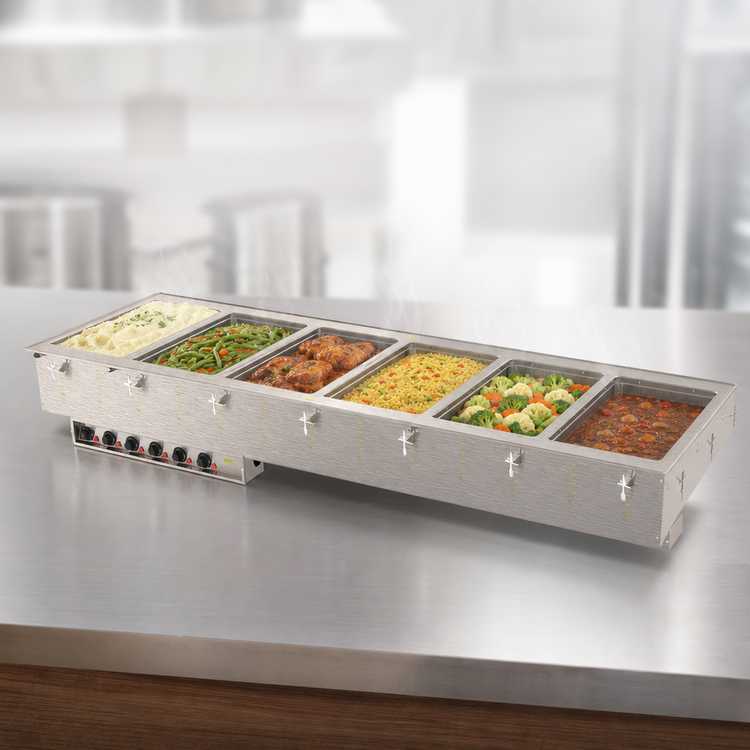

Vollrath 6-Well Marine-Grade Hot Food Drop-In, 208 V
Model 36409HD | 625 W per well | Individual infinite controlsEngineered for demanding, high-volume service lines, this Vollrath six-well drop-in delivers reliable holding temperatures while its 316 marine-grade stainless steel construction stands up to salt, brine and acidic foods. Simply set it in the counter cut-out, plug it in and start serving.

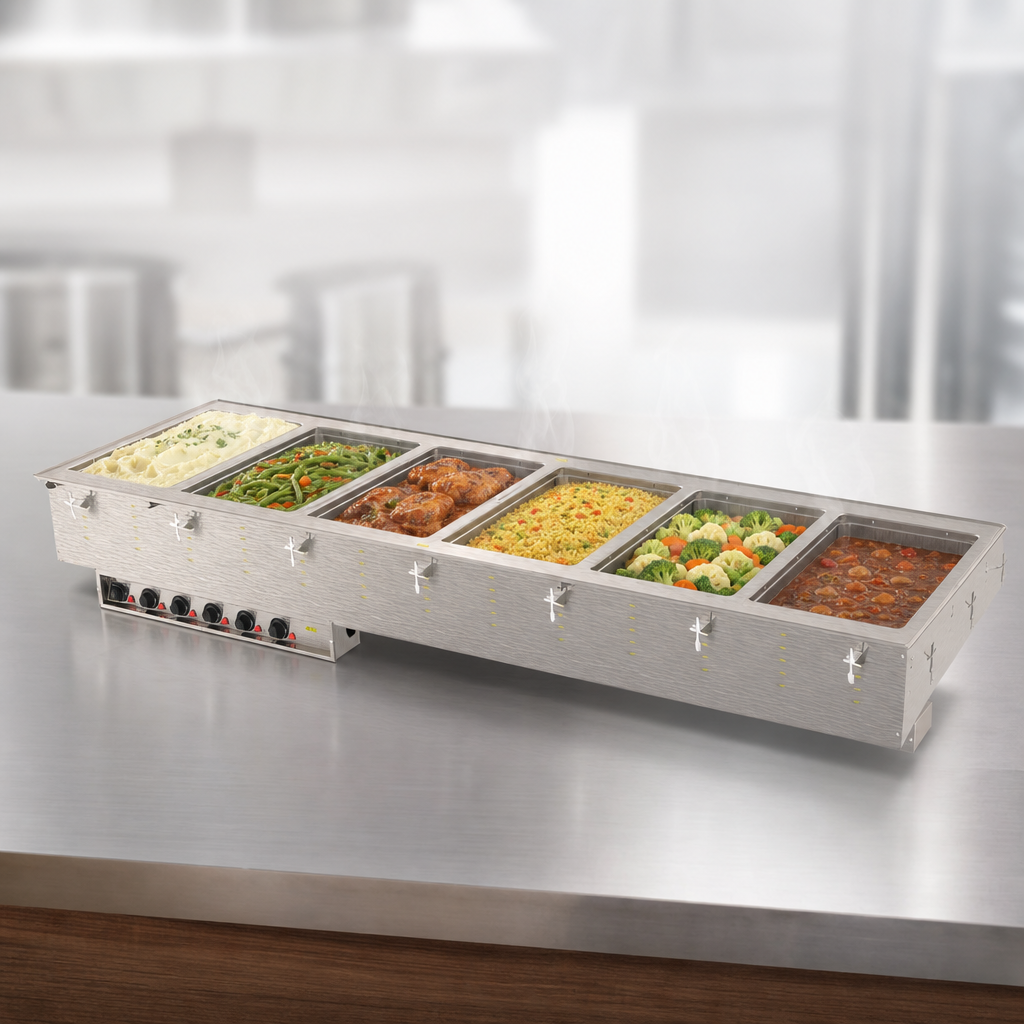

Key Benefits- Six independent 12" × 20" wells formed from 20-gauge, 316 stainless steel for superior corrosion resistance.
- 625 W element and infinite control knob for each well—perfect for varied menu items.
- Wet-operation design (NSF4) promotes even heat distribution and consistent food quality.
- Full insulation on all sides—including between wells—keeps heat where it belongs and reduces energy costs.
- Drip-free top flange with included gasket and mounting clips for zero-clearance, leak-free installation on counters up to 3" thick.
- (6) ½" NPT ball-valve drains let you empty each well individually—no mess on the floor.
- Stainless steel control panel on a 3' tether features power indicator lights for at-a-glance status.
- 6 ft cord with NEMA 6-30P plug means no hard-wiring—just plug and play.
- Made in the USA, NSF & cULus listed and backed by a 2-year limited Vollrath warranty.
| Capacity | Six full-size (12" × 20") pans × 6" deep max |
|---|---|
| Operation | Wet heat only |
| Controls | Individual infinite knobs with power lights |
| Wattage | 3,750 W total (625 W per well) |
| Electrical | 208 V / 60 Hz / 1-ph • 18 A • NEMA 6-30P cord & plug (6 ft) |
| Overall size | 81-1/4" W × 26" D × 15" H |
| Counter cut-out | 80-1/2" W × 25-1/4" D • 7/8" corner radius |
| Well material | 20-ga 316 stainless steel, insulated |
| Top / housing | 18-ga stainless steel |
| Drain system | (6) ½" NPT ball-valve drains (individual shut-offs) |
| Mounting hardware | Positioning gasket & clips included |
| Certifications | NSF (wet), cULus |
| Origin | Made in USA |
| Warranty | 2-year limited (see VollrathFoodservice.com) |
Important: This unit is designed for wet operation only. Keep water in each well during use to
maintain even temperatures and comply with NSF sanitation standards. Never modify or replace the factory-installed cord or plug.
Orders for drop-ins cannot be canceled or returned once processed.
Features & Specs
Features & Specs
Manufacturer
Vollrath
Certifications
NSF, cULus, Made in USA
Height
15.0in
Width
81.25in
Depth
26.0in
Shipping Weight
232.0lbs
Style
individual pans
Controls
infinite controls
Construction
stainless steel construction
Pan Capacity
(6) full size (12" x 20")
Insulated or Non-Insulated
insulated
Drain
with drain
Wet or Dry operation
wet
Specifications
Hot Food Well Unit, Drop-In, electric, (6) 12" x 20" individual 20 gauge/316 marine grade stainless steel insulated wells, 81-1/4"W x 26"D x 15"H (overall), wet operation only, individual infinite controls mounted in panel with cord, power indicator light, drip-free flange, individual drain shutoffs, 18 gauge stainless steel top, stainless steel exterior housing, includes positioning clips, 3750 watts, 208v/60/1-ph, 18.0 amps, cord with NEMA 6-30P, NSF, cULus, Made in USA (80-1/2"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
