Description

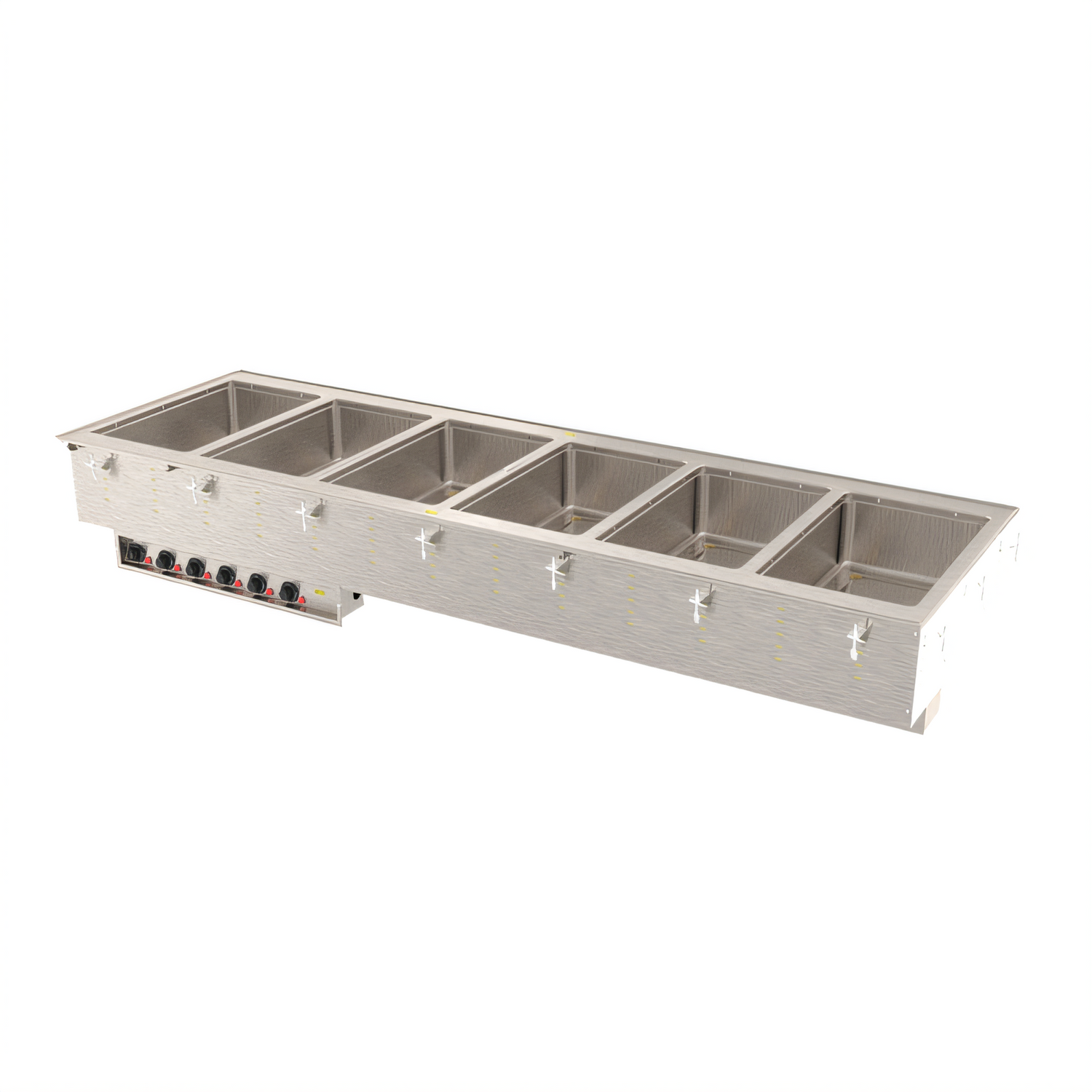

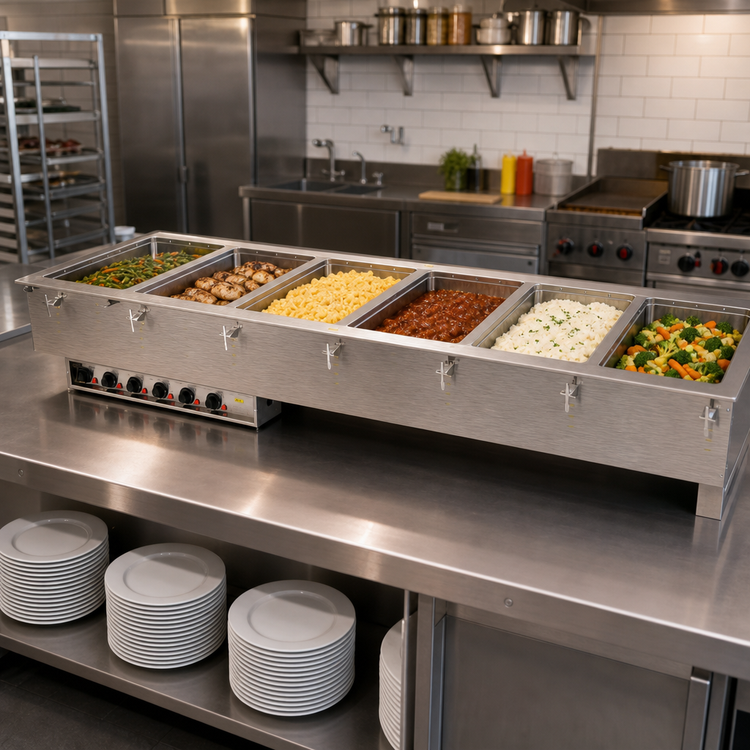

Vollrath 6-Well Modular Hot Drop-In with Marine-Grade Wells

Model 3640981HD | Auto-Fill • Thermostatic • 1000 W per well

Engineered for high-volume, built-in serving lines, this Vollrath hot food well unit delivers consistent, NSF-listed holding performance while standing up to the toughest kitchen environments thanks to its 316 marine-grade stainless steel construction.

Key features

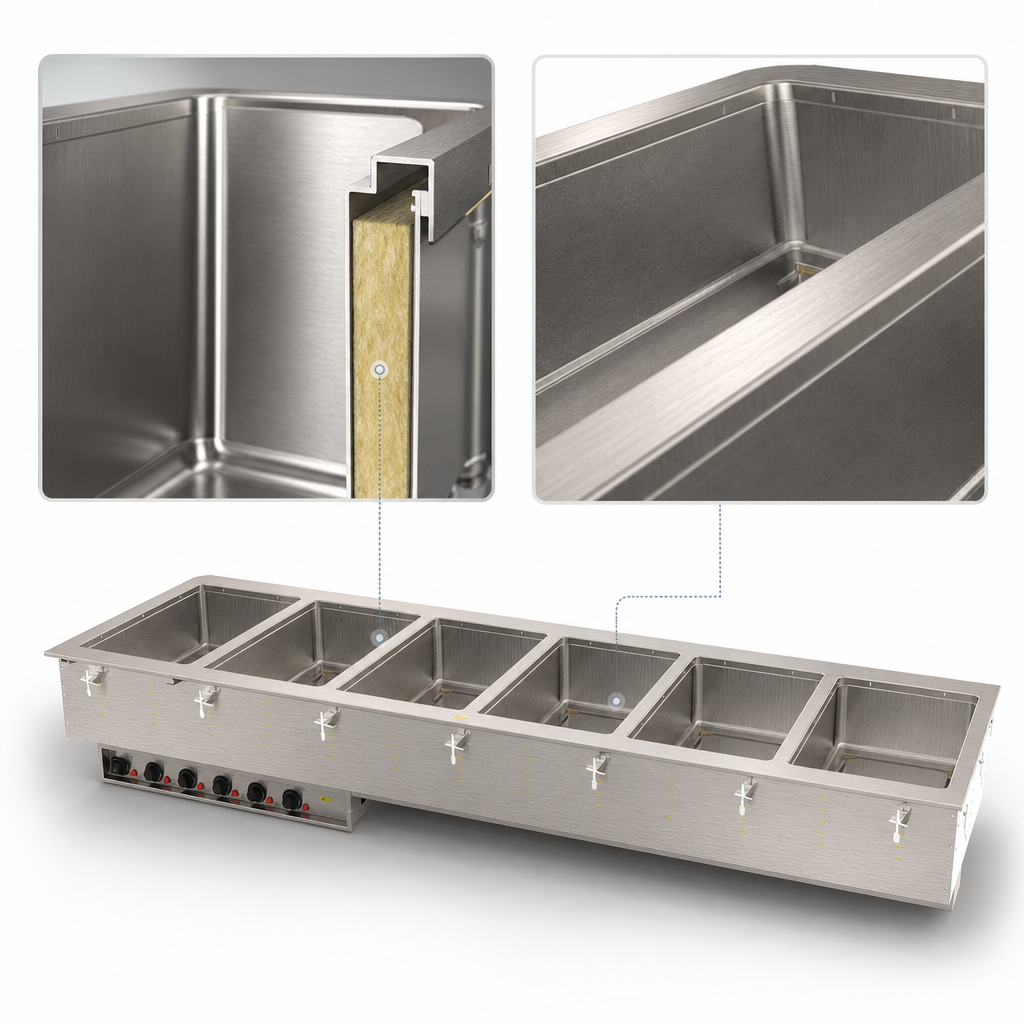

  • Six individual 12" × 20" wells—drawn from 20-gauge 316 stainless steel and fully insulated on all sides.
  • Automatic water level control (auto-fill) keeps each well at the optimum level for even, moist heat.
  • Independent thermostatic controls with power indicator lights on a 3 ft tethered stainless-steel panel for flexible mounting.
  • 1" copper manifold drain with individual ball-valve shut-offs on every well + a master manifold valve for quick, sanitary draining.
  • Drip-free perimeter flange and included gasket protect countertops from spills and condensation.
  • Zero-clearance, top-mount installation with factory-supplied positioning clips for counters up to 3" thick.
  • Ships ready to plug in—6' power cord with NEMA 6-50P; no hard-wiring required.
  • NSF & cULus listed, Made in the USA and backed by Vollrath’s two-year parts & labor warranty.

Specifications

Number of wells 6 full-size (12" × 20"), 6 " pan depth max.
Well material / gauge 316 marine-grade stainless steel, 20 ga
Top material 18 ga stainless steel
Operation Wet only (water required)
Heating power 6,000 W total (1,000 W per well)
Controls Individual thermostatic dials with pilot lights
Auto-fill Factory installed, maintains proper water level
Drainage 1" copper manifold with individual & master shut-offs
Overall dimensions 81-1/4" W × 26" D × 21-1/2" H
Cut-out required 80-1/2" W × 25-1/4" D • 7/8" corner radius
Electrical 208–240 V / 60 Hz / 1 ph • 21.6–25 A • NEMA 6-50P
Certifications NSF, cULus
Country of origin United States

Ideal for

  • Hotel breakfast & banquet buffets
  • College, corporate & healthcare cafeterias
  • Supermarket and convenience-store hot bars
  • Catering operations needing permanent hot holding
Important: Unit must be operated with water in the wells at all times. Operating dry will damage the equipment and void the warranty.

Modular drop-ins are built to order and cannot be canceled or returned. Full warranty details available at VollrathFoodservice.com.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

21.5in

Shipping Weight

249.0lbs

Controls

thermostatic controls

Style

individual pans

Insulated or Non-Insulated

insulated

Pan Capacity

(6) full size (12" x 20")

Construction

stainless steel construction

Drain

with drain

Wet or Dry operation

wet

Specifications

Hot Food Well Unit, Drop-In, electric, (6) 12" x 20" individual 20 gauge/316 marine grade stainless steel insulated wells, 81-1/4"W x 26"D x 21-1/2"H (overall), wet operation only, auto-fill, individual thermostatic controls mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, stainless steel exterior housing, includes positioning clips, 6000 watts, 208-240v/60/1-ph, 21.6-25.0 amps, cord with NEMA 6-50P, NSF, cULus, Made in USA (80-1/2"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
