Vollrath  |  SKU: 3640980HD

Vollrath 3640980HD Steam Tables & Food Wells

$6,655.60
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Bars & Buffets Food Holding & Warming Equipment Food Wells & Serving Lines Hot Well Restaurant Equipment Steam Tables & Food Wells Vollrath

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

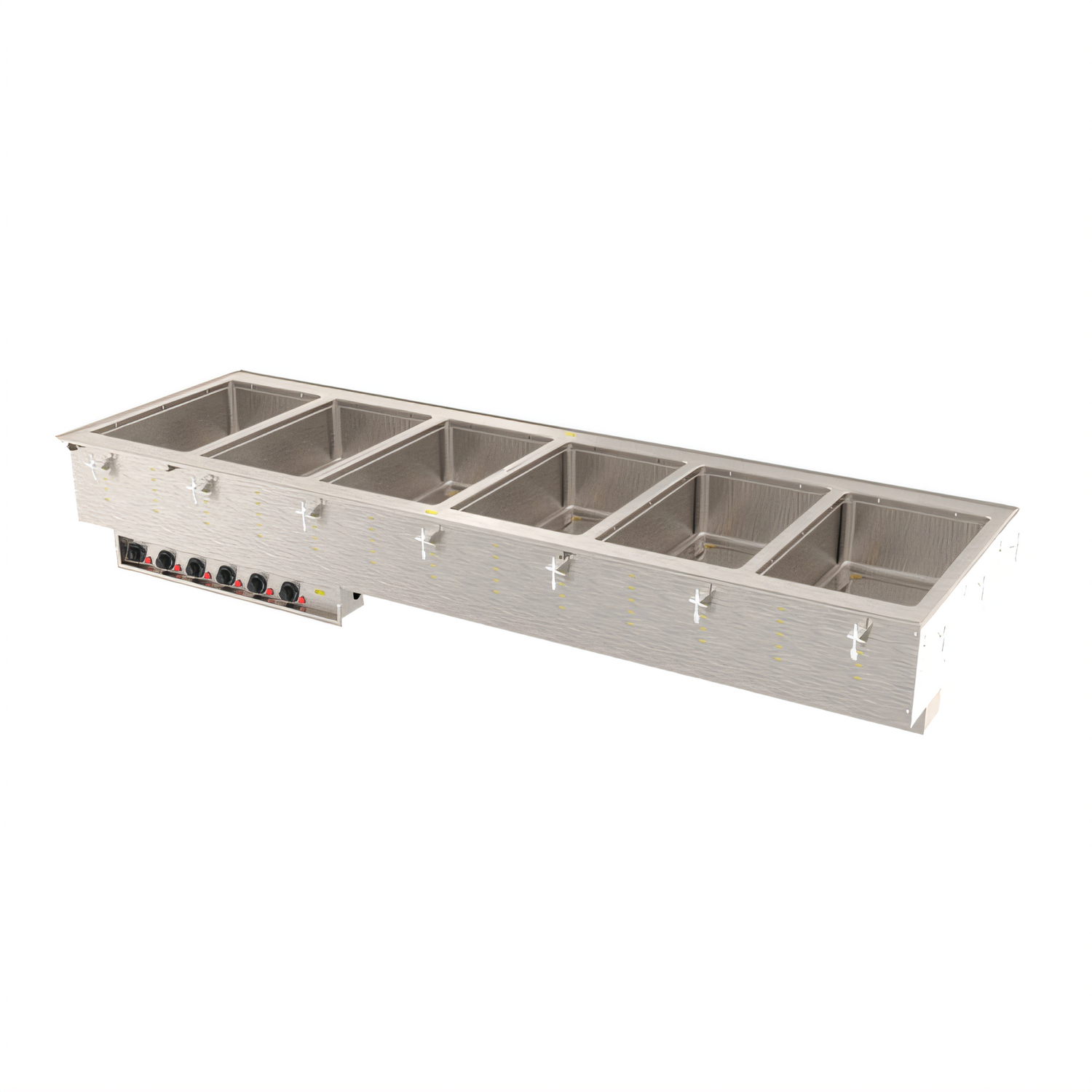

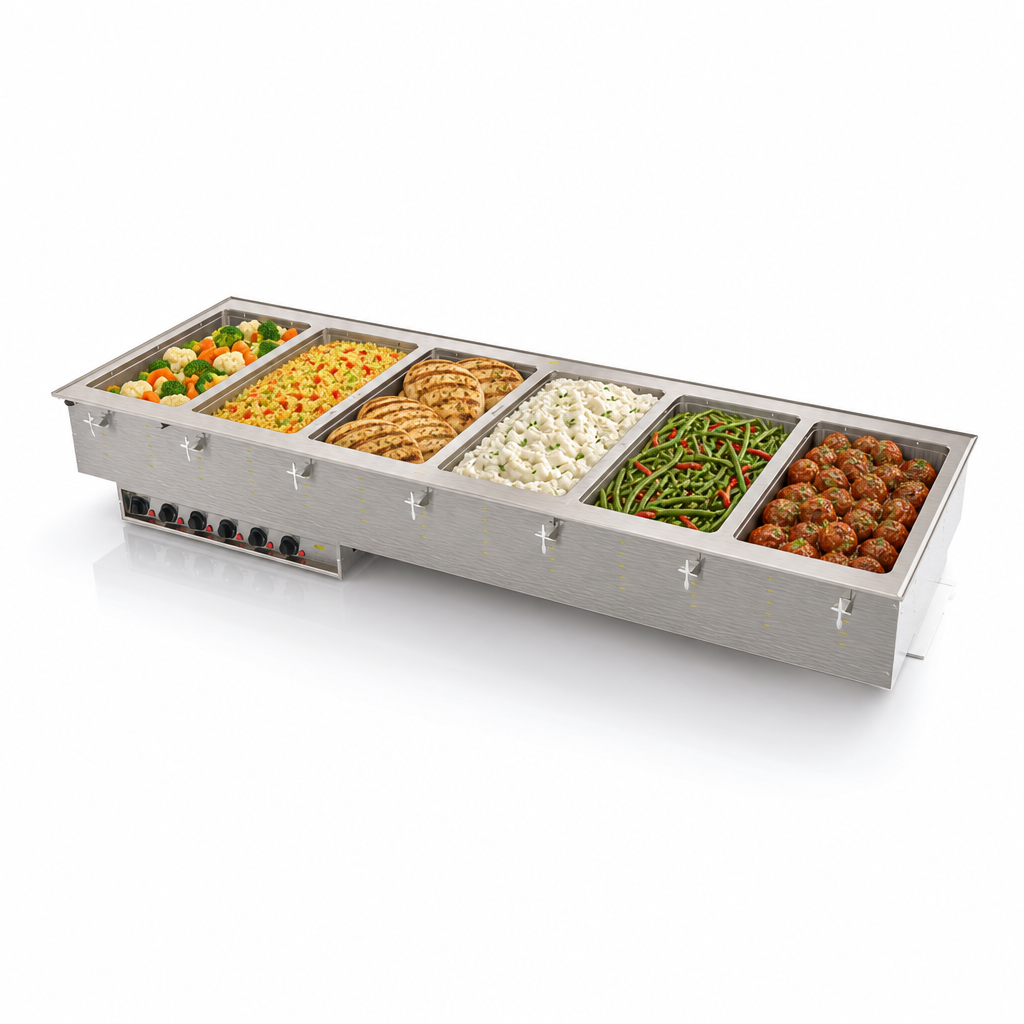

Vollrath 6-Well Modular Hot Drop-In with Marine-Grade Wells & Auto-Fill

Model 3640970HD • 208 V • Thermostatic • NEMA 6-30P

Built for relentless commercial use, this Made-in-USA drop-in keeps six full-size pans of soup, entrées or sides at safe, appetizing temperatures. Marine-grade stainless steel, individual thermostatic controls and an automatic water-fill system provide consistent results with minimal labor.

Key features & benefits

  • Six independent 12 × 20 in wells made from 20-gauge 316 marine-grade stainless steel for maximum corrosion resistance.
  • Auto-fill system maintains optimal water level—no more dry-well burnout.
  • Individual thermostatic controls with power lights let you dial-in each menu item separately.
  • Wet operation meets NSF 4 performance standards for even, gentle heat.
  • 1 in copper manifold drain with master valve plus ball valves on every well for fast, mess-free cleanup.
  • Drip-free perimeter flange and supplied gasket protect the counter from spills.
  • Fully insulated—including between wells—to lower energy costs and keep exterior surfaces cool.
  • Heavy-duty 18-gauge stainless steel top and stainless exterior housing stand up to daily abuse.
  • Ships ready to install: 6 ft cord & plug, positioning clips for counters up to 3 in thick, and 3 ft tethered control panel.
  • NSF & cULus listed; backed by a 2-year Vollrath warranty.

Perfect for

  • Cafeteria and buffet lines
  • Hotels, casinos & cruise ships
  • Corporate dining & C-stores
  • High-volume commissary kitchens

Technical specifications

Number of wells (6) full-size 12 × 20 in pans — up to 6 in deep
Construction 20 ga 316 SS wells, 18 ga SS top, stainless exterior housing
Heat type Wet operation only (water required)
Controls (6) thermostatic dials with indicator lights — remote panel, 3 ft tether
Auto-fill Integrated, water connection required
Total power 6,000 W  (625 W per well)
Electrical 208 V / 60 Hz / 1-phase  • 18 A  • 6 ft cord with NEMA 6-30P
Overall dimensions 81 1⁄4 W × 26 D × 21 1⁄2 H in (206.4 × 66 × 54.6 cm)
Counter cut-out 80 1⁄2 W × 25 1⁄4 D in (204.5 × 64.1 cm) — 7⁄8 in corner radius
Drain 1 in copper manifold (½ in MPT outlet) with individual well shut-offs & master valve
Certifications NSF 4, cULus Listed, Made in USA
Important: This unit is wet-heat only and must be operated with water in each well. All Vollrath modular drop-ins are built to order and are not eligible for cancellation or return once placed.

For complete warranty terms, visit vollrathfoodservice.com.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

21.5in

Width

81.25in

Depth

26.0in

Shipping Weight

211.0lbs

Style

individual pans

Construction

stainless steel construction

Pan Capacity

(6) full size (12" x 20")

Drain

with drain

Controls

thermostatic controls

Insulated or Non-Insulated

insulated

Wet or Dry operation

wet

Specifications

Hot Food Well Unit, Drop-In, electric, (6) 12" x 20" individual 20 gauge/316 marine grade stainless steel insulated wells, 81-1/4"W x 26"D x 21-1/2"H (overall), wet operation only, auto-fill, individual thermostatic controls mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, stainless steel exterior housing, includes positioning clips, 6000 watts, 208v/60/1-ph, 18.0 amps, cord with NEMA 6-30P, NSF, cULus, Made in USA (80-1/2"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
