Vollrath  |  SKU: 3640980

Vollrath 3640980 Steam Tables & Food Wells

$5,580.75
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

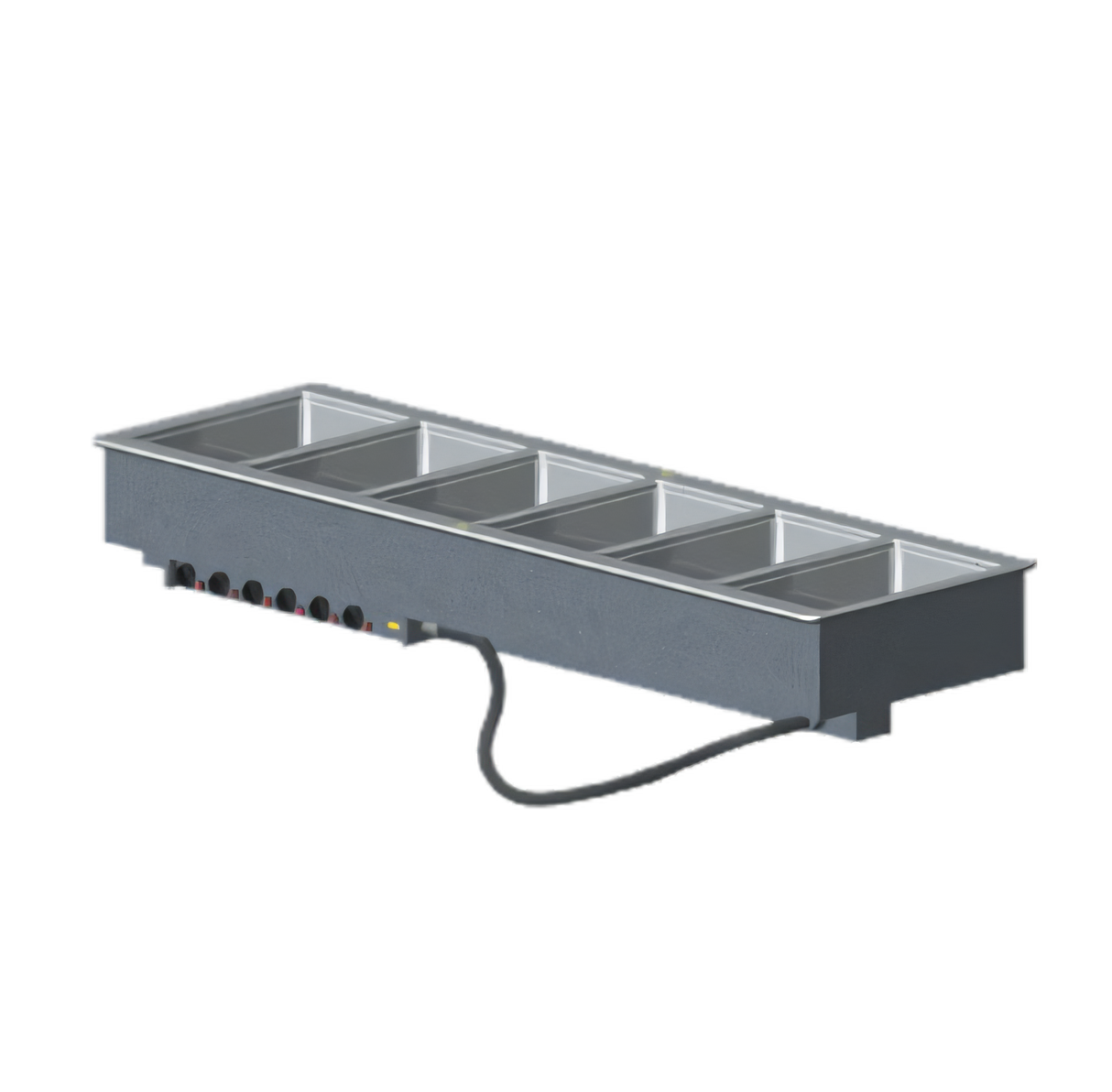

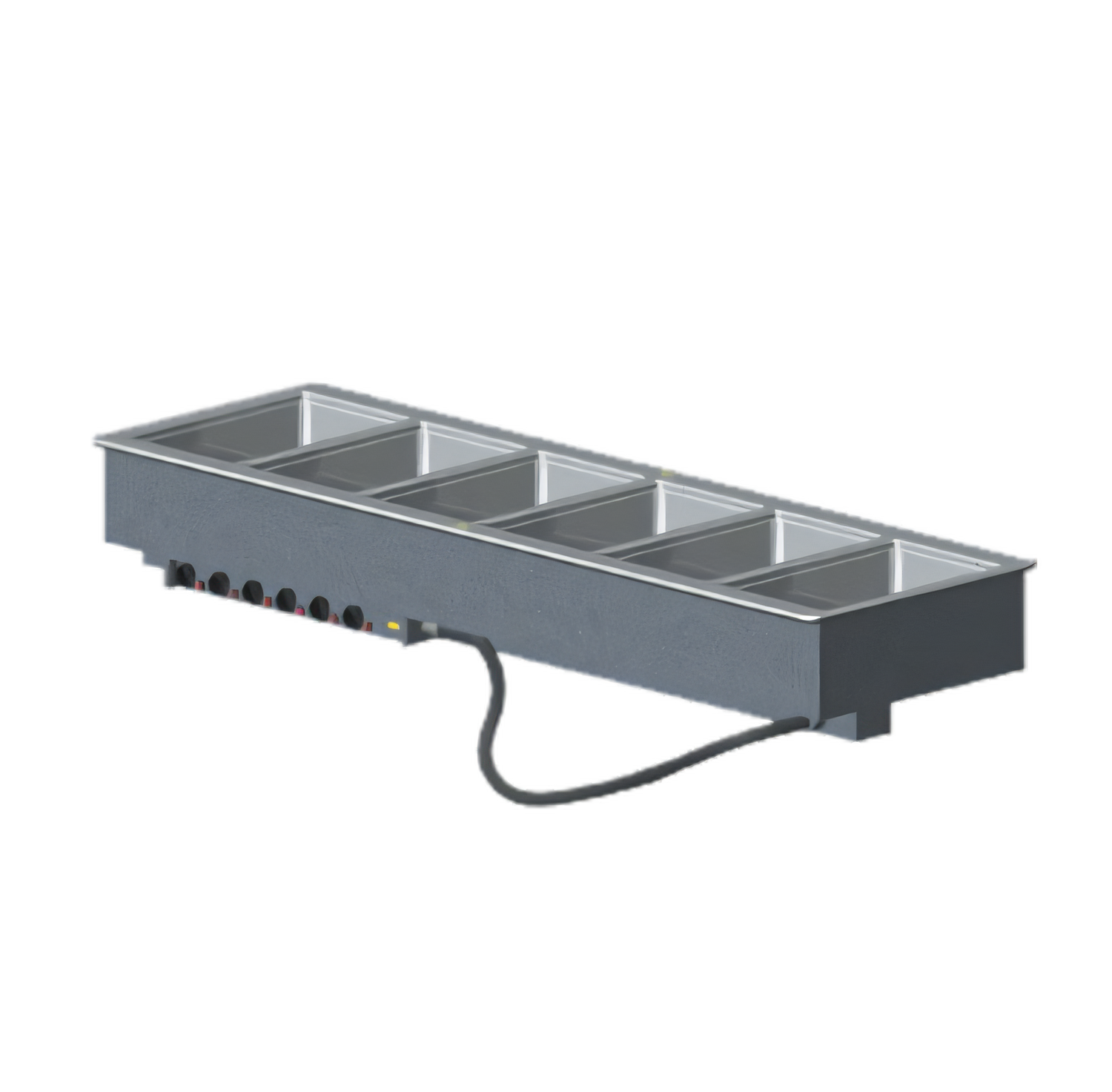

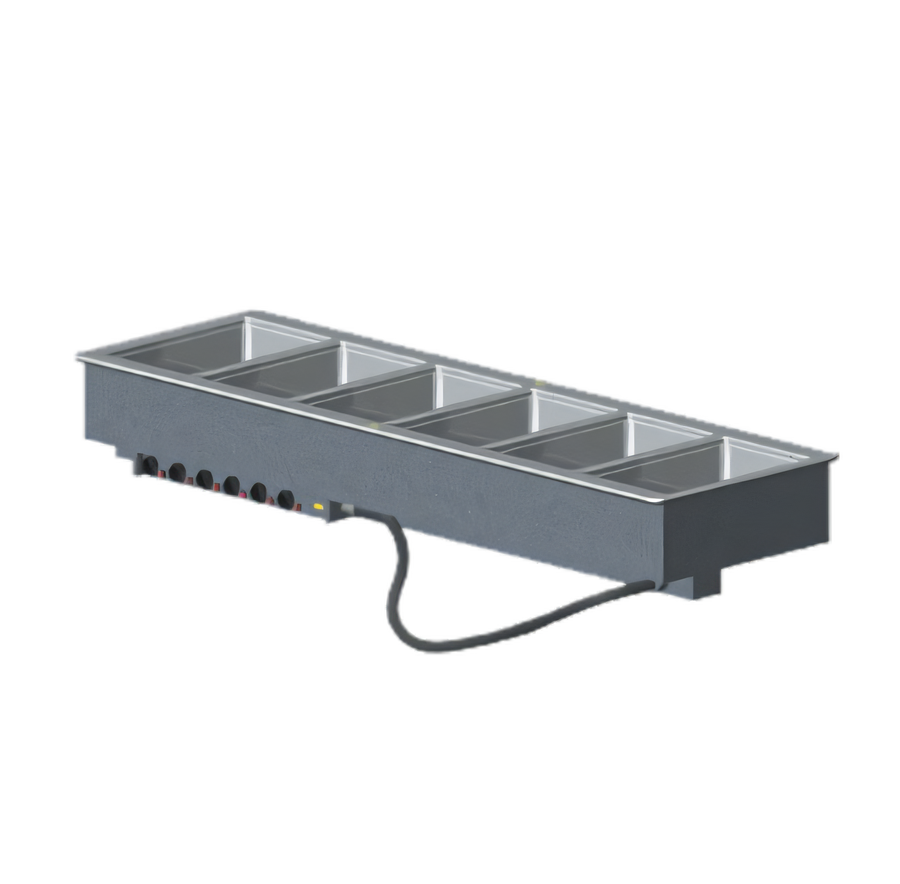

Vollrath 6-Well Drop-In Hot Food Well – Auto-Fill, Thermostatic, 208 V

Model 3640980 | Manifold Drain & Auto-Fill

Keep high-volume service running smoothly with Vollrath’s Made-in-USA six-well hot module. Each 12" × 20" well is individually thermostatically controlled and automatically topped-up with water, delivering steady, moist heat without constant staff attention.

Why You’ll Love It

  • Auto-Fill convenience – integrated system maintains water level to cut labour & reduce scorch risk.
  • True independent control – six separate thermostats let you hold multiple menu items at ideal temps.
  • Drip-free perimeter flange contains spills so surrounding counters stay clean and dry.
  • 1" copper manifold drain with individual well shutoffs plus a main shutoff makes end-of-day cleanup fast.
  • Marine-grade construction – 18 ga stainless top & 20 ga deep-drawn wells built for daily commercial abuse.
  • Zero-clearance insulation – high-density fiberglass on all sides retains heat and allows tight installs.
  • Plug-and-play installation – factory-wired 6 ft. cord with NEMA 6-30P eliminates hard-wiring.

Technical Specifications

Wells Six (6) individual 12" × 20" x 6" deep, 20 ga stainless; wet operation only
Total power 6,000 W max (625 W per well typical)
Electrical 208 V / 60 Hz / 1-phase  •  18.0 A  •  factory cord & NEMA 6-30P plug
Controls Individual thermostats, power indicator lights; stainless panel on 3 ft. tether
Auto-Fill Factory-installed; connects to manifold drain, includes check valve/siphon break
Drain 1" copper manifold drain, individual well shutoffs + master shutoff
Overall size 81-1/4" W × 26" D × 21-1/2" H (206.4 × 66 × 54.6 cm)
Counter cut-out 80-1/2" W × 25-1/4" D (204.5 × 64.1 cm) • 7/8" (2.2 cm) corner radius required
Materials 18 ga stainless top • 20 ga galvanized exterior housing • fiberglass insulation
Certifications NSF 4, cULus Listed
Origin & Warranty Made in USA • 1-year parts & labour (see VollrathFoodservice.com for details)

Perfect For

  • Buffet lines & cafeterias needing high-capacity holding
  • Stadium, convention centre or hotel banquet service
  • Any operation that wants consistent moist heat with minimal staff monitoring
Important: Unit must be operated with water in wells at all times. Verify counter cut-out and provide 7/8" corner radius before installation.

Recommended Accessories

  • Sheet-pan adapter bar – Vollrath #19186
  • Fractional-pan adaptor bars for 1/2, 1/3, 1/6 pans
  • Drain hose kit for quick connection to facility plumbing

For full warranty details, installation guidelines and additional resources visit vollrathfoodservice.com.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

21.5in

Width

81.25in

Depth

26.0in

Shipping Weight

211.0lbs

Pan Capacity

(6) full size (12" x 20")

Controls

thermostatic controls

Style

individual pans

Insulated or Non-Insulated

insulated

Construction

stainless steel top, corrosion resistant steel exterior

Drain

with drain

Wet or Dry operation

wet

Specifications

Hot Food Well Unit, Drop-In, electric, (6) 12" x 20" individual 20 gauge stainless steel insulated wells, 81-1/4"W x 26"D x 21-1/2"H (overall), wet operation only, auto-fill, individual thermostatic controls mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, 18 gauge galvanized exterior housing, includes positioning clips, 6000 watts, 208v/60/1-ph, 18.0 amps, cord with NEMA 6-30P, NSF, cULus, Made in USA (80-1/2"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
