Vollrath  |  SKU: 3640971HD

Vollrath 3640971HD Steam Tables & Food Wells

$6,290.60
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

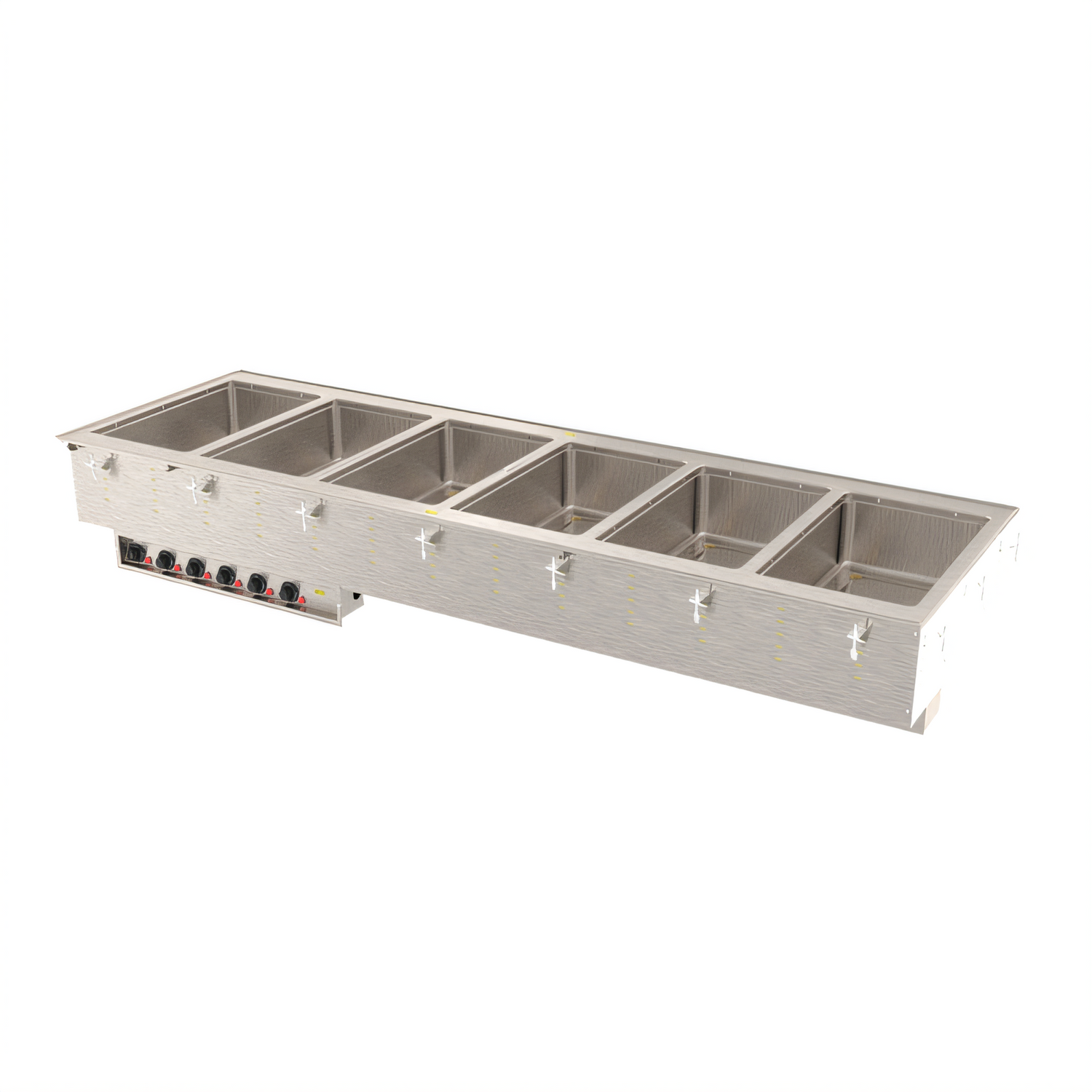

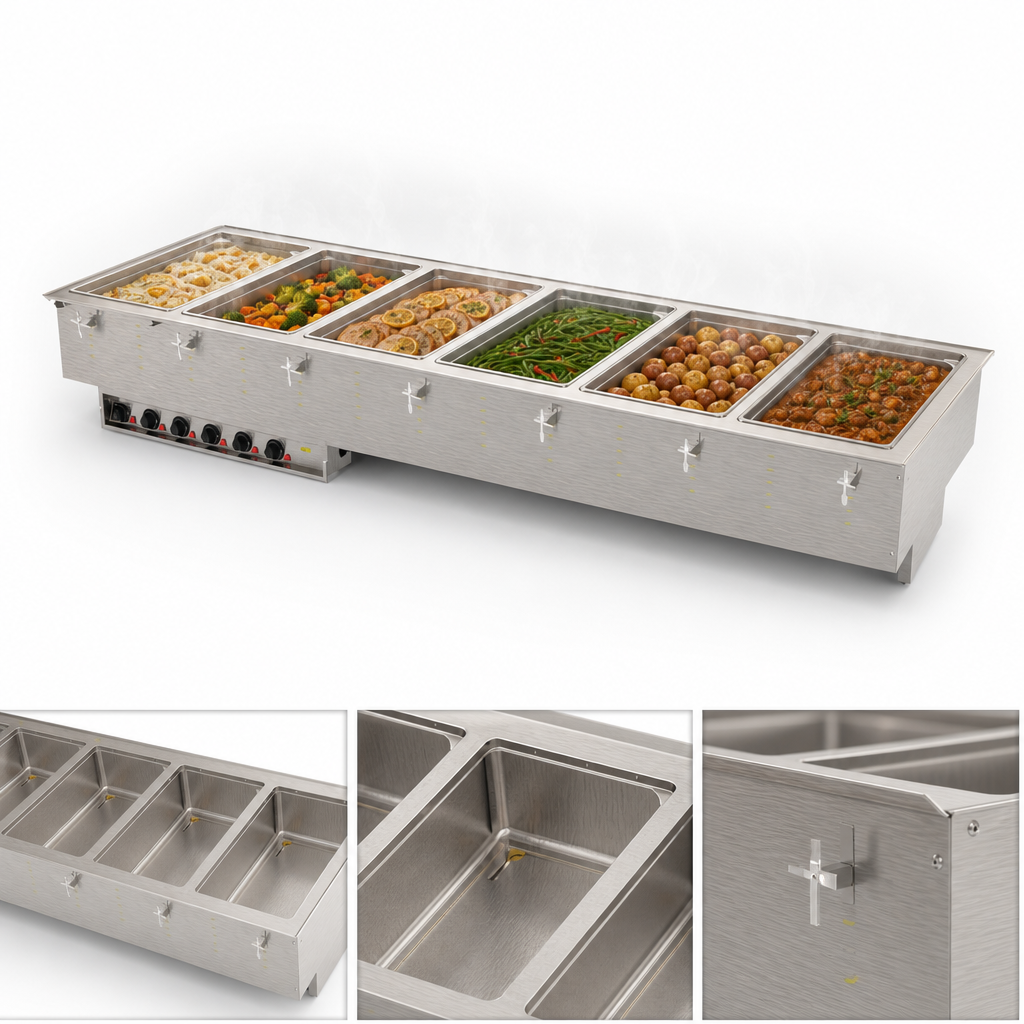

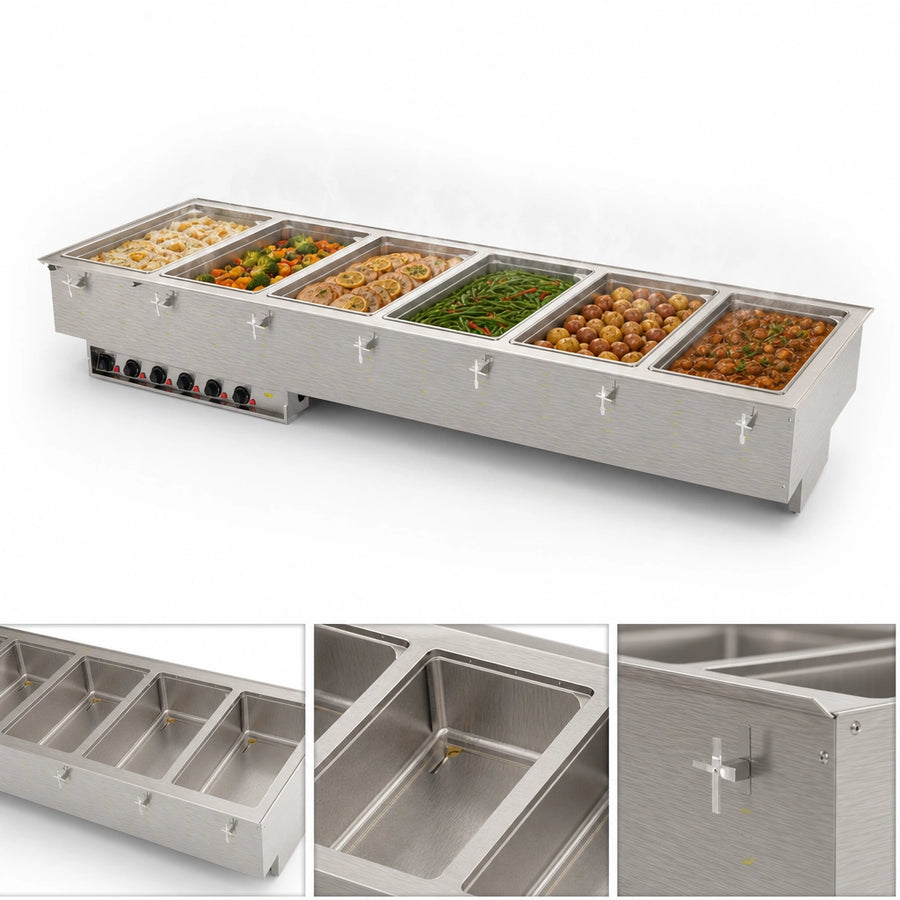

Vollrath 6-Well Modular Hot Drop-In with Marine-Grade Wells

Model 3640911HD • Thermostatic • 208-240 V, 1-Ph, NEMA 6-50P

Serve every entrée at its best. This heavy-duty Vollrath drop-in features six individually controlled, 316 marine-grade wells that hold full-size pans safely and efficiently—all without hard-wiring. Just drop it in, fill with water, plug in, and turn the knobs.

Key Benefits

  • 20-gauge 316 marine-grade stainless wells resist salt & chemical corrosion.
  • Individual thermostatic controls with power lights for precise holding.
  • Fully insulated on all sides—including between wells—for maximum heat retention.
  • Drip-free perimeter flange keeps countertops clean and dry.
  • 1" copper manifold drain with individual well shut-offs plus master valve for fast, mess-free draining.
  • 6-ft (1.8 m) cord and NEMA 6-50P plug—no electrician required.
  • Zero-clearance design and positioning clips fit counters up to 3" thick.
  • Accepts full-size or fractional pans up to 6" deep (use adapter bars for fractional pans).
  • NSF & cULus listed, Made in the USA, backed by a 2-year warranty.

Technical Specifications

Number of wells 6 independent, wet-operation wells
Pan capacity Full-size 12" × 20" (6" max depth)
Heat output 1000 W per well / 6000 W total
Voltage / Phase 208-240 V, 60 Hz, single phase
Amperage 21.6 – 25 A
Plug type NEMA 6-50P (factory installed)
Overall dimensions 81-1/4" W × 26" D × 21-1/2" H
Countertop cut-out 80-1/2" W × 25-1/4" D, 7/8" corner radius
Top material 18-gauge stainless steel
Exterior housing Stainless steel
Drain system 1" copper manifold, 1/2" ball valves per well
Controls (6) thermostatic knobs on remote stainless panel (3 ft tether)
Certifications NSF, cULus
Country of origin USA

What’s Included

  • Six-well drop-in unit with cord & plug
  • Remote control panel (pre-wired)
  • Positioning/mounting clips
  • Factory-installed manifold drain with shut-offs
  • Installation & operation manual

Installation Notes

  • Maintain specified cut-out size and corner radius for proper fit.
  • Indoor use only; zero side clearance required.
  • Fill each well with water before energizing to meet NSF 4 standards.
  • Do not modify the factory-supplied cord or plug.
Wet operation only: Running the wells dry may damage the unit and void the warranty.

Drop-ins are built to order and cannot be canceled or returned. Refer to VollrathFoodservice.com for complete warranty terms.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

21.5in

Shipping Weight

232.0lbs

Style

individual pans

Insulated or Non-Insulated

insulated

Pan Capacity

(6) full size (12" x 20")

Controls

thermostatic controls

Drain

with drain

Construction

stainless steel construction

Wet or Dry operation

wet

Specifications

Hot Food Well Unit, Drop-In, electric, (6) 12" x 20" individual 20 gauge/316 marine grade stainless steel insulated wells, 81-1/4"W x 26"D x 21-1/2"H (overall), wet operation only, individual thermostatic controls mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, stainless steel exterior housing, includes positioning clips, 6000 watts, 208-240v/60/1-ph, 21.6-25.0 amps, cord with NEMA 6-50P, NSF, cULus, Made in USA (80-1/2"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
