Vollrath 3640971 Steam Tables & Food Wells
Description

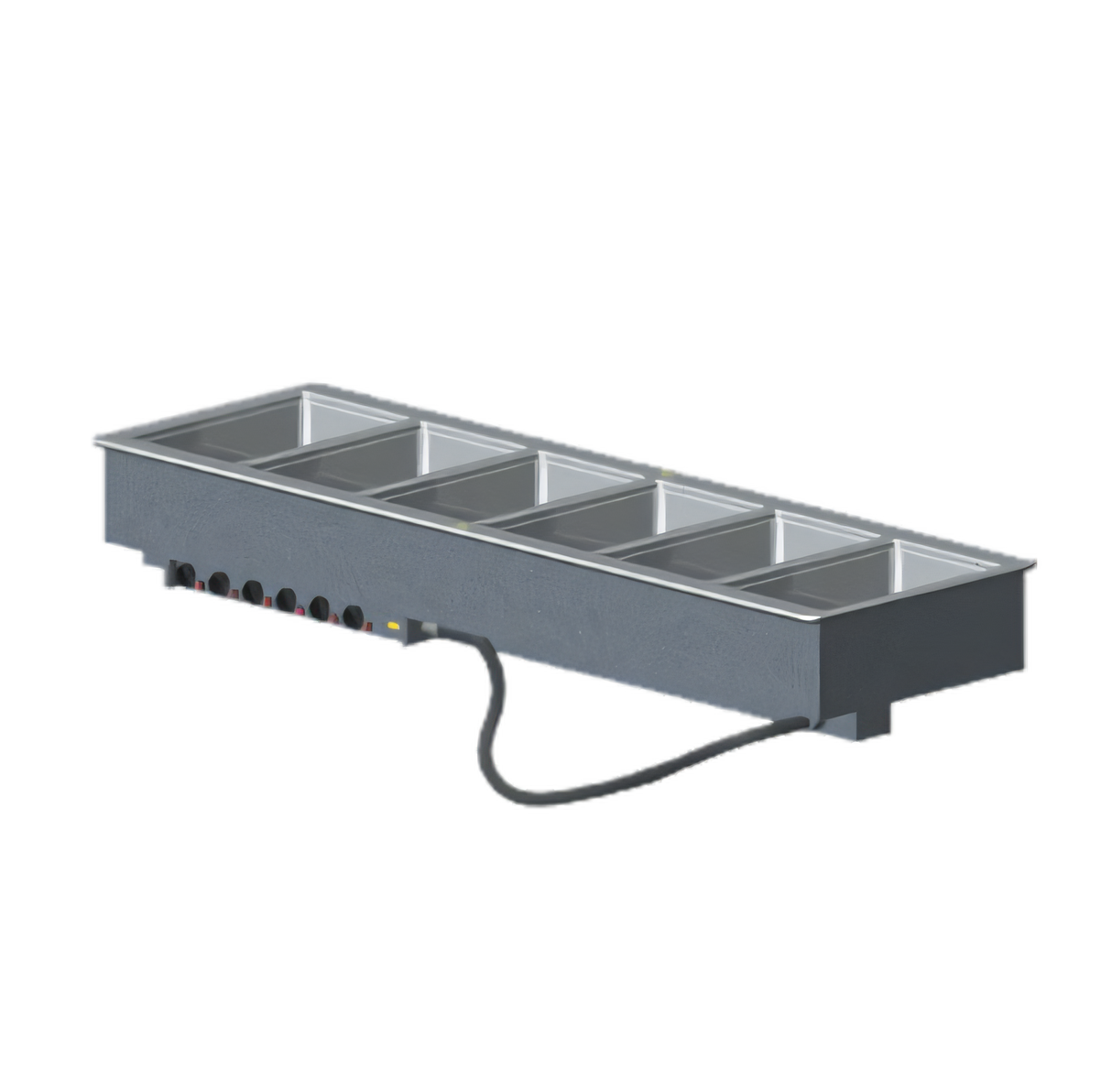

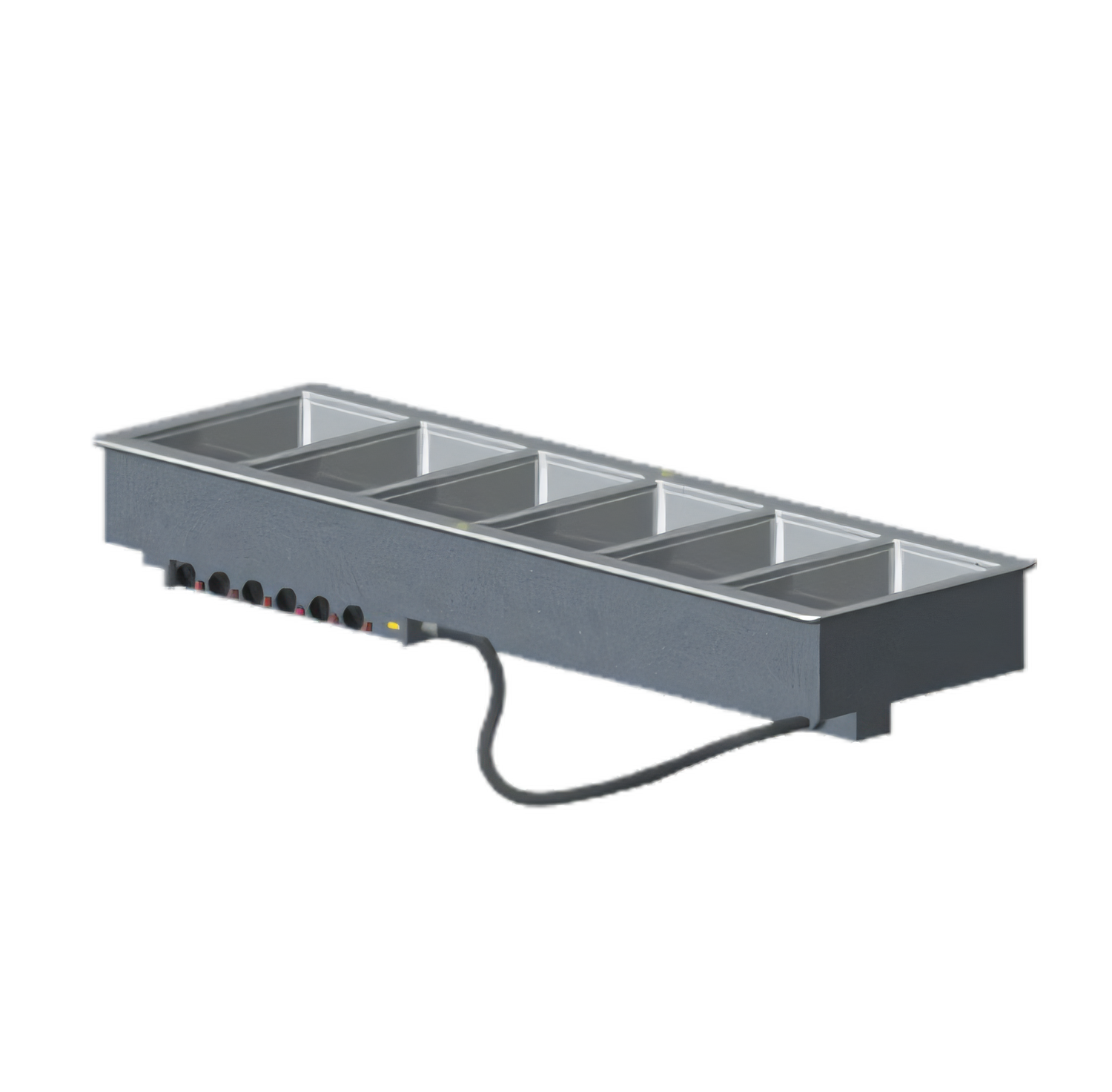

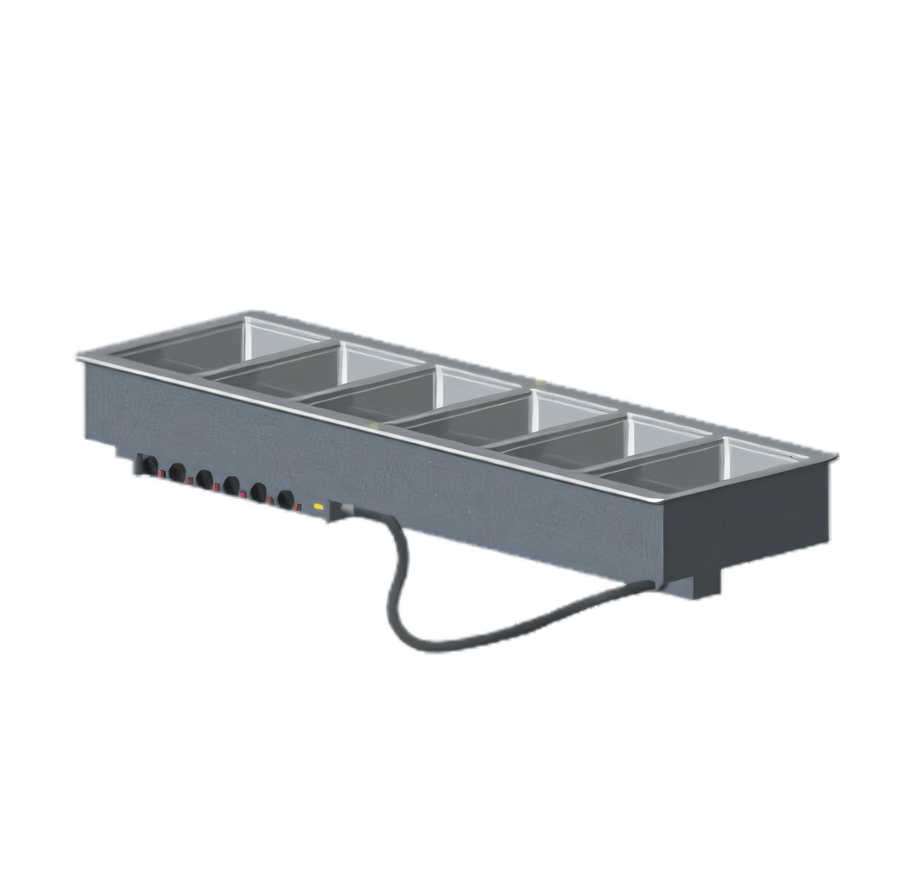

Vollrath 6-Well Electric Drop-In Hot Food Well – Thermostatic / Manifold Drain
Item #: 3640971 | 1000 W per well • 208-240 VKeep six menu items hot, fresh, and ready for service with this fully self-contained drop-in from Vollrath. Built for high-volume lines, the unit delivers even, moisture-rich heat in individual 12" x 20" wells while the 1" copper manifold drain speeds cleanup between dayparts. Made in the USA, NSF-listed, and shipped ready to install, it’s the professional’s choice for buffets, cafeterias, and stadium concessions alike.
Why You’ll Love It

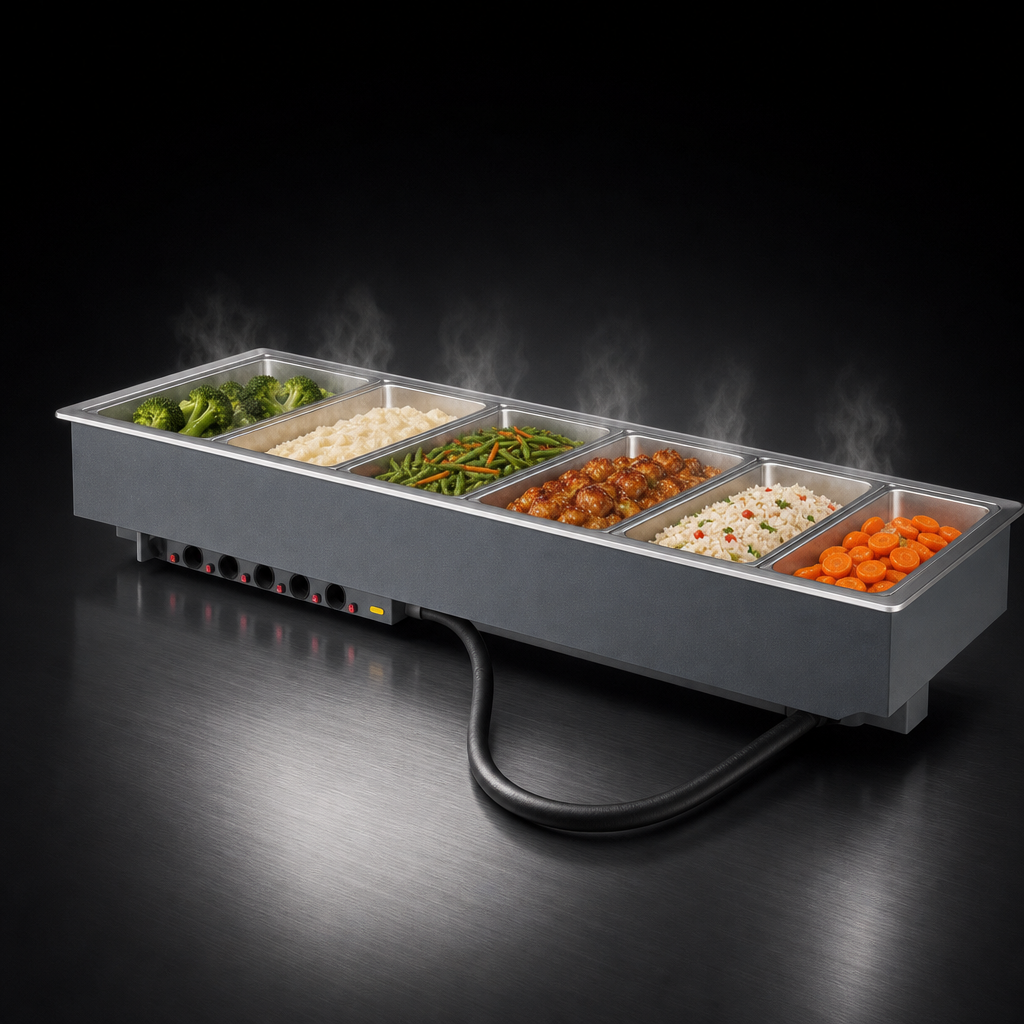

- Six independent 20-ga. stainless wells (12" x 20")—hold full or fractional pans up to 6" deep.
- True wet-heat only design meets NSF 4 for reliable, even holding.
- Precise thermostatic controls with power indicator lights—dial in exact holding temps and see status at a glance.
- Full-perimeter drip-edge and drip-free flange keep counters clean and dry.
- 1" copper manifold drain with individual well shut-offs plus master shut-off—empty a single well or all six in seconds.
- Zero-clearance, high-density fiberglass insulation for efficient operation and flexible installation.
- Rugged 18-ga. stainless top and 18-ga. galvanized exterior housing—built to handle years of daily abuse.
- Ships with positioning & mounting clips, 6 ft cord, and NEMA 6-50P plug—no hard-wiring required.
Performance You Can Count On
- Total output: 6,000 watts (1,000 W per well).
- Operates on 208-240 V, single phase, 21.6 – 25 amps.
- Marine-grade well option available—add “HD” to the item number (2-year warranty).
Specifications
| Wells / Capacity | (6) individual 12" x 20" wells, 6" pan depth max |
|---|---|
| Operation | Wet heat only (water required during use) |
| Controls | 6 thermostatic knobs, panel-mounted, with power lights |
| Drain | 1" copper manifold, individual well shut-offs + master valve |
| Construction | Top – 18-ga. stainless steel Wells – 20-ga. stainless steel Exterior – 18-ga. galvanized steel |
| Insulation | High-density fiberglass, zero-clearance rated |
| Overall Dimensions | 81-1/4" W x 26" D x 21-1/2" H |
| Cutout Size | 80-1/2" W x 25-1/4" D, 7/8" corner radius required |
| Electrical | 208-240 V / 60 Hz / 1-ph, 21.6-25 A |
| Cord & Plug | 6 ft cord with 6-50P |
| Certifications | NSF 4, cULus, Made in USA |
| Warranty | 1-year parts & labor (see vollrathfoodservice.com for full policy) |
Simple Drop-In Installation
- Includes positioning clips to center the unit in the counter cutout.
- Adjustable mounting clips accommodate counters up to 3" thick.
- 3 ft tethered control panel can be factory-mounted or relocated for the perfect ergonomic setup.
Need adapter bars, fractional pans, or auto-fill kits? Reach out to our team—accessories are sold separately.
