Vollrath 3640970HD Steam Tables & Food Wells
$6,290.60
Unit price
/
Unavailable
Description

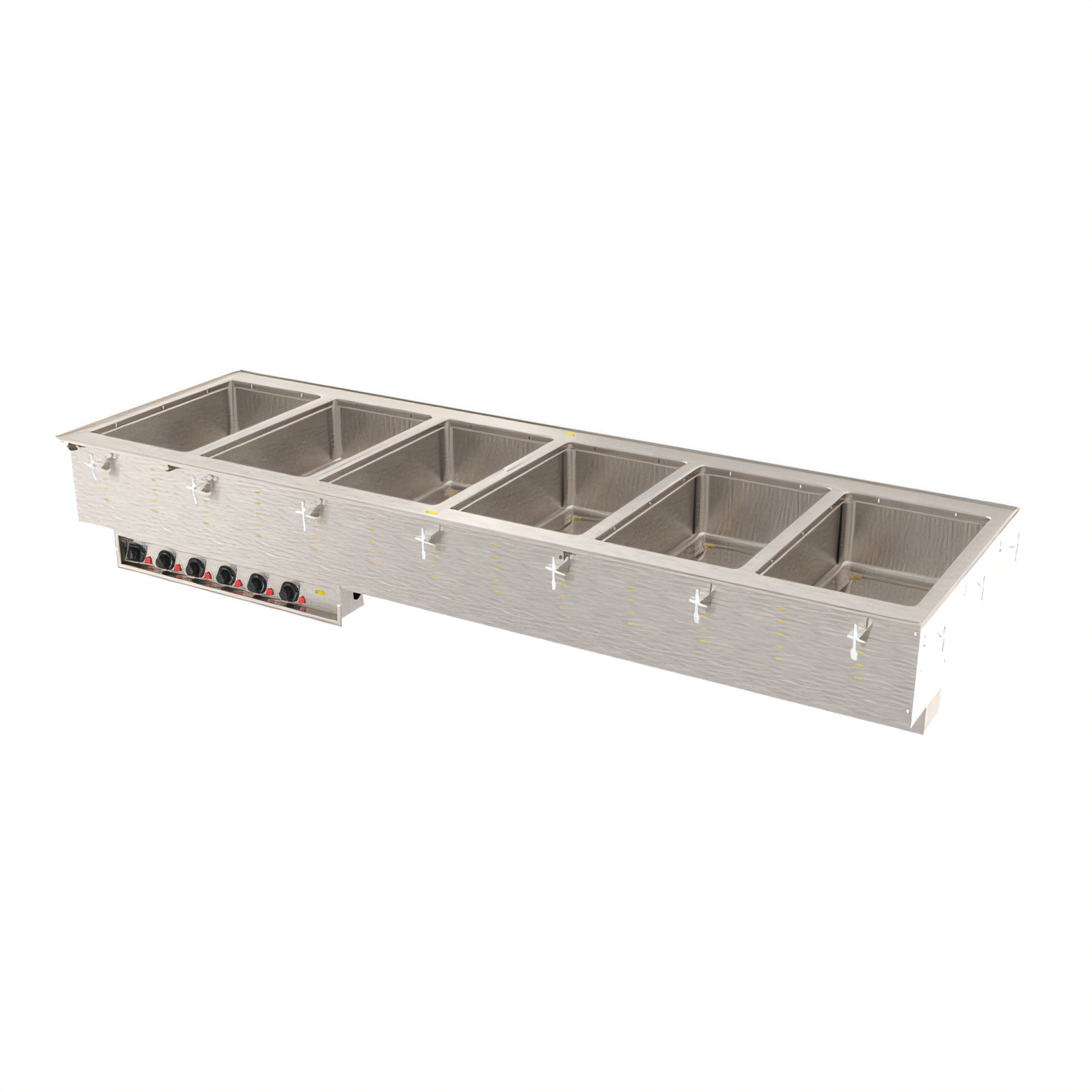

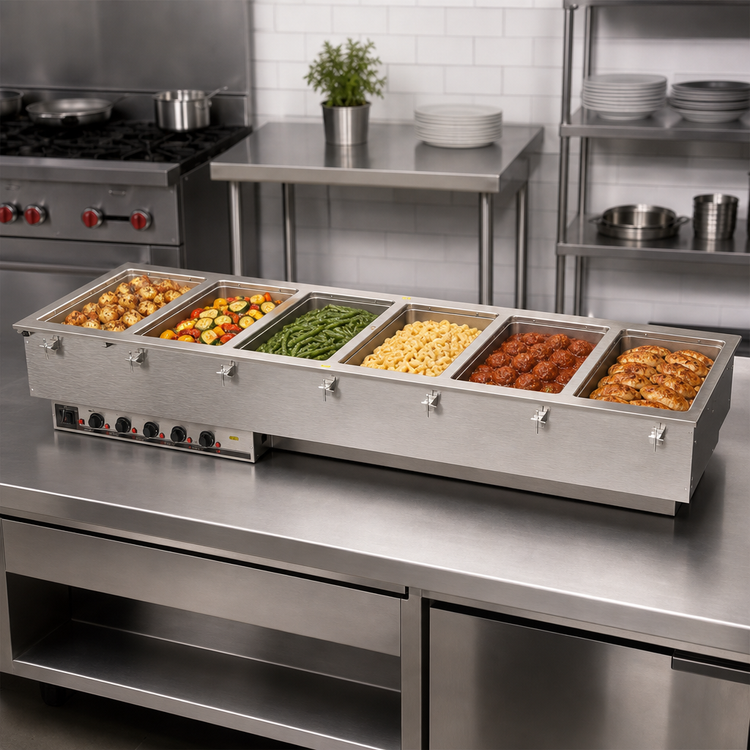

Vollrath 6-Well Modular Hot Drop-In with Marine-Grade Wells – Model 3640970HD
Thermostatic • 208 V • Manifold Drain • NEMA 6-30P PlugDeliver perfectly held entrées and sides from breakfast to close with Vollrath’s premium six-well drop-in. Each individually controlled, 316 marine-grade well resists corrosion from salt, acid and chemicals, making it the ideal long-term solution for demanding commercial kitchens, buffets and serving lines.
Why You’ll Love It

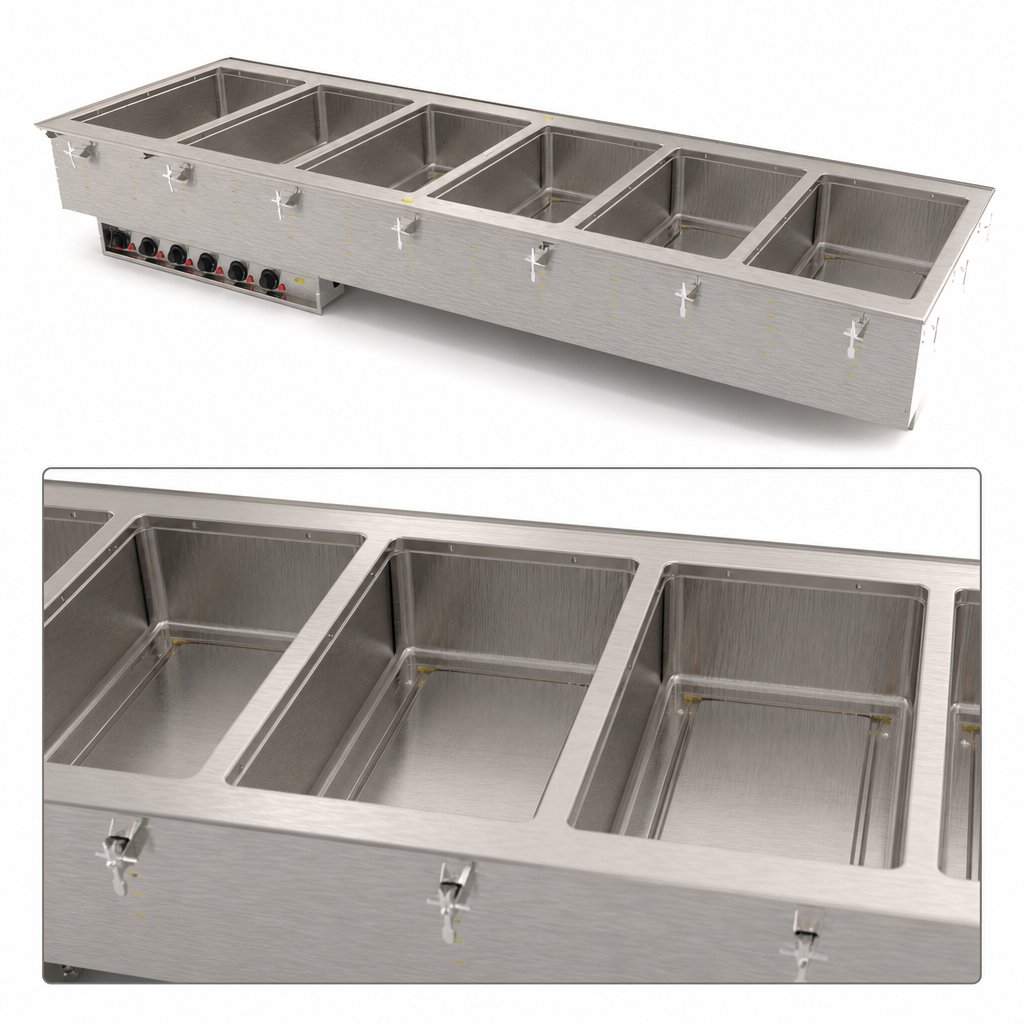

- Six independent 12 × 20 in. wells (full-size steam-table) hold pans up to 6 in. deep.
- Marine-grade 20 ga/SAE-316 stainless steel fights pitting and corrosion for years of dependable use.
- Precise thermostatic controls with power indicator lights let you dial each menu item’s ideal holding temperature.
- Wet-heat design meets NSF 4 performance standards for even, gentle warming.
- 1 in. copper manifold drain with master shut-off plus individual ½ in. ball valves for fast, mess-free draining of each well.
- Fully insulated—sides, base and between wells—to improve efficiency and keep countertops cool.
- Drip-free, full-perimeter flange with gasket contains spills and condensate under the counter.
- 18 ga stainless-steel top and stainless exterior housing stand up to daily wear.
- Ships with mounting/positioning clips for counters up to 3 in. thick and a 6 ft cord—no hard-wiring required.
- Zero-clearance installation rating simplifies drop-in design layouts.
- NSF & cULus listed; proudly Made in the USA.
Technical Specifications
| Wells / Size | (6) Full-size, 12 × 20 in. – up to 6 in. pan depth |
|---|---|
| Total Power | 3,750 W (625 W per well) |
| Electrical | 208 V • 60 Hz • 1-phase • 18.0 A • 6 ft cord with NEMA 6-30P |
| Controls | Six individual thermostatic dials with pilot lights (remote panel, 3 ft tether) |
| Operation | Wet heat only (add water to recommended level) |
| Drain System | 1 in. copper manifold w/ master shut-off & (6) ½ in. well ball valves |
| Overall Dimensions | 81 ¼ W × 26 D × 21 ½ H in. (206.4 × 66 × 54.6 cm) |
| Countertop Cut-Out | 80 ½ W × 25 ¼ D in. (204.5 × 64.1 cm) • ⅞ in. corner radius required |
| Construction | Wells: 20 ga 316 SS • Top: 18 ga SS • Housing: stainless steel |
| Certifications | NSF, cULus |
| Warranty | 2-year parts & labor on HD wells (see VollrathFoodservice.com for details) |
Important: This unit is engineered for wet operation only.
Always maintain the manufacturer-recommended water level to ensure even heating
and to prevent damage to the wells.
Looking for additional installation or maintenance guidance? View the full owner’s manual and warranty policy at VollrathFoodservice.com.
Features & Specs
Features & Specs
Manufacturer
Vollrath
Certifications
NSF, cULus, Made in USA
Height
21.5in
Width
81.25in
Depth
26.0in
Shipping Weight
300.0lbs
Pan Capacity
(6) full size (12" x 20")
Insulated or Non-Insulated
insulated
Style
individual pans
Controls
thermostatic controls
Drain
with drain
Construction
stainless steel construction
Wet or Dry operation
wet
Specifications
Hot Food Well Unit, Drop-In, electric, (6) 12" x 20" individual 20 gauge/316 marine grade stainless steel insulated wells, 81-1/4"W x 26"D x 21-1/2"H (overall), wet operation only, individual thermostatic controls mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, stainless steel exterior housing, includes positioning clips, 3750 watts, 208v/60/1-ph, 18.0 amps, cord with NEMA 6-30P, NSF, cULus, Made in USA (80-1/2"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
