Vollrath 3640961HD Steam Tables & Food Wells
Description

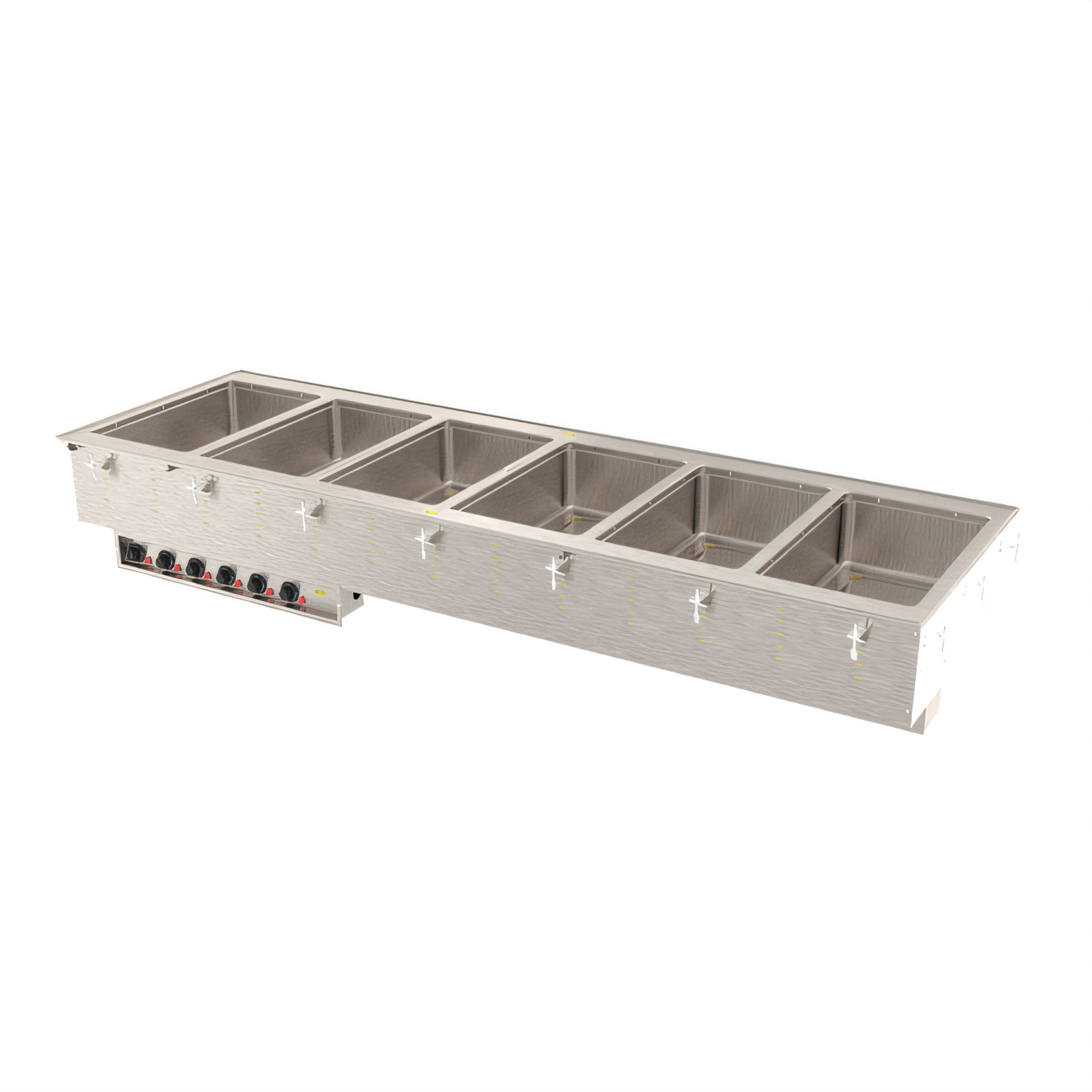

Vollrath Six-Well Modular Hot Drop-In
Model 3640961HD • Auto-Fill • Manifold Drain • Infinite ControlsBuilt for the toughest commercial kitchens, this U.S-made drop-in hot well keeps six full-size pans of food hot, fresh and ready for service while standing up to harsh steam and cleaning chemicals thanks to its SAE 316 marine-grade stainless-steel wells. Installation is fast—just set, plug and fill—so you can get back to feeding guests instead of wiring equipment.
Why You’ll Love It
- Six individual 12" × 20" wells deliver even, consistent heat at 1 000 W per well (6 000 W total).

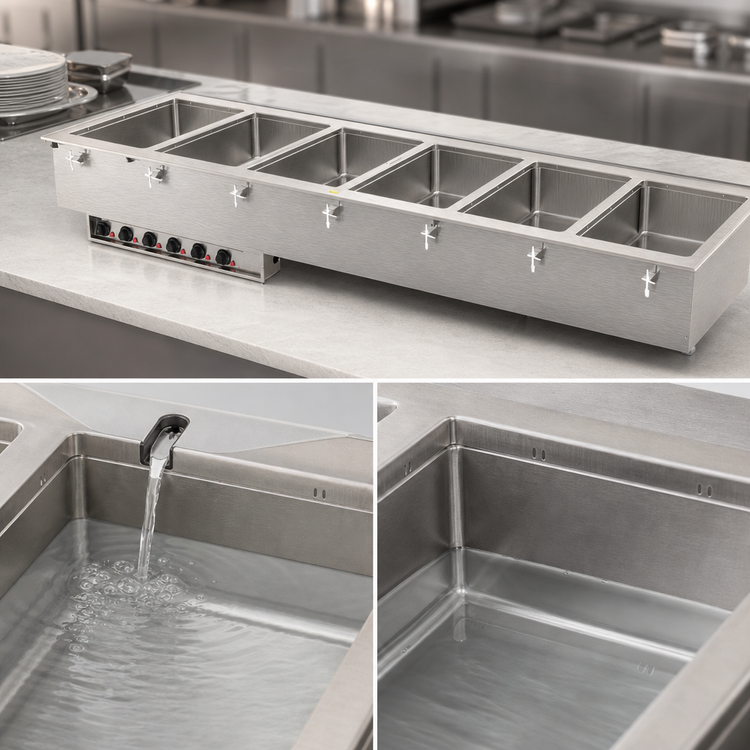

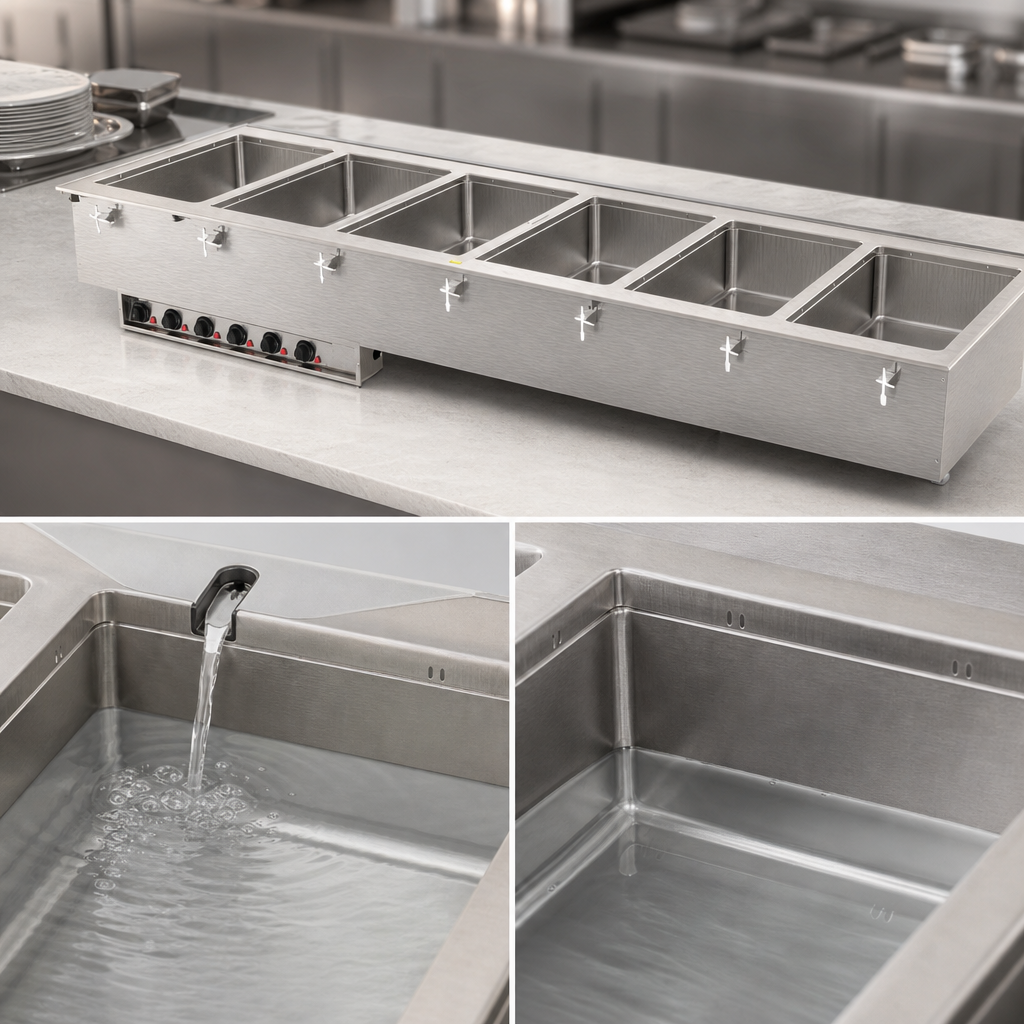

- Auto-fill system maintains proper water level for worry-free wet operation and NSF 4 compliance.
- Insulated on all sides—including between wells—for maximum energy efficiency and cooler counters.
- Remote stainless-steel control panel (3 ft tether) with individual infinite controls and power lights.
- 1" copper manifold drain with master shutoff plus individual ball valves for each well.
- Drip-free flange and included gasket protect counter surfaces from spills and condensation.
- Ships with 6 ft cord and NEMA 6-50P plug—no hard-wiring required.
- Zero-clearance design fits tight layouts; mounting clips handle counters up to 3" thick.
- NSF & cULus listed; backed by Vollrath’s two-year marine-grade warranty.
Technical Specifications
| Model | 3640961HD |
|---|---|
| Pan Capacity | (6) full-size steam table pans, up to 6" deep (adapter bars recommended for fractional pans) |
| Operation | Wet only • Auto-fill • Infinite manual controls |
| Total Wattage | 6 000 W (1 000 W × 6) |
| Electrical | 208-240 V / 60 Hz / 1 ph, 21.6-25 A, cord & NEMA 6-50P plug included |
| Overall Dimensions | 81 ¼" W × 26" D × 21 ½" H |
| Counter Cut-Out | 80 ½" W × 25 ¼" D, ⅞" corner radius |
| Well Construction | 20 ga 316 marine-grade stainless steel, removable service panels |
| Top / Exterior | 18 ga stainless-steel top with drip-edge • Stainless-steel housing |
| Drain | 1" copper manifold drain, individual well shutoffs + master shutoff |
| Certifications | NSF 4 (wet use), cULus, Made in USA |
| Warranty | 2-year parts & labor (see VollrathFoodservice.com for full policy) |
Perfect For
- Buffet & cafeteria serving lines
- Supermarket hot bars & delis
- Catering build-outs and mobile kitchens
- Stadium, casino and resort back-of-house service
Modular drop-ins are built to order and cannot be cancelled or returned.
For full warranty details visit VollrathFoodservice.com.
