Vollrath  |  SKU: 3640961

Vollrath 3640961 Steam Tables & Food Wells

$5,507.55
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

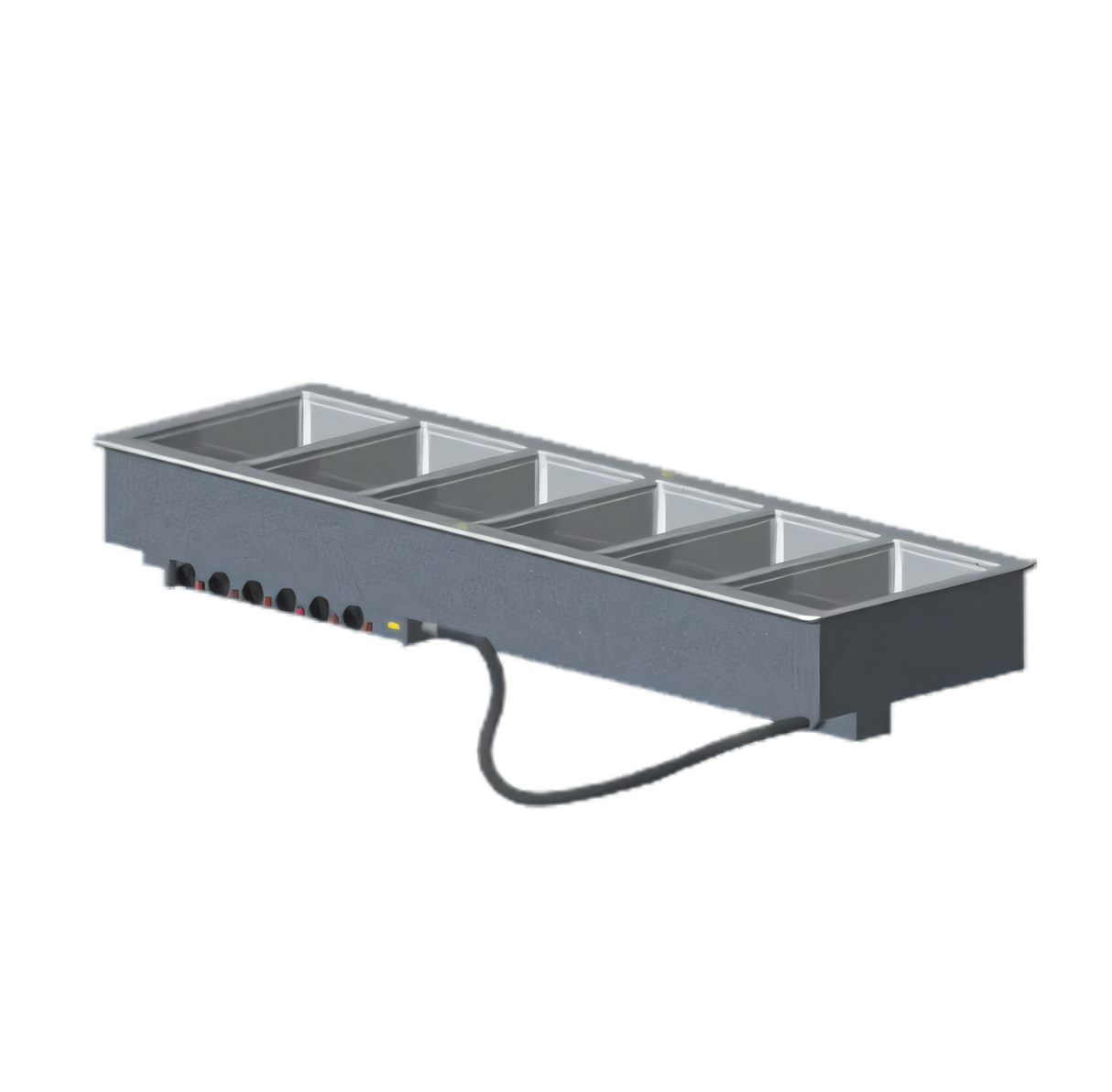

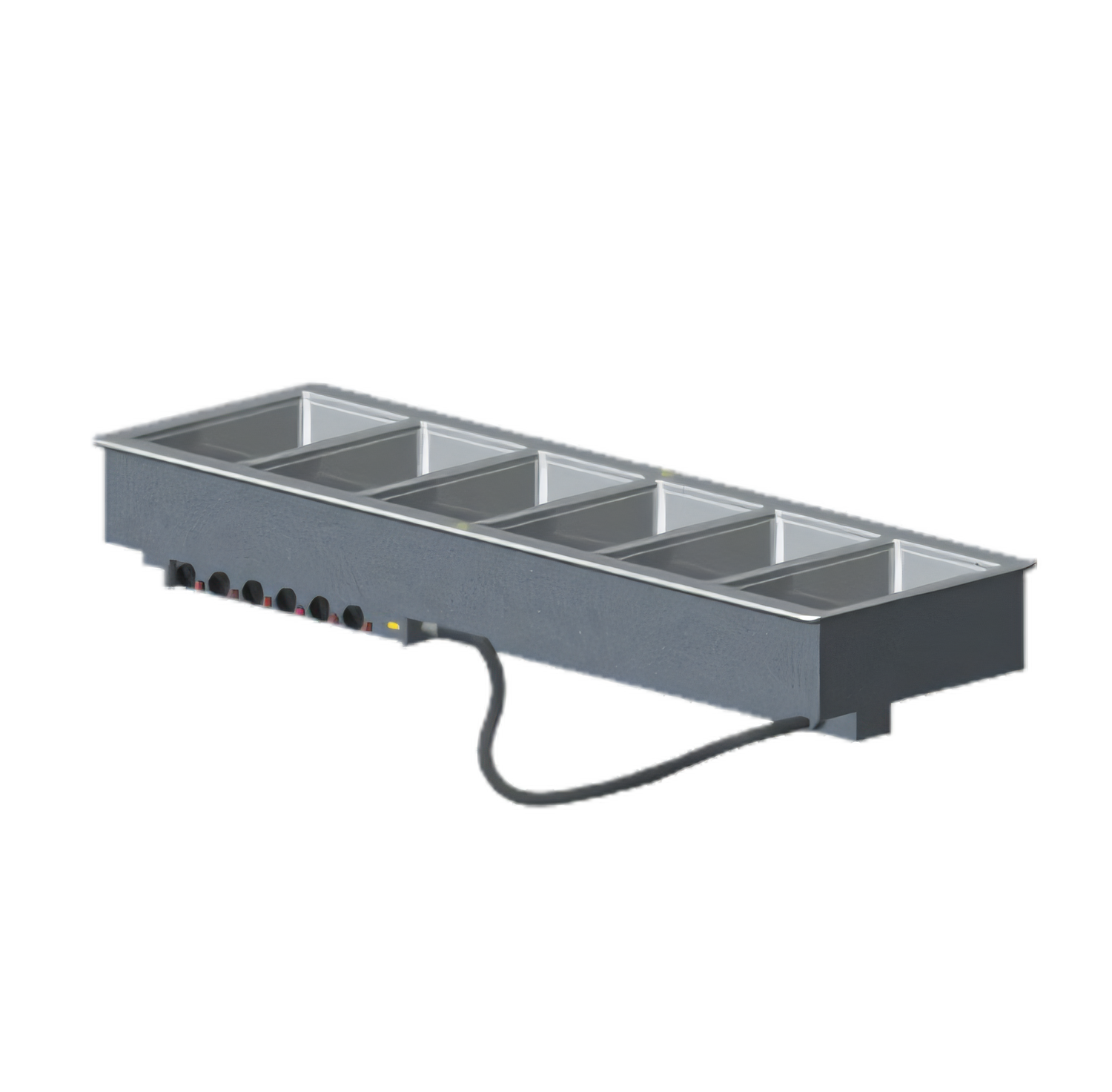

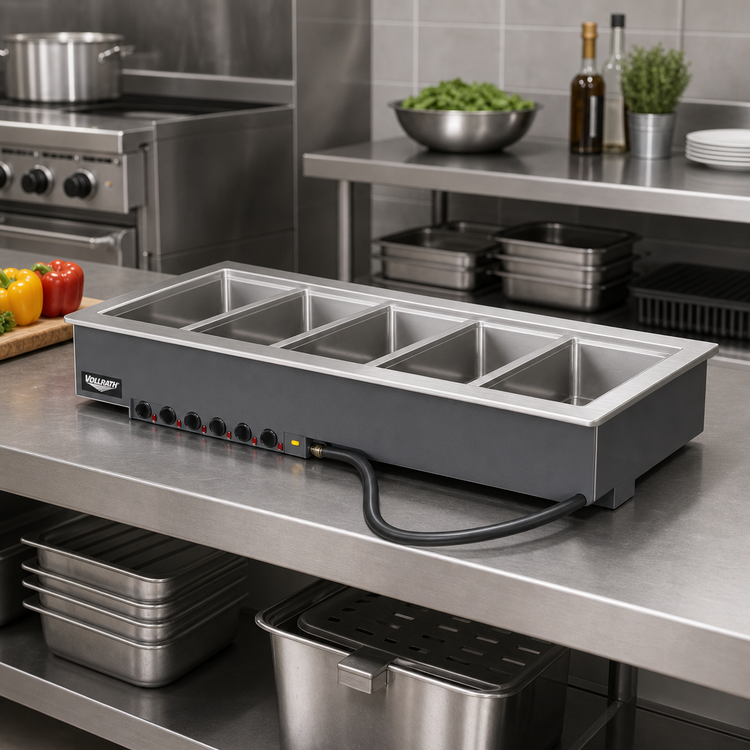

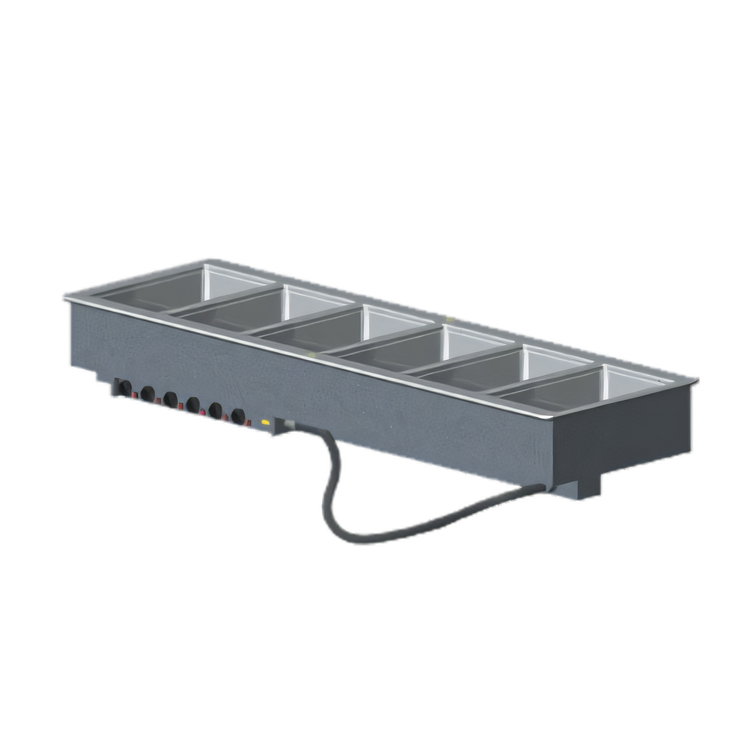

Vollrath 6-Well Drop-In Hot Food Well with Auto-Fill – 208-240 V, 6 kW

Model 3640961 | NSF & cULus Listed | Made in USA

Engineered for demanding buffet and cafeteria lines, this Vollrath modular drop-in keeps six different menu items at safe, even serving temperatures—without constant monitoring. The factory-installed Auto-Fill system automatically maintains water level in every well, reducing labor while ensuring optimum heat transfer and food quality.

Key Features

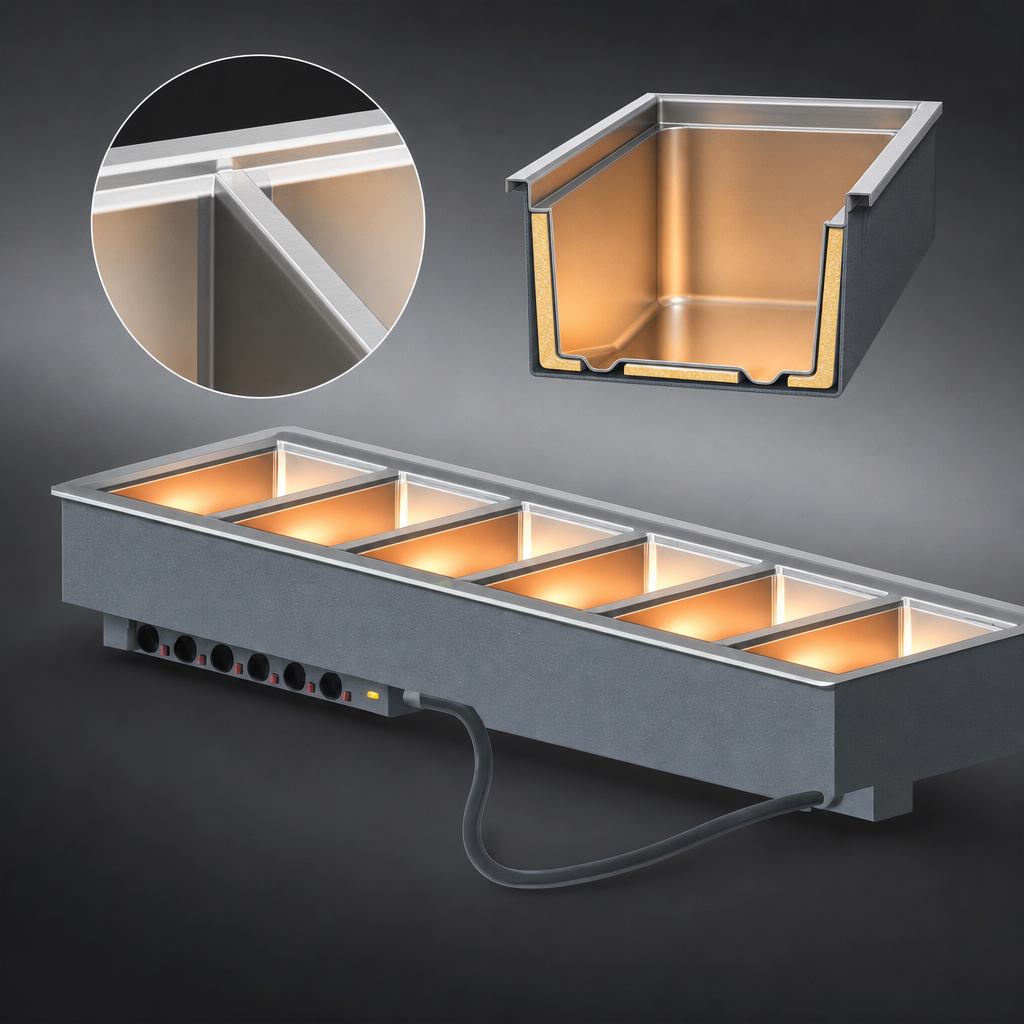

  • Six individual 12″ × 20″ wet-operation wells, 20-gauge stainless steel, insulated for zero-clearance installation.
  • Auto-Fill kit eliminates manual refills; check valve prevents cross-contamination.
  • Independent infinite controls with power indicator lights for precise, well-by-well temperature adjustment.
  • 1″ copper manifold drain with individual well shut-offs plus master shut-off for fast, mess-free draining.
  • 18-gauge stainless steel top with full-perimeter drip-edge to contain spills and protect surrounding counters.
  • 6 ft power cord with NEMA 6-50P plug—no hard-wiring required.
  • Includes positioning and mounting clips for counters up to 3″ thick (top-mount installation).
  • NSF 4 compliant when operated wet; cULus listed for electrical safety.

Specifications

Model 3640961
Well Capacity 6 × Full-size pans (12″ × 20″) up to 6″ deep
Operation Wet heat only, electric
Control Type Individual infinite, front panel
Total Wattage 6,000 W (1,000 W per well)
Electrical 208-240 V / 60 Hz / 1-phase, 21.6 – 25 A, NEMA 6-50P
Overall Dimensions 81-1/4″ W × 26″ D × 21-1/2″ H
Cutout Size 80-1/2″ W × 25-1/4″ D (7/8″ corner radius)
Top Material 18 ga stainless steel
Exterior Housing 18 ga galvanized steel
Drainage 1″ copper manifold with individual & master shut-offs
Water Supply Automatic fill connection (separate service required)
Cord Length 6 ft (1.83 m)
Certifications NSF 4, cULus
Warranty 1-year parts & labor (see VollrathFoodservice.com for full details)

Ideal For

  • Buffet & cafeteria service lines
  • Supermarket hot bars
  • Convenience stores
  • Catering and banquet operations
Installation Note: Unit meets NSF 4 performance standards only when each well is operated with water. Install and connect by a qualified electrician and plumber. Modular drop-ins are non-returnable once ordered.

Need sheet-pan adapters or fractional pan bars? Add Vollrath adapter #19186 (sold separately).

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

21.5in

Shipping Weight

200.0lbs

Controls

infinite controls

Pan Capacity

(6) full size (12" x 20")

Insulated or Non-Insulated

insulated

Style

individual pans

Drain

with drain

Construction

stainless steel top, corrosion resistant steel exterior

Wet or Dry operation

wet

Specifications

Hot Food Well Unit, Drop-In, electric, (6) 12" x 20" individual 20 gauge stainless steel insulated wells, 81-1/4"W x 26"D x 21-1/2"H (overall), wet operation only, auto-fill, individual infinite controls mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, 18 gauge galvanized exterior housing, includes positioning clips, 6000 watts, 208-240v/60/1-ph, 21.6-25.0 amps, cord with NEMA 6-50P, NSF, cULus, Made in USA (80-1/2"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
