Vollrath 3640960HD Steam Tables & Food Wells
Description

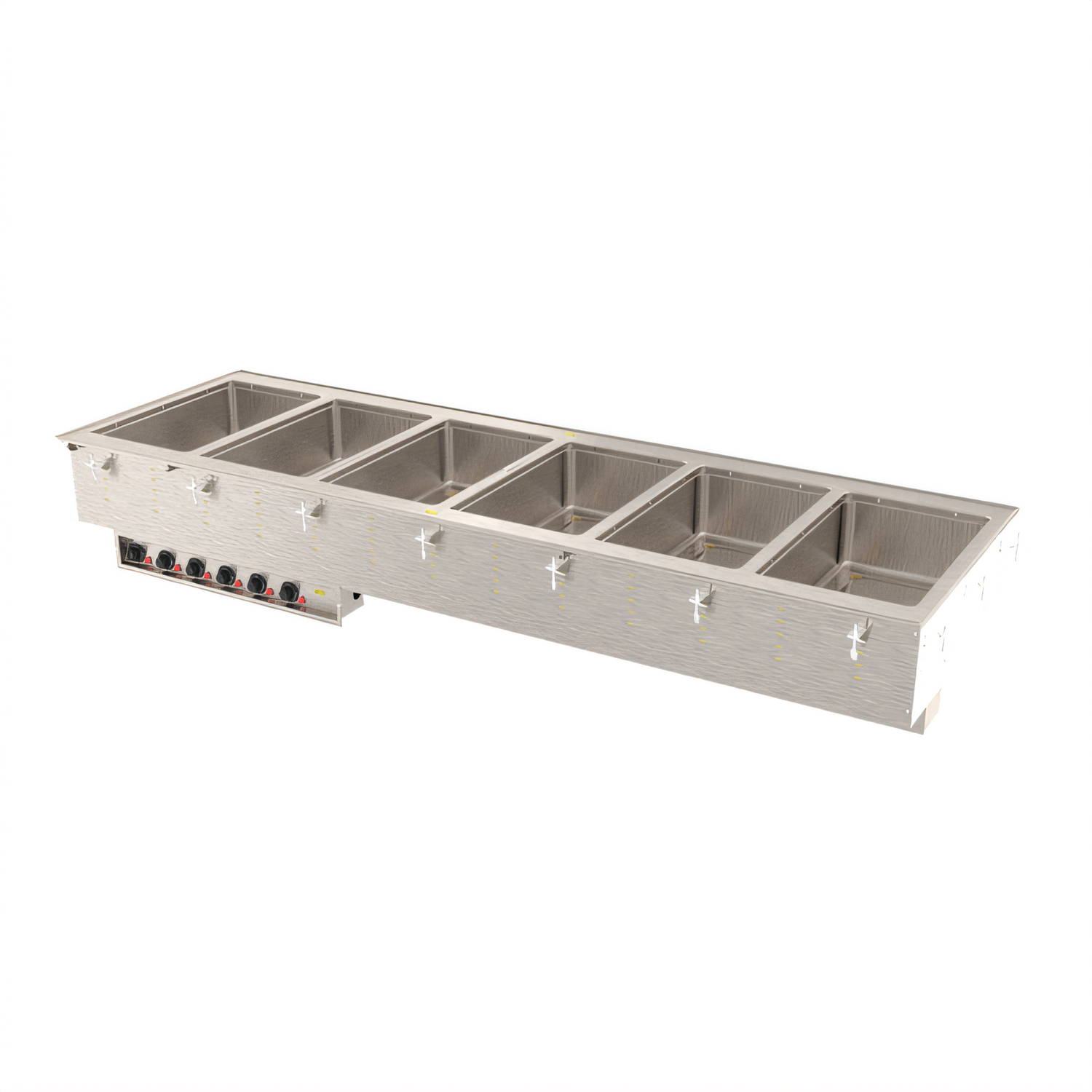

Vollrath 6-Well Modular Hot Food Drop-In – Auto-Fill, Marine-Grade
Model 3640960HD | 625 W per well | 208 V, 1-phaseKeep soups, sauces and entrées at safe serving temperatures in the harshest kitchen or coastal environments. This Vollrath six-well drop-in features individually controlled 12" × 20" marine-grade (316) stainless-steel wells, an automatic water fill system and a 1" copper manifold drain—everything operators need for dependable, worry-free hot holding.
Key Features

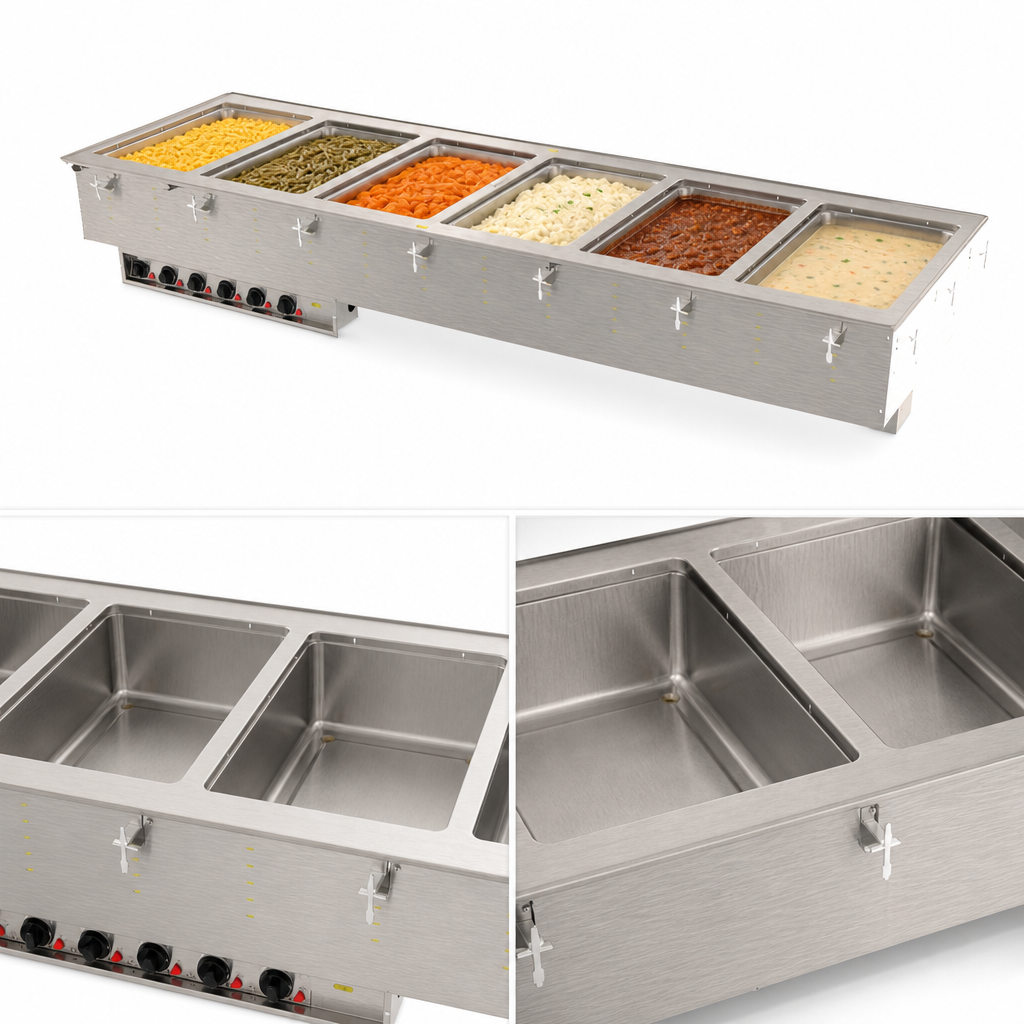

- Six independent 12" × 20" wells, 20-gauge 316 marine-grade stainless steel for maximum corrosion resistance
- Auto-fill system maintains proper water level for even wet-heat performance
- Infinite controls with separate power indicator light for each well (remote panel on 3' tether)
- 1" (2.5 cm) copper manifold drain with:
- Individual ball-valve shutoffs at each well
- Master manifold shutoff for fast cleaning
- Fully insulated on all sides—including between wells—for energy efficiency
- Drip-free full-perimeter flange contains spills and condensation
- 18-gauge stainless-steel top and rugged exterior housing
- 6' (1.8 m) factory-installed cord with NEMA 6-30P; no hard-wiring required
- Zero-clearance installation; includes mounting clips for countertops up to 3" (7.6 cm) thick
- NSF 4 & cULus listed; Made in the USA
At-a-Glance Specs
| Model | 3640960HD |
|---|---|
| Total Capacity | 6 full-size steam table pans (12" × 20"), up to 6" deep |
| Operation | Wet heat only (water required) |
| Heating Power | 625 W per well | 3,750 W total |
| Voltage / Phase | 208 V / 60 Hz / 1-ph |
| Current Draw | 18.0 A |
| Controls | Individual infinite-switch thermostats, remote panel |
| Drain | 1" copper manifold with individual & master shutoffs |
| Auto-Fill | Yes – factory installed |
| Overall Size (W×D×H) | 81-1/4" × 26" × 21-1/2" (206.4 × 66 × 54.6 cm) |
| Counter Cut-out | 80-1/2" × 25-1/4" (204.5 × 64.1 cm) | 7/8" corner radius |
| Ship Weight | Approx. 240 lb (109 kg) |
| Certifications | NSF 4, cULus |
| Country of Origin | USA |
Ideal For
- Buffets, cafeterias and banquet lines
- Schools, healthcare and institutional kitchens
- Coastal operations or locations with high salt-air exposure
Two-year limited warranty on marine-grade wells. For complete coverage details, visit vollrathfoodservice.com. Modular drop-ins cannot be cancelled or returned once ordered.
