Vollrath 3640960 Steam Tables & Food Wells
Description

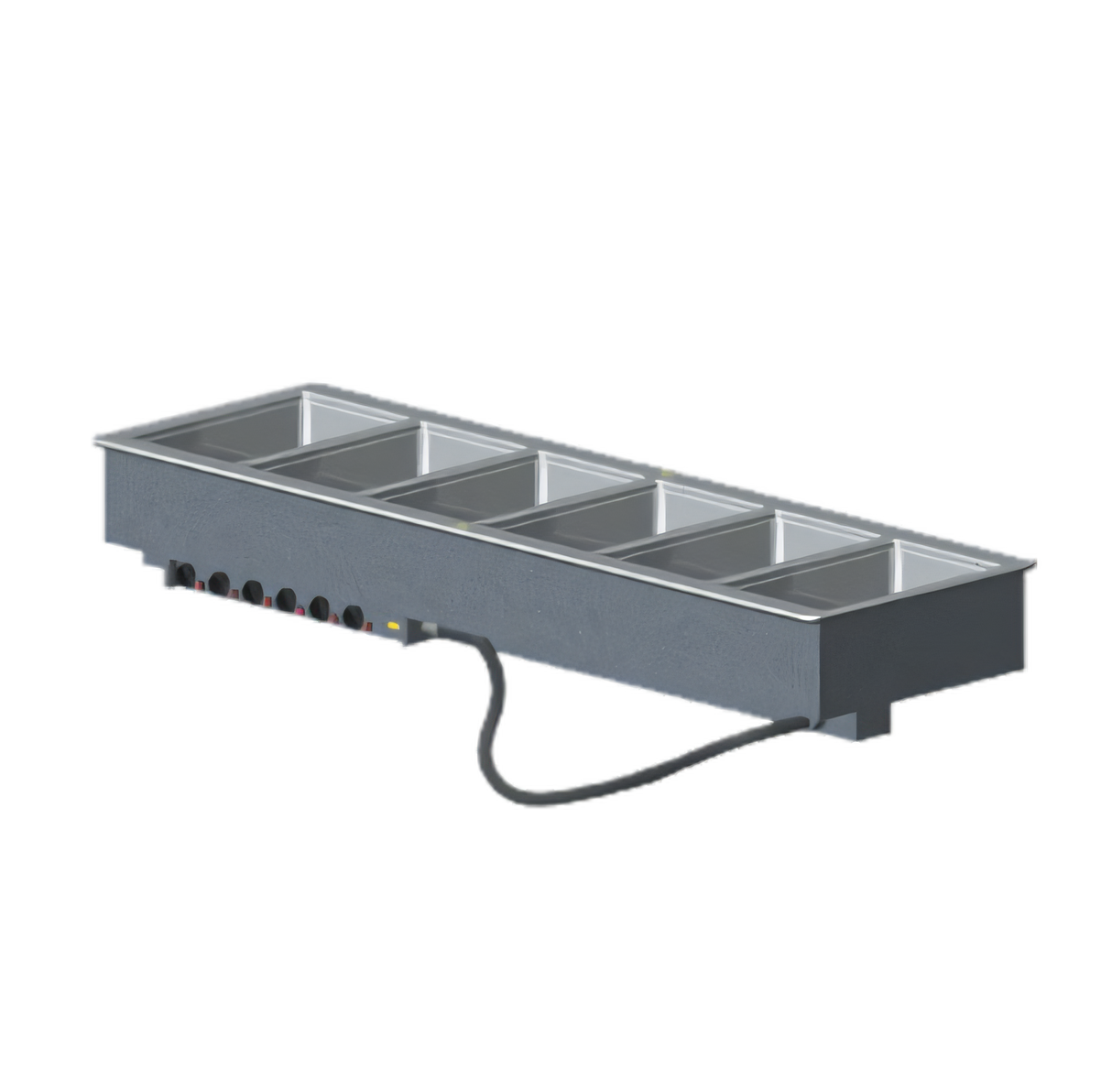

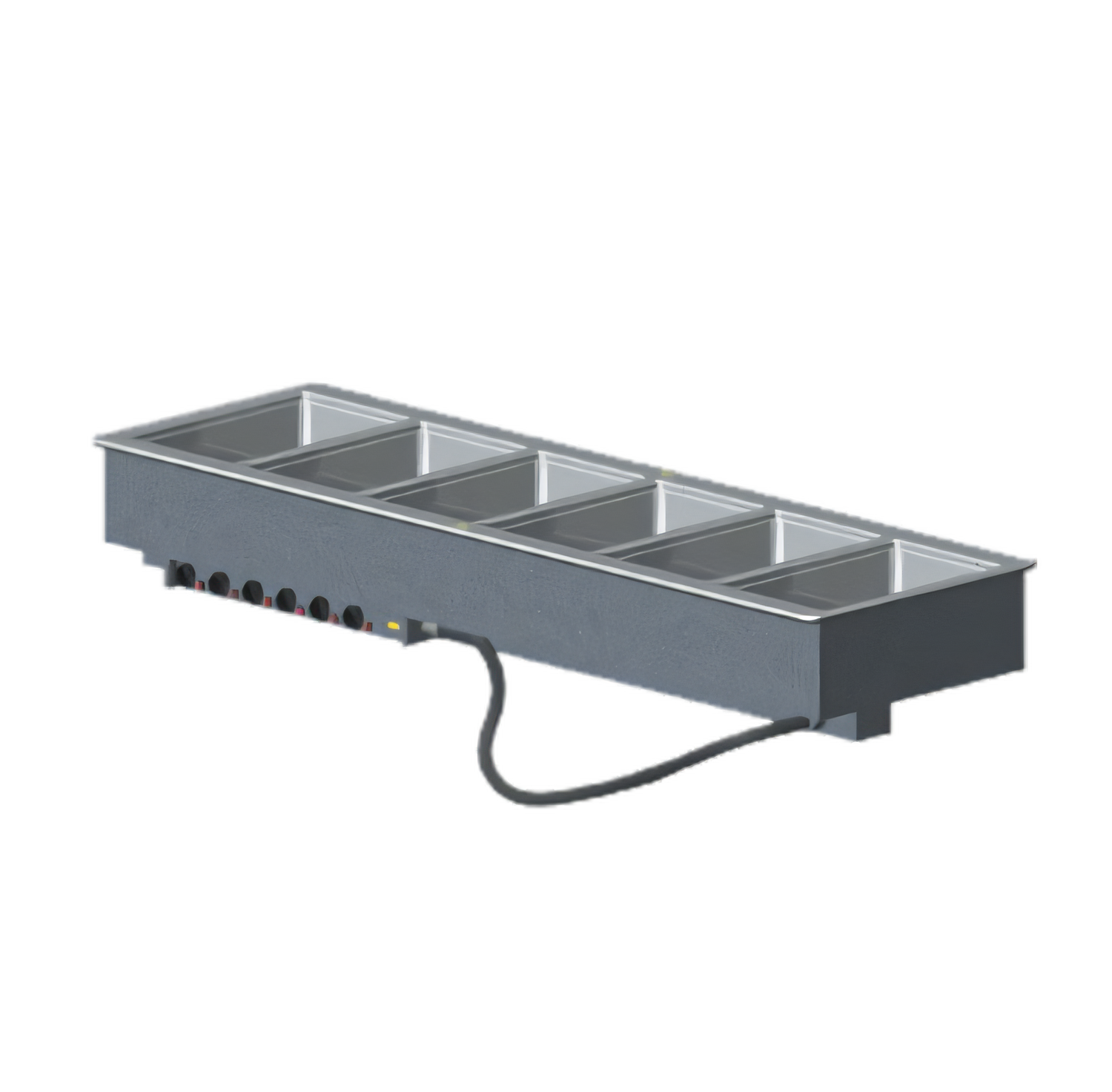

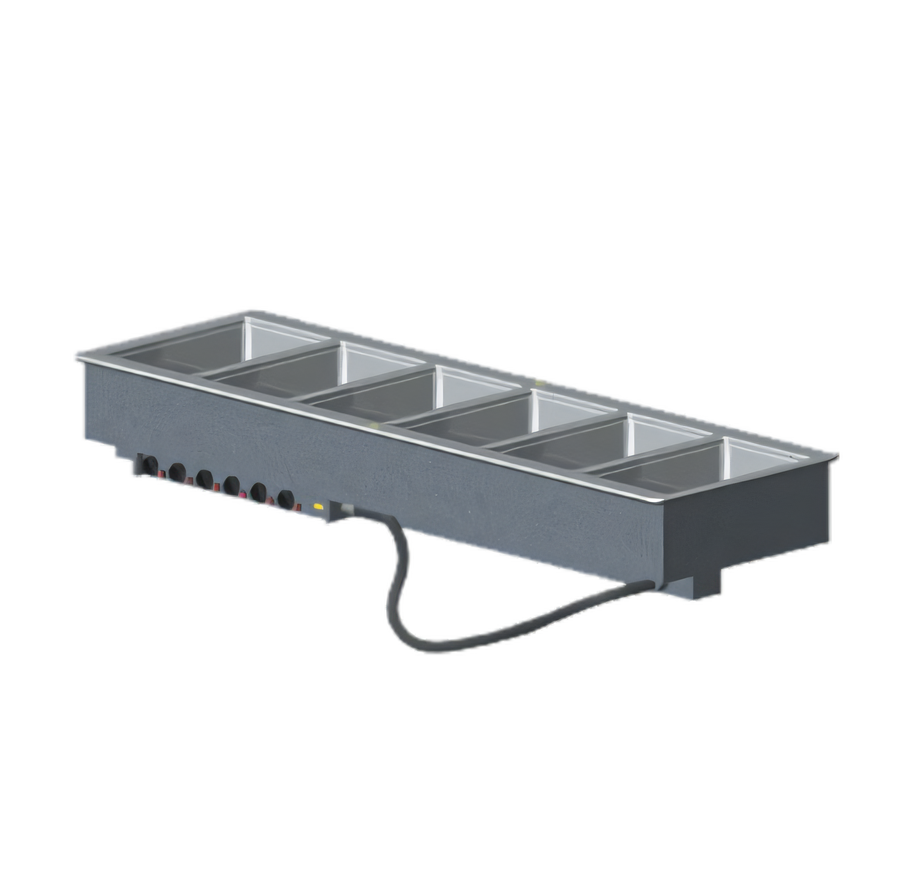

Six-Well Drop-In Hot Food Well w/ Auto-Fill – 208 V, 625 W per Well

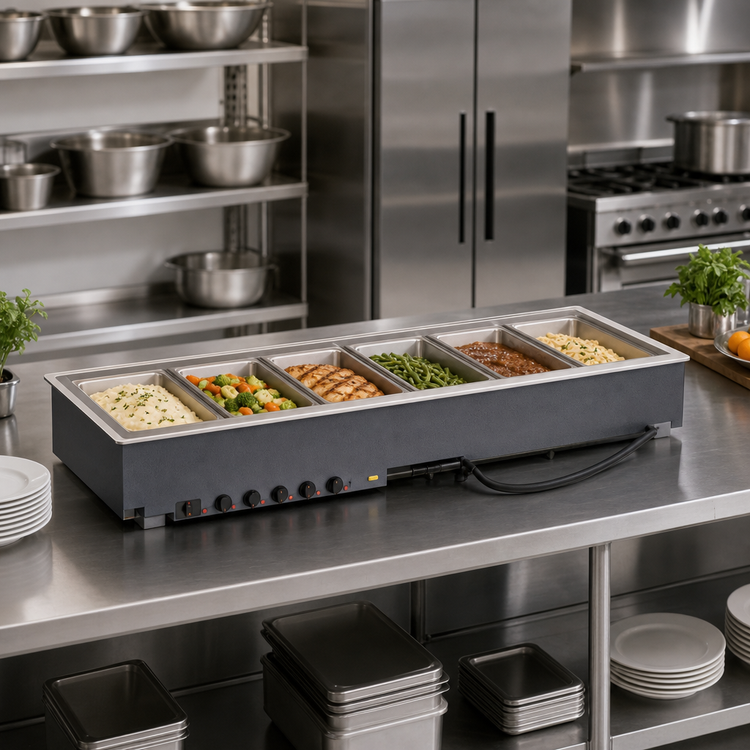

Vollrath Modular Series • NSF & cULus Listed • Made in USABuilt for busy serving lines that demand reliability and precise holding, this Vollrath electric drop-in keeps six full-size steam table pans at safe, appetizing temperatures all day long—automatically maintaining the ideal water level so your staff never has to stop and refill.
Why You’ll Love It
- Auto-fill system saves labor, prevents dry-run damage and maintains consistent humidity.
- Individual infinite controls & power indicator lights for each well provide pinpoint temperature management.
- Drip-free 18 ga stainless-steel flange contains spills for a cleaner counter.
- 1" copper manifold drain with shut-offs at every well plus master shut-off = fast, mess-free draining.
- Deep-drawn 20 ga stainless wells accept pans up to 6" deep—full-size or fractional (use adaptor bars).
- High-density glass-fiber insulation allows zero-clearance installation and improves energy efficiency.
- Ships ready to install: positioning clips, breaker gasket and 6 ft cord with NEMA 6-30P plug included.
Technical Specifications
| Configuration | 6 independent 12" × 20" wells (wet operation only) |
|---|---|
| Overall Dimensions | 81-1/4" W × 26" D × 21-1/2" H |
| Counter Cut-Out | 80-1/2" W × 25-1/4" D • 7/8" corner radius |
| Electrical | 208 V / 60 Hz / 1-phase • 18 A • 3,750 W total • NEMA 6-30P plug |
| Controls | 6 infinite switches on a tethered stainless panel (3 ft cord) |
| Drainage | 1" copper manifold drain + individual well shut-offs & manifold shut-off |
| Construction |
• Top: 18 ga stainless steel • Wells: 20 ga stainless steel (insulated) • Exterior Housing: 18 ga galvanized steel |
| Certifications | NSF 4, cULus |
| Origin & Warranty | Made in USA • 1-year parts & labor (see VollrathFoodservice.com for details) |
Modular drop-ins are built to order and are not eligible for cancellation or return once processing begins.
Popular Accessories (Sold Separately)
- Adaptor Bars for fractional pans
- Sheet-Pan Adapter – Item 19186
- Controller extension cables for remote mounting
