Vollrath

Vollrath 6-Well Drop-In Electric Hot Food Well Unit with 12" x 20" Individual Insulated Wells, Marine-Grade Stainless Steel

SKU: 3640951HD
$5,687.75
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Food Bars & Buffets Food Holding & Warming Equipment Food Wells & Serving Lines Hot Well New Arrivals Restaurant Equipment Steam Tables & Food Wells Vollrath

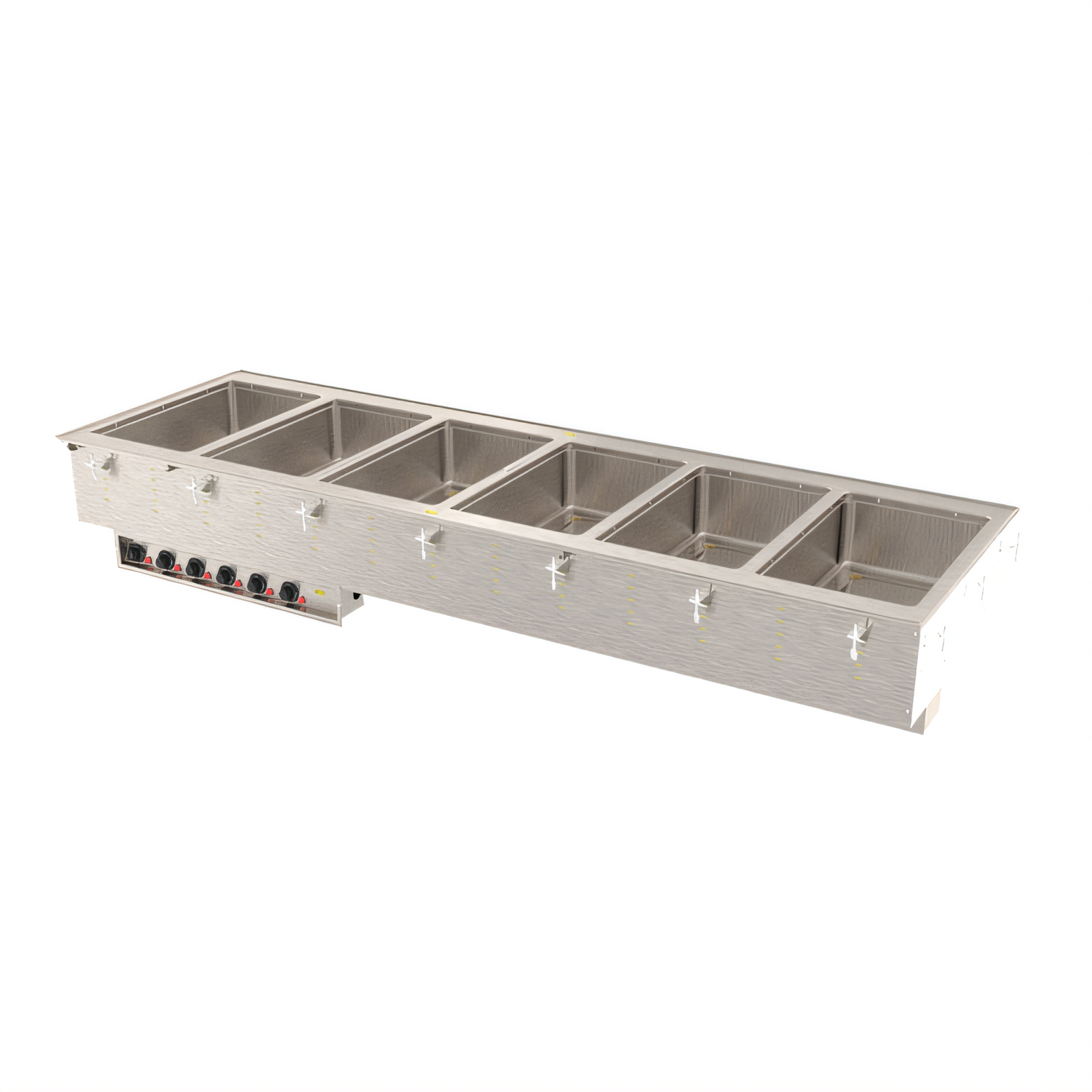

Vollrath 6-Well Drop-In Electric Hot Food Well Unit with 12" x 20" Individual Insulated Wells, Marine-Grade Stainless Steel

Wet Operation, Infinite Controls, 208-240V, 6000W

Keep six separate menu items hot and ready to serve with insulated, individually controlled wells built for wet operation.

  • Holds (6) full-size 12" x 20" pans in individual insulated wells.
  • Wet operation only for reliable hot-holding performance.
  • Infinite individual controls let you fine-tune each well separately.
  • 1" copper manifold drain with individual well shutoffs and a manifold shutoff simplifies cleanup.
  • Drip-free flange helps contain spills at the drop-in opening.
  • Marine-grade stainless steel wells and stainless steel exterior construction support heavy-duty use.
  • Includes positioning clips and a cord with NEMA 6-50P plug.

Overall Dimensions:

21.5"H

Product Weight:

232.0 lb

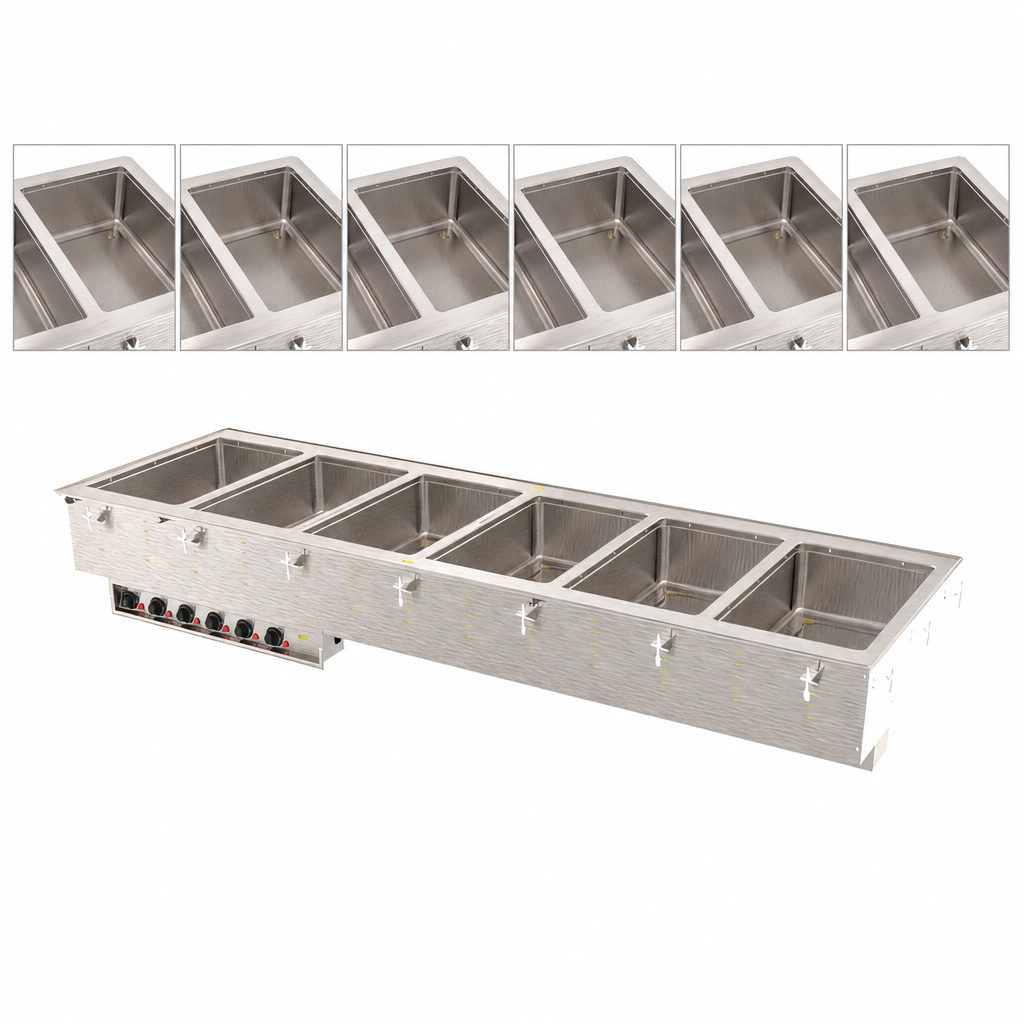

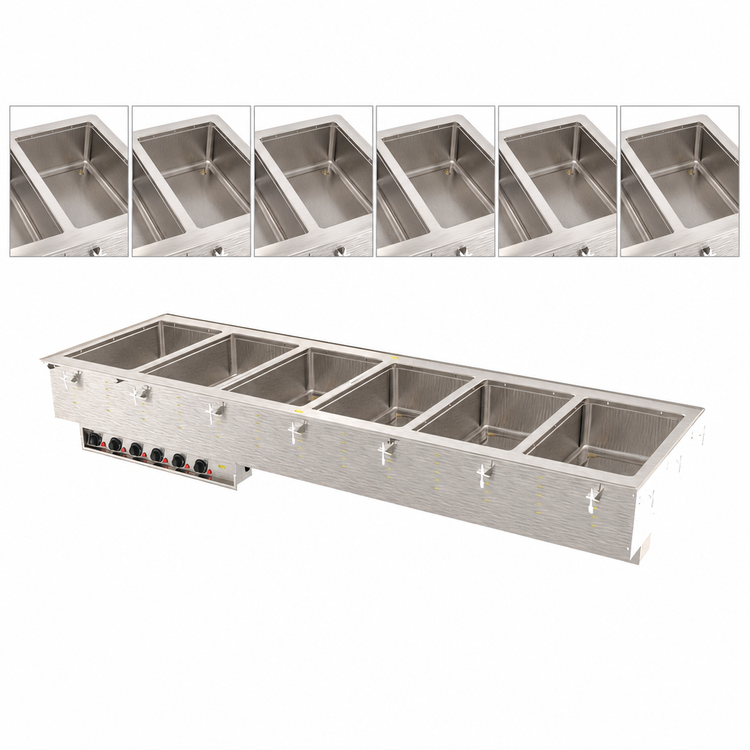

Six Individual Wells

Designed for six separate full-size pans, giving you flexible holding for multiple menu items.

Marine-Grade Stainless Steel Wells

Individual wells are made from 20-gauge 316 marine-grade stainless steel for added durability.

Infinite Individual Controls

Each well has its own infinite control for adjustable heat management.

Wet Operation Only

Built specifically for wet use, not dry operation.

Manifold Drain System

Includes a 1" copper manifold drain with individual well shutoffs and a manifold shutoff for easier draining.

Drip-Free Flange

Helps keep the installation area cleaner by containing spills at the opening.

Integrated Power Indicator Light

Provides a visible status indication during operation.

Included Positioning Clips

Positioning clips are included to help secure the unit during installation.

Type Hot Food Well Unit
Style Individual Pans
Installation Type Drop-In
Controls Infinite
Pan Capacity 6 Full-Size Pans
Pan Size 12 Inches x 20 Inches
Material Stainless Steel
Interior Finish 316 Marine Grade Stainless Steel
Voltage 208-240 Volts
Watts 6 kW
Amps 21.6-25.0 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 6-50P
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Height 22 Inches
Shipping Weight 232 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

2-year warranty on HD wells.

Documents

PDF Cutsheet PDF Download PDF Catalog page PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It holds six full-size 12" x 20" pans in individual wells.
This model is wet operation only.
It operates on 208-240V, 60 Hz, 1-phase power, draws 21.6-25.0 amps, and uses a NEMA 6-50P plug.
Yes. It includes a 1" copper manifold drain with individual well shutoffs and a manifold shutoff.
The cutout size is 80-1/2" W x 25-1/4" D and requires a 7/8" corner radius.
HD wells have a 2-year warranty. Refer to vollrathfoodservice.com for the full warranty policy.
